Introduction

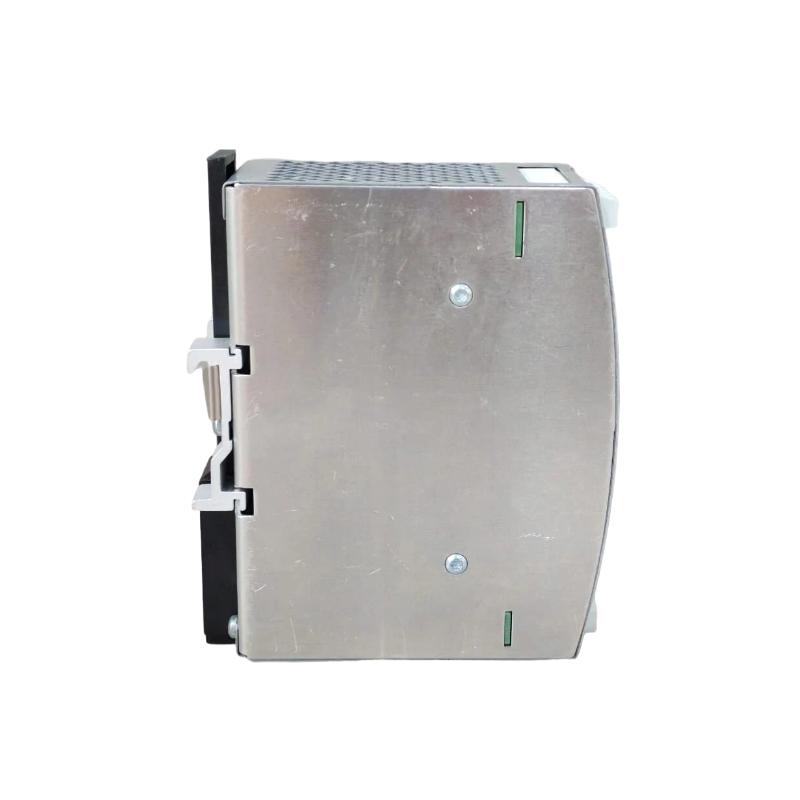

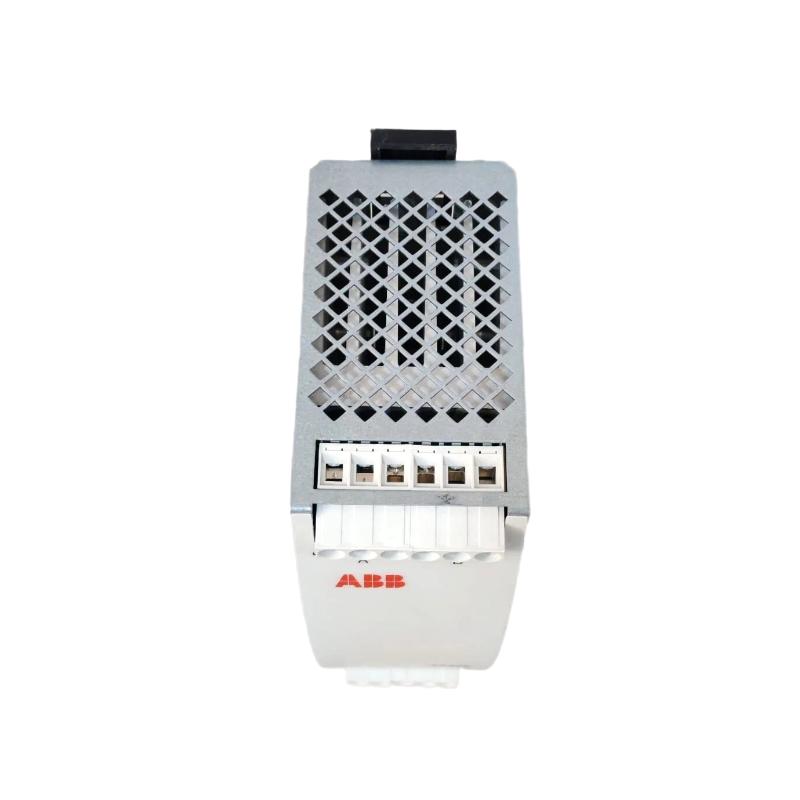

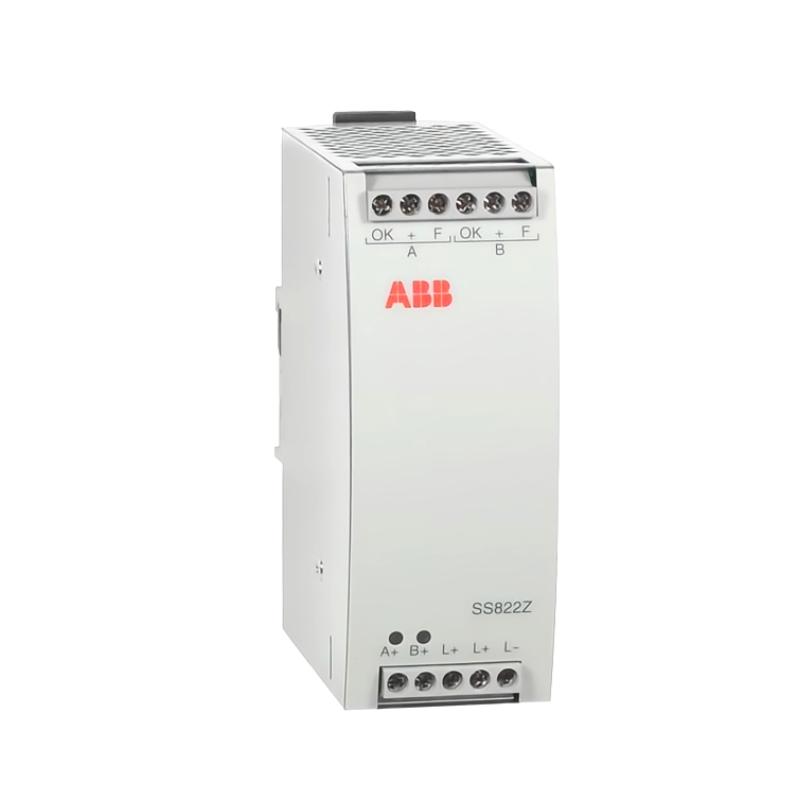

The ABB SS822Z (3BSC610055R1) Power Voting Unit is a redundancy management component designed for ABB AC 800M and S800 I/O systems. It is used to supervise dual 24V DC power inputs and ensure a stable and continuous power supply to automation and process control systems.
The unit applies a power selection and validation method that continuously evaluates incoming power sources and maintains the most stable supply path for downstream control equipment. This supports high system availability in industrial automation environments.
Technical Specifications
| Item | Description |
|---|
| Product Type | Power Voting / Redundancy Unit |
| Model | SS822Z |
| Part Number | 3BSC610055R1 |
| Manufacturer | ABB |
| System Compatibility | AC 800M / S800 I/O / 800xA systems |
| Function | Dual power input supervision and output control |
| Input Voltage | 24 V DC (dual inputs) |
| Output Voltage | 24 V DC (single regulated output) |
| Maximum Input Current | up to 10 A per input |
| Maximum Output Current | up to 20 A |
| Redundancy Concept | Dual input validation logic |
| Mounting Type | DIN rail |
| Protection Features | Overvoltage limitation, current control, input monitoring |
Applications
The SS822Z unit is commonly used in industrial automation systems where continuous and stable power distribution is required:
-
ABB AC 800M control systems
-
S800 I/O redundant power architectures
-
Industrial process automation systems
-
Power generation monitoring systems
-
Oil & gas and petrochemical control environments
-
Manufacturing automation infrastructure
It supports system designs where consistent power coordination between multiple sources is required.
Technical FAQs
1. What is the function of the SS822Z unit?
It manages and coordinates two 24V DC power inputs and provides a unified output.
2. Why is it called a voting unit?
It evaluates multiple power sources and selects the most stable input for output.
3. How many inputs does it support?
Two independent 24V DC inputs.
4. What is the output configuration?
A single regulated 24V DC output.
5. Is it used in ABB AC 800M systems?
Yes, it is commonly used in AC 800M and S800 I/O systems.
6. What is the mounting method?
DIN rail installation inside control cabinets.
7. Does it require software setup?
No software configuration is required.
8. What is its role in redundancy systems?
It supports stable power distribution using dual input coordination.
9. Is it suitable for industrial environments?
Yes, it is designed for industrial automation applications.
10. What type of maintenance does it require?
Minimal maintenance, mainly visual inspection and system checks.
