Yokogawa S9681DB Digital Oscilloscope Module

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

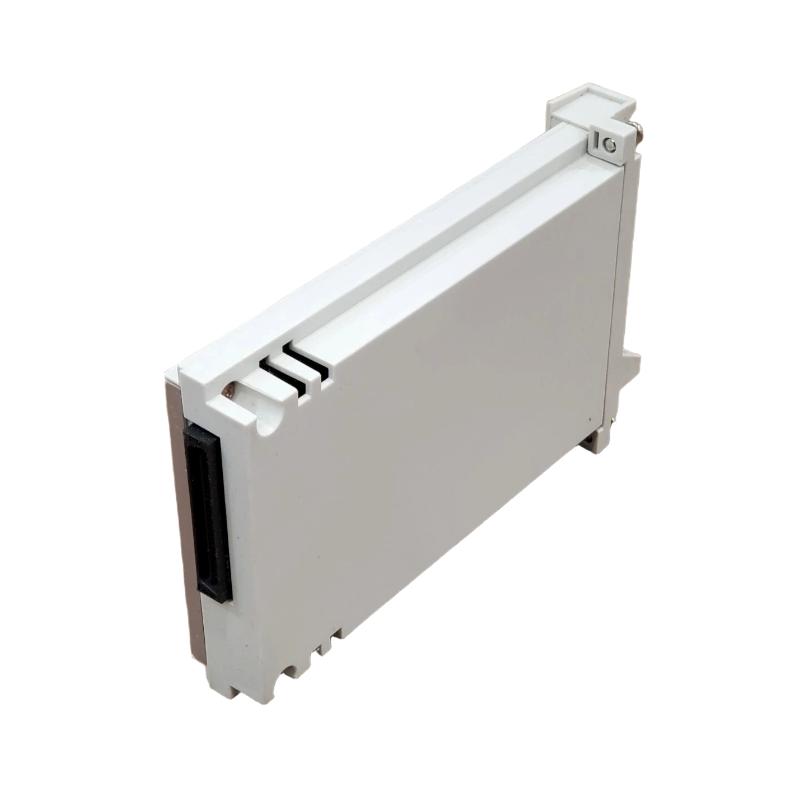

Yokogawa S9681DB Digital Oscilloscope Module

Name: Yokogawa S9681DB Digital Oscilloscope Module
Brand: Yokogawa Electric
SKU: 8151
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:S9681DB
Product Origin:Japan
Product Dimensions:130 × 45 × 250 mm
Product Weight:0.5kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The Yokogawa S9681DB Digital Oscilloscope Module is a precision measurement and diagnostic component designed for integration within Yokogawa industrial monitoring and testing systems. It enables high-speed waveform acquisition, signal analysis, and troubleshooting in complex automation and instrumentation environments.

Built with Yokogawa’s expertise in measurement technology, this module is engineered to deliver accurate signal visualization and reliable performance, making it an essential tool for engineers who require real-time insight into electrical behavior within control systems.

Technical Specifications

Parameter	Specification
Model	S9681DB
Module Type	Digital Oscilloscope Module
Function	Waveform acquisition & signal analysis
Input Channels	Typically 2–4 channels (configuration dependent)
Bandwidth	Up to ~100 MHz (application dependent)
Sampling Rate	Up to 1 GS/s
Input Voltage Range	±5 V to ±50 V (depending on configuration)
Resolution	8–12 bit vertical resolution
Trigger Modes	Edge, pulse width, pattern triggering
Memory Depth	High-capacity waveform storage
Interface	System-integrated communication bus
Operating Temperature	0°C to +50°C
Storage Temperature	-20°C to +70°C
Dimensions (H×W×D)	~130 × 45 × 250 mm
Weight	Approx. 0.4–0.6 kg
Mounting Type	Rack-mounted or system-integrated module

Industrial Applications

The S9681DB module is widely used in environments where accurate signal monitoring and diagnostics are essential:

Industrial automation system troubleshooting
Electrical signal analysis in control cabinets
Power system waveform monitoring
Laboratory and field testing environments
Equipment commissioning and maintenance diagnostics

It is particularly valuable for engineers needing real-time waveform visibility in complex systems.

Key Advantages

High-Speed Signal Acquisition: Enables accurate capture of fast-changing electrical signals
Integrated System Design: Seamlessly works within Yokogawa measurement platforms
Advanced Triggering Capabilities: Supports multiple trigger modes for precise diagnostics
Compact and Modular: Ideal for installation in space-constrained control systems
Reliable Measurement Accuracy: Designed for consistent and repeatable results
Enhanced Troubleshooting Efficiency: Reduces downtime by enabling quick fault identification

Technical FAQs

1. What is the main function of the S9681DB?
It captures and analyzes electrical waveforms for diagnostic and monitoring purposes.

2. How many channels does it support?
Typically 2 to 4 input channels depending on configuration.

3. What is the maximum sampling rate?
Up to approximately 1 GS/s.

4. What type of signals can it measure?
Voltage signals within the specified input range.

5. Does it support advanced triggering?
Yes, including edge, pulse width, and pattern triggers.

6. Is it suitable for industrial environments?
Yes, it is designed for both industrial and laboratory applications.

7. How is it installed?
It is integrated into Yokogawa modular systems or rack-based setups.

8. What is the bandwidth capability?
Up to around 100 MHz depending on application setup.

9. Can it store waveform data?
Yes, it includes internal memory for waveform capture and analysis.

10. Why is it useful in automation systems?
Because it provides real-time insight into signal behavior, helping engineers quickly diagnose and resolve issues.
