Product Introduction

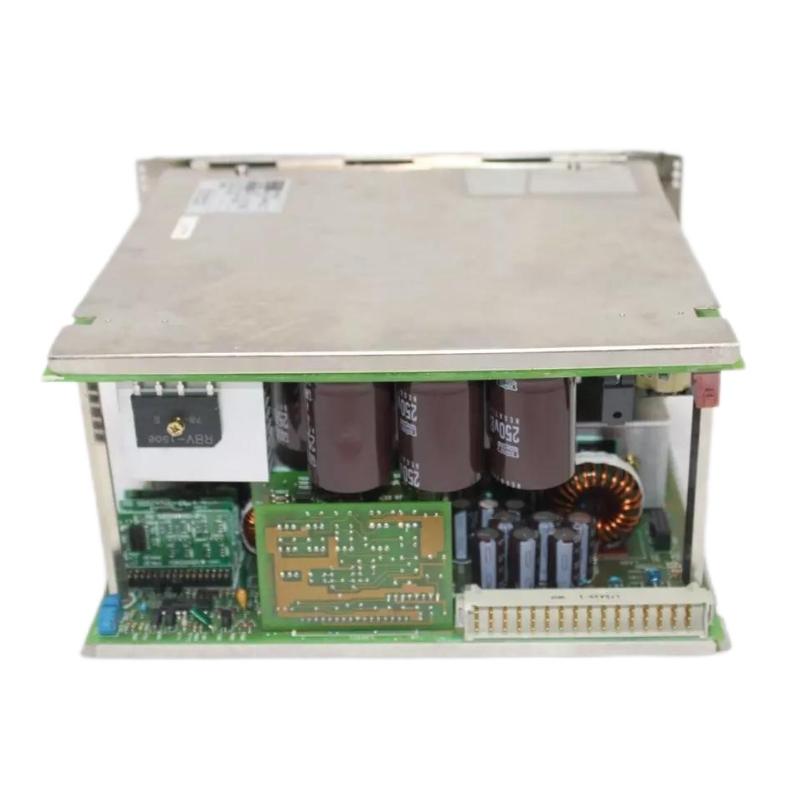

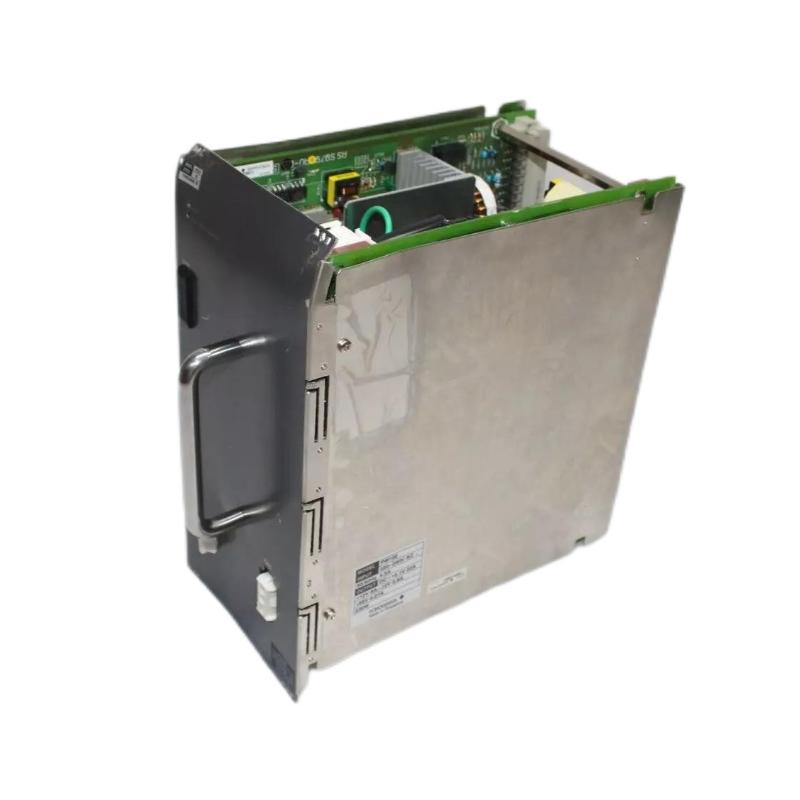

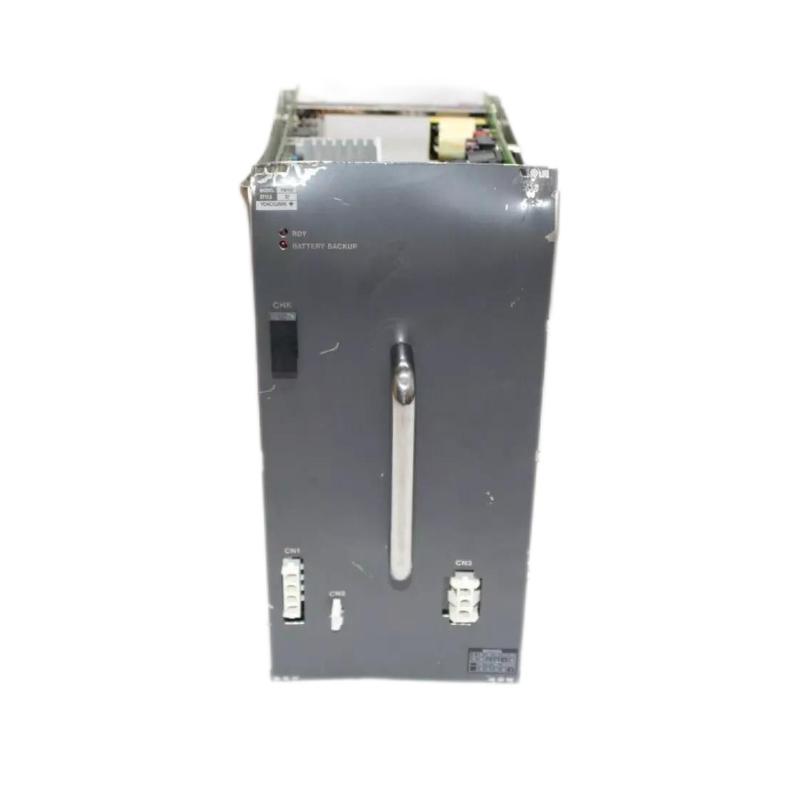

The Yokogawa PW102 Power Supply Module is a legacy industrial power and control module designed for Yokogawa CENTUM and distributed automation systems. It is commonly recognized as part of earlier-generation DCS architectures where it provides both power distribution and high-density digital output functionality within control cabinets.
Unlike modern standalone power modules, the PW102 integrates control-level output capability with system power support, making it a multifunctional component in legacy Yokogawa installations. It remains widely used in retrofit projects and long-life industrial systems where system continuity is essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PW102 |
| Module Type | Power / Digital Output Hybrid Module |
| System Compatibility | Yokogawa CENTUM VP / CENTUM CS |
| Output Channels | 16-point digital output |
| Output Type | Current sink output |
| Output Voltage | 24 V DC |
| Output Current | Up to 2 A per point |
| Total Load Handling | Industrial multi-load configuration |
| Diagnostic Functions | Short circuit / open circuit detection |
| Monitoring | Output current monitoring |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions | Approx. 127 × 84 × 40 mm |
| Weight | Approx. 0.35–0.5 kg |
| Mounting Type | Rack-mounted DCS module |
