Product Introduction

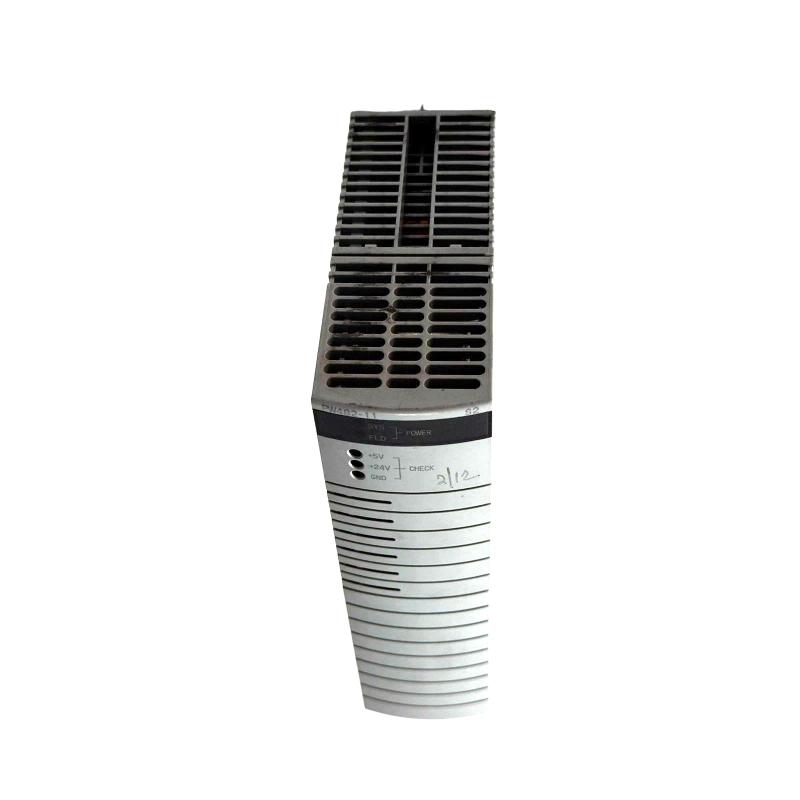

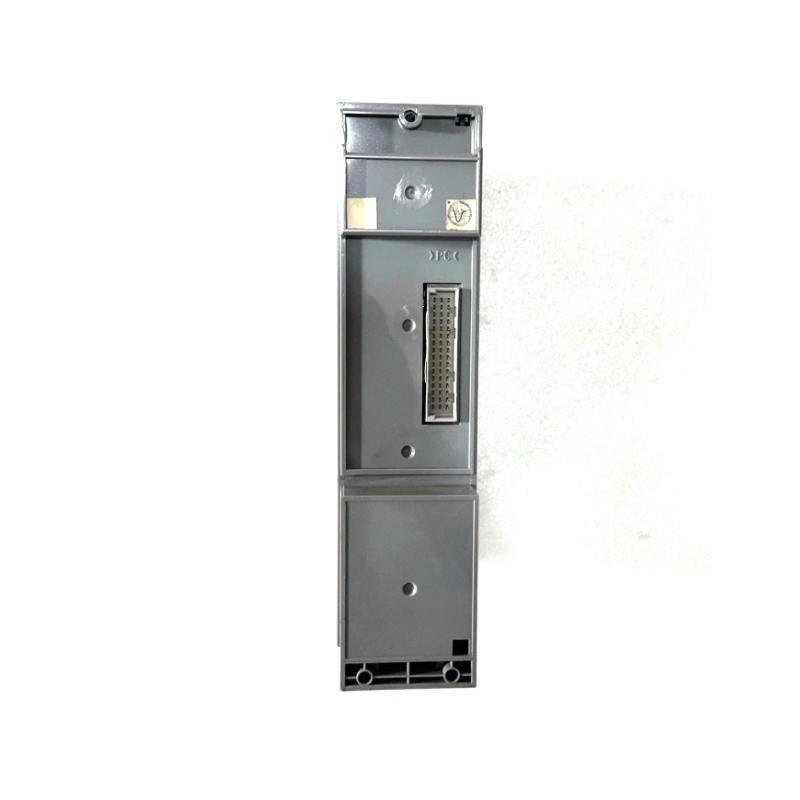

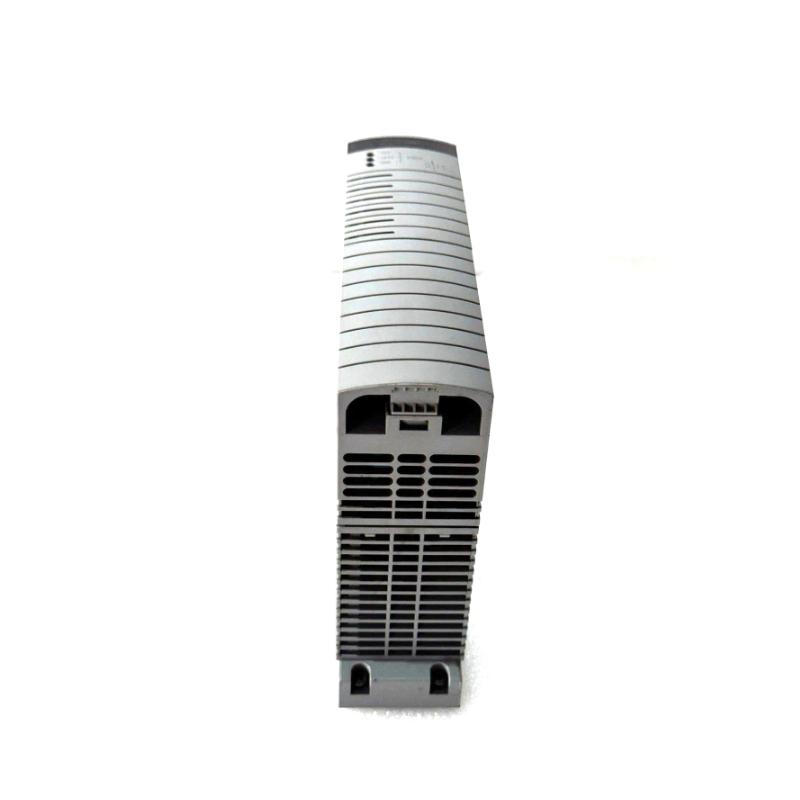

The Yokogawa PW482-S01 Power Supply Module is a dedicated industrial-grade power unit designed specifically for Yokogawa Distributed Control Systems (DCS), including FCU, FIO Node Units, and Optical ESB Bus Repeater Units.
Unlike general-purpose power supplies, this module is tightly integrated into Yokogawa system architecture, ensuring precise, stable, and noise-free DC power delivery to critical control and I/O components. It plays a foundational role in maintaining system continuity, especially in high-availability industrial environments.
Technical Specifications
| Parameter | Specification |
|---|
| Model | PW482-S01 |
| Module Type | Power Supply Module |
| Input Voltage | 100–120 V AC / 220–240 V AC (system dependent) |
| Input Frequency | 50/60 Hz ±3 Hz |
| Maximum Power Consumption | ~230 VA |
| Output Type | Regulated internal DC power rails (system exclusive) |
| Redundancy Support | Yes (1+1 redundant configuration) |
| Compatible Systems | FCU, FIO Node Unit, Optical ESB Bus Repeater Unit |
| Installation Type | Rack-mounted system module |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Cooling Method | Natural convection or cabinet airflow |
| Dimensions (H×W×D) | ~51 × 203 × 152 mm |
| Weight | Approx. 0.9–1 kg |
| Protection Features | Overvoltage, overcurrent, short-circuit protection |
Industrial Applications
The PW482-S01 is widely deployed in mission-critical automation environments where stable power distribution is essential for uninterrupted operation:
-
Oil & gas production and refining systems
-
Petrochemical and chemical processing plants
-
Power generation and utility control systems
-
Large-scale manufacturing automation systems
-
Distributed control system (DCS) cabinets
Its reliability ensures continuous operation of control processors and I/O modules even under demanding industrial conditions.
Technical FAQs
1. What is the main function of the PW482-S01?
It supplies regulated internal DC power to Yokogawa control system modules.
2. Is it a general-purpose power supply?
No, it is designed exclusively for Yokogawa DCS system use.
3. What input voltages does it support?
It supports both 100–120 V AC and 220–240 V AC depending on configuration.
4. Does it support redundancy?
Yes, it supports 1+1 redundant operation for high system availability.
5. What systems is it compatible with?
It is used in FCU, FIO Node Units, and Optical ESB Bus Repeater Units.
6. What is its typical power consumption?
Approximately 230 VA maximum.
7. What is the approximate weight?
Around 0.9–1 kg depending on variant.
8. How is it installed?
It is mounted in Yokogawa system racks inside control cabinets.
9. Does it require active cooling?
No, it uses natural convection or cabinet airflow.
10. Why is it important in a DCS system?
Because it ensures stable and continuous power delivery to all critical control and I/O modules.
