Product Introduction

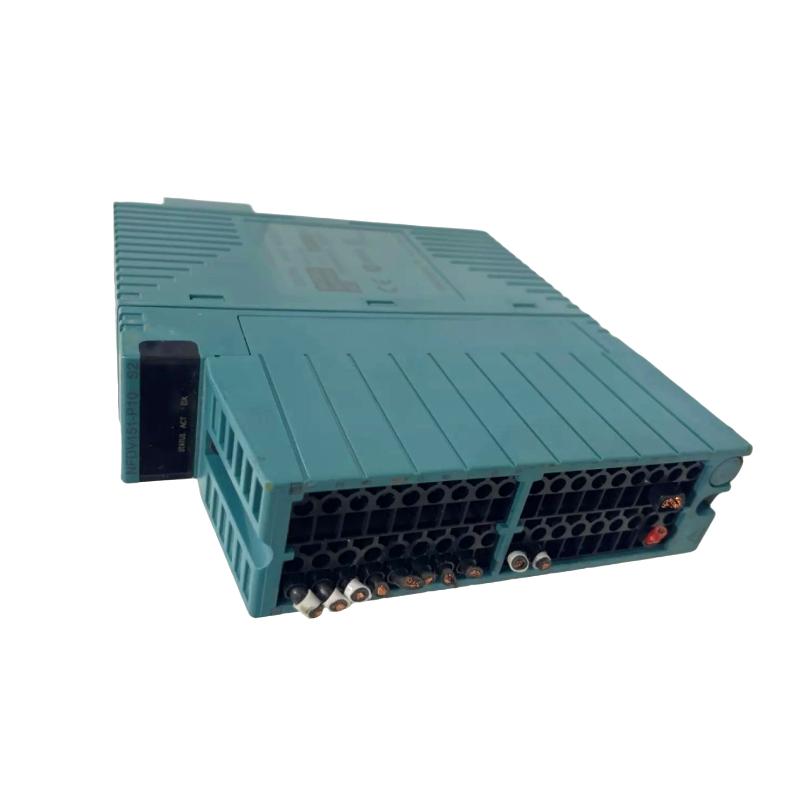

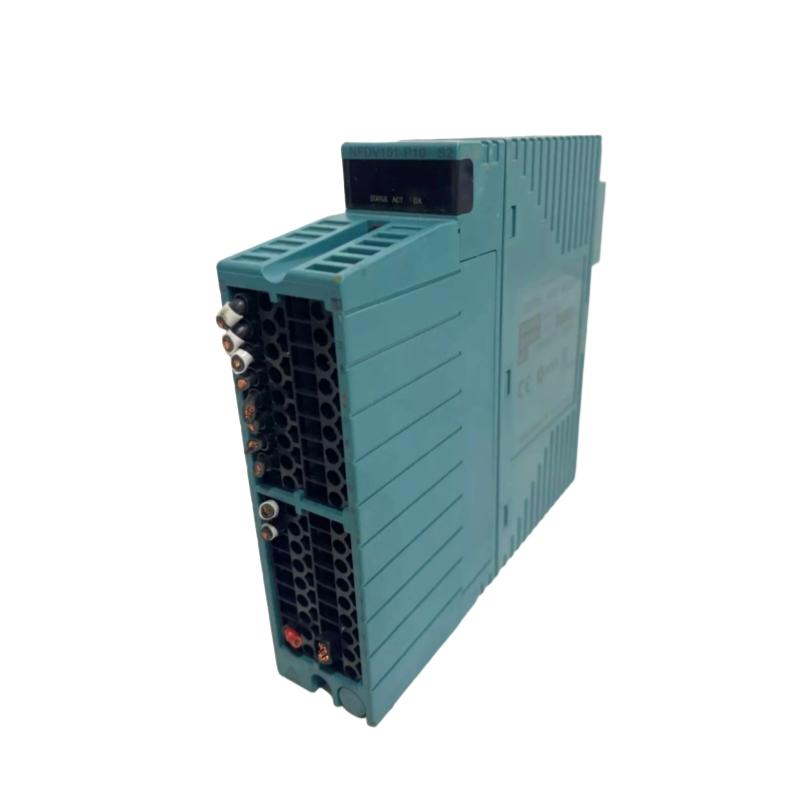

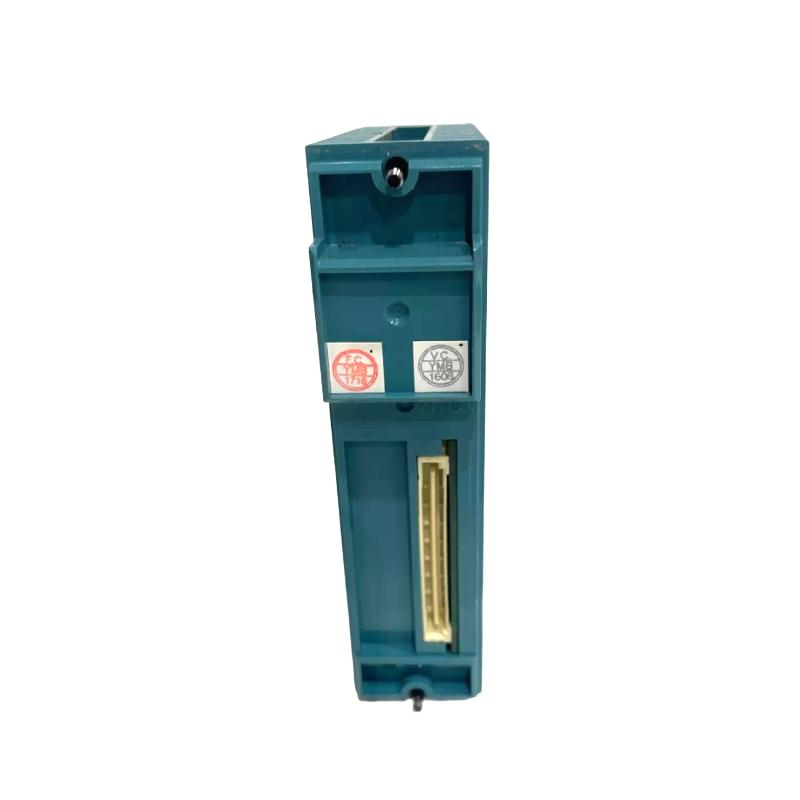

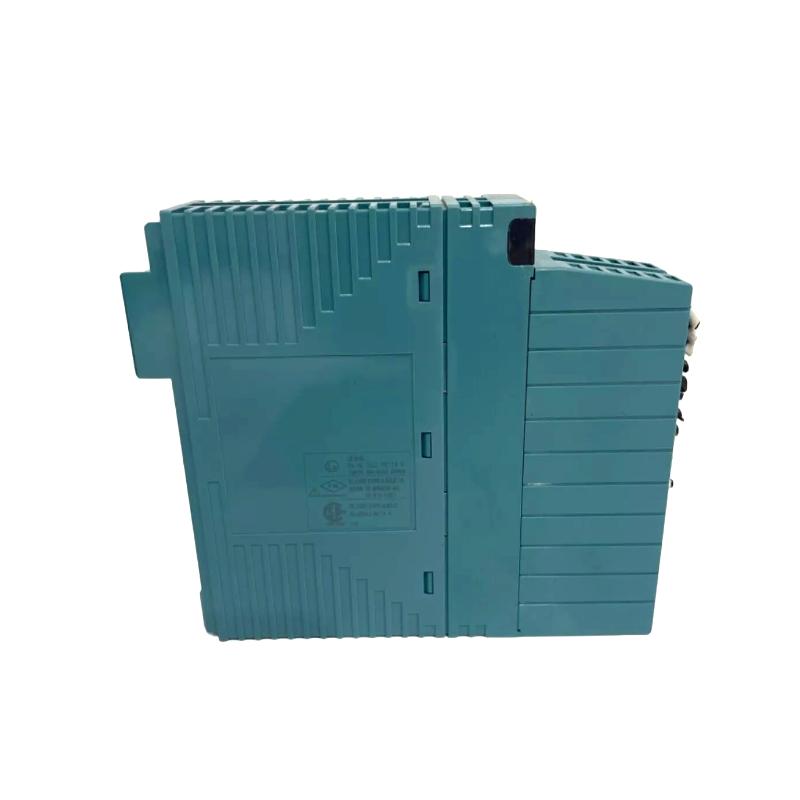

The Yokogawa NFDV557-S00 S2 Digital Output Module is a high-density industrial control component designed to deliver reliable and precise ON/OFF switching signals in distributed automation systems. As part of Yokogawa’s STARDOM/FCN ecosystem, it provides stable transistor-based outputs for controlling field devices such as solenoid valves, relays, alarms, and indicator systems.
Built for demanding industrial environments, this module emphasizes fast response, electrical isolation, and long-term operational stability, making it a dependable choice for process-critical applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NFDV557-S00 S2 |
| Module Type | Digital Output Module |
| Output Channels | 32 channels |
| Output Type | Transistor (sink type, 24 V DC) |
| Rated Output Voltage | 24 V DC |
| Output Current | Up to 0.5 A per channel |
| Load Voltage Range | 20.4 – 26.4 V DC |
| Leakage Current (OFF) | ≤ 0.1 mA |
| Response Time | ≤ 3 ms |
| Isolation | Optical isolation between channels and system |
| Protection Features | Overcurrent & surge protection |
| Power Consumption | < 10 W |
| Operating Temperature | -10°C to +60°C |
| Dimensions (H×W×D) | 157 × 45 × 243 mm |
| Weight | Approx. 0.42 kg |
| Terminal Type | Pressure clamp terminal |
| Compatibility | Yokogawa STARDOM / FCN systems |
