Product Introduction

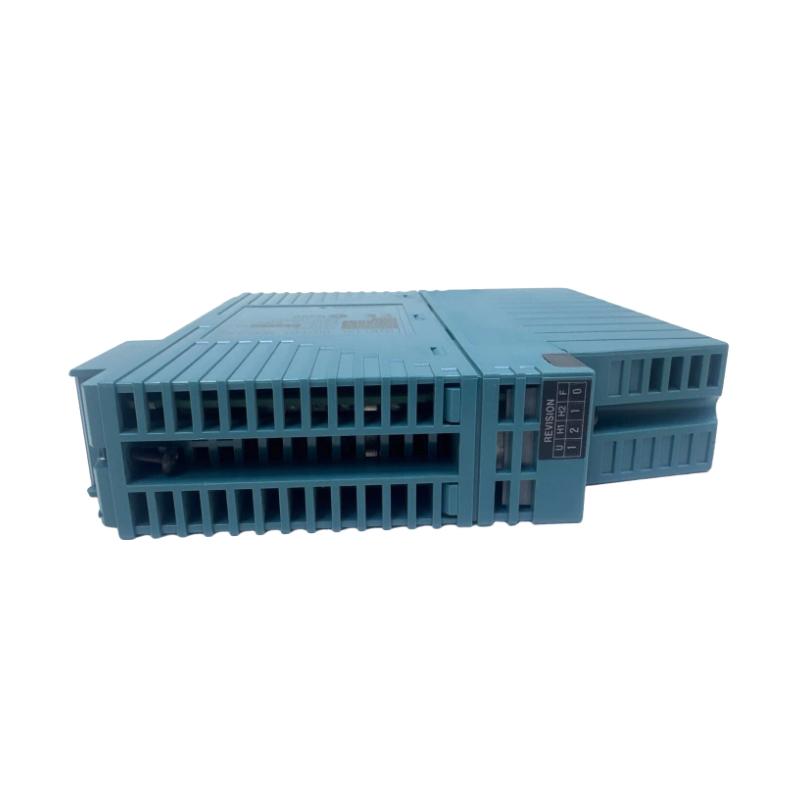

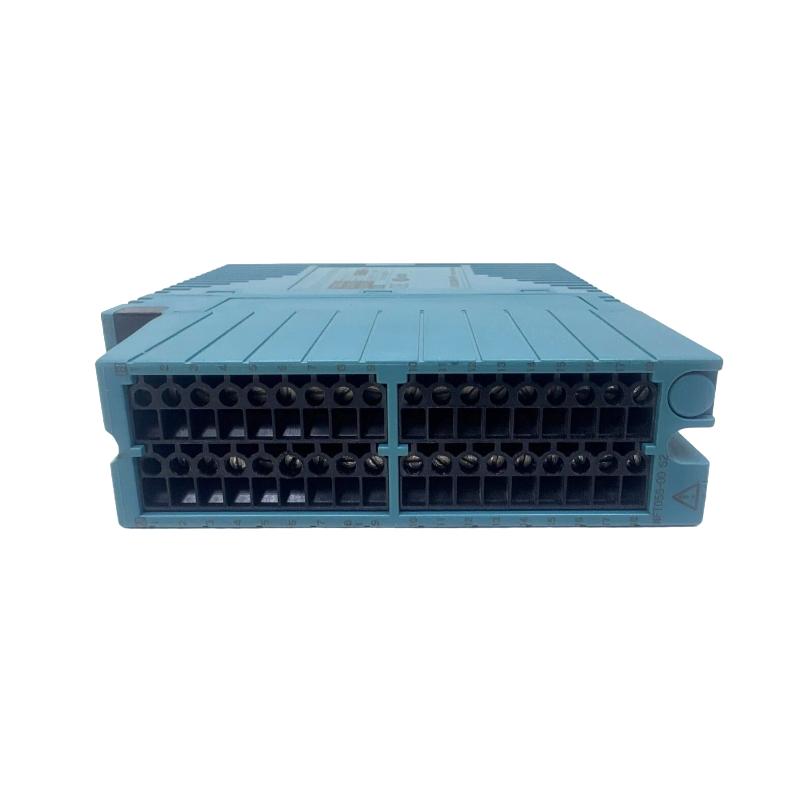

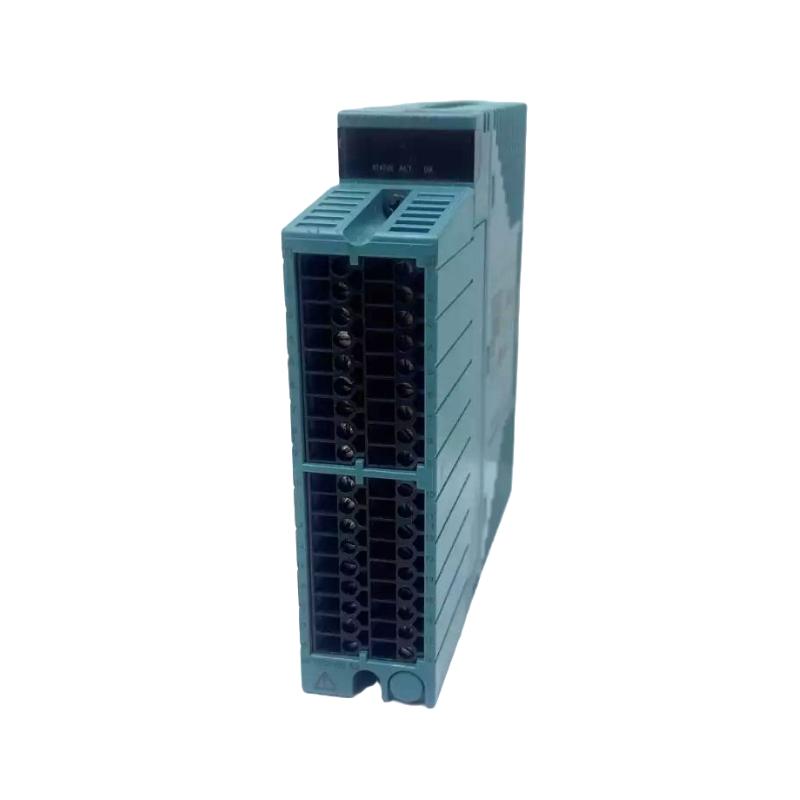

The Yokogawa NFDV151-P60/CCC01 Digital Output Module is a high-reliability industrial output interface designed for precise ON/OFF control of field devices in distributed control systems. Engineered for use with Yokogawa STARDOM and FCN/FCN-RTU platforms, it provides stable digital signal output for actuators, solenoids, relays, and alarm devices.
Built with strong electrical isolation and high channel density, this module is optimized for continuous operation in demanding process industries where response accuracy and system stability are critical.
Technical Specifications
| Parameter | Specification |
|---|
| Model | NFDV151-P60/CCC01 |
| Module Type | Digital Output Module |
| Output Channels | 32 channels (isolated) |
| Output Type | Transistor output (24 V DC) |
| Rated Load Voltage | 24 V DC |
| Output Current | Approx. 0.5 A per module (distributed load dependent) |
| Leakage Current | ≤ 0.1 mA |
| Response Time | ≤ 2 ms (typical switching) |
| Isolation | Channel-to-system isolation |
| Withstanding Voltage | 1500–2000 V AC (system isolation) |
| Output Protection | Overcurrent & surge protection |
| Operating Temperature | -20°C to +70°C |
| Power Consumption | ~500 mA @ 5 V DC |
| Dimensions (H×W×D) | 126 × 124 × 22 mm |
| Weight | Approx. 0.3 kg |
| Interface Type | P60 base with CCC01 connector configuration |
Industrial Applications
This module is widely used in automation systems requiring fast and reliable digital actuation control:
-
Oil & gas processing and refinery control systems
-
Chemical and petrochemical plants
-
Power generation and distribution systems
-
Manufacturing automation lines
-
Safety alarm and interlock systems
Its fast switching capability makes it ideal for real-time control environments where timing precision directly affects process performance.
Technical FAQs
1. What is the main function of this module?
It outputs digital ON/OFF signals to control field devices such as relays, solenoids, and alarms.
2. How many output channels does it have?
It provides 32 isolated digital output channels.
3. What type of output does it use?
It uses 24 V DC transistor-based digital outputs.
4. What is the switching speed?
The typical response time is around 2 milliseconds.
5. Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial operation.
6. What does CCC01 represent?
It indicates a specific connector/cabling configuration for simplified cabinet wiring.
7. How is electrical safety ensured?
Through channel isolation and built-in surge protection.
8. Can it drive inductive loads?
Yes, when used with proper external protection (e.g., flyback diodes).
9. What systems is it compatible with?
It integrates with Yokogawa STARDOM and FCN/FCN-RTU systems.
10. Why is it used in large plants?
Because it combines high channel density, fast response, and stable isolation in a compact module.
