Introduction

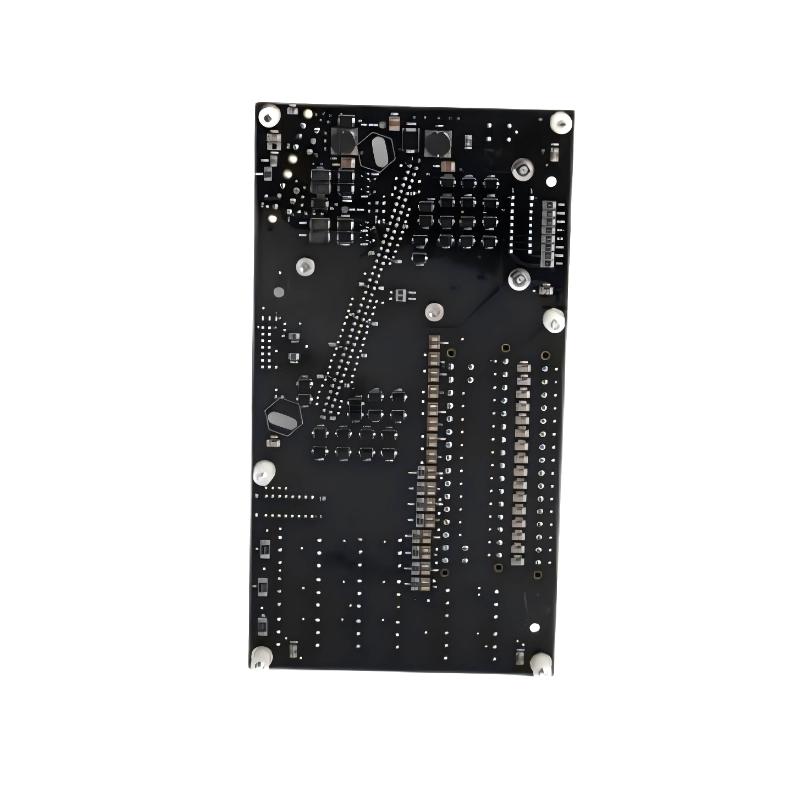

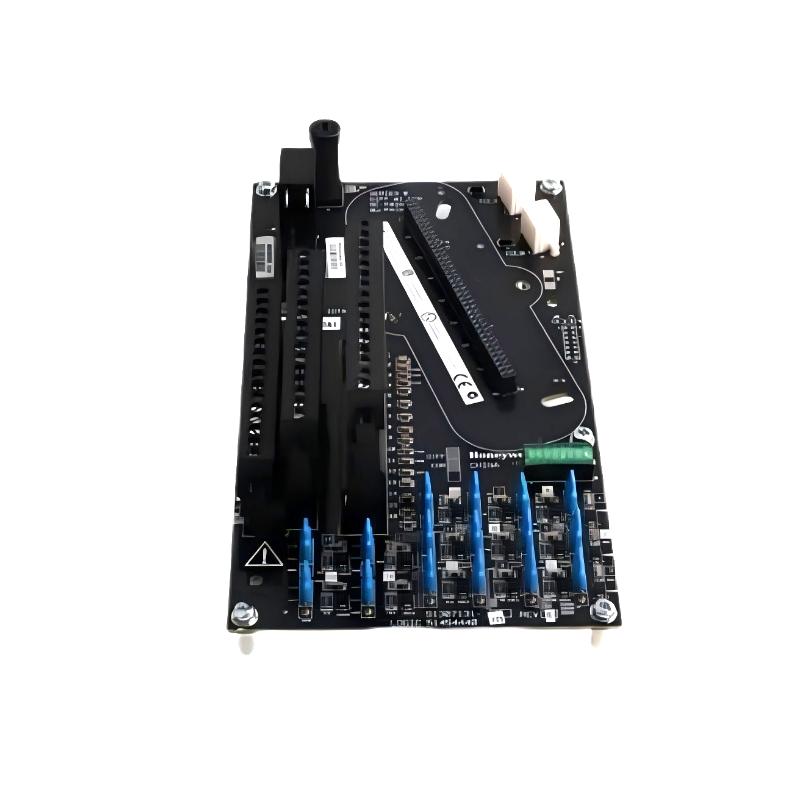

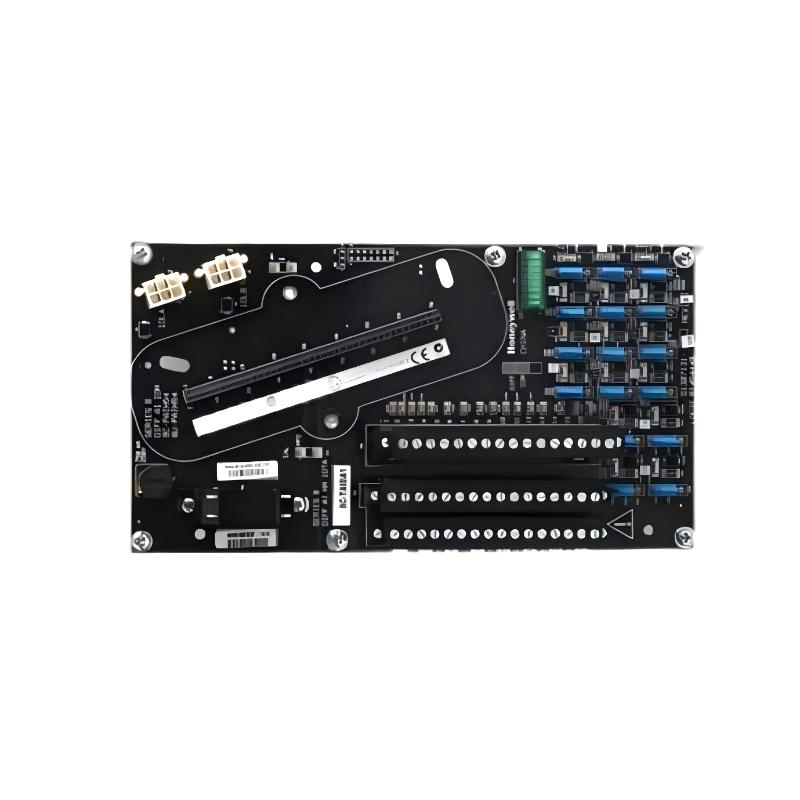

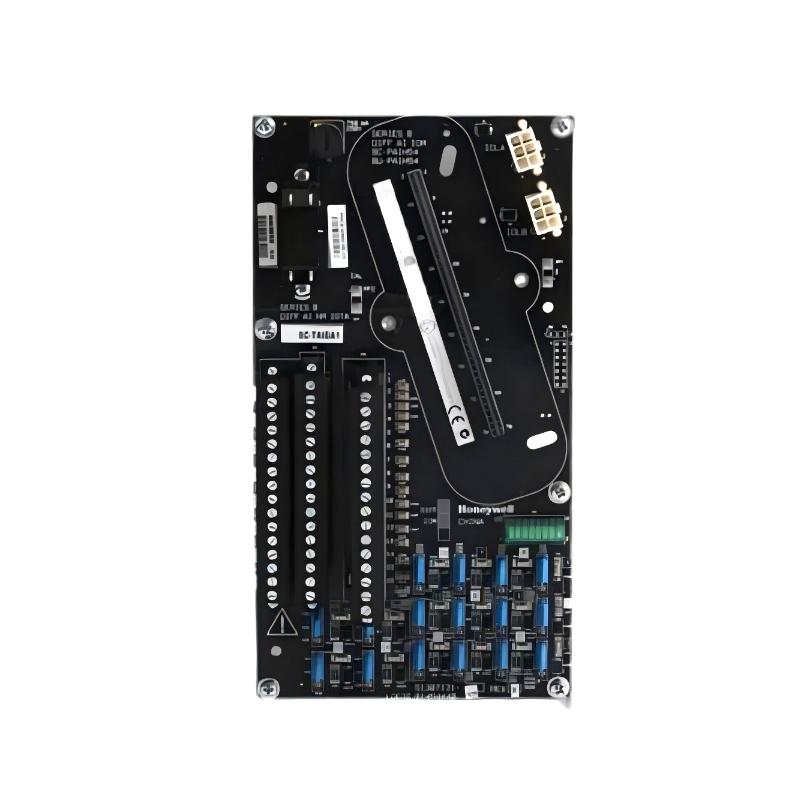

The Honeywell 8C-TAIDA1 51307131-175 Analog Input Module is designed to provide accurate and reliable processing of analog signals in industrial control systems. This module is capable of converting analog signals from field devices such as sensors and transmitters into digital data, which can then be integrated into Honeywell’s Distributed Control Systems (DCS) for centralized monitoring and control.
With its high-precision architecture, the 8C-TAIDA1 module ensures that real-time data from analog inputs, including temperature, pressure, flow, and other critical parameters, is accurately captured for process monitoring and optimization. It is well-suited for industries such as process control, energy management, and manufacturing automation, where precise signal conversion is vital to system performance.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | 8C-TAIDA1 51307131-175 |
| Module Type | Analog Input Module |
| Dimensions | 220 × 120 × 228.6 mm |
| Weight | 0.6 kg |
| Input Type | Analog (Voltage, Current) |
| Number of Channels | 16 Channels |
| Input Voltage Range | ±10 V |
| Input Current Range | 4-20 mA |
| Communication Protocol | Fieldbus (Honeywell DCS) |
| Mounting Type | DIN Rail Mountable |
| Power Consumption | 6 W |
| Operating Temperature | -20°C to 60°C |
