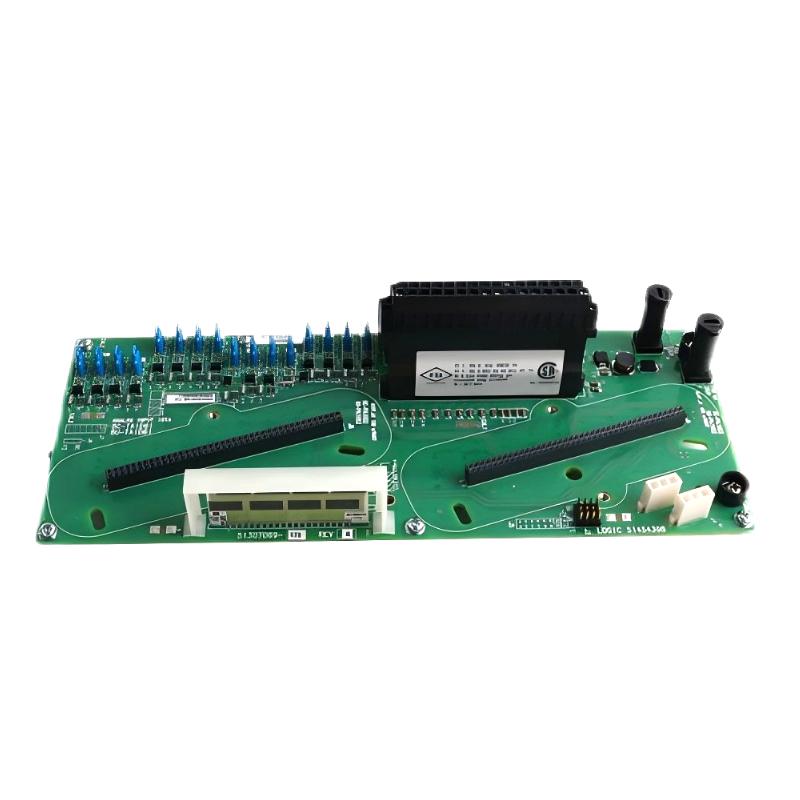

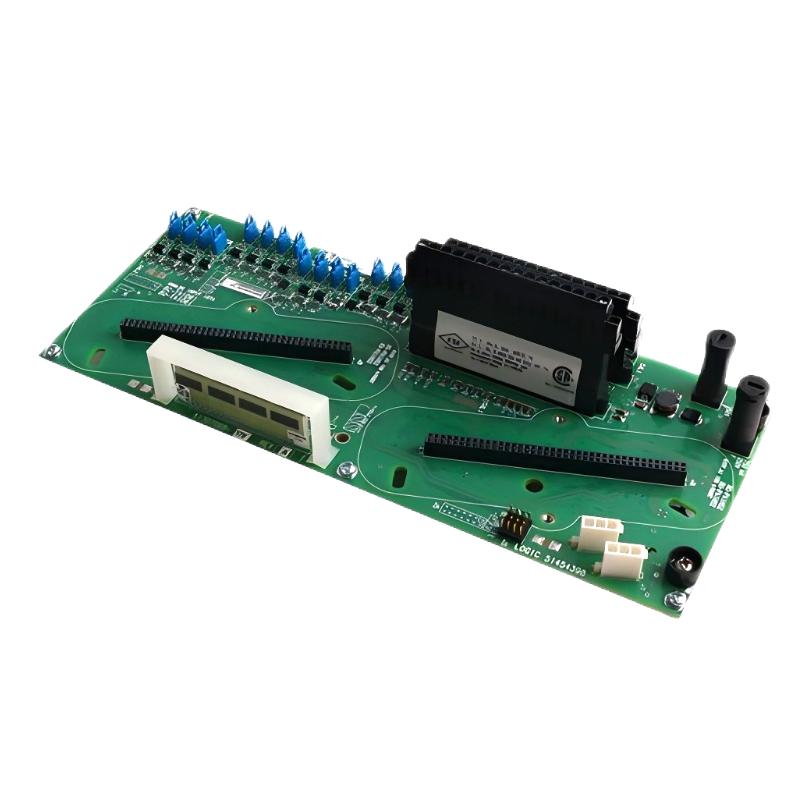

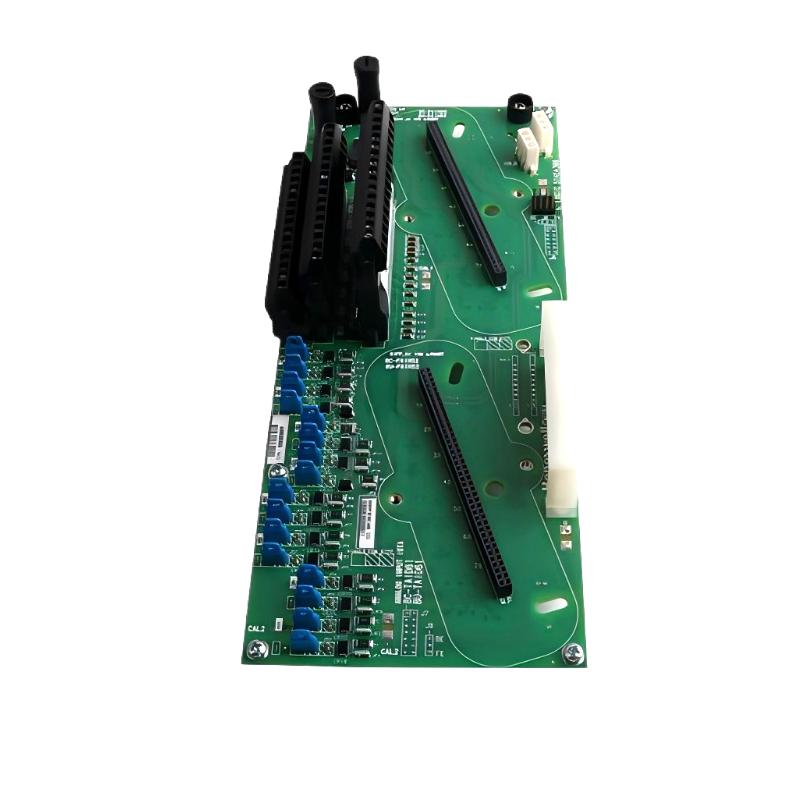

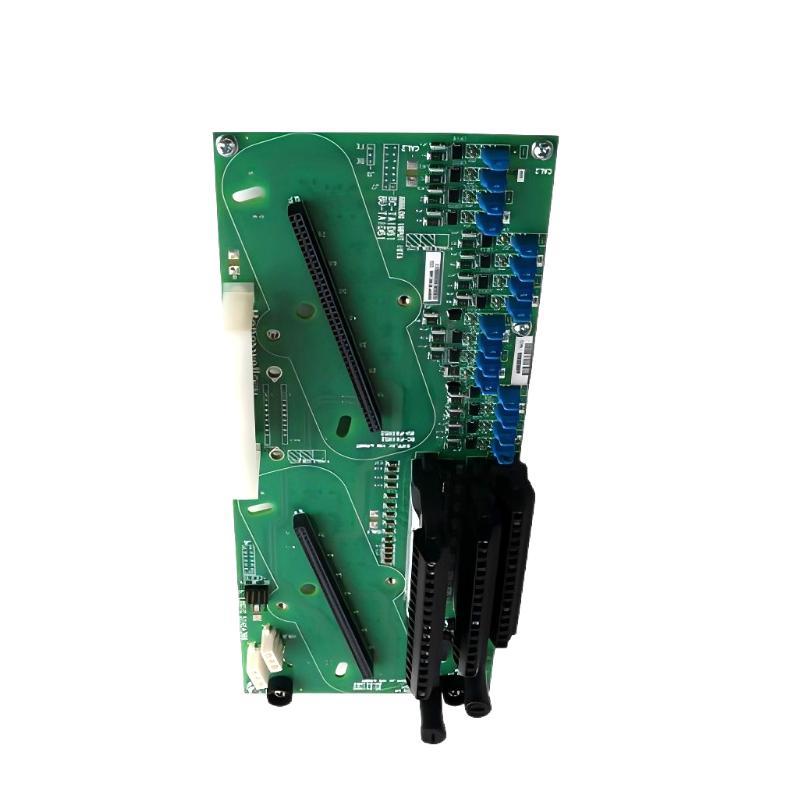

Honeywell 8C-TAID61 51307069-175 Analog Input Module

Brand:Honeywell DCS
Item No.:8C-TAID61
Product Origin:USA
Product Dimensions:220 x 120 x 228.6 mm
Product Weight:0.66 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Honeywell 8C-TAID61 51307069-175 Analog Input Module is a high-precision component designed to convert analog signals from field devices into digital data for further processing within industrial control systems. With an advanced signal processing architecture, this module ensures accurate and real-time monitoring of critical analog inputs, providing seamless integration within Honeywell Distributed Control Systems (DCS). The 8C-TAID61 is ideal for applications requiring accurate and continuous data acquisition from sensors and transmitters in industries such as process control, manufacturing, and energy management.

By enabling precise control over industrial processes, the 8C-TAID61 ensures the integrity of critical parameters, such as temperature, pressure, and flow, making it indispensable for applications that demand reliable and high-fidelity data conversion.

Technical Specifications

SpecificationValue
Model Number8C-TAID61 51307069-175
Module TypeAnalog Input Module
Dimensions220 × 120 × 228.6 mm
Weight0.66 kg
Input TypeAnalog (Voltage, Current)
Number of Channels16 Channels
Input Voltage Range±10 V
Input Current Range4-20 mA
Communication ProtocolFieldbus (Honeywell DCS)
Mounting TypeDIN Rail Mountable
Power Consumption6 W
Operating Temperature-20°C to 60°C


Applications

The Honeywell 8C-TAID61 Analog Input Module is highly versatile and designed to meet the stringent demands of industries requiring precise data acquisition from analog field devices:

  • Process Control Systems: Vital for collecting data from a variety of analog sensors, such as temperature, pressure, and flow sensors, in industries such as chemical processing, oil refining, and pharmaceuticals.

  • Energy and Utilities: Ideal for applications where monitoring and controlling vital parameters in power plants, substations, and renewable energy systems is crucial. This module helps ensure safe, efficient, and reliable operation of equipment.

  • Manufacturing Automation: Used to collect data from factory sensors, including those measuring vibration, speed, and temperature, improving efficiency and reducing downtime in production lines and assembly systems.

  • Building Automation: Integrates with HVAC and environmental monitoring systems to accurately measure temperature, humidity, and other critical parameters for controlling indoor climate and ensuring occupant comfort.

  • Oil and Gas: Provides essential analog data acquisition for remote oil rigs, pipelines, and wellheads, supporting safe and efficient field operations in hazardous environments.


Advantages

  • High-Accuracy Signal Conversion: The 8C-TAID61 provides high-fidelity conversion of analog signals, supporting both voltage (±10 V) and current (4-20 mA) inputs, making it adaptable to a wide range of field devices.

  • Large Channel Capacity: With 16 input channels, the module can handle numerous sensor inputs simultaneously, providing comprehensive data acquisition for large-scale industrial systems.

  • Seamless Integration with Honeywell DCS: Fully compatible with Honeywell DCS, the 8C-TAID61 allows for centralized control and efficient management of complex industrial processes, ensuring data accuracy and system-wide consistency.

  • Wide Temperature Range: Operating effectively in temperatures from -20°C to 60°C, the module is suitable for both indoor and outdoor installations, including remote or harsh industrial environments.

  • Energy-Efficient Design: With a low power consumption of 6 W, the 8C-TAID61 minimizes energy usage without compromising on performance, making it an ideal solution for energy-conscious operations.

  • DIN Rail Mountable: The module is designed for DIN rail mounting, allowing for easy integration and quick installation in industrial control cabinets and automation systems.


Technical FAQs

  1. What types of signals does the 8C-TAID61 support?

    • The 8C-TAID61 supports both voltage (±10 V) and current (4-20 mA) signals, making it suitable for a wide variety of analog sensors.

  2. How many input channels are provided by the 8C-TAID61?

    • The 8C-TAID61 features 16 input channels, allowing for the simultaneous acquisition of data from multiple field devices.

  3. What is the voltage and current range supported by the 8C-TAID61?

    • The module supports ±10 V for voltage inputs and 4-20 mA for current inputs, which are common in industrial sensor applications.

  4. What communication protocol does the 8C-TAID61 use?

    • The module utilizes Fieldbus communication, which is fully compatible with Honeywell DCS, allowing seamless integration into Honeywell-based control systems.

  5. What is the power consumption of the 8C-TAID61?

    • The 8C-TAID61 consumes only 6 W of power, ensuring minimal energy use while maintaining optimal performance.

  6. How is the 8C-TAID61 mounted?

    • The module is designed to be DIN rail mountable, simplifying installation and offering flexibility in control panel configurations.

  7. What is the operating temperature range of the 8C-TAID61?

    • The module operates in an environment with temperatures ranging from -20°C to 60°C, suitable for use in diverse industrial environments, including harsh or extreme conditions.

  8. Can the 8C-TAID61 be easily integrated with Honeywell systems?

    • Yes, the 8C-TAID61 integrates seamlessly with Honeywell DCS, facilitating efficient data exchange and centralized process control.

  9. Which industries benefit from the 8C-TAID61?

    • The module is widely used in industries such as process control, energy and utilities, manufacturing, oil and gas, and building automation, where high-precision analog data acquisition is crucial.

  10. How does the 8C-TAID61 contribute to operational efficiency?

  • By providing precise, real-time data from field sensors, the 8C-TAID61 ensures better control and monitoring, leading to enhanced decision-making, improved process efficiency, and reduced downtime.
