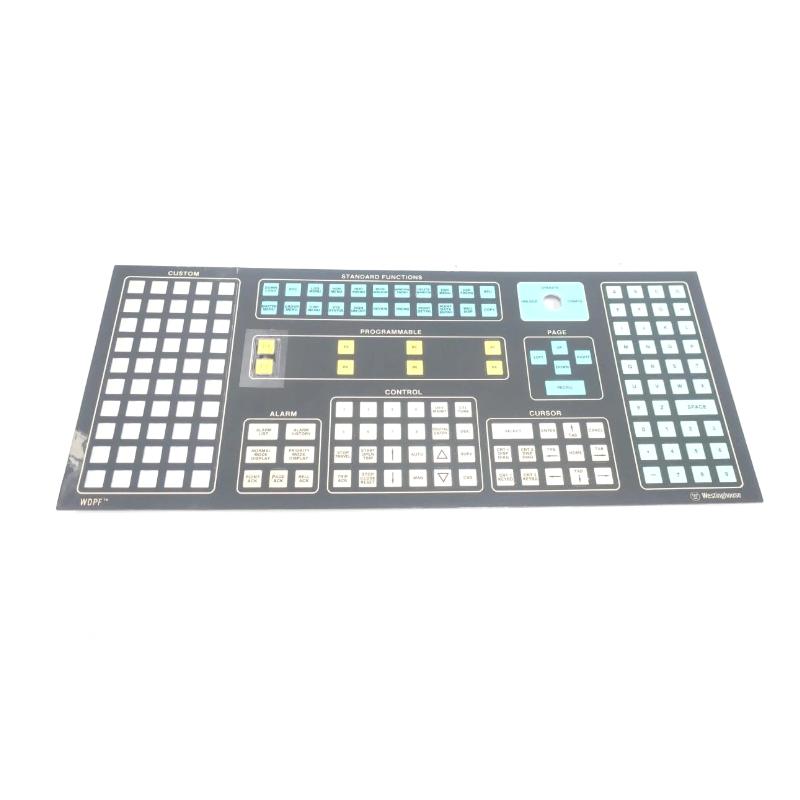

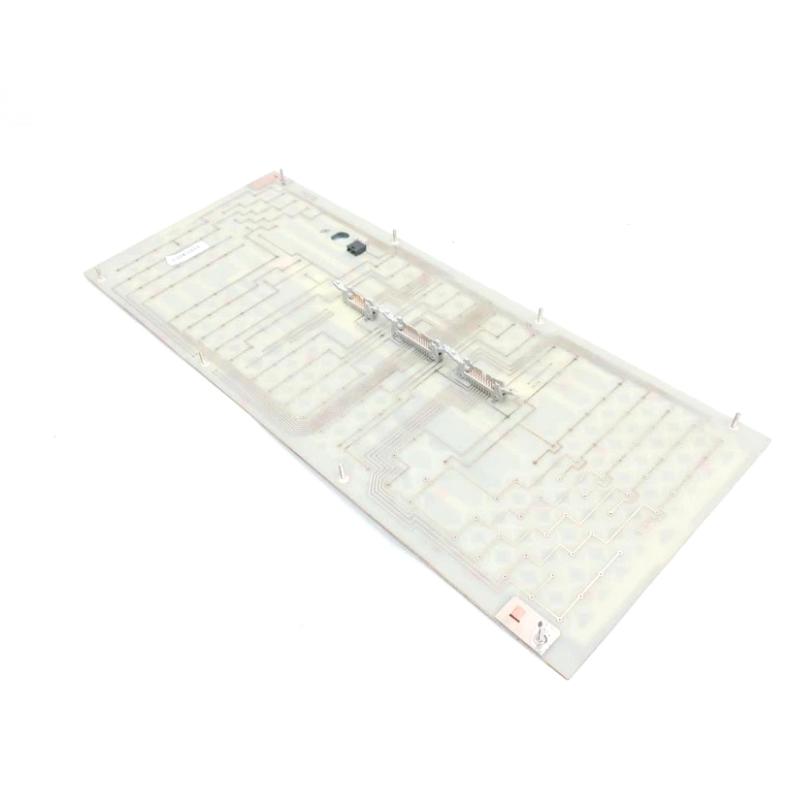

Ovation 1D54471G02 Keyboard Top Board

Name: Ovation 1D54471G02 Keyboard Top Board
Brand: Ovation DCS
SKU: 780
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Ovation DCS
Item No.:1D54471G02
Product Origin:USA
Product Dimensions:260 × 120 × 40 mm
Product Weight:0.85 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Ovation 1D54471G02 Keyboard Top Board is a specialist interface module used within Ovation control systems to manage operator‐input functions with high reliability. Unlike generic HMI components, this board is engineered for industrial-grade environments where control stations must withstand heavy use, electrical noise, and long continuous operation cycles. Its layout and electronic design emphasize tactile consistency, signal integrity, and dependable interaction with supervisory control hardware.

Technical Specifications

Parameter	Details
Brand	Ovation
Module Type	Keyboard Top Board
Function	Operator input interface / command entry
Signal Handling	Direct processing of keypress data
System Compatibility	Ovation DCS operator consoles
Diagnostics	Internal status feedback for reliability monitoring
Dimensions	260 × 120 × 40 mm (H × W × D)
Weight	0.85 kg

Applications

• Operator command entry in control-room consoles
• Supervisory station navigation and control access
• Front-panel interaction for process control interfaces
• Input handling for alarm acknowledgment and system navigation
• Enhancement of operator ergonomics in DCS workstations

Advantages

• Reliable tactile response designed for continuous operator use
• Stable signal output even in electrically noisy environments
• Strong structural design suitable for industrial control rooms
• Smooth integration with existing Ovation operator stations
• Long service life with minimal maintenance requirements

Technical FAQs

Is the board specifically designed for Ovation operator stations?
Yes, it is part of the hardware ecosystem used in Ovation control consoles.
Does it require calibration after installation?
No calibration is needed; the board is plug-and-operate.
Can it withstand frequent, continuous keypress cycles?
It is built for high-duty operator interaction.
Is the module sensitive to electrical noise?
It features design measures that ensure stable performance in noisy environments.
Does the board support system-level diagnostics?
It provides internal status information accessible by the system.
Is it compatible with mixed hardware in an operator console?
Yes, it integrates alongside display, I/O, and processing modules.
Can it be replaced without system downtime?
Replacement procedures depend on console design, but the board itself is service-friendly.
Does it work with modern and legacy Ovation DCS versions?
It is compatible with a wide range of Ovation platform revisions.
Is any special wiring required?
Standard Ovation console interconnects are used.
Is this board suitable for harsh industrial field environments?
It is intended for control-room conditions rather than field installation.
