Introduction

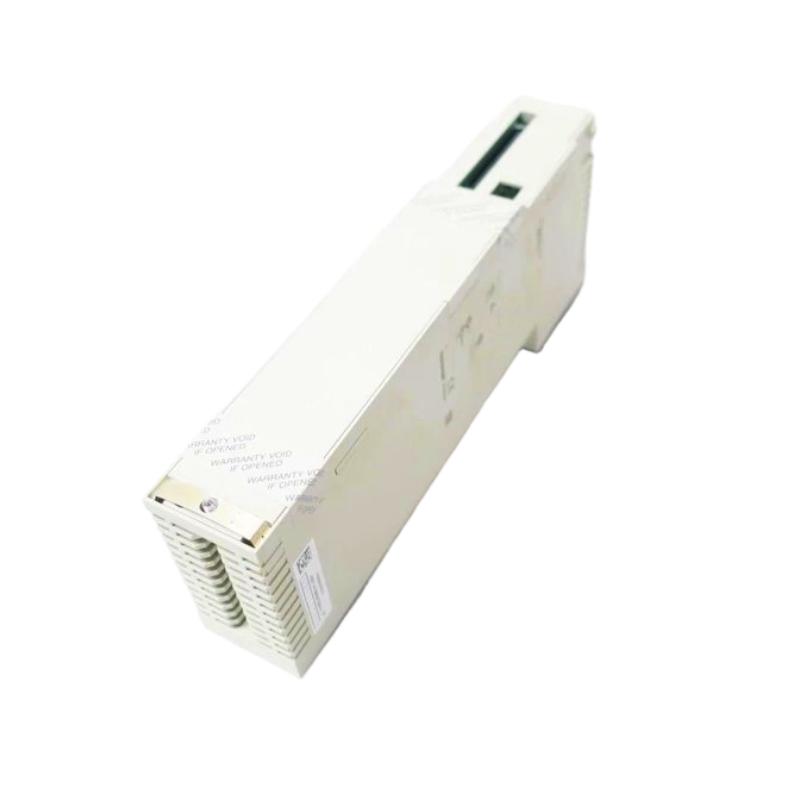

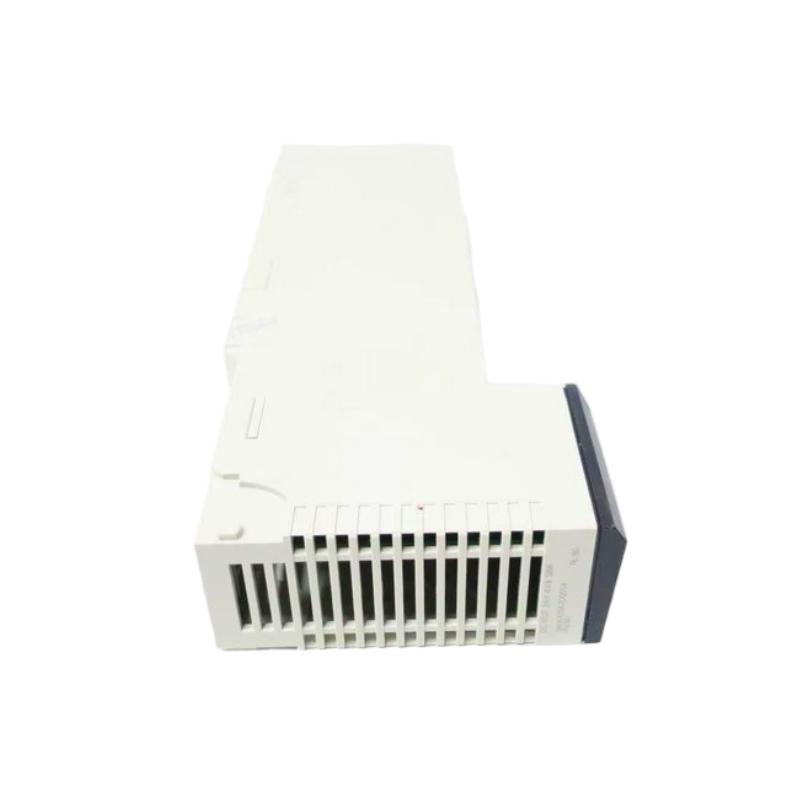

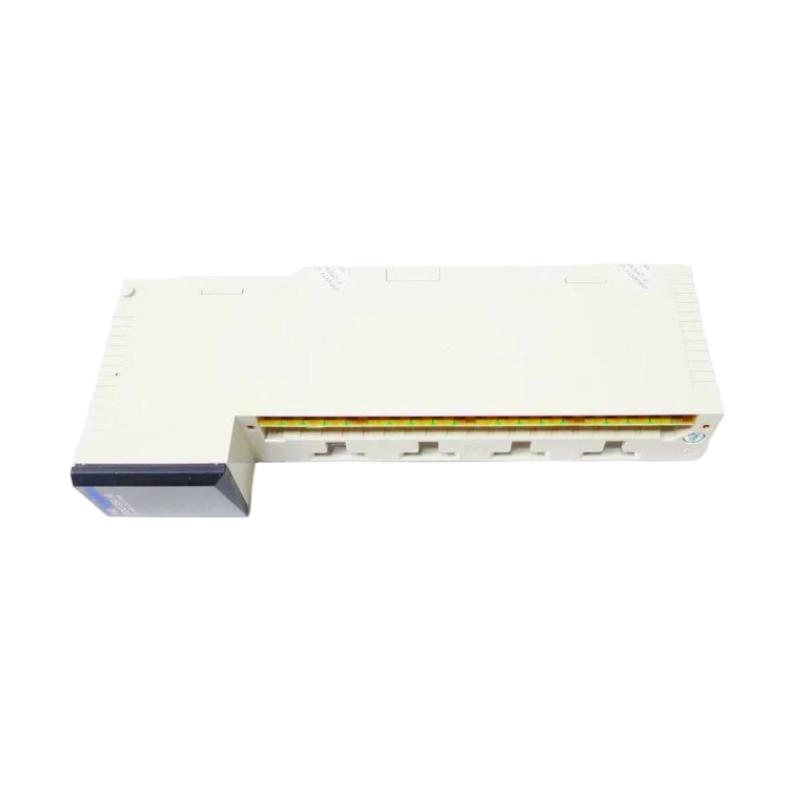

The Schneider 140DDO15310C is a dependable discrete output module engineered for Quantum-series control systems. Designed to provide stable digital switching for a wide range of industrial loads, it delivers reliable performance even under heavy operation cycles. With a strong emphasis on electrical noise resistance and predictable timing, the module is frequently used in systems that require consistent, long-term actuation of field devices.
Technical Specifications
| Parameter | Value |
|---|
| Module Type | Discrete Output Module |
| Platform | Schneider Quantum Series |
| Output Voltage | 24 VDC |
| Number of Outputs | 16 |
| Output Type | Digital (Discrete) |
| Isolation | Channel-group and bus isolation |
| Operating Temperature | 0–60°C |
| Dimensions | 103.9 × 40.3 × 250 mm (H × W × D) |
| Weight | 0.45 kg |
Applications
• Driving relays, solenoids, and contactors in industrial control systems.
• Supporting motion control equipment requiring consistent digital actuation.
• Switching signaling devices such as indicator lamps and annunciators.
• Controlling pneumatic and hydraulic valves in machine and process automation.
• Suitable for packaging, conveying, and robotic subsystems requiring stable outputs.
• Used for output expansion in Quantum-based control cabinets.
• Effective for mixed-load applications that require several discrete outputs.
Advantages
• Provides reliable and repeatable switching behavior for industrial loads.
• Strong electrical isolation enhances performance in noisy environments.
• Diagnostic LEDs simplify field testing and channel verification.
• Compatible with a wide range of Quantum processors and racks.
• Requires minimal wiring effort due to clear terminal layout.
• Designed for long-term continuous-duty operation.
• Maintains stable performance across varying electrical conditions.
• Easy integration into new and retrofit automation systems.
• Robust enough for demanding industrial applications.
• Predictable timing characteristics support precise control sequences.
Technical FAQs
-
Does the module support hot-swapping?
Yes, it can be removed or inserted while the rack is energized if the system supports hot swap.
-
Are individual output status LEDs included?
Yes, each output channel features an LED for real-time indication.
-
Can the module drive inductive devices?
Yes, but it is recommended to use suppression devices for heavy inductive loads.
-
What type of loads can be driven?
Standard 24 VDC loads such as relays, solenoids, and lamps.
-
Does it require external field power?
Yes, field-side power must be supplied for output operation.
-
Is channel isolation provided?
Group isolation is included for output stability.
-
Is the module suitable for redundancy applications?
Yes, it works with Quantum redundancy configurations.
-
Can it handle high-frequency switching?
It is capable of reliable operation under frequent switching cycles.
-
Is special cooling required?
Typically no, standard cabinet ventilation is sufficient.
-
Is it compatible with earlier Quantum systems?
Yes, it integrates with most legacy Quantum racks.
