Introduction

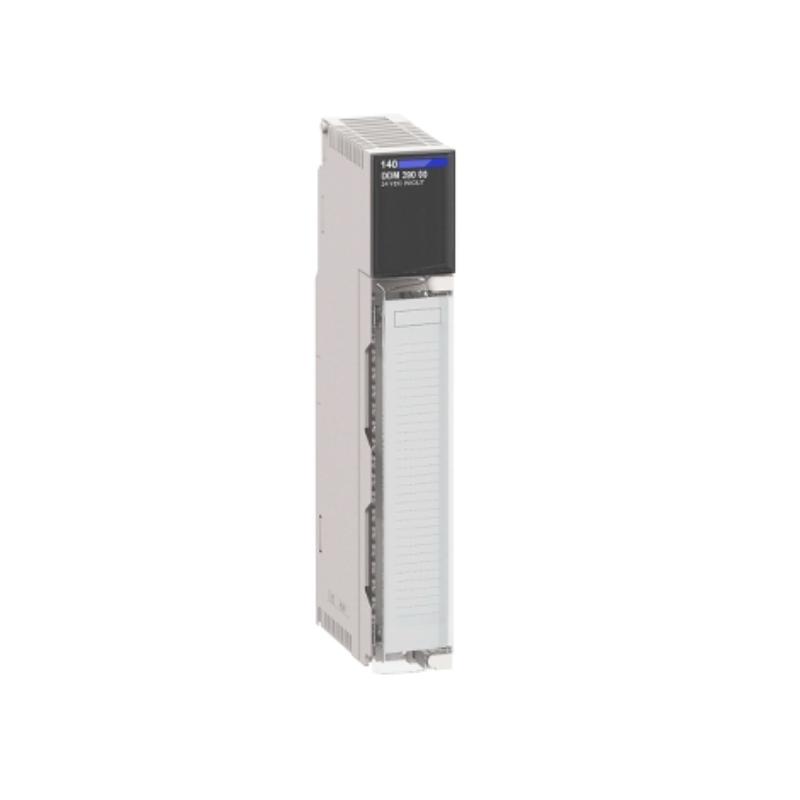

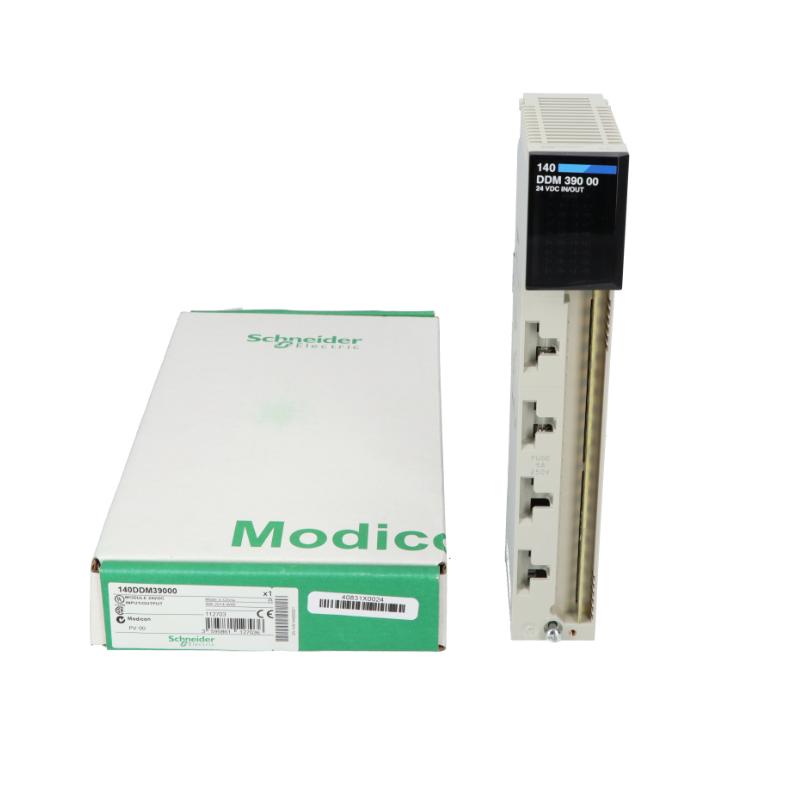

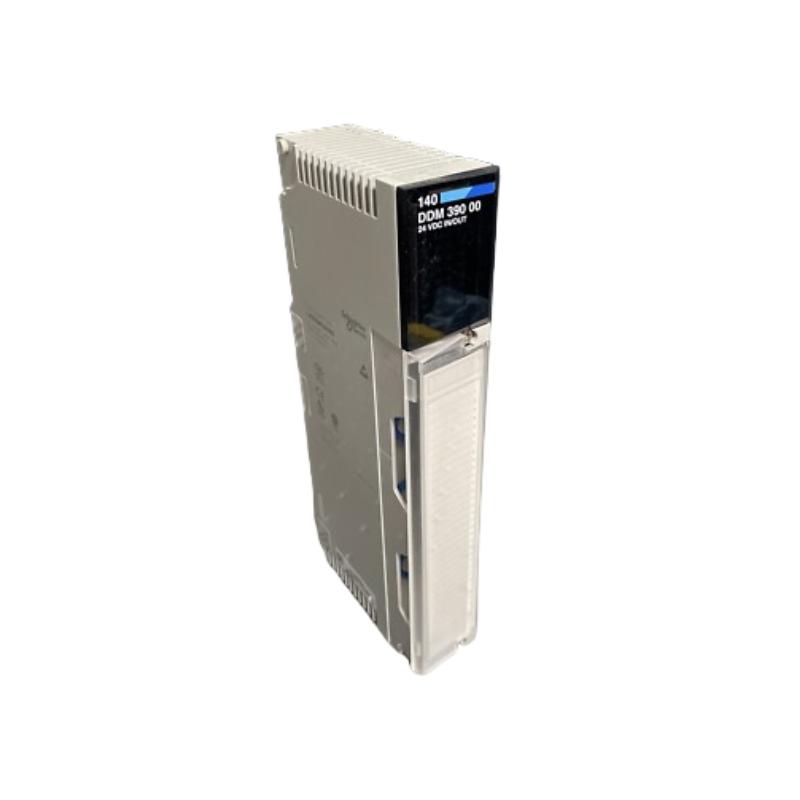

The Schneider 140DDM39000C is a versatile discrete I/O module designed for Quantum automation systems, integrating both input and output functions within a single hardware unit. This dual-purpose design helps streamline panel layouts while maintaining strong electrical performance. Engineers value the module for its balanced combination of responsiveness, durability, and clean signal handling, making it suitable for mixed-field device environments where compactness and reliability matter.
Technical Specifications
| Parameter | Value |
|---|
| Module Type | Discrete I/O Module |
| Platform | Schneider Quantum Series |
| I/O Configuration | Mixed Digital Inputs and Outputs |
| Input Voltage | 24 VDC |
| Output Voltage | 24 VDC |
| Isolation | Channel-group and backplane isolation |
| Response Characteristics | Fast input sampling and stable output switching |
| Operating Temperature | 0–60°C |
| Dimensions | 132 × 49 × 185 mm (H × W × D) |
| Weight | 0.65 kg |
Applications
• Integrating digital sensors and actuators within compact automation panels.
• Mixed input/output tasks in OEM machinery with limited rack space.
• Controlling relays, lamps, and solenoids while simultaneously monitoring feedback inputs.
• Supporting distributed control architectures in production and process lines.
• Ideal for conveyor, packaging, and assembly systems requiring combined I/O.
• Used in facility-level automation where single-module versatility is beneficial.
• Suitable for system expansions that require both input monitoring and output control.
Advantages
• Combined I/O functionality reduces hardware count and wiring complexity.
• Fast and reliable signal processing ensures stable field device operation.
• Robust isolation improves immunity to industrial noise and electrical disturbances.
• Clear diagnostic indicators simplify testing and field troubleshooting.
• Compatible with legacy and modern Quantum controllers without adaptation.
• Efficient footprint makes it ideal for dense control cabinet configurations.
• Designed for long-duration operation in demanding industrial settings.
• Supports predictable response timing for both inputs and outputs.
• Reduces installation effort through simplified module-to-field wiring.
• Offers dependable performance across a wide range of automation tasks.
Technical FAQs
-
Does this module offer separate input and output status indicators?
Yes, LEDs are provided for both input and output channels.
-
Can the outputs drive inductive loads?
Yes, though protective suppression is recommended for heavy inductive devices.
-
Is channel isolation provided?
The module includes group isolation to maintain stable operation.
-
Does it support hot-swapping?
Yes, when used in Quantum systems designed for hot-swap capability.
-
What field wiring is recommended?
Standard industrial-rated wiring suitable for 24 VDC I/O signals.
-
Can it handle high-frequency input changes?
Yes, it is designed for fast input response in dynamic applications.
-
Does the module require external power for outputs?
External field power is required to supply output loads.
-
Is the module suitable for redundant controllers?
Yes, it can be integrated within Quantum redundancy architectures.
-
Can this module replace standalone input and output modules?
In many applications, yes—its mixed I/O design allows system consolidation.
-
Is it compatible with earlier Quantum racks?
Yes, it works with most existing Quantum backplanes and systems.
