Introduction

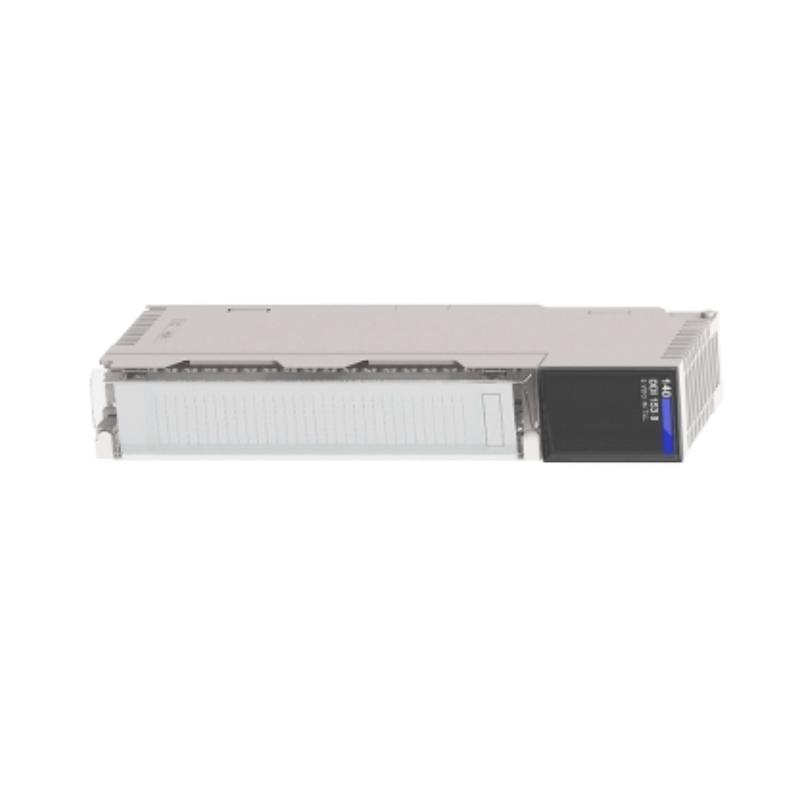

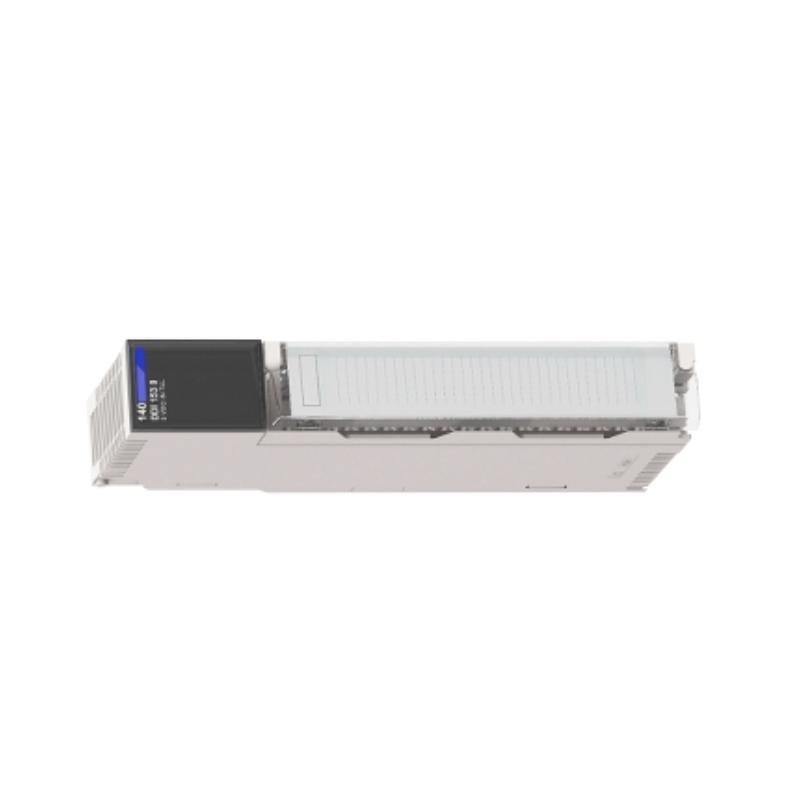

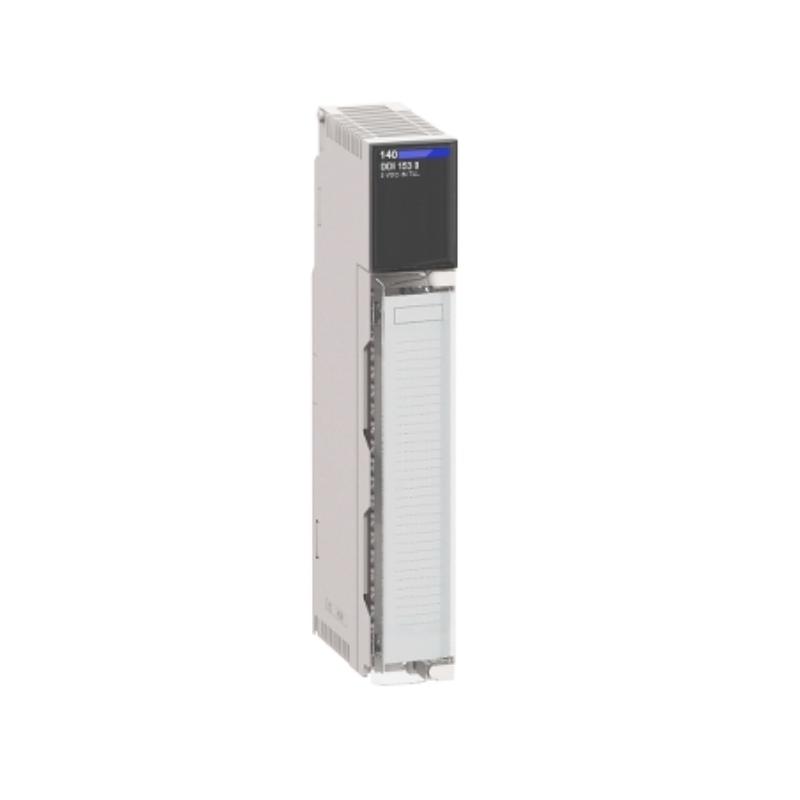

The Schneider 140DDI35300 is a high-density discrete input module designed for Quantum automation systems, built to capture fast and precise digital signals from field devices. Its architecture emphasizes signal integrity, electrical noise resistance, and dependable scan-cycle performance. This module is commonly selected for applications where accurate state detection and stable long-term operation are critical to system reliability.
Technical Specifications
| Parameter | Value |
|---|
| Module Type | Discrete Input Module |
| Platform | Schneider Quantum Series |
| Input Type | Digital (Discrete) |
| Number of Inputs | 32 |
| Input Voltage | 24 VDC |
| Input Isolation | Channel-to-bus and channel-group isolation |
| Response Time | Optimized for high-speed detection |
| Operating Temperature | 0–60°C |
| Dimensions | 46.5 × 164.5 × 309.7 mm (H × W × D) |
| Weight | 0.3 kg |
Applications
• Capturing digital sensor signals in manufacturing and process environments.
• Monitoring limit switches, proximity sensors, and contact inputs.
• Suitable for machine safety interlocks requiring stable state detection.
• Used in packaging, sorting, and material-handling systems for input monitoring.
• Ideal for PLC input expansion in large automation panels.
• Applied in facility automation for monitoring equipment status and alarms.
• Supporting high-density input acquisition in complex control architectures.
Advantages
• High input density allows efficient cabinet space utilization.
• Strong isolation enhances reliability in electrically noisy areas.
• Consistent input scanning ensures accurate detection of field states.
• Straightforward wiring facilitates faster installation and maintenance.
• Diagnostic LEDs provide immediate visual feedback for each channel.
• Compatible with both legacy and modern Quantum processors.
• Durable design supports long-period continuous operation.
• Stable performance under varying industrial temperatures.
• Reliable signal conditioning reduces false triggering.
• Well-suited for large systems requiring extensive discrete I/O.
Technical FAQs
-
Does the module support hot-swapping?
Yes, it can be replaced while the rack remains energized if the system supports hot-swap functionality.
-
Are LED indicators provided for inputs?
Yes, each channel includes an LED to show its current state.
-
Can the module detect fast transient signals?
It is designed for rapid input sampling, improving accuracy in fast-acting systems.
-
Is isolation included between input groups?
Yes, the module provides group isolation for improved noise resistance.
-
What type of sensors can be connected?
Standard 24 VDC digital sensors, switches, and dry-contact devices.
-
Is additional filtering required?
Typically no, as the module includes built-in conditioning for common industrial signals.
-
Does it require external input power?
Field power must be supplied to the input devices, while module logic uses rack power.
-
Can it be used in redundant controller configurations?
Yes, it integrates smoothly with Quantum redundancy schemes.
-
Is special mounting required?
It installs directly into a Quantum backplane slot without modifications.
-
Is it compatible with older Quantum racks?
Yes, the module is compatible with most existing Quantum I/O bases.
