Introduction

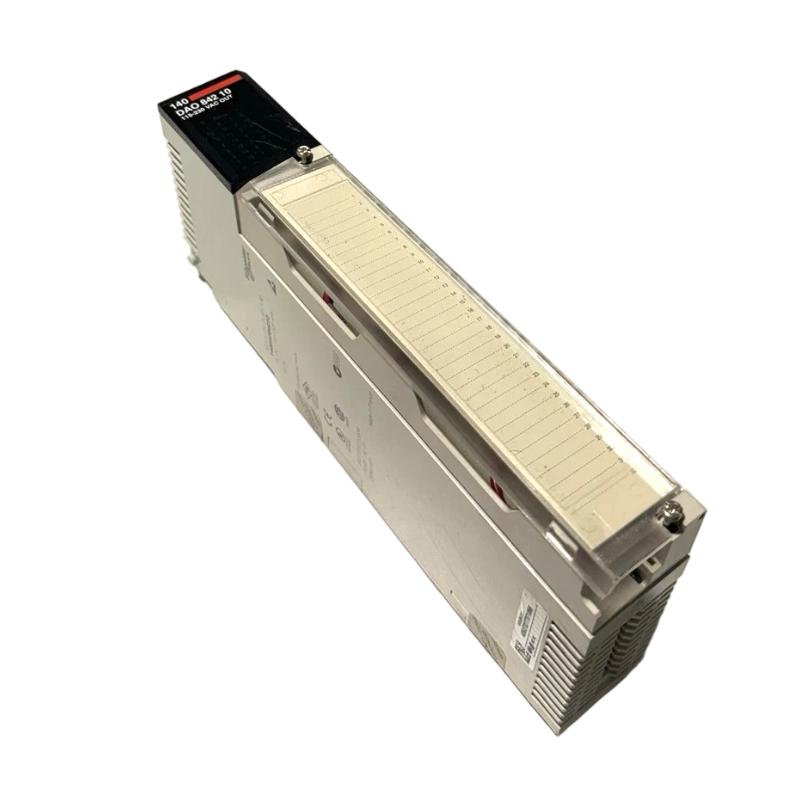

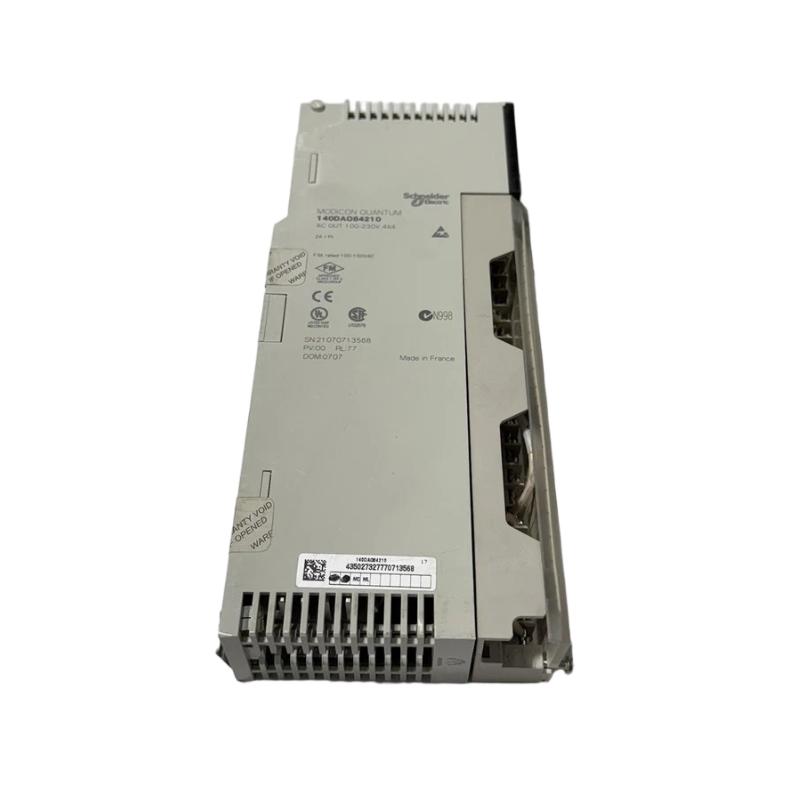

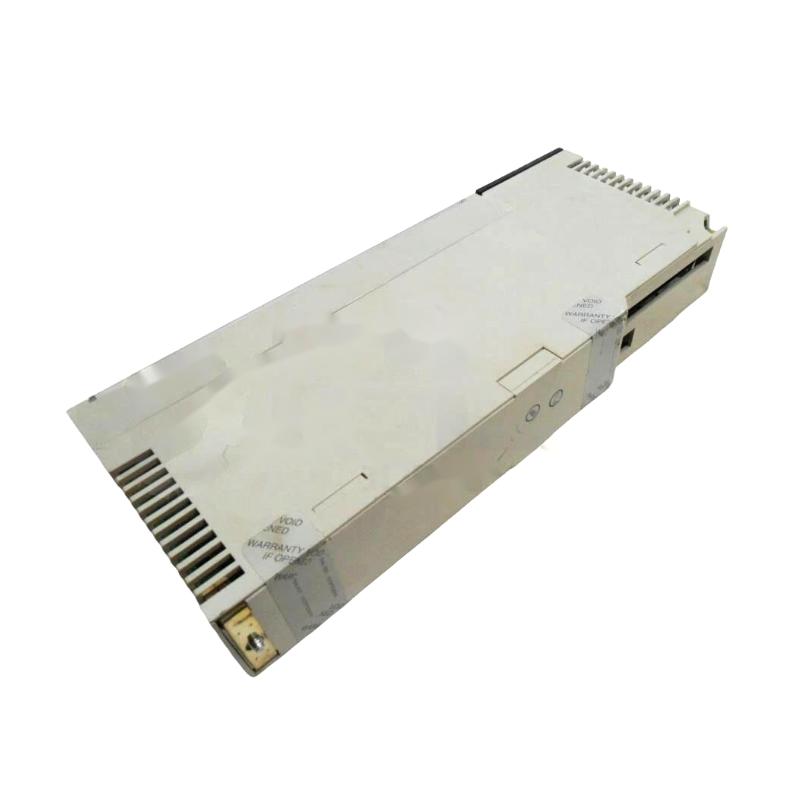

The Schneider 140DAO84210C is a discrete output module engineered for the Quantum automation platform, offering reliable signal switching for industrial actuation tasks. Its design focuses on electrical robustness, predictable timing behavior, and long-term operational integrity, making it a dependable component in both new installations and system upgrade projects.
Technical Specifications
| Parameter | Value |
|---|
| Module Type | Discrete Output Module |
| Platform | Schneider Quantum Series |
| Output Type | Digital (Discrete) |
| Number of Outputs | 16 |
| Output Voltage | 24 VDC (nominal) |
| Isolation | Channel-to-bus and channel-to-channel isolation |
| Operating Temperature | 0–60°C |
| Dimensions | 103.9 × 40.3 × 250 mm (H × W × D) |
| Weight | 0.45 kg |
Applications
• Used for motion equipment control in automated production lines.
• Suitable for driving solenoids, relays, and contactors in control cabinets.
• Supports pneumatic and hydraulic valve switching operations.
• Ideal for conveyor system start/stop and routing control.
• Enables signaling for lamps, annunciators, and indicator devices.
• Fits process automation systems requiring stable discrete output behavior.
• Used in facility-level automation where continuous uptime is required.
Advantages
• Stable and predictable switching performance under industrial loads.
• Strong electrical isolation improves noise immunity and system reliability.
• Seamless compatibility with existing Quantum platforms.
• Simple wiring structure reduces installation time.
• Built-in LED indicators simplify maintenance and troubleshooting.
• Designed for continuous-duty operation in demanding environments.
• Reliable operation across wide temperature conditions.
• Ideal for modernization without major infrastructure changes.
• Supports deterministic response behavior within automation cycles.
• Robust build quality suited for long-term field deployment.
Technical FAQs
-
Does the module support hot-swapping?
Yes, when used within Quantum systems that allow hot-swap procedures.
-
Does it include built-in diagnostics?
Yes, LED indicators provide status feedback for each channel.
-
Can the outputs drive inductive loads?
Yes, but it is recommended to add suppression components for heavy inductive loads.
-
Is isolation provided between channels?
Yes, both channel-to-channel and channel-to-bus isolation are included.
-
What wiring type is recommended?
Standard industrial field wiring appropriate for discrete control signals.
-
Is the module usable in redundant configurations?
Yes, when integrated into Quantum systems designed for redundancy.
-
Does the module require special cabinet cooling?
Not typically, though maintaining proper airflow is beneficial.
-
Can the module handle rapid switching frequencies?
Yes, it is built to maintain stable output behavior under repetitive actuation.
-
Does the module need external power for outputs?
It uses backplane power for logic and external field power for load switching.
-
Is it compatible with legacy Quantum equipment?
Yes, it supports a wide range of earlier Quantum installations.
