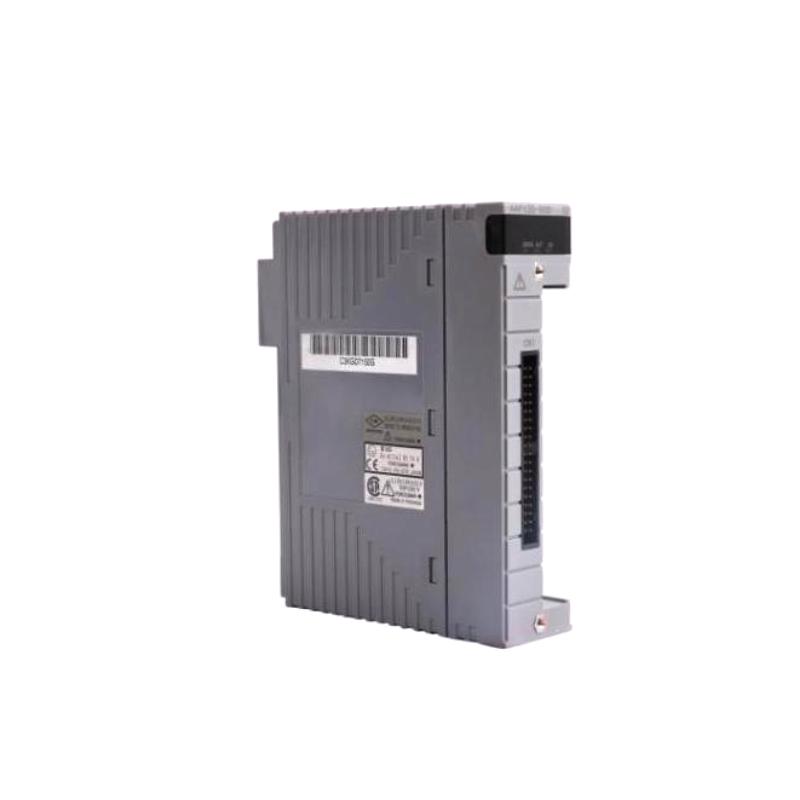

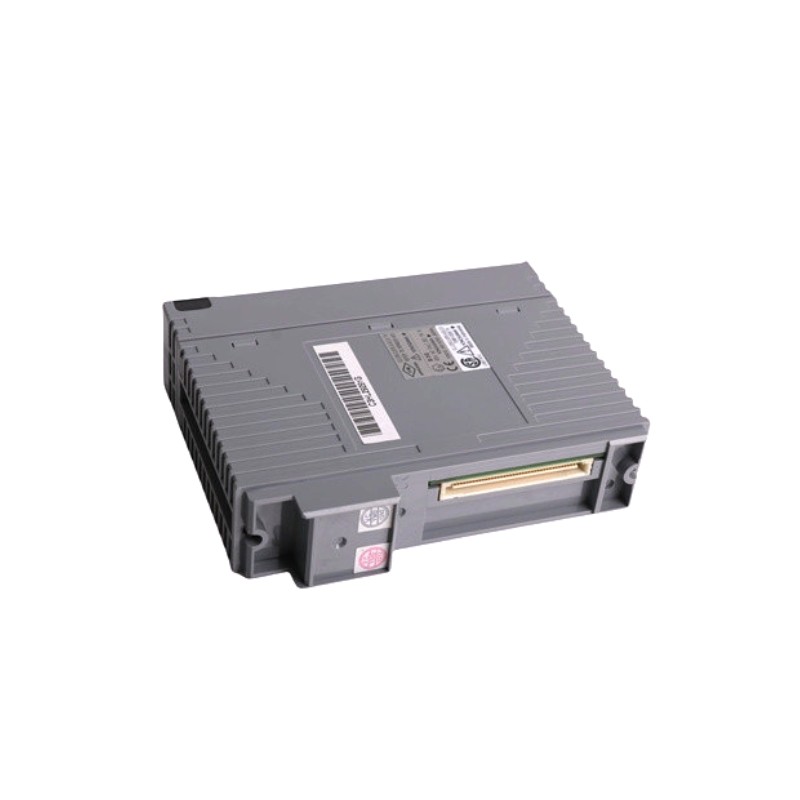

Yokogawa AAP135 Analog I/O Module

Name: Yokogawa AAP135 Analog I/O Module
Brand: Yokogawa Electric
SKU: 750
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:AAP135
Product Origin:Japan
Product Dimensions:105 mm × 90 mm × 40 mm
Product Weight:0.35kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Yokogawa AAP135 is a versatile analog I/O module designed for integration into Yokogawa DCS and PLC systems. It provides both analog input and output capabilities, supporting current and voltage signals for a wide range of process measurement and control applications. The module is engineered for high accuracy, rapid response, and robust isolation, making it ideal for process industries such as chemical, water treatment, energy, and manufacturing automation. Its compact form factor and modular design ensure easy installation and system expansion.

Technical Specifications

Parameter	Details
Module Type	Analog Input/Output (I/O) Module
Input Channels	8 analog input channels
Output Channels	4 analog output channels
Supported Signal Types (Input/Output)	DC Current (0–20 mA, 4–20 mA) / DC Voltage (0–10 V, 1–5 V)
Input Resolution	16-bit ADC for precise measurement
Output Resolution	16-bit DAC for accurate signal control
Accuracy	±0.1% of full scale (input and output)
Response Time	<50 ms per channel (typical)
Isolation	Full galvanic isolation between I/O channels and system; withstand voltage 1500 V AC for 1 min
Power Supply / Consumption	Powered via standard I/O module nest; low current consumption
Mounting / Compatibility	Standard Yokogawa I/O rack / module nest
Dimensions (H × W × D)	105 mm × 90 mm × 40 mm
Weight	Approx. 0.35 kg

Applications

Simultaneous acquisition of process variables and control signals.
Driving field devices such as valves, actuators, and transmitters while monitoring process inputs.
Process automation in chemical, water, energy, and manufacturing plants.
Expansion of existing Yokogawa DCS/PLC systems with both input and output requirements.
OEM control panels and automation systems requiring compact, modular analog I/O.

Advantages

Combined I/O — supports both analog input and output in a single module.
High precision — 16-bit resolution ensures reliable measurement and control.
Fast response — less than 50 ms per channel enables real-time control.
Robust isolation — protects system from noise, ground loops, and electrical interference.
Modular and compact — fits standard Yokogawa I/O racks for easy expansion.
Versatile signal support — handles both current and voltage signals for flexible applications.

Technical FAQs (10)

Q: How many analog input channels does the AAP135 provide?
A: 8 input channels.
Q: How many analog output channels does it provide?
A: 4 output channels.
Q: What types of signals can the module handle?
A: DC current (0–20 mA, 4–20 mA) and DC voltage (0–10 V, 1–5 V).
Q: What is the input resolution?
A: 16-bit ADC.
Q: What is the output resolution?
A: 16-bit DAC.
Q: What is the typical accuracy for input and output?
A: ±0.1% of full scale.
Q: What is the response time per channel?
A: Less than 50 ms.
Q: Are the I/O channels isolated from the system?
A: Yes, full galvanic isolation with 1500 V AC withstand voltage for 1 minute.
Q: What are the module’s physical dimensions and weight?
A: 105 mm × 90 mm × 40 mm; approx. 0.35 kg.
Q: What applications are ideal for the AAP135?
A: Process control, simultaneous I/O acquisition, driving field devices, DCS/PLC system expansion, and OEM automation panels.
