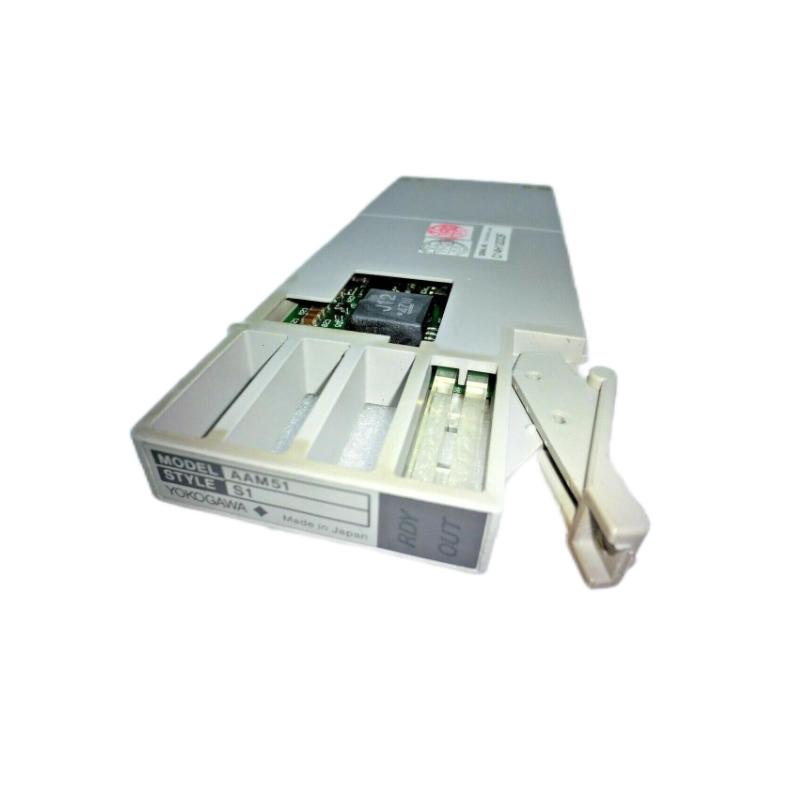

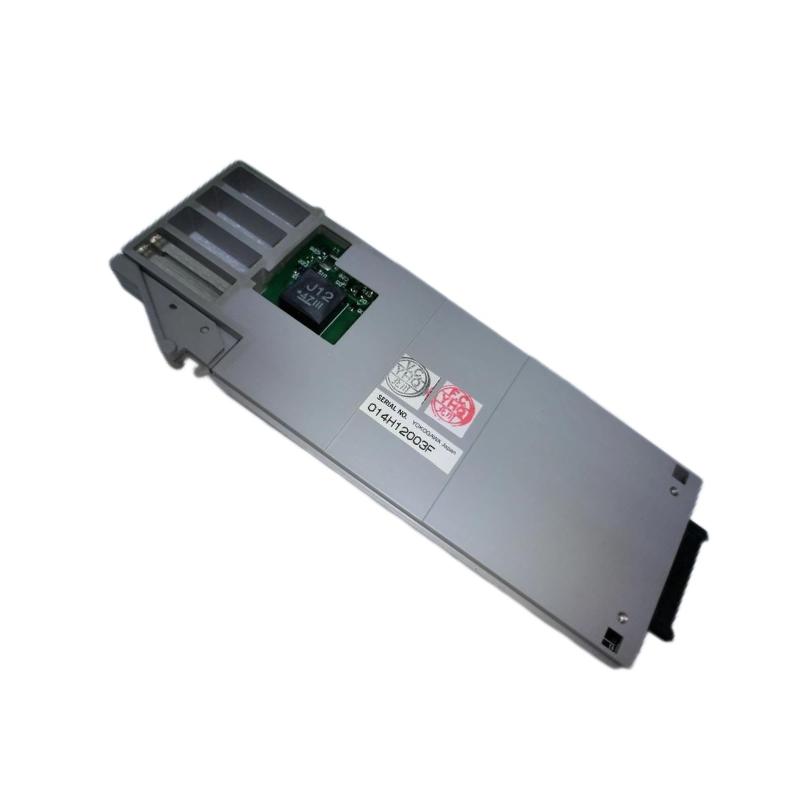

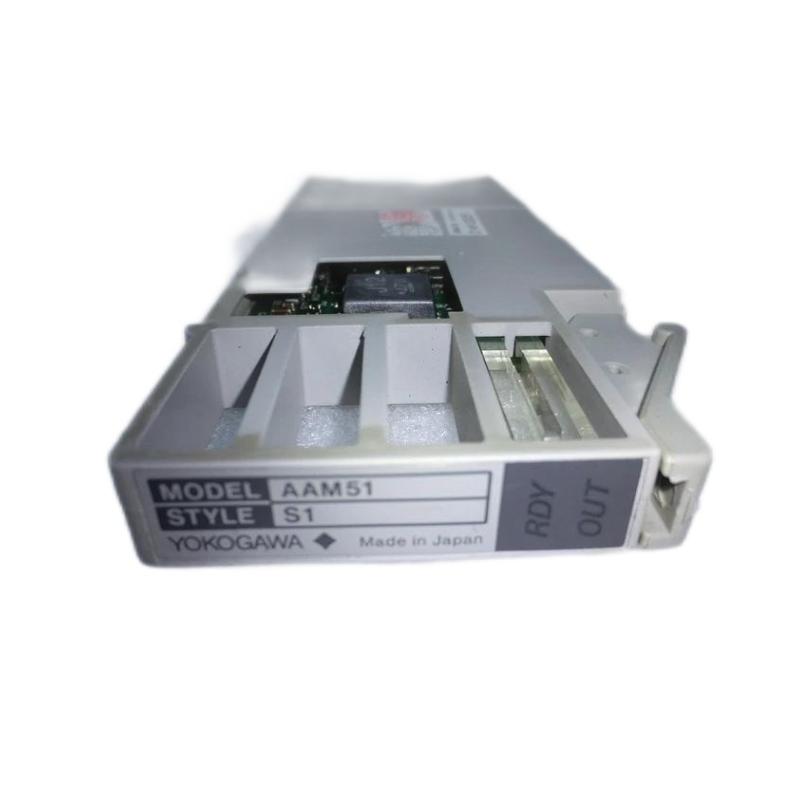

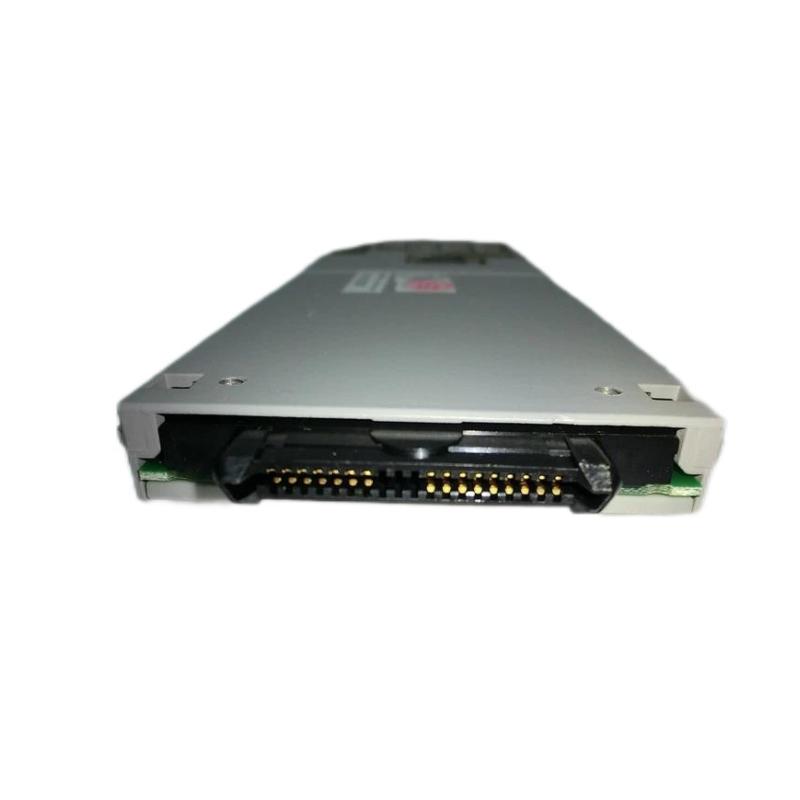

Yokogawa AAM51-S1 Current/Voltage Output Module

Name: Yokogawa AAM51-S1 Current/Voltage Output Module
Brand: Yokogawa Electric
SKU: 748
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:AAM51-S1
Product Origin:Japan
Product Dimensions:105 mm × 90 mm × 30 mm
Product Weight:0.25kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Yokogawa AAM51‑S1 is a high-precision analog output module designed for industrial DCS and PLC systems. It provides reliable current (4–20 mA / 0–20 mA) and voltage (0–10 V / 1–5 V) outputs, enabling precise control of field devices such as valves, actuators, and transmitters. With excellent accuracy, fast response, and robust isolation, the AAM51‑S1 ensures consistent performance in demanding process automation applications, making it a trusted choice for chemical plants, water treatment, energy systems, and manufacturing environments.

Technical Specifications

Parameter	Details
Output Channels	8 analog output channels
Supported Signal Types	DC Current (0–20 mA, 4–20 mA) / DC Voltage (0–10 V, 1–5 V)
Output Resolution	16-bit DAC for high-precision control
Load Resistance (Current Mode)	0–600 Ω typical
Load Resistance (Voltage Mode)	≥ 2 kΩ
Accuracy	±0.1% of full scale
Response Time	< 50 ms per channel
Isolation	Full galvanic isolation between outputs and system; withstand voltage 1500 V AC for 1 min
Power Supply / Consumption	Powered via standard I/O module nest; minimal current draw
Mounting / Compatibility	Standard Yokogawa analog I/O rack / module nest
Dimensions (H × W × D)	105 mm × 90 mm × 30 mm
Weight	Approx. 0.25 kg

Applications

Controlling valves, actuators, and analog field devices in process automation.
Driving transmitters and instruments with precision analog outputs.
Process control in chemical, water, energy, and manufacturing plants.
Expansion of existing DCS/PLC systems requiring additional analog outputs.
Machine automation requiring rapid and accurate analog signal control.

Advantages

Multi-signal support — current or voltage output selectable per channel.
High accuracy — 16-bit DAC and ±0.1% full-scale accuracy for precise control.
Fast response — <50 ms per channel for responsive control loops.
Galvanic isolation — protects system from interference and ground loops.
Compact and modular — fits standard Yokogawa I/O nests to save space.
Reliable performance — designed for industrial-grade environments and demanding applications.

Technical FAQs (10)

Q: How many output channels does the AAM51‑S1 support?
A: 8 analog output channels.
Q: What types of outputs are supported?
A: DC current (0–20 mA, 4–20 mA) and DC voltage (0–10 V, 1–5 V).
Q: What is the output resolution?
A: 16-bit DAC.
Q: What is the accuracy of the outputs?
A: ±0.1% of full scale.
Q: What is the response time per channel?
A: Less than 50 ms.
Q: Are the outputs isolated from the system?
A: Yes, full galvanic isolation with 1500 V AC withstand voltage for 1 minute.
Q: What load resistance is supported in current mode?
A: 0–600 Ω typical.
Q: What load resistance is supported in voltage mode?
A: ≥ 2 kΩ.
Q: What are the module’s physical dimensions and weight?
A: 105 mm × 90 mm × 30 mm; weight approx. 0.25 kg.
Q: What applications are ideal for this module?
A: Controlling field devices, process automation, DCS/PLC system expansion, and machine control requiring precise analog outputs.
