Introduction

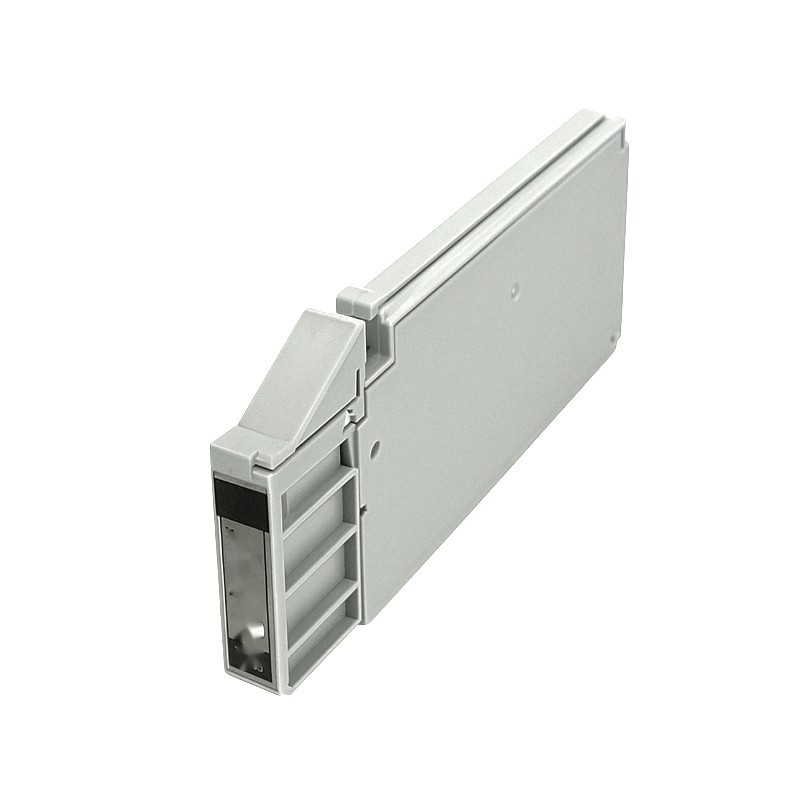

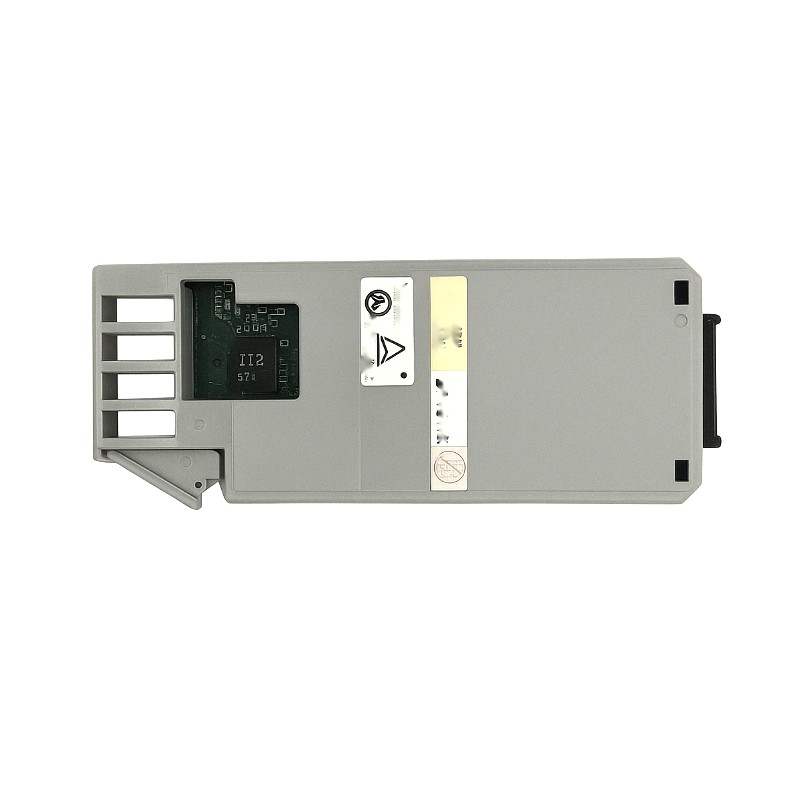

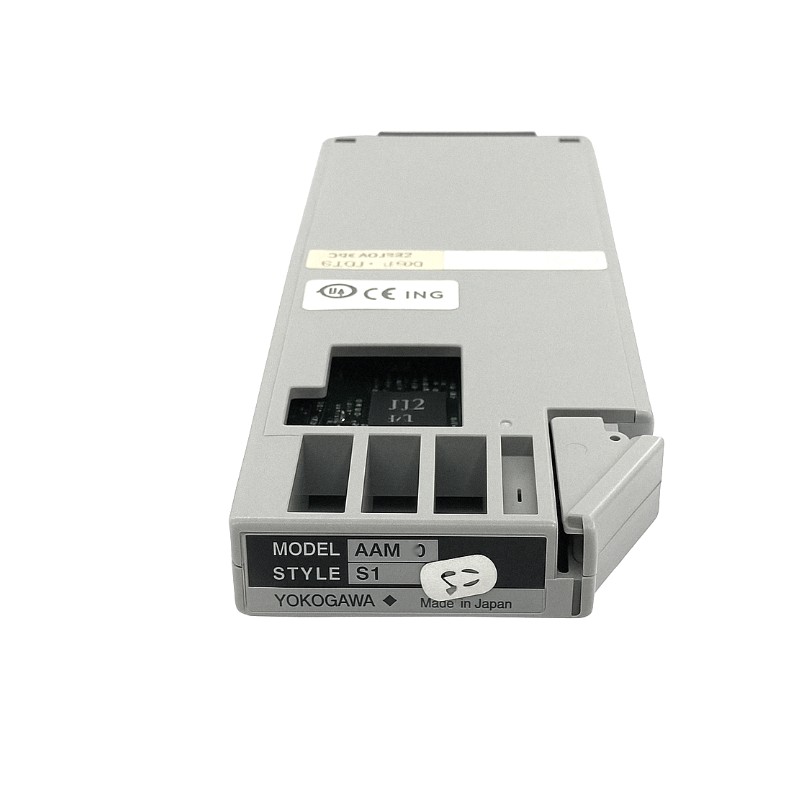

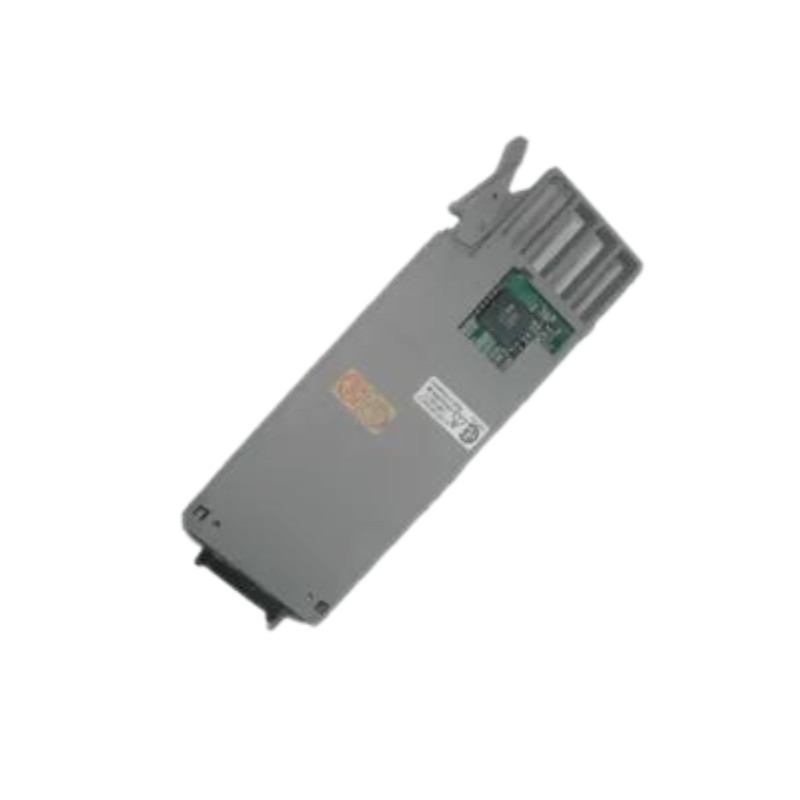

The Yokogawa AAM10‑S1 is a precision analog input module designed to measure both current and voltage signals for industrial automation and process control applications. Compatible with Yokogawa DCS (Distributed Control System) platforms, this module provides reliable, high-accuracy signal acquisition for critical monitoring and control tasks. Its versatile input range, high-resolution conversion, and robust industrial design make it ideal for applications such as process monitoring, energy management, and control system integration. The AAM10‑S1 ensures stable performance in harsh environments where measurement accuracy and reliability are essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Module Type | Analog Input Module (Current & Voltage) |
| Input Channels | 4 or 8 channels (depending on configuration) |
| Input Signal Types | DC Current (0–20 mA, 4–20 mA), DC Voltage (0–10 V, 1–5 V) |
| Input Accuracy | ±0.1% of full scale typical |
| Input Impedance | Current: approx. 250 Ω; Voltage: 1 MΩ |
| Sampling Rate | Up to 50 ms per channel |
| Isolation | Channel-to-backplane isolation provided |
| Common Mode Rejection Ratio (CMRR) | > 100 dB |
| Operating Temperature | 0 °C – 55 °C |
| Storage Temperature | –20 °C – 70 °C |
| Humidity | 5–95% RH, non-condensing |
| Mounting | Rack-mounted for Yokogawa DCS backplane |
| Dimensions (H × W × D) | 160 mm × 30 mm × 120 mm |
| Weight | Approx. 0.25 kg |
| Indicators | LED per channel for input status and module diagnostics |
