Introduction

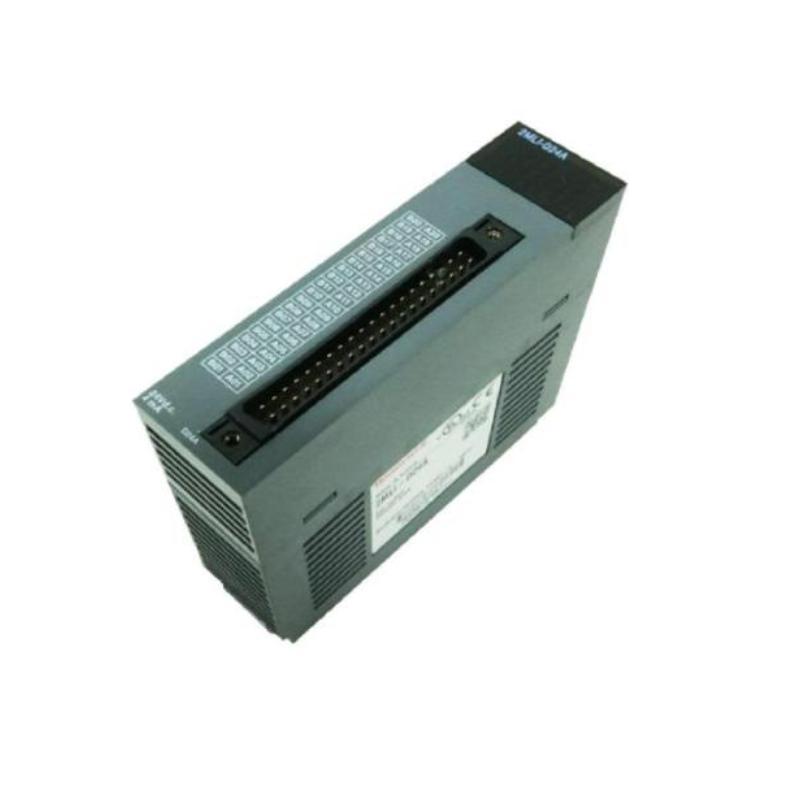

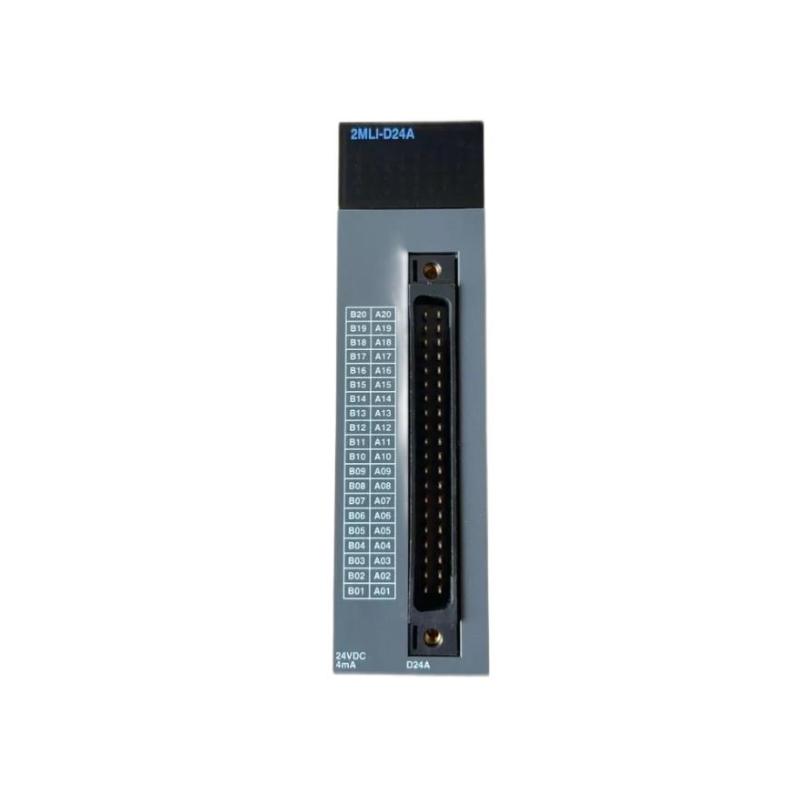

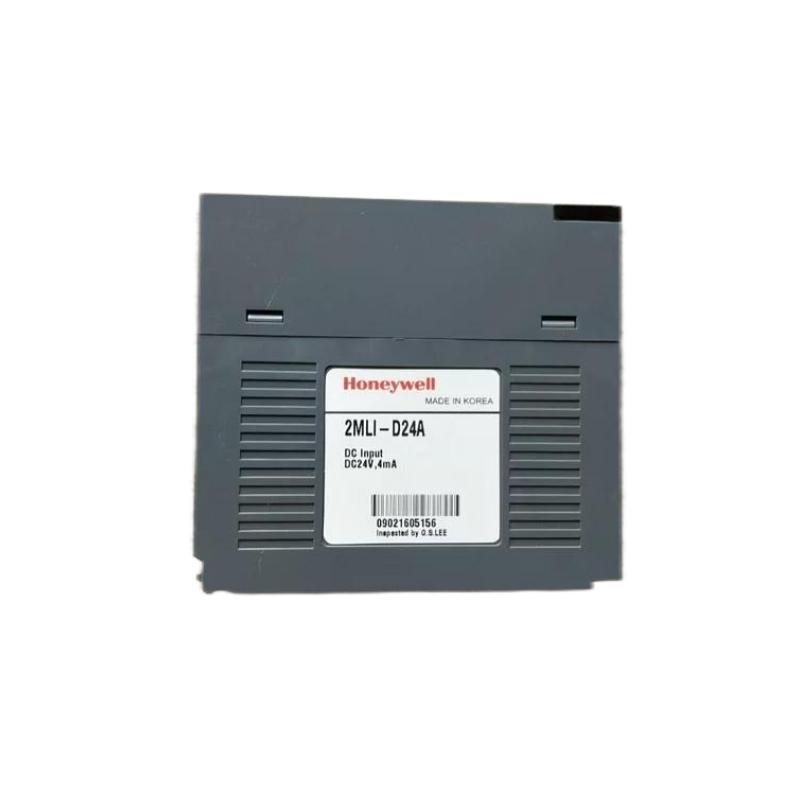

The Honeywell 2MLI‑D24A is a high-density digital input module designed for the MasterLogic‑200 PLC family. With 32 DC 24 V input channels in a compact form factor, it allows industrial automation systems to capture a large number of discrete signals from sensors, switches, or contact closures. Its sink/source configurable inputs and robust photo‑coupler isolation ensure reliable and noise‑resistant operation, making it ideal for complex manufacturing, process control, and machine automation applications where stability and precision are essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Input Channels | 32 discrete DC input points |
| Input Type | Sink or Source (DC 24 V) |
| Operating Voltage Range | DC 20.4 V – 28.8 V |
| ON Threshold | ≥ 19 V DC and ≥ 3 mA |
| OFF Threshold | ≤ 11 V DC and ≤ 1.7 mA |
| Input Resistance | Approx. 5.6 kΩ |
| Response Time (configurable) | 1 ms / 3 ms / 5 ms / 10 ms / 20 ms / 70 ms / 100 ms — default 3 ms |
| Isolation Method | Photo‑coupler isolation for noise immunity |
| Isolation Voltage | AC 560 V rms for 3 cycles (altitude ≤ 2000 m) |
| Common / COM Wiring | 32 points sharing a common COM line (sink/source selectable) |
| Current Consumption (module) | Approx. 50 mA |
| Connection Method | 40‑point terminal block, twisted pair 0.3–0.75 mm² |
| Status Indicator | LED per input channel (lights when input is ON) |
| Ambient Operating Temperature | 0 °C to +55 °C |
| Module Weight | Approx. 0.10 kg |
| Mounting | Standard MasterLogic‑200 rack slot |
