Honeywell 2MLI‑D22A‑CC 16‑Point DC 24 V Digital Input Module

Brand:Honeywell DCS
Item No.:2MLI‑D22A‑CC
Product Origin:USA
Product Dimensions:120 x 80 x 60 mm
Product Weight:0.12kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

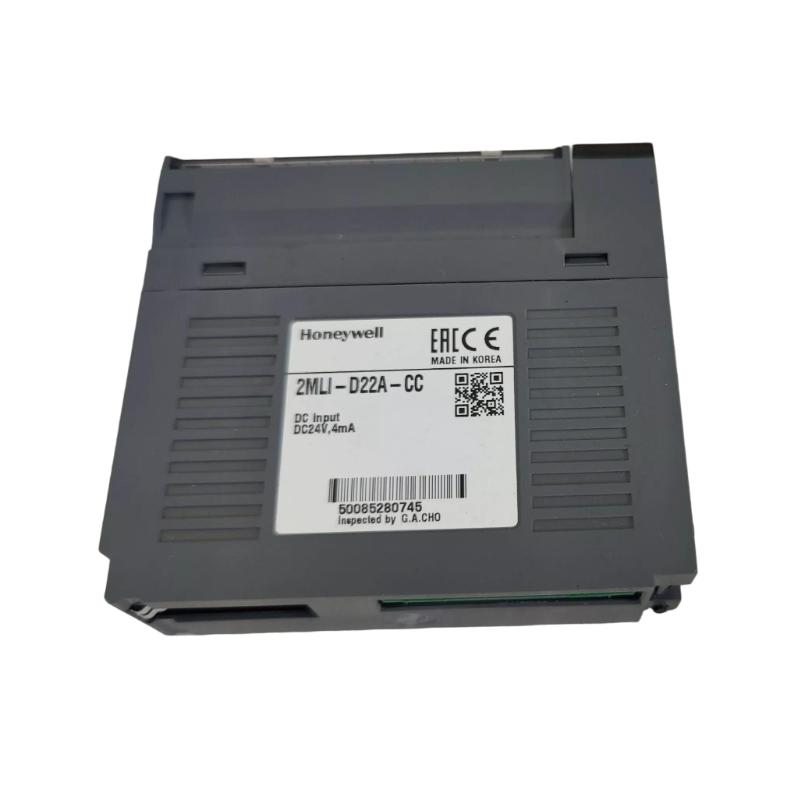

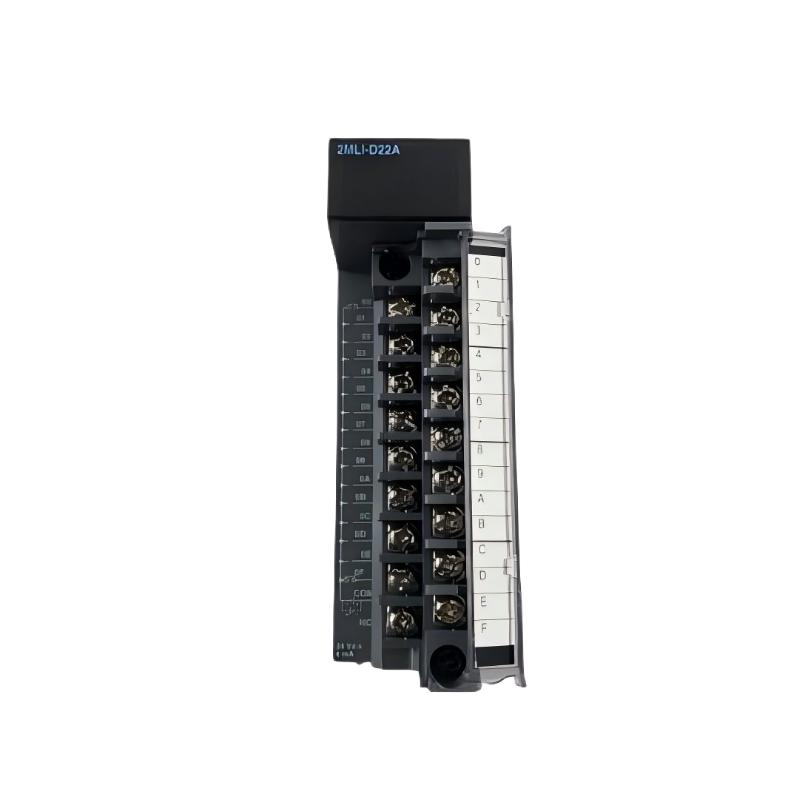

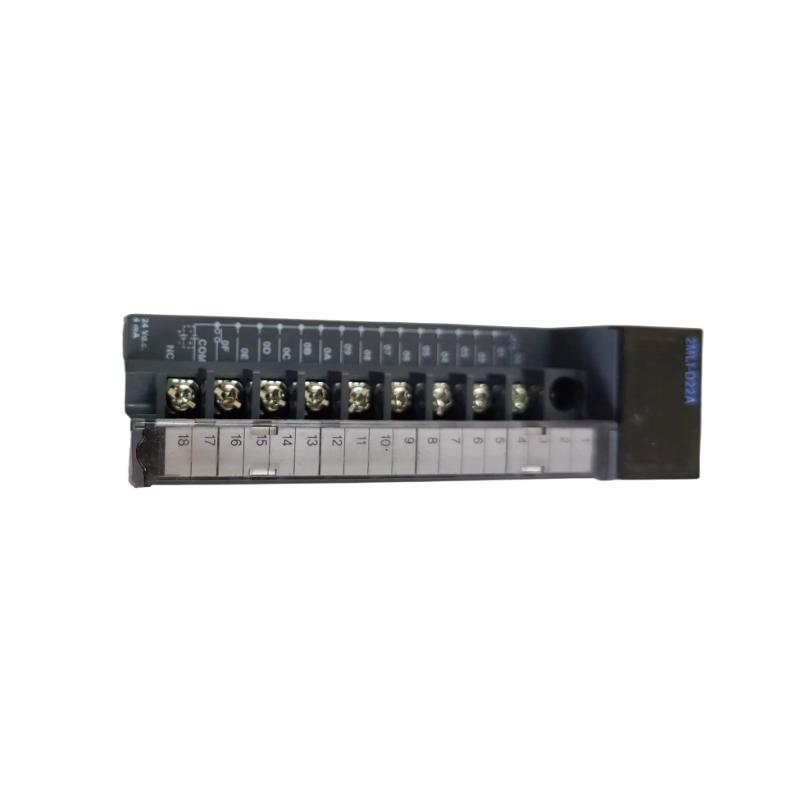

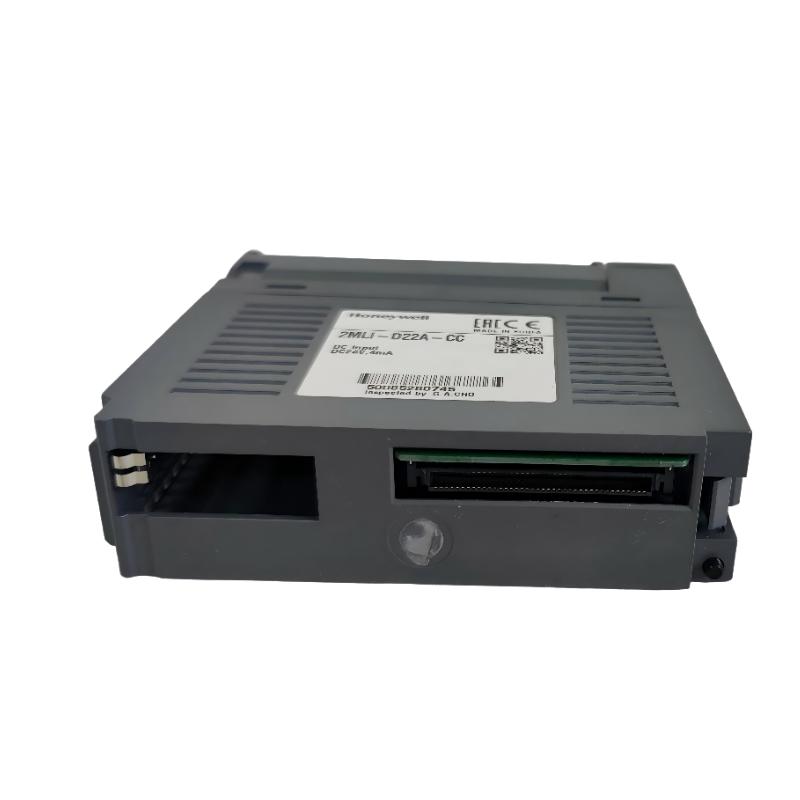

Honeywell 2MLI-D22A-CC-1Honeywell 2MLI-D22A-CC-3Honeywell 2MLI-D22A-CC-4Honeywell 2MLI-D22A-CC-2

Introduction

The Honeywell 2MLI‑D22A‑CC is a 16‑point DC 24 V digital input module designed for the MasterLogic‑200 (ML200 / ML200R) PLC platform. It provides reliable, flexible, and noise‑resistant acquisition of discrete DC signals from sensors, switches, and other field devices, transmitting them efficiently into your control logic. With a compact design, configurable input behavior (sink or source), and robust isolation, this module is ideal for industrial automation, machine control, and process-level discrete I/O applications requiring stable and accurate digital input detection.

Technical Specifications

ParameterDetails
Input Channels16 discrete DC input points
Input TypeSink or Source (DC 24 V)
Operating Voltage RangeDC 20.4 V – 28.8 V (nominal 24 V)
ON Threshold≥ 19 V DC and ≥ 3 mA
OFF Threshold≤ 11 V DC and ≤ 1.7 mA
Input ResistanceApprox. 5.6 kΩ
Response Time (configurable)1 ms / 3 ms / 5 ms / 10 ms / 20 ms / 70 ms / 100 ms — default 3 ms
Isolation MethodPhoto‑coupler isolation for noise immunity and logic protection
Isolation VoltageAC 560 V rms for 3 cycles (altitude ≤ 2000 m)
Common / COM Wiring16 points sharing a common COM line (sink/source selectable)
Current Consumption (module)Approx. 30 mA
Connection Method18‑point terminal block connector (M3 × 6 screw), twisted pair 0.3–0.75 mm²
Status IndicatorLED per input channel (lights when input is ON)
Ambient Operating Temperature0 °C to +55 °C
Module WeightApprox. 0.12 kg


Applications

  • Reading discrete DC‑24 V sensor signals, push‑buttons, limit switches, or proximity switches in machinery and automation lines

  • Expanding input capacity of MasterLogic‑200 PLC racks, especially where multiple digital inputs are needed

  • Machine control, conveyor management, packaging lines, or assembly automation requiring robust and clean DC inputs

  • OEM control cabinets or custom control panels needing modular, flexible, and dense digital I/O

  • Process plants, utilities, or infrastructure automation systems where DC 24 V logic is standard


Advantages

  • Flexible wiring — sink or source: supports both wiring methods, giving engineers flexibility to adapt to different field device types.

  • Compact high-density I/O: 16 input channels in a single module save rack space and simplify wiring layouts.

  • Configurable response time: selectable response times (as fast as 1 ms) enable tuning for either noise immunity or fast switching needs.

  • Strong signal isolation: photo‑coupler isolation protects PLC logic from electrical noise and transients common in industrial environments.

  • Visual status indicators: per‑channel LEDs make diagnostics, troubleshooting, and maintenance faster and easier.

  • Standard DC 24 V compatibility: ensures straightforward connection with common industrial sensors and devices without additional converters.


Technical FAQs (10)

  1. Q: How many input channels does 2MLI‑D22A‑CC offer?
    A: 16 discrete DC input channels.

  2. Q: What input voltage does it expect?
    A: DC 24 V nominal (operating range DC 20.4–28.8 V).

  3. Q: Does it support both sink and source wiring?
    A: Yes — the module supports either sink or source wiring configuration.

  4. Q: What is the ON / OFF threshold for inputs?
    A: ON ≥ 19 V DC & ≥ 3 mA; OFF ≤ 11 V DC & ≤ 1.7 mA.

  5. Q: What is the input resistance?
    A: About 5.6 kΩ.

  6. Q: How fast does the module detect input changes?
    A: Response time configurable — from 1 ms up to 100 ms; default is 3 ms.

  7. Q: How are the inputs isolated from the PLC logic?
    A: Via photo‑coupler isolation, which enhances noise immunity and protects internal logic.

  8. Q: What wiring method and connection interface does it use?
    A: 18‑point terminal block (M3 screws), using twisted‑pair cable of 0.3–0.75 mm².

  9. Q: Does it include status indicators for each input?
    A: Yes — each input channel has an LED that lights when the input is active.

  10. Q: What kinds of applications suit this module best?
    A: Industrial automation, machine and conveyor control, OEM control panels, process monitoring systems, and any application requiring modular DC‑24 V digital inputs.
