Introduction

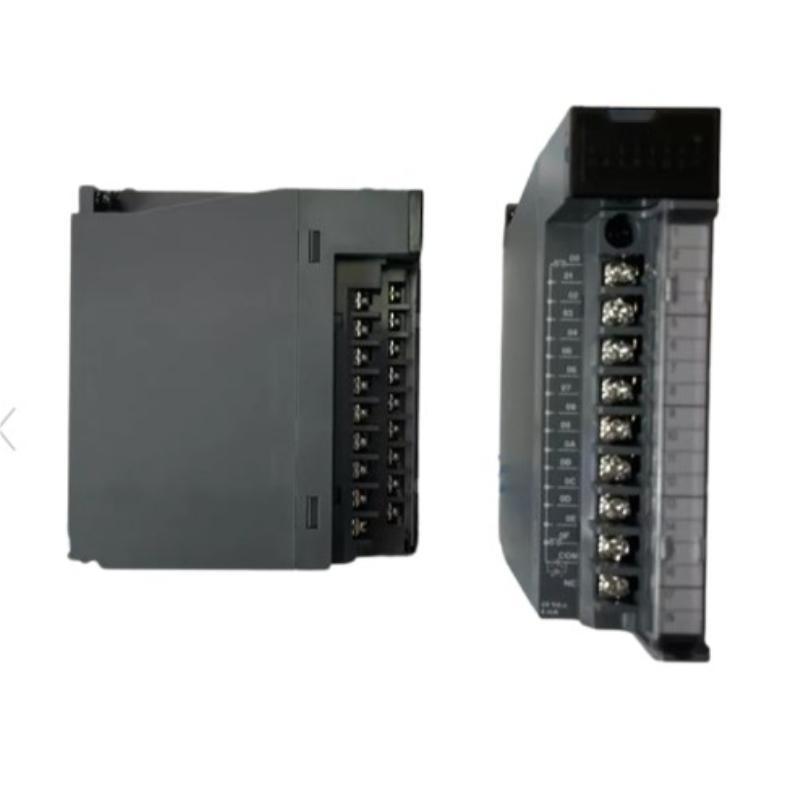

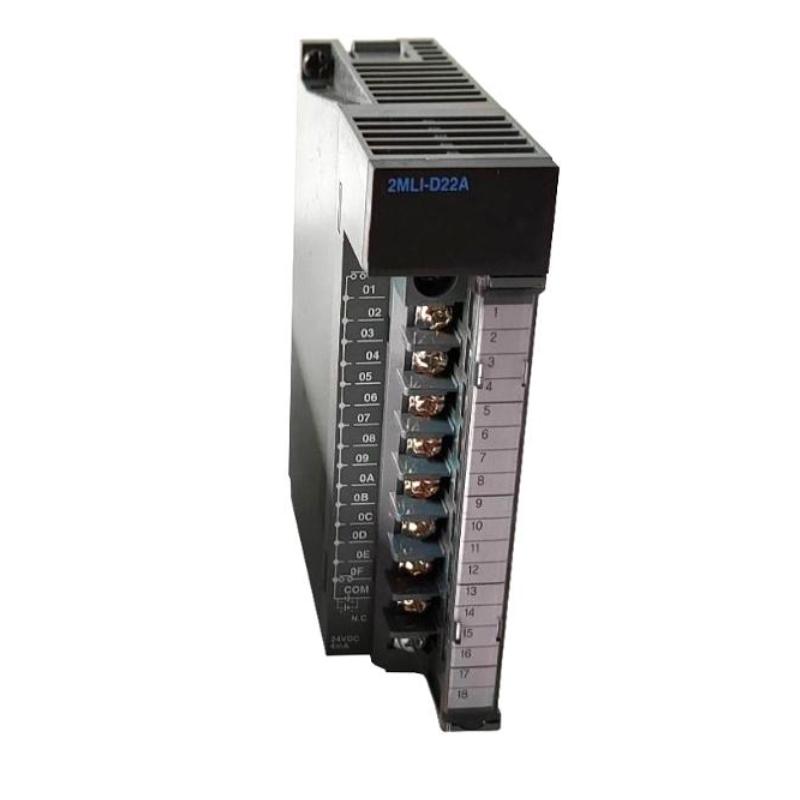

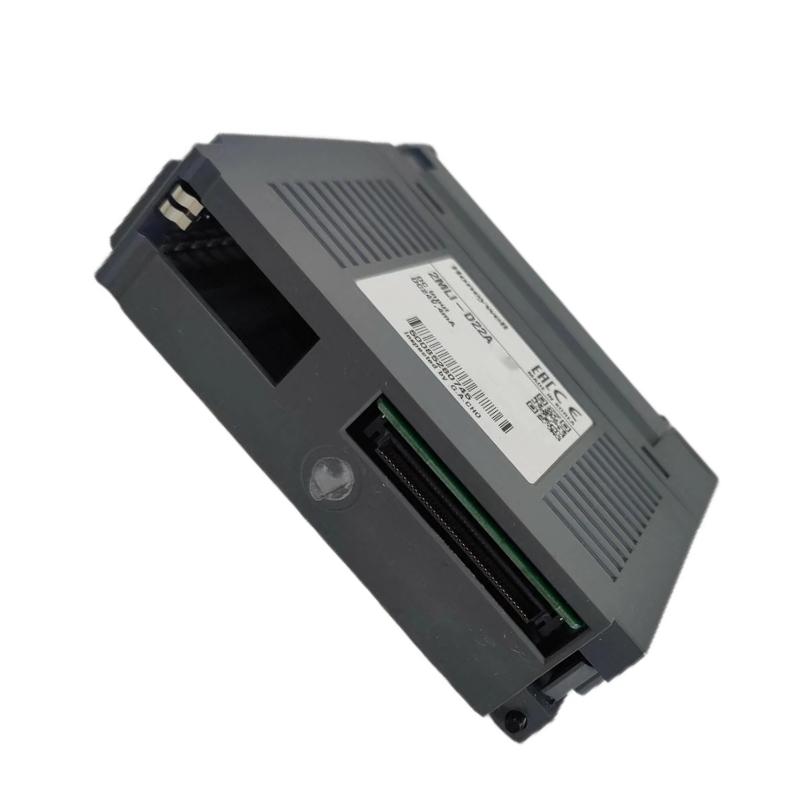

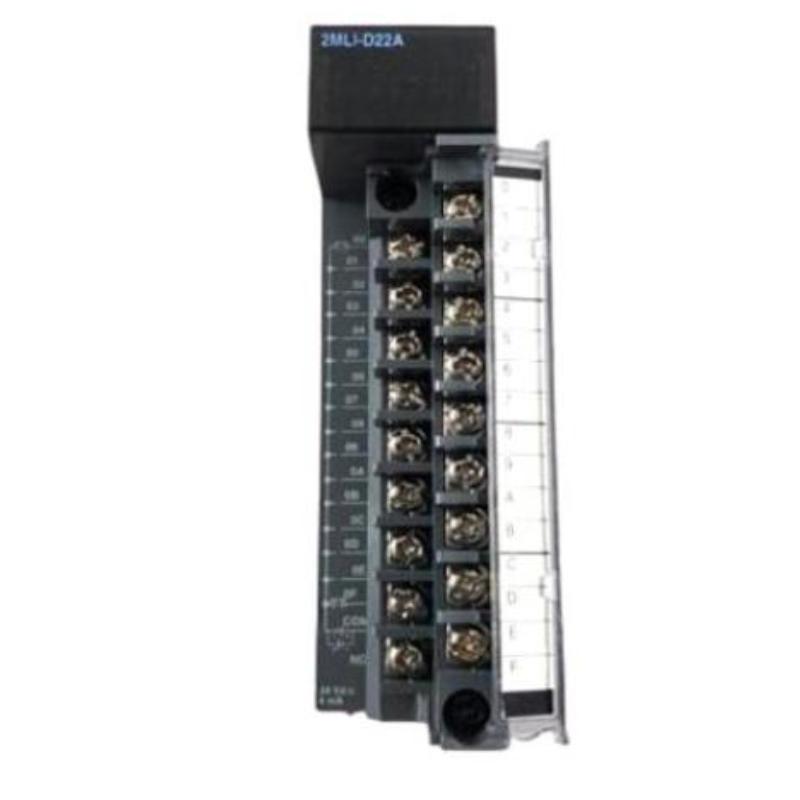

The Honeywell 2MLI‑D22A is a 16‑channel digital input module tailored for the MasterLogic-200 PLC family. It accepts DC 24 V discrete input signals in either sink or source configuration, making it versatile for a wide range of industrial automation tasks. Thanks to its reliable input detection, robust isolation, and compact footprint, the 2MLI‑D22A is often used as a foundational component in control cabinets — especially where stable, noise‑resistant digital inputs from sensors, switches or field devices are needed.
Technical Specifications
| Parameter | Details |
|---|---|
| Input Channels | 16 discrete DC input points |
| Input Type | Sink or Source DC 24 V |
| Operating / Rated Voltage | DC 20.4 V – 28.8 V (nominal DC 24 V) |
| ON Threshold | ≥ DC19 V, ≥ 3 mA |
| OFF Threshold | ≤ DC11 V, ≤ 1.7 mA |
| Input Resistance | ≈ 5.6 kΩ |
| Response Time (OFF→ON / ON→OFF) | Configurable: 1 ms / 3 ms / 5 ms / 10 ms / 20 ms / 70 ms / 100 ms (default 3 ms) |
| Isolation Method | Photo‑coupler isolation |
| Isolation Voltage | AC 560 V rms, 3 cycles (altitude ≤ 2000 m) |
| Isolation Resistance | ≥ 10 MΩ (megger) |
| Common Method | 16 points per COM |
| Current Consumption (module) | ~ 30 mA |
| Connection Method | 18‑point terminal block, M3 × 6 screw |
| Recommended Cable Size | Twisted‑pair 0.3–0.75 mm² (outer diameter ≤ 2.8 mm) |
| Indicator | LED per input channel (lights when input is ON) |
| Ambient Operating Temperature | 0 °C to +55 °C |
| Weight | Approx. 0.12 kg |
