Introduction

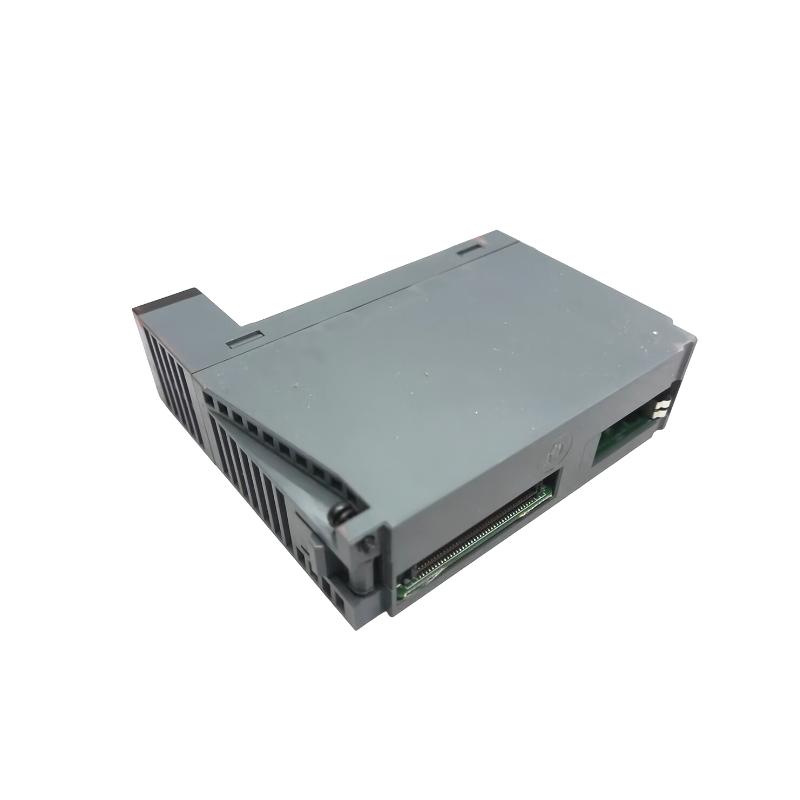

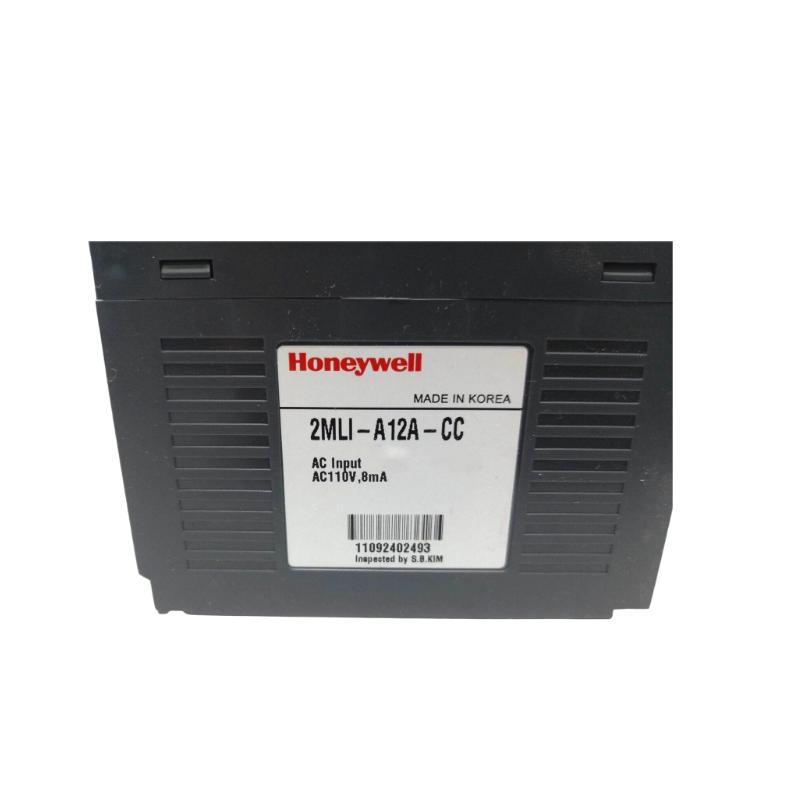

The Honeywell 2MLI‑A12A‑CC is a rugged, industrial‑grade 16‑point AC 110 V digital input module built for the MasterLogic‑200 (ML200 / ML200R) platform. It is designed to reliably collect discrete field signals — like switches, contact closures, sensors — and feed them accurately into your PLC logic. With durable photo‑coupler isolation, compact form factor, and fast response, this module makes integrating AC‑powered field devices into automation systems straightforward and robust.
Technical Specifications
| Parameter | Details |
|---|---|
| Input Points | 16 AC digital input channels |
| Rated Input Voltage | AC 100–120 V (±10/‑15 %), 50/60 Hz |
| Rated Input Current | ~ 8 mA @ 110 V (60 Hz) / ~ 7 mA @ 110 V (50 Hz) |
| Inrush Current Tolerance | ≤ 200 mA for 1 ms (at AC 132 V) |
| Input Resistance | Approx. 12 kΩ (60 Hz) / 15 kΩ (50 Hz) |
| ON Threshold | AC ≥ 80 V and current ≥ 5 mA |
| OFF Threshold | AC ≤ 30 V and current ≤ 1 mA |
| Response Time (OFF → ON) | ≤ 15 ms (AC 100 V, 50/60 Hz) |
| Response Time (ON → OFF) | ≤ 25 ms (AC 100 V, 50/60 Hz) |
| Isolation Method | Photo‑coupler isolation, withstands 1780 Vrms (3‑cycle) |

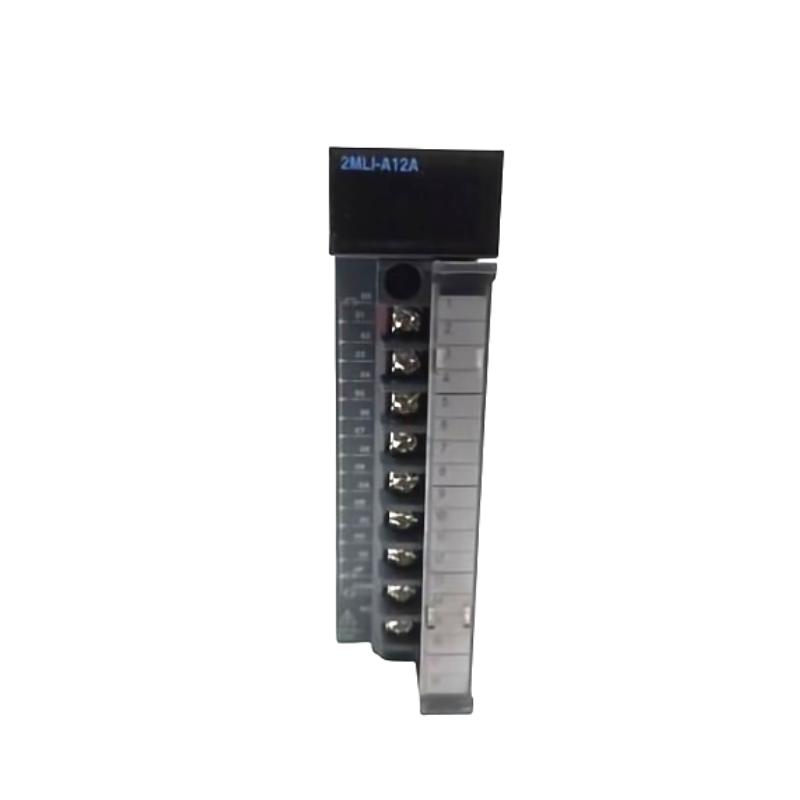

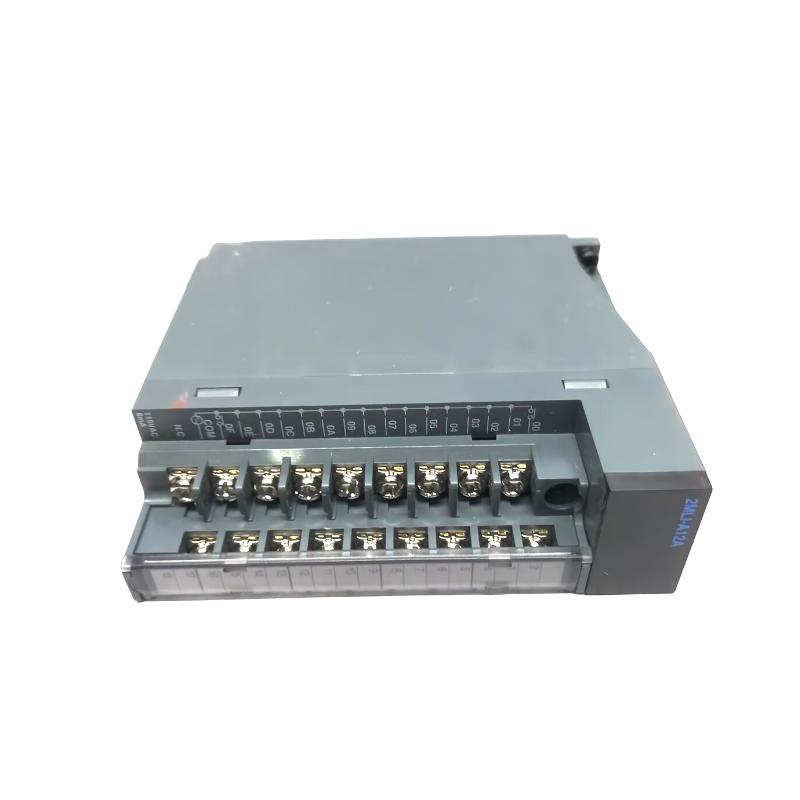

| Connection Method | 18‑point terminal‑block connector (M3 × 6 screw) |
| Recommended Cable Size | Twisted‑pair wire, 0.3–0.75 mm², max outer Ø 2.8 mm |
| Weight | Approx. 0.13 kg |
