Honeywell 2MLI‑A12A 16‑Point AC 110 V Digital Input Module

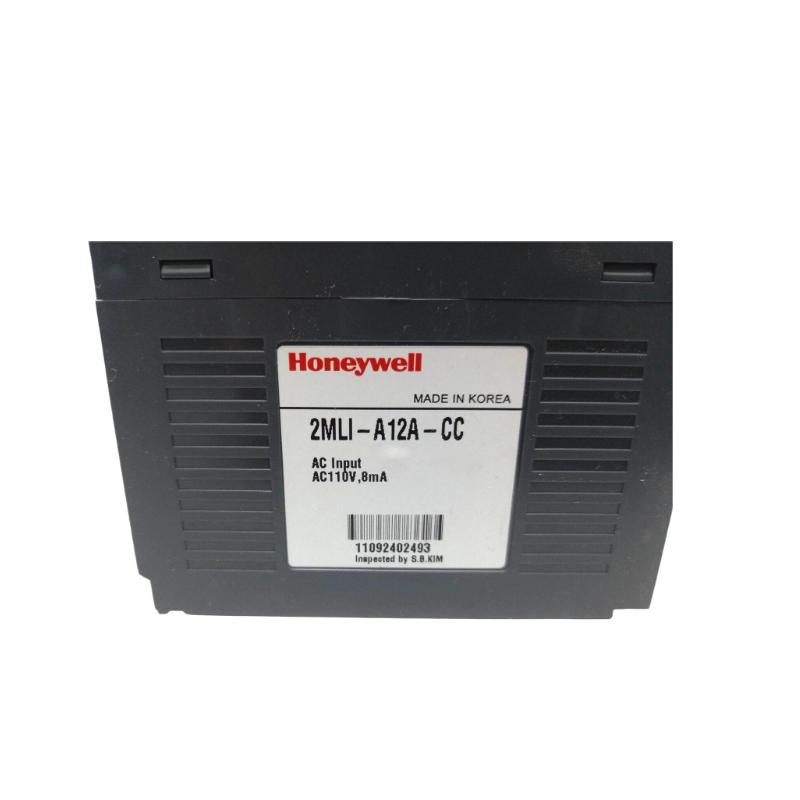

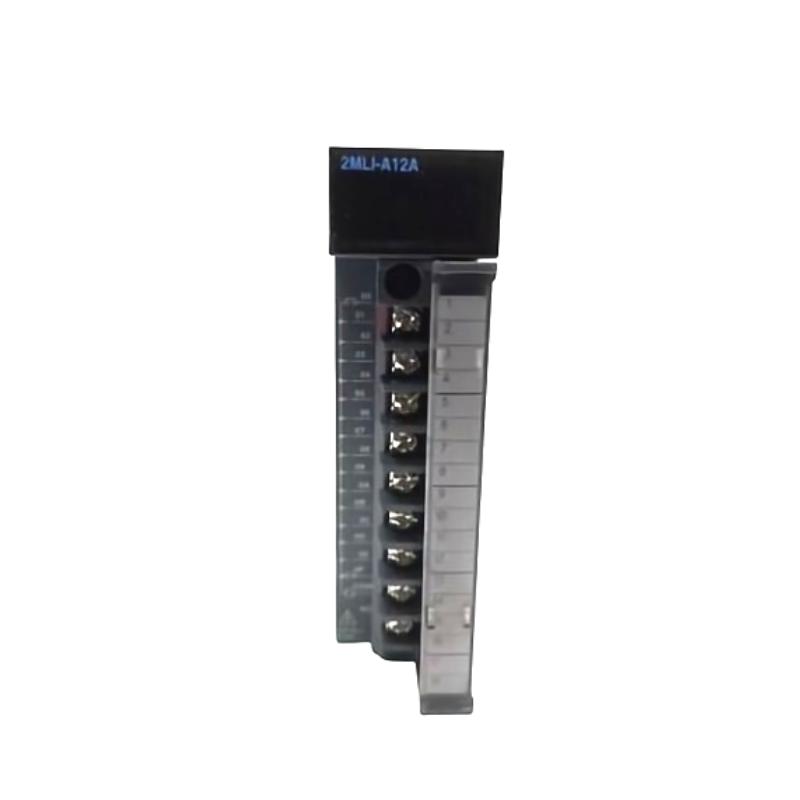

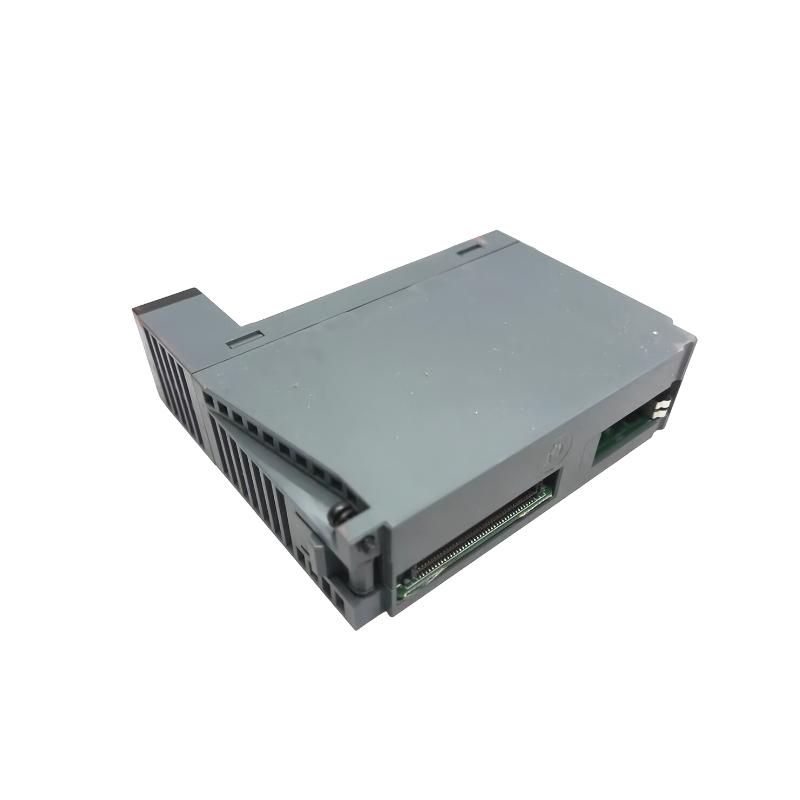

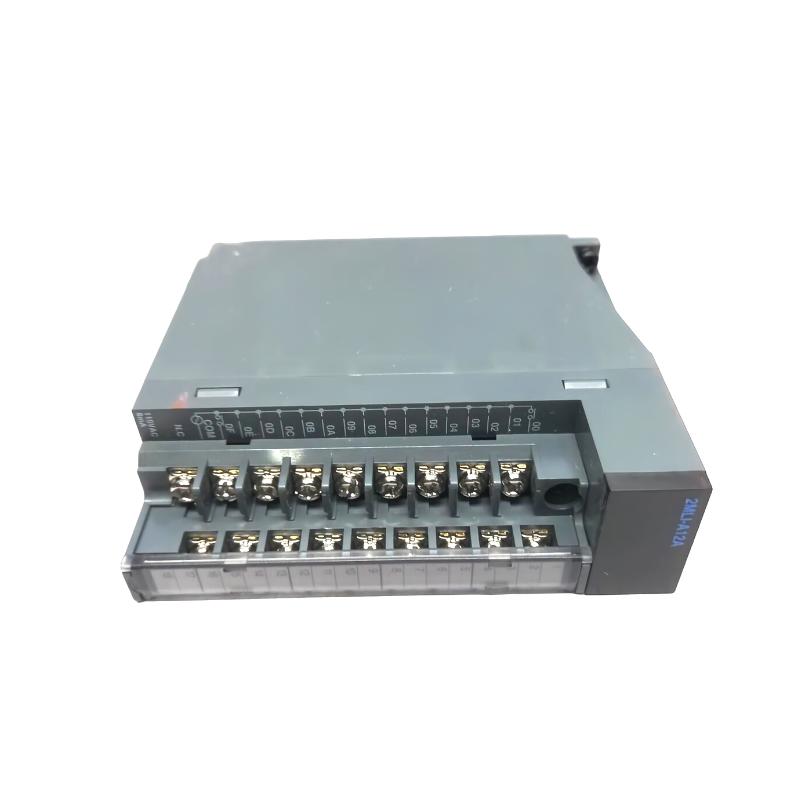

Name: Honeywell 2MLI‑A12A 16‑Point AC 110 V Digital Input Module
Brand: Honeywell DCS
SKU: 702
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Honeywell DCS
Item No.:2MLI‑A12A
Product Origin:USA
Product Dimensions:13.5 cm × 5.0 cm × 11.0 cm
Product Weight:0.13kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Overview

The Honeywell 2MLI‑A12A is a 16-point digital input module engineered for AC 110 V discrete signals. Designed for the MasterLogic-200 (ML200 / ML200R) platform, it reliably collects field input data from devices such as switches, sensors, and status contacts. With rapid response times, robust photocoupler isolation, and a compact footprint, this module ensures accurate, noise-free digital signal acquisition for industrial automation, machine control, and process monitoring applications.

Technical Specifications

Parameter	Details
Input Points	16 AC digital input channels
Rated Input Voltage	AC 100–120 V ±10/–15 % (50/60 Hz)
Rated Input Current	~8 mA at 110 V, 60 Hz; ~7 mA at 110 V, 50 Hz
Inrush Current	Max 200 mA (1 ms) at 132 V AC
Input Resistance	~12 kΩ (60 Hz), ~15 kΩ (50 Hz)
ON Threshold	AC ≥ 80 V / ≥ 5 mA
OFF Threshold	AC ≤ 30 V / ≤ 1 mA
Response Time	OFF → ON: ≤ 15 ms; ON → OFF: ≤ 25 ms
Isolation Method	Photocoupler isolation rated 1780 V rms
Connection Method	18-point terminal block connector (M3 × 6 screw)
Recommended Cable Size	0.3–0.75 mm² twisted pair, external diameter ≤ 2.8 mm
Dimensions (H × W × D)	13.5 cm × 5.0 cm × 11.0 cm
Weight	Approx. 0.13 kg
Other Notes	LED indicators for each input channel; compact and reliable for industrial environments

Applications

Detecting AC-level field signals from switches, relays, and sensors
Machine automation and conveyor control systems
Status monitoring in process plants and industrial equipment
Expansion of digital input capacity in MasterLogic-200 systems
OEM machinery, packaging lines, and building automation systems

Advantages

High-density I/O: 16 discrete inputs in a compact module saves cabinet space
Fast response times: Rapid signal detection ensures accurate control and monitoring
AC voltage compatibility: Directly interfaces with AC 110 V field devices
Robust isolation: Photocoupler protection reduces electrical noise and enhances system safety
LED status indicators: Easy monitoring of individual inputs
Simple wiring and maintenance: Standard terminal connectors and cable sizes simplify installation

Technical FAQs (10)

Q: How many discrete inputs does the 2MLI‑A12A provide?
A: 16 AC input points.
Q: What is the operating voltage range for inputs?
A: AC 100–120 V ±10/–15 %.
Q: What is the input current per point?
A: ~8 mA at 110 V 60 Hz; ~7 mA at 110 V 50 Hz.
Q: How fast does the module respond to input changes?
A: OFF → ON ≤ 15 ms; ON → OFF ≤ 25 ms.
Q: Is the module isolated from the PLC logic?
A: Yes, it uses photocoupler isolation rated 1780 V rms.
Q: What type of connectors are used?
A: 18-point terminal block with M3 screws.
Q: Can it handle input surges?
A: Yes, inrush current tolerance up to 200 mA for 1 ms at AC 132 V.
Q: Does it have visual indicators for input status?
A: Yes, each input channel has an LED indicator.
Q: What is the typical operating environment?
A: Industrial automation, machine control, process monitoring with AC 110 V signals.
Q: Can it be used alongside other MasterLogic-200 I/O modules?
A: Yes, it integrates seamlessly with digital, analog, and RTD modules in the same rack.
