Overview

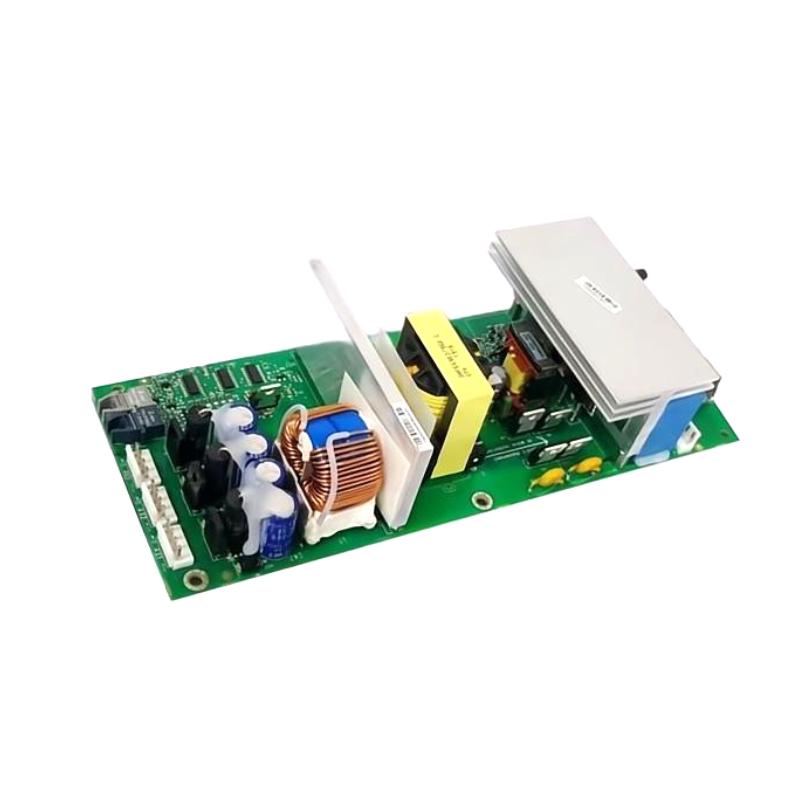

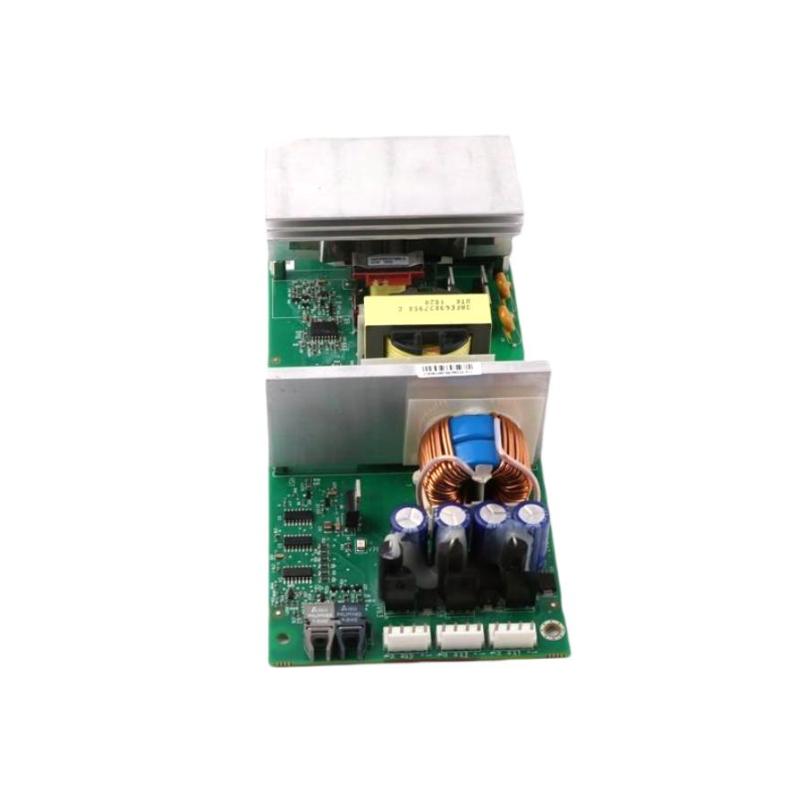

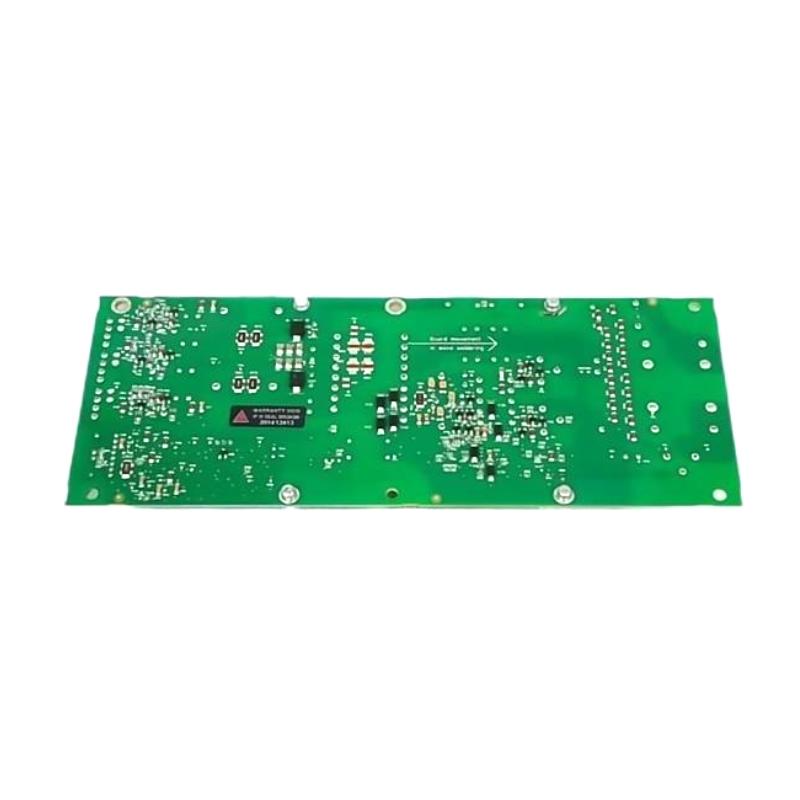

The ABB BFPS-48C Power Supply Board serves as a core energy-distribution element inside select ABB drive platforms. This description adopts a more technical, documentation-style approach—closer to what an engineer might include in an internal design note or subsystem brief. Instead of focusing on marketing angles, the emphasis is placed on power-conversion behavior, operational stability, and how the board manages internal voltage rails during varying load conditions. The BFPS-48C is engineered for dependable operation in electrically harsh environments, providing regulated low-voltage power to control electronics, interface modules and diagnostic circuits.
Technical Specifications
| Parameter | Description |
|---|---|
| Module Type | Power Supply Board |
| Function | Provides regulated low-voltage power for control and logic circuits |
| Input Source | Internal DC bus or designated supply taps (varies by drive model) |
| Output Characteristics | Stable low-voltage rails supporting drive control electronics |
| Protection Features | Overload protection, internal monitoring, isolated sections |
| Construction | High-density PCB, reinforced tracks, thermal-managed layout |
| Mechanical Fit | Internal mounting, vibration-resistant design |
| Physical Dimensions | 22 × 124 × 126 mm (H × W × D) |
| Weight | 1.5 kg |
