Introduction

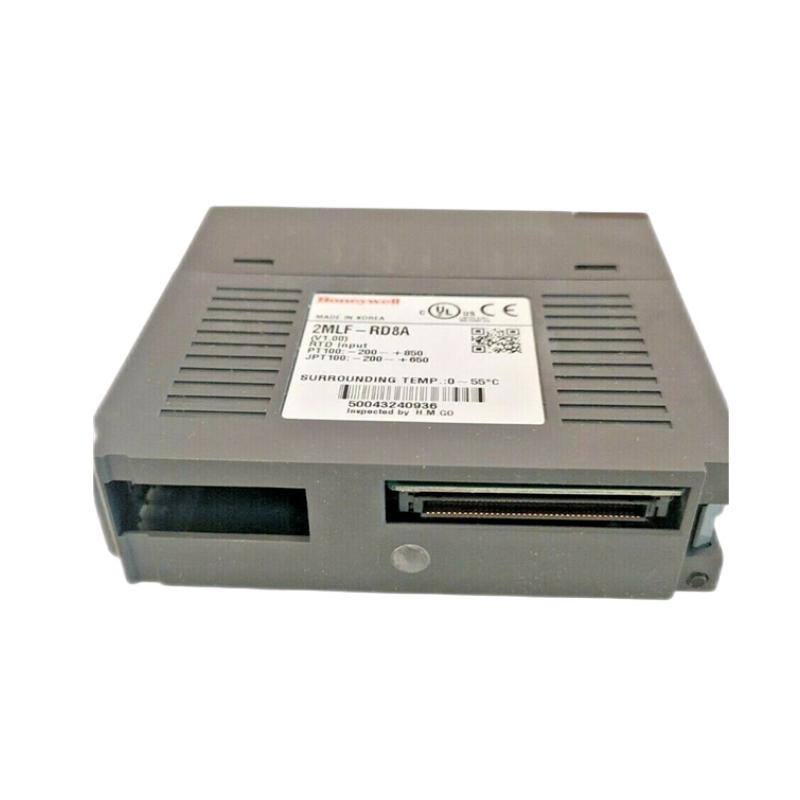

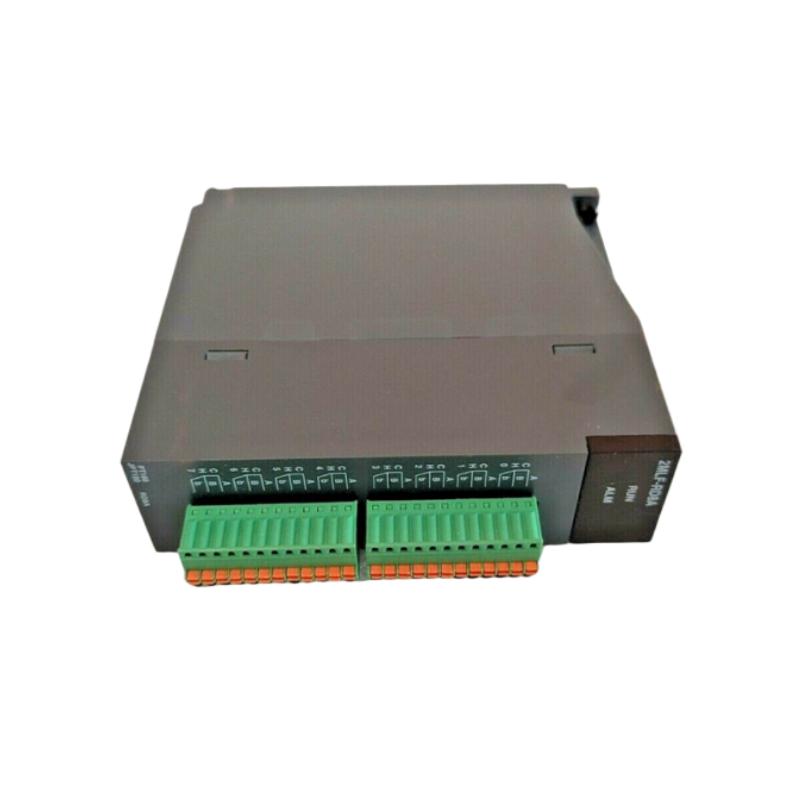

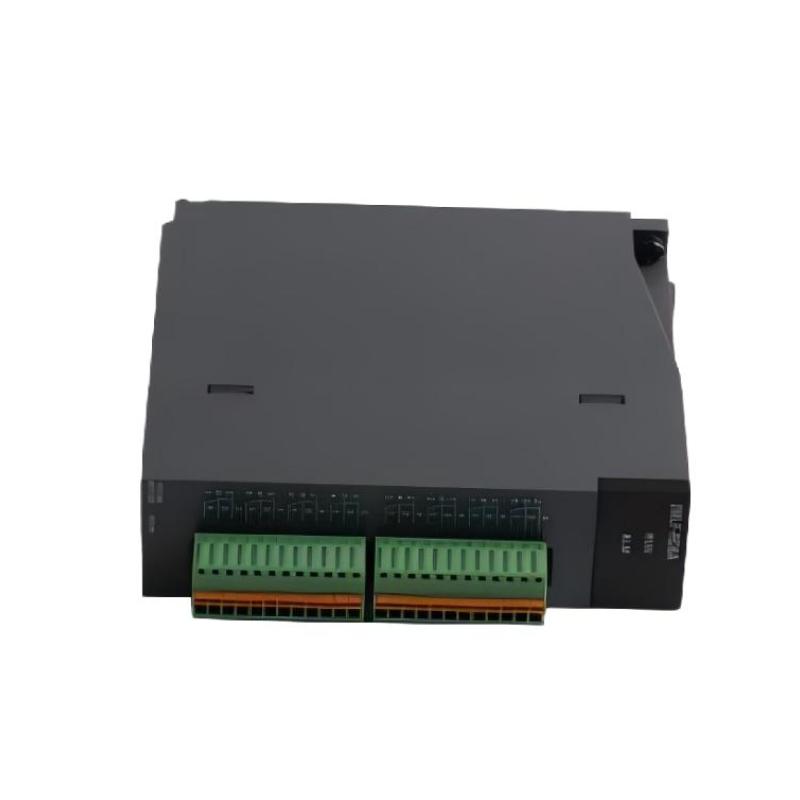

The Honeywell 2MLF-RD8A-CC is a precision 8‑channel RTD input module, engineered to deliver reliable temperature measurement and monitoring in demanding industrial environments. Designed for seamless integration into Honeywell DCS, PLC, or automation systems, this module provides accurate RTD (Resistance Temperature Detector) readings — a critical function for process control, HVAC regulation, and safety monitoring. Built with robustness and consistency in mind, the module ensures that temperature data remains stable and trustworthy, even under harsh industrial conditions.
Technical Specifications
| Parameter | Details |
|---|---|
| Input Channels | 8 independent RTD input channels |
| Supported Sensor Types | PT100, PT1000 (standard), other RTD types (configurable) |
| Measurement Range | –200 °C to +850 °C (depending on RTD type) |
| Resolution | 0.1 °C (or better, depending on system configuration) |
| Accuracy | ±0.1% of full scale (system dependent) |
| Sampling Rate | ≤ 10 samples/sec per channel (aggregate may vary) |
| Isolation | Channel‑to‑channel and channel‑to‑system isolation compliant with industrial standards |
| Input Wiring Type | 2‑wire, 3‑wire or 4‑wire RTD configurations supported |
| Communication / Backplane | Compatible with Honeywell DCS/PLC rack backplane interfaces |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Power Consumption | < 2.5 W typical |
| Dimensions | 128 mm × 35 mm × 110 mm (H × W × D) |
| Weight | Approx. 0.30 kg |
