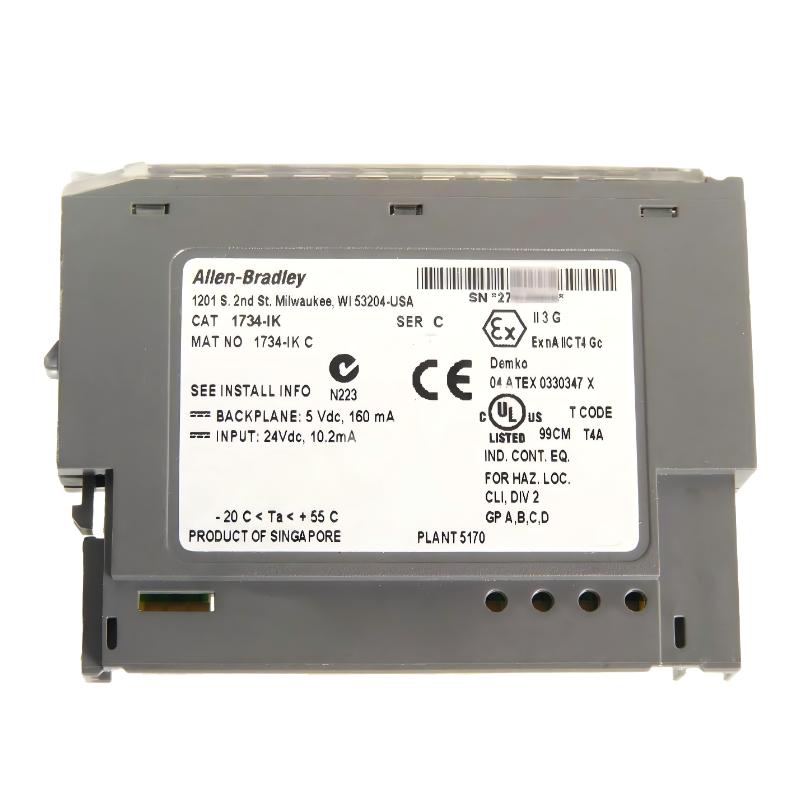

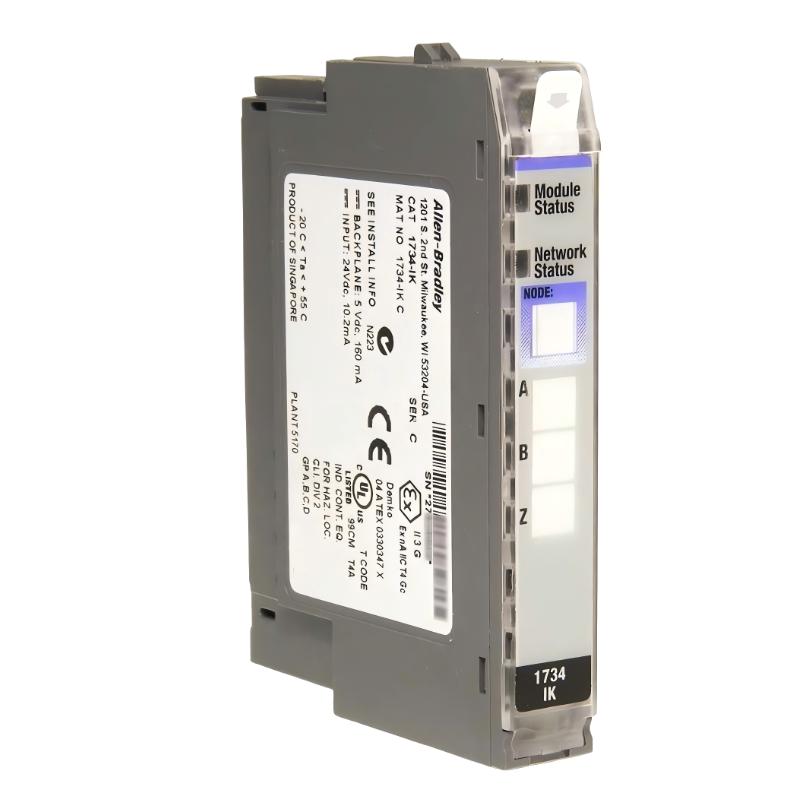

Allen Bradley 1734-IK Incremental Encoder Module

Brand:Allen Bradley PLC
Item No.:1734-IK
Product Origin:Allen Bradley
Product Dimensions:56.6 x 12.1 x 77.5 mm
Product Weight:0.36 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact


Product Overview

The Allen Bradley 1734-IK Incremental Encoder Module is an essential component for integrating incremental encoders into Allen Bradley’s ControlLogix and CompactLogix systems. It provides precise feedback on rotational position, speed, and direction, enabling accurate motion control in industrial automation systems. With its compact design, seamless integration, and real-time feedback capabilities, the 1734-IK enhances system performance and reliability.

Technical Specifications

SpecificationDetails
ManufacturerAllen Bradley
Model Number1734-IK
Module TypeIncremental Encoder Module
Signal TypeIncremental Encoder (Position, Speed, Direction)
System CompatibilityAllen Bradley ControlLogix and CompactLogix
Dimensions56.6 mm × 12.1 mm × 77.5 mm
Weight0.36 kg


Applications in Distributed Control Systems

The Allen Bradley 1734-IK Incremental Encoder Module is designed to integrate incremental encoders with Allen Bradley’s ControlLogix and CompactLogix systems, enabling precise tracking and control of rotational position, speed, and direction in a variety of industrial applications. This module provides the interface for converting the signals from an incremental encoder into usable data that can be processed by the control system.

Typical deployment scenarios include:

  • Motion Control Systems: The 1734-IK is used in motion control systems to provide feedback on the position, speed, and direction of motors in automated machinery, robotics, and conveyor systems.
  • Automated Assembly Lines: In automated manufacturing, the module interfaces with incremental encoders on rotating components (such as assembly robots or turntables) to provide feedback for accurate positioning and control.
  • CNC Machines: The 1734-IK module is used in CNC (Computer Numerical Control) machines to track the position of the cutting tools, enabling precise and controlled movements.
  • Conveyor Systems: Used in material handling systems, the module helps track conveyor belt movements, ensuring synchronization of operations and monitoring of product flow.
  • Rotary Equipment: In applications such as mixers, extruders, and pumps, the module tracks the rotation of shafts to monitor operational speed and position, ensuring proper function and safety.
  • Packaging Systems: In automated packaging, the module helps track the movement of containers, ensuring accurate filling, labeling, and sealing operations.

The 1734-IK Incremental Encoder Module allows for precise monitoring and control in systems where rotational feedback is essential for automation, improving efficiency, accuracy, and safety in industrial environments.


Operational Advantages

  • High Accuracy: The 1734-IK module enables high-precision position and speed feedback, which is crucial for applications requiring accurate motion control and synchronization.
  • Wide Compatibility: It supports a wide variety of incremental encoders, allowing users to integrate the module with different encoder types based on application requirements.
  • Compact and Space-Efficient: With dimensions of 56.6 mm × 12.1 mm × 77.5 mm and a weight of 0.36 kg, the module is compact and easy to install, even in space-constrained environments.
  • Real-Time Feedback: The module provides real-time tracking of encoder data, ensuring continuous monitoring and control of motion in automated processes.
  • Improved Machine Performance: By accurately tracking rotational data, the module helps improve system performance, reduce errors, and optimize machine operations.
  • Seamless Integration with Allen Bradley Systems: The 1734-IK is fully compatible with Allen Bradley's ControlLogix and CompactLogix systems, simplifying integration into existing control architectures.
  • Easy Troubleshooting: The module includes diagnostic features to monitor signal integrity, making it easier to detect faults and improve system uptime.
  • Flexible Mounting: The module can be easily mounted on a DIN rail, making it versatile for installation in a variety of industrial control panels and enclosures.
  • Low Power Consumption: Designed with energy efficiency in mind, the module has a low power draw, making it suitable for power-sensitive systems.
  • Cost-Effective Solution: The 1734-IK provides a reliable and cost-effective way to integrate encoder feedback into control systems, offering excellent value for a wide range of industrial applications.


Technical FAQs

  1. What is the primary function of the Allen Bradley 1734-IK Incremental Encoder Module?
    The 1734-IK module is used to interface with incremental encoders, converting the encoder signals (position, speed, and direction) into digital data that can be processed by Allen Bradley ControlLogix or CompactLogix systems.
  2. What types of encoders are compatible with the 1734-IK?
    The module supports a wide range of incremental encoders, including those with different output types, making it flexible for use in a variety of applications.
  3. How does the 1734-IK improve system performance?
    By providing accurate real-time feedback on position and speed, the module enables precise motion control, optimizing the performance of machines and systems that require high levels of automation.
  4. Can the 1734-IK module be used in space-constrained environments?
    Yes, with its compact dimensions (56.6 mm × 12.1 mm × 77.5 mm) and low weight (0.36 kg), the module is ideal for installations where space is limited.
  5. How does the 1734-IK support motion control applications?
    The module accurately tracks the position and speed of rotational devices, providing the necessary feedback for real-time motion control in applications such as robotics, conveyors, and CNC machines.
  6. What diagnostic features are included with the 1734-IK?
    The module includes diagnostics for monitoring encoder signal integrity and ensuring reliable operation. These diagnostic features help quickly identify potential issues, improving system uptime.
  7. Is the 1734-IK easy to integrate into existing control systems?
    Yes, the 1734-IK integrates seamlessly with Allen Bradley ControlLogix and CompactLogix systems, simplifying system design and reducing integration time.
  8. Can the 1734-IK be used in harsh industrial environments?
    Yes, the module is designed for industrial use, offering robust performance even in environments with electrical noise or temperature fluctuations.
  9. What types of applications benefit from the use of the 1734-IK?
    Applications such as motion control, CNC machinery, conveyor systems, and automated packaging benefit from the accurate feedback provided by the 1734-IK module.
  10. How does the 1734-IK help reduce system downtime?
    By providing continuous real-time feedback on encoder data, the module ensures precise control and reduces the likelihood of errors or malfunction, thereby minimizing downtime and improving system reliability.
