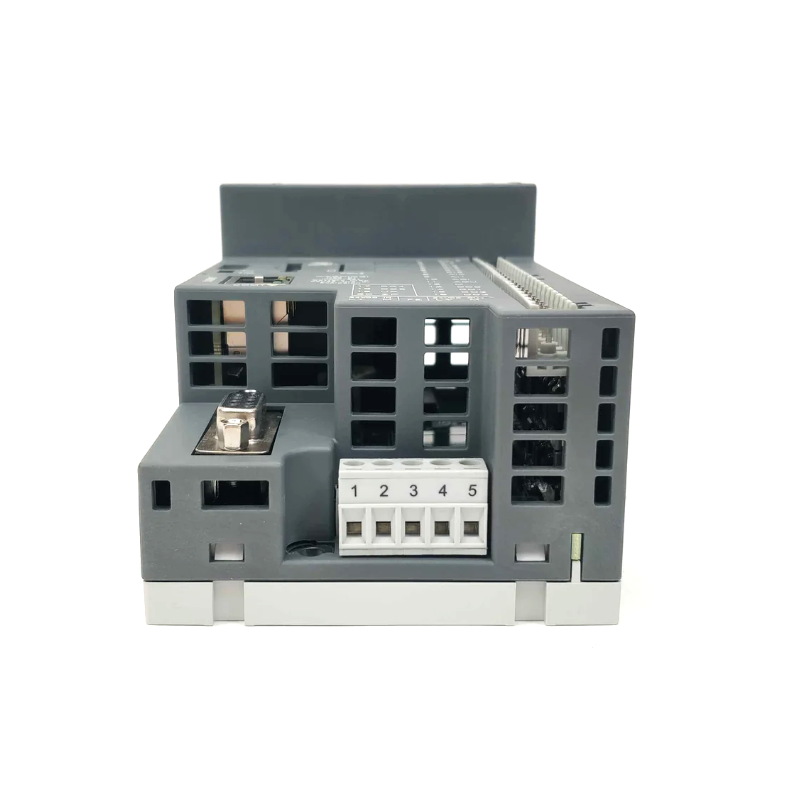

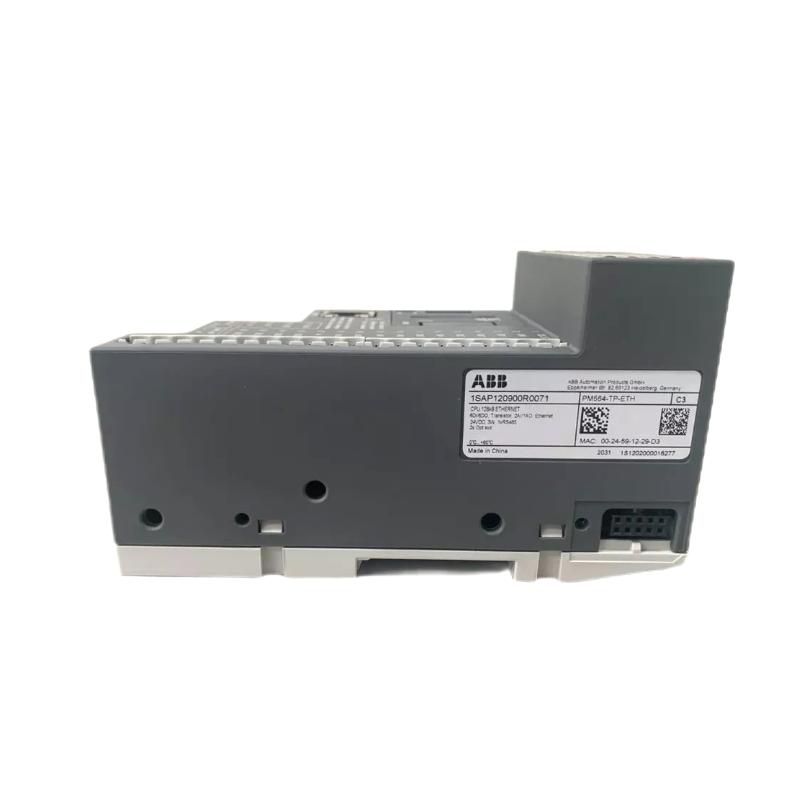

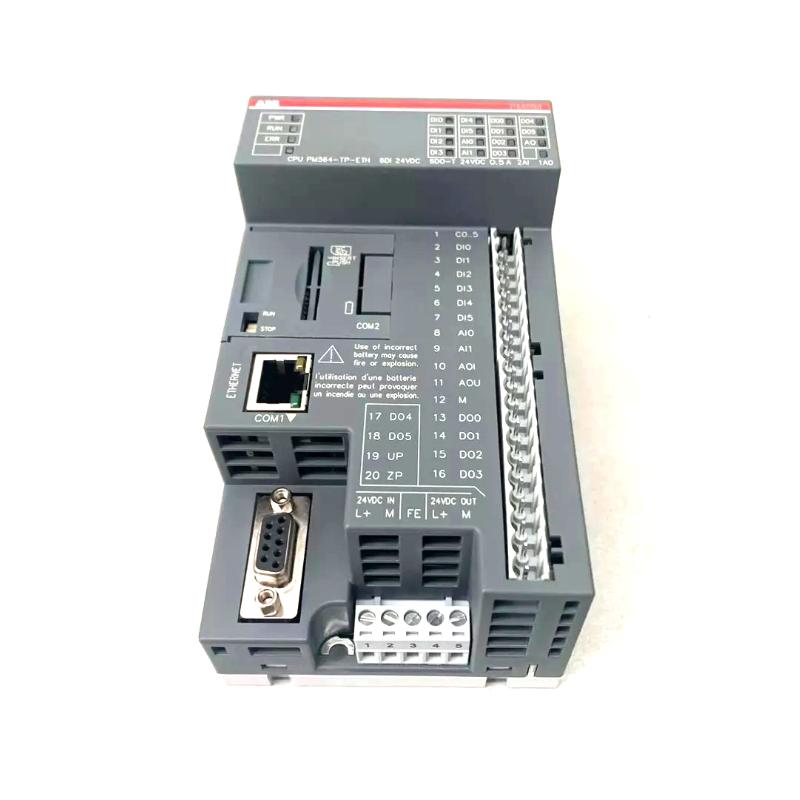

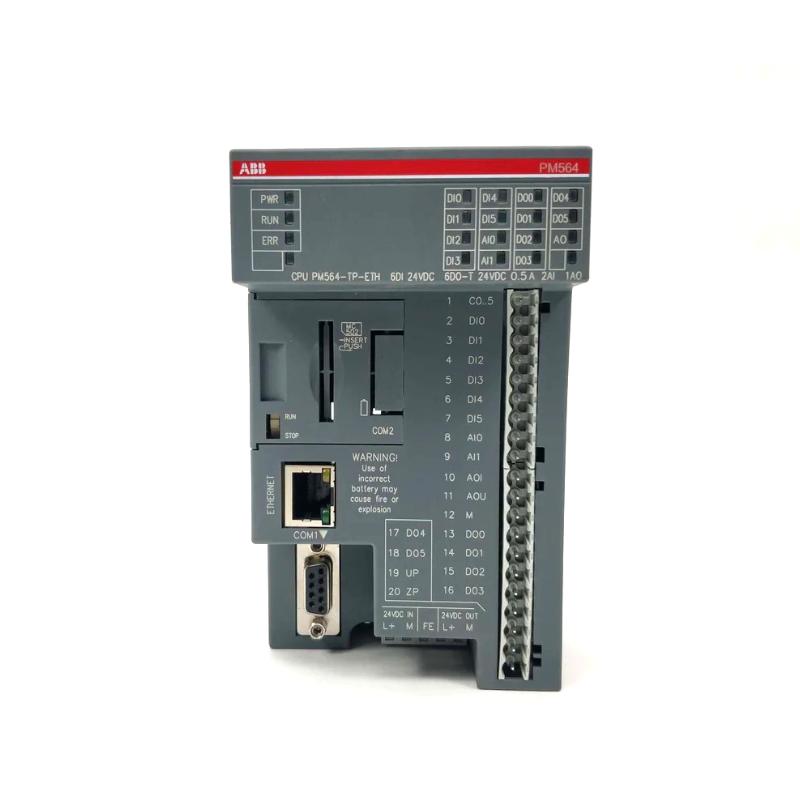

ABB PM564-TP-ETH 1SAP120900R0071 Programmable Logic Controller

Name: ABB PM564-TP-ETH 1SAP120900R0071 Programmable Logic Controller
Brand: ABB PLC
SKU: 6842
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:PM564-TP-ETH 1SAP120900R0071
Product Origin:Sweden
Product Dimensions:135 × 82 × 74 mm
Product Weight:0.3kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Introduction

The ABB PM564-TP-ETH 1SAP120900R0071 Programmable Logic Controller is a compact, Ethernet-enabled CPU from the AC500-eCo series, designed to deliver reliable and cost-effective automation for modern industrial systems. Combining integrated I/O, fast processing, and built-in Ethernet connectivity, this PLC provides a streamlined solution for both standalone machines and networked control architectures.

Engineered with efficiency in mind, the PM564-TP-ETH reduces hardware complexity while maintaining strong performance. Its ability to handle real-time control tasks and communicate seamlessly with SCADA, HMI, and distributed systems makes it a preferred choice for engineers seeking scalable and future-ready automation platforms.

Technical Specifications

Specification	Details
Manufacturer	ABB
Model	PM564-TP-ETH
Product Code	1SAP120900R0071
Module Type	Programmable Logic Controller (PLC) / CPU
Platform	AC500-eCo Series
Processor Type	High-speed microprocessor
Program Memory	128 kB
Total Memory	Approx. 142 kB
Digital Inputs	6 × 24 V DC
Digital Outputs	6 × Transistor Outputs
Analog Inputs	2 channels
Analog Outputs	1 channel
Communication Interfaces	1 × Ethernet, 1 × RS-485
Expansion Slots	2 option slots
Processing Time	0.08 µs per instruction
Operating Voltage	24 V DC (20.4–28.8 V range)
Power Consumption	<10 W
Protection Rating	IP20
Operating Temperature	-25 °C to +60 °C
Mounting	DIN Rail
Dimensions (HxWxD)	135 × 82 × 74 mm
Weight	Approx. 0.287 kg

Application Areas

The PM564-TP-ETH is designed for flexible deployment across various industrial environments:

Smart manufacturing and Industry 4.0 systems
Packaging, labeling, and assembly machinery
Conveyor and logistics automation
HVAC and building management systems
Water treatment and pump control applications
OEM equipment with Ethernet communication requirements

Key Advantages

Integrated Ethernet Communication
Enables direct connectivity to industrial networks, reducing additional hardware requirements.
Compact All-in-One Architecture
Combines CPU, I/O, and communication in a single device—ideal for space-limited control panels.
Reliable Real-Time Processing
Fast execution ensures precise control for time-critical automation tasks.
Scalable System Design
Two expansion slots allow easy addition of communication or I/O modules as system needs grow.
Cost-Efficient Performance
Delivers excellent value for small to mid-scale automation without compromising reliability.

Technical FAQs

What distinguishes the PM564-TP-ETH from standard PM564 models?
It includes built-in Ethernet for advanced network communication.
How much memory does this PLC provide?
128 kB program memory with approximately 142 kB total memory.
What I/O is integrated?
6 digital inputs, 6 digital outputs, 2 analog inputs, and 1 analog output.
Does it support industrial Ethernet protocols?
Yes, it supports Ethernet-based communication for integration with automation networks.
What is the required power supply?
24 V DC within a 20.4–28.8 V range.
Can the system be expanded?
Yes, via two option slots for additional modules.
Which programming software is used?
ABB Automation Builder (IEC 61131-3 compliant).
What is the operating temperature range?
From -25 °C to +60 °C, suitable for industrial environments.
Is it suitable for distributed control systems?
Yes, especially due to its Ethernet and serial communication capabilities.
What are the physical dimensions and weight?
Approximately 135 × 82 × 74 mm and 0.287 kg.
