ABB PM564-TP-ETH 3ABD00033169 Programmable Logic Controller

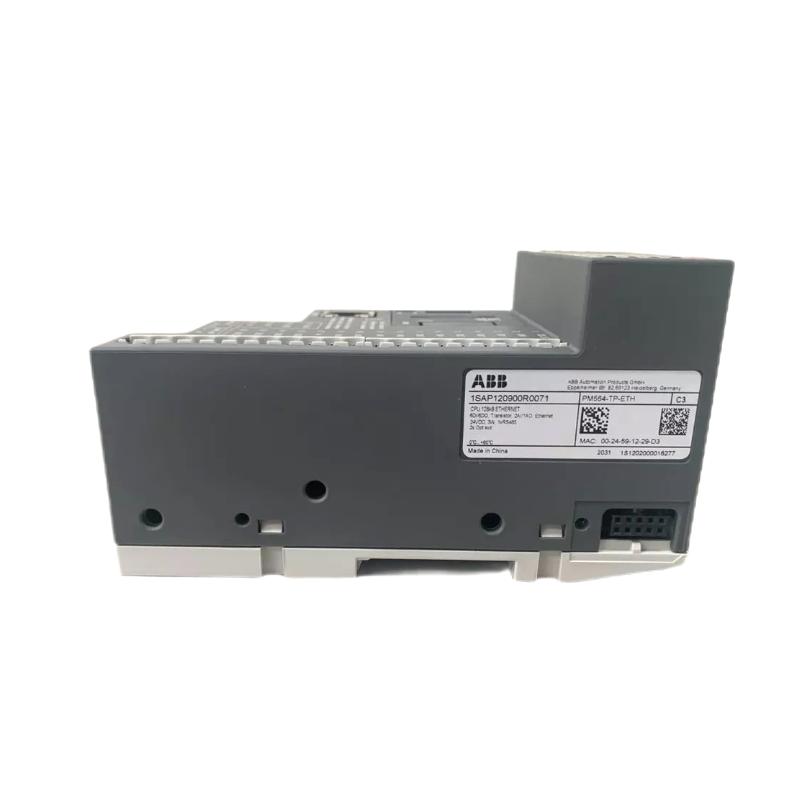

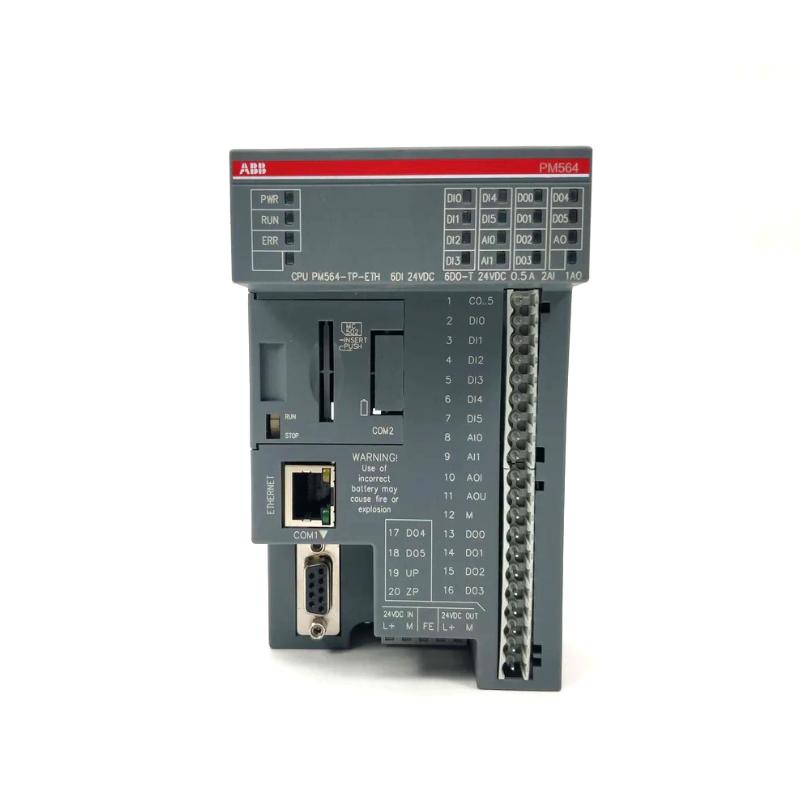

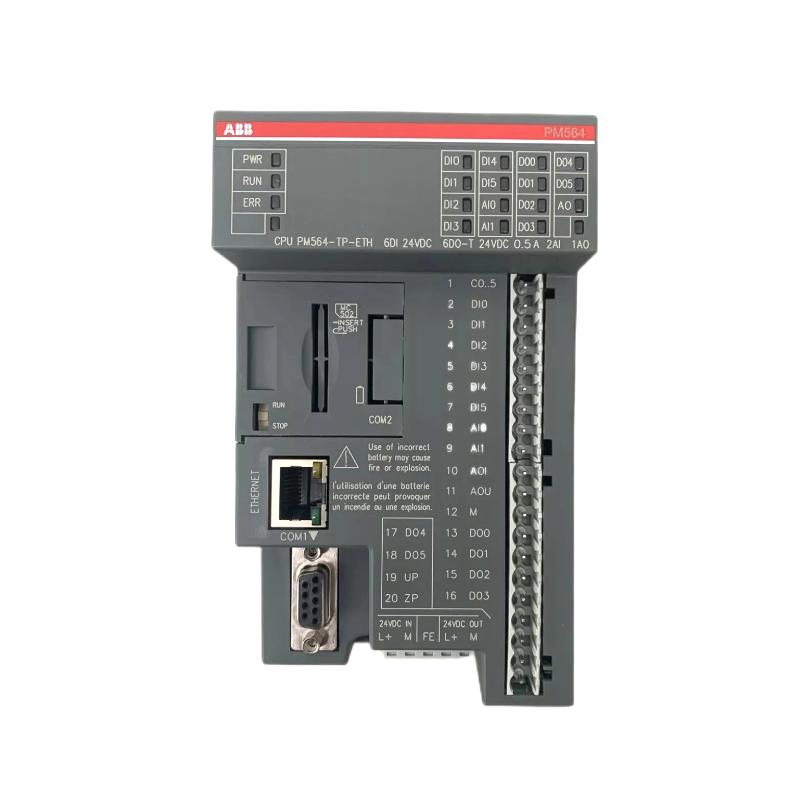

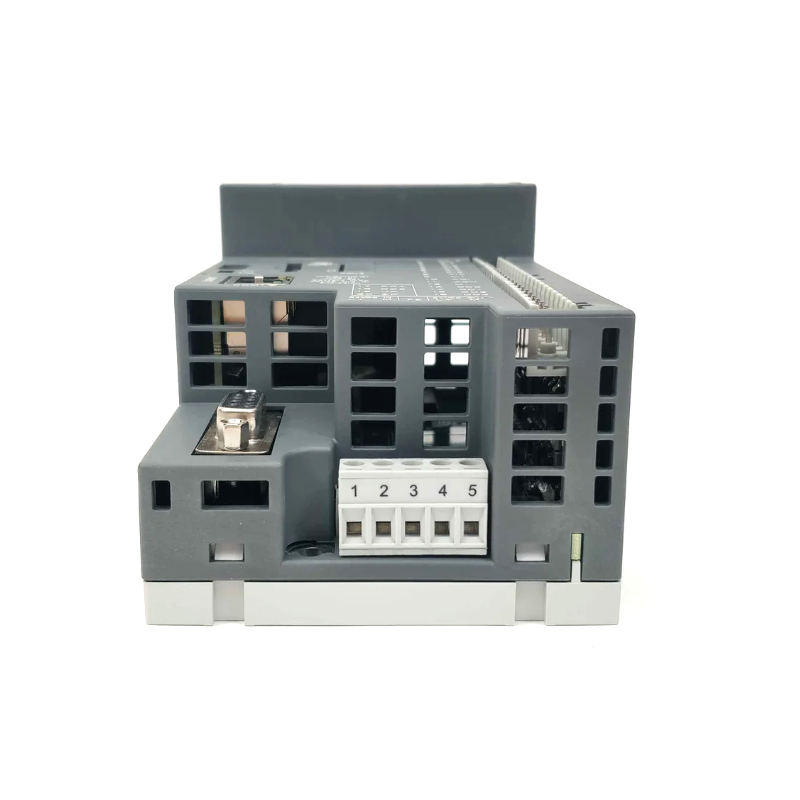

Name: ABB PM564-TP-ETH 3ABD00033169 Programmable Logic Controller
Brand: ABB PLC
SKU: 6840
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:PM564-TP-ETH 3ABD00033169
Product Origin:Sweden
Product Dimensions:135 × 82 × 74 mm
Product Weight:0.3kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Introduction

The ABB PM564-TP-ETH 3ABD00033169 Programmable Logic Controller is a compact yet powerful CPU from the AC500-eCo family, designed to deliver efficient automation with enhanced connectivity. Featuring an integrated Ethernet interface, this PLC enables seamless communication within modern industrial networks, making it ideal for data-driven and interconnected control systems.

With built-in I/O, flexible expansion capabilities, and stable processing performance, the PM564-TP-ETH provides a practical and cost-effective solution for OEMs and system integrators. Its compact footprint and network readiness make it especially suitable for applications where space, performance, and connectivity must be balanced.

Technical Specifications

Specification	Details
Manufacturer	ABB
Model	PM564-TP-ETH
Product Code	3ABD00033169
Module Type	Programmable Logic Controller (PLC) / CPU
Platform	AC500-eCo Series
Processor Type	32-bit RISC Processor
Program Memory	128 kB
Digital Inputs	6 × 24 V DC
Digital Outputs	6 × Transistor Outputs
Analog Inputs	2 channels
Analog Outputs	1 channel
Communication Interfaces	1 × Ethernet, 1 × RS-485
Expansion Slots	2 slots for communication or I/O modules
Operating Voltage	24 V DC
Current Consumption	Approx. 100–220 mA
Power Dissipation	Approx. 4.4 W
Protection Rating	IP20
Operating Temperature	0 °C to +60 °C
Mounting	DIN Rail
Dimensions (HxWxD)	135 × 82 × 74 mm
Weight	Approx. 0.30 kg

Application Areas

The PM564-TP-ETH is engineered for modern automation environments requiring connectivity and efficiency:

Smart manufacturing and connected production lines
Packaging and assembly equipment
Conveyor and material handling systems
HVAC and building automation systems
Water treatment and pump control systems
OEM machinery with Ethernet communication requirements

Core Advantages

Integrated Ethernet Connectivity
Built-in Ethernet enables direct communication with HMIs, SCADA systems, and industrial networks—reducing the need for additional modules.
Compact All-in-One Design
Combines CPU, digital and analog I/O, and communication interfaces in a single unit, minimizing panel space and wiring complexity.
Reliable Real-Time Control
Equipped with a 32-bit processor for stable and deterministic execution of control logic.
Flexible System Expansion
Two expansion slots allow easy integration of additional communication or I/O modules.
Cost-Optimized Performance
Ideal for small to medium automation systems where performance, reliability, and budget must align.

Technical FAQs

What distinguishes the PM564-TP-ETH from the PM564-TP?
The PM564-TP-ETH includes an integrated Ethernet interface for network communication.
Does it support industrial Ethernet protocols?
Yes, it supports Ethernet-based communication for integration with automation systems.
What I/O is built into the unit?
6 digital inputs, 6 digital outputs, 2 analog inputs, and 1 analog output.
What is the program memory capacity?
128 kB for application programs.
Can additional modules be added?
Yes, two expansion slots support communication and I/O modules.
What is the required power supply?
Standard 24 V DC industrial supply.
Which programming environment is used?
ABB Automation Builder with IEC 61131-3 languages.
Is it suitable for networked automation systems?
Yes, especially due to its built-in Ethernet interface.
What industries typically use this PLC?
Manufacturing, utilities, building automation, and OEM machinery.
What are its physical dimensions and weight?
Approximately 135 × 82 × 74 mm and 0.30 kg.
