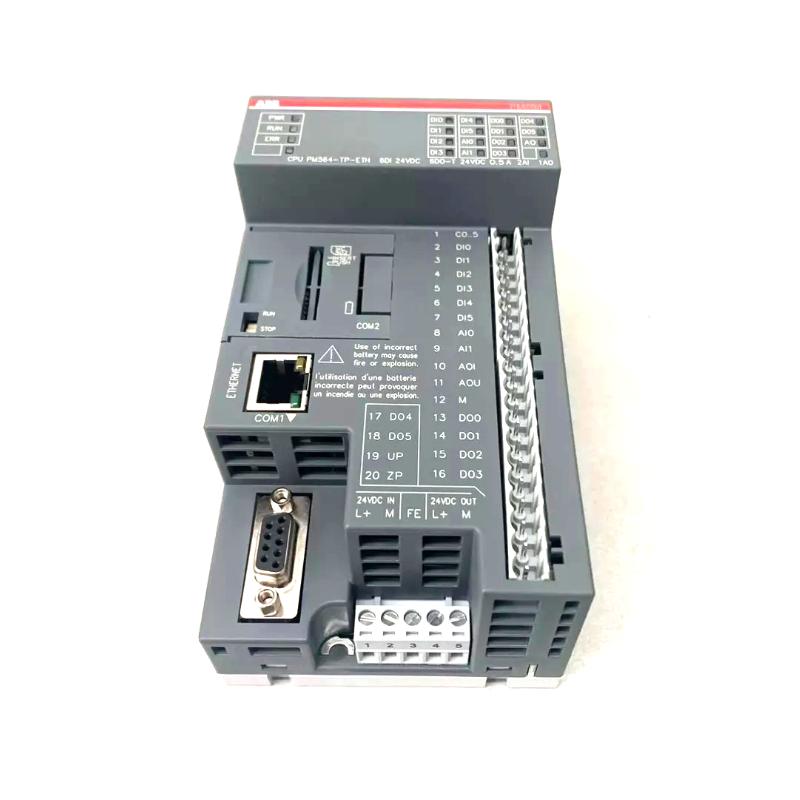

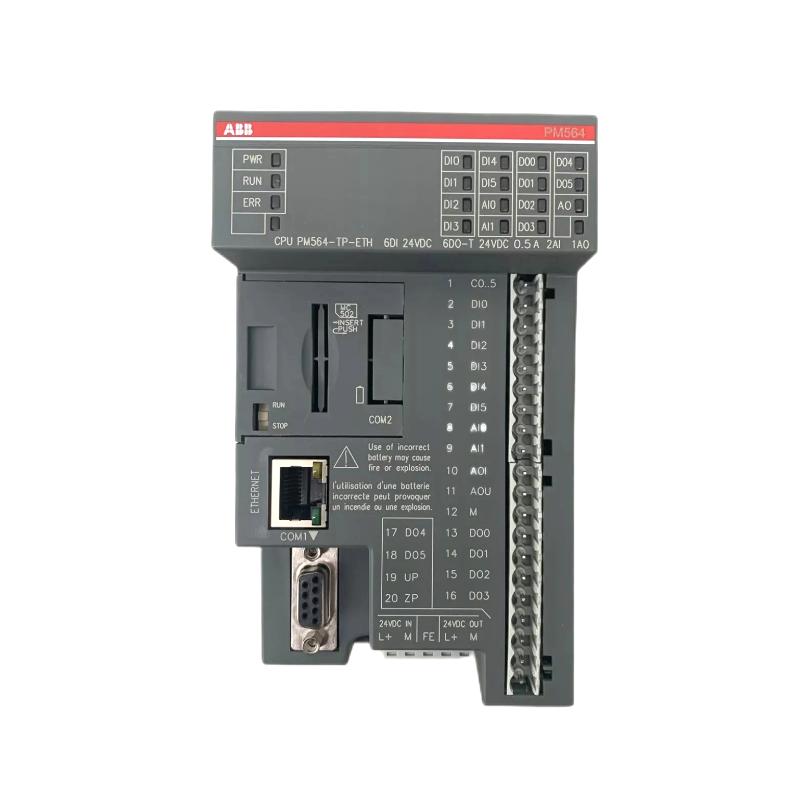

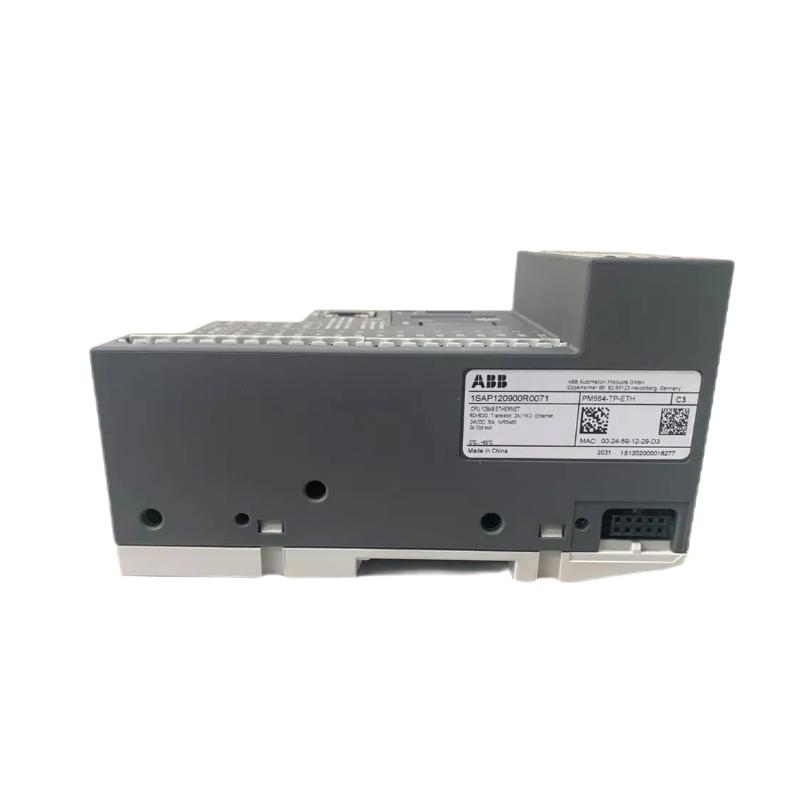

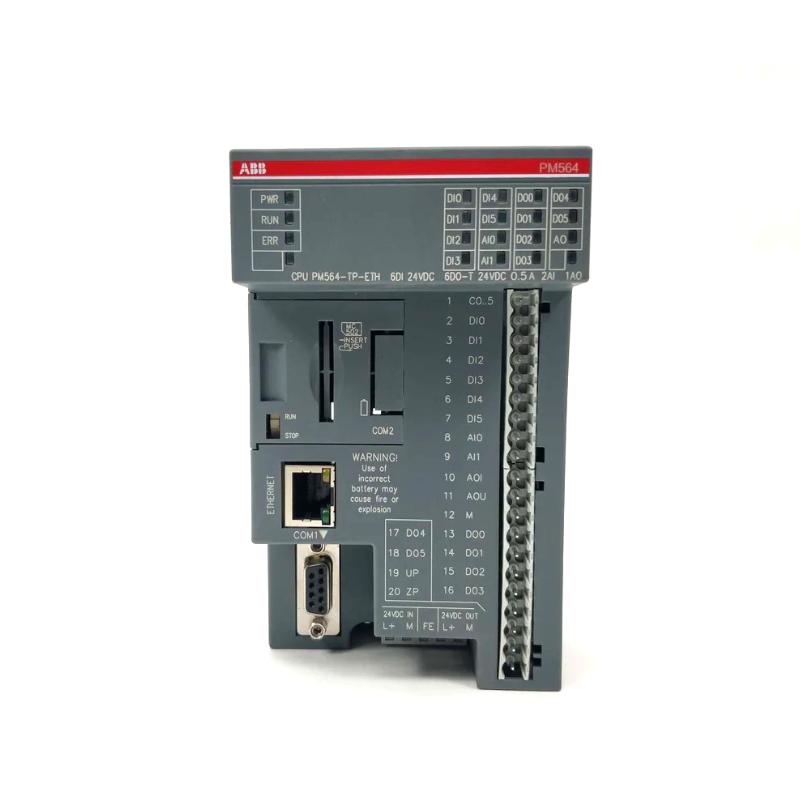

ABB PM564-TP 1SAP120900R0001 Programmable Logic Controller

Name: ABB PM564-TP 1SAP120900R0001 Programmable Logic Controller
Brand: ABB PLC
SKU: 6838
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:PM564-TP 1SAP120900R0001
Product Origin:Sweden
Product Dimensions:135 × 82 × 74 mm
Product Weight:0.27kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The ABB PM564-TP 1SAP120900R0001 Programmable Logic Controller is a compact yet highly capable CPU from the AC500-eCo series, designed for efficient automation in small to mid-scale industrial systems. With integrated I/O, flexible expansion, and dependable processing performance, this PLC offers a powerful all-in-one control solution.

Engineered for simplicity and cost efficiency, the PM564-TP allows engineers to reduce panel space, wiring complexity, and system cost—while still delivering stable, real-time control. Its compatibility with the broader AC500 ecosystem ensures smooth scalability when system requirements grow.

Technical Specifications

Specification	Details
Manufacturer	ABB
Model	PM564-TP
Product Code	1SAP120900R0001
Module Type	Programmable Logic Controller (PLC) / CPU
Platform	AC500-eCo Series
Program Memory	128 kB
Total Memory	Approx. 142 kB
Digital Inputs	6 × 24 V DC
Digital Outputs	6 × Transistor Outputs
Analog Inputs	2 channels
Analog Outputs	1 channel
Communication Interface	1 × RS-485
Expansion Slots	2 option slots
Processing Time	0.08 µs per instruction
Operating Voltage	24 V DC (20.4–28.8 V range)
Mounting	DIN Rail
Protection Rating	IP20
Operating Temperature	0 °C to +60 °C
Dimensions (HxWxD)	135 × 82 × 74 mm
Weight	Approx. 0.276 kg

Application Scenarios

The PM564-TP is tailored for efficient automation in compact systems:

OEM machinery and standalone equipment
Packaging and labeling systems
Conveyor and logistics automation
HVAC and building management systems
Water treatment and pump control
Light industrial process automation

Core Advantages

All-in-One Compact Design
Integrated digital and analog I/O eliminates the need for additional modules in many applications.
Cost-Effective Automation
Delivers reliable control performance at an optimized price point for small systems.
Flexible Expansion Capability
Two expansion slots allow seamless addition of communication or I/O modules.
Fast Processing Performance
High instruction execution speed ensures responsive and accurate control.
Seamless AC500 Integration
Fully compatible with ABB AC500 engineering tools and I/O systems for future scalability.

Technical FAQs

What makes the PM564-TP different from other AC500 CPUs?
It integrates I/O directly, reducing system size and cost.
How many I/O points are built in?
6 digital inputs, 6 digital outputs, 2 analog inputs, and 1 analog output.
What communication interface is included?
One RS-485 port for serial communication.
Can the PLC be expanded?
Yes, it includes two expansion slots for additional modules.
What is the required power supply?
24 V DC within a range of 20.4–28.8 V.
Is it suitable for continuous industrial operation?
Yes, it is designed for stable operation in industrial environments.
What programming software is used?
ABB Automation Builder (IEC 61131-3 compliant).
What mounting method is supported?
Standard DIN rail mounting.
What industries commonly use this PLC?
Manufacturing, utilities, building automation, and OEM systems.
What are the dimensions and weight?
135 × 82 × 74 mm and approximately 0.276 kg.
