Product Introduction

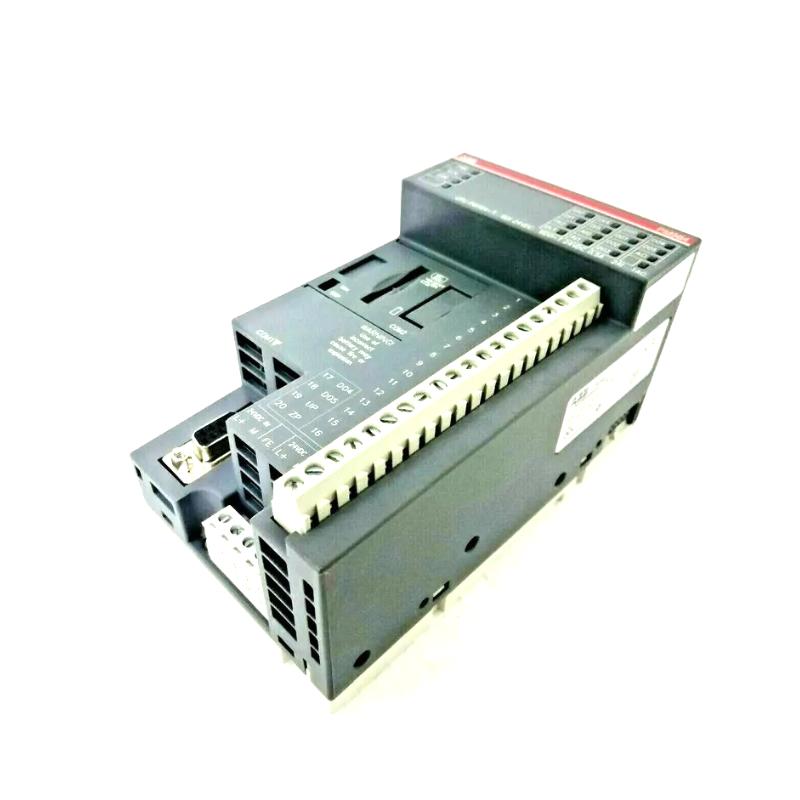

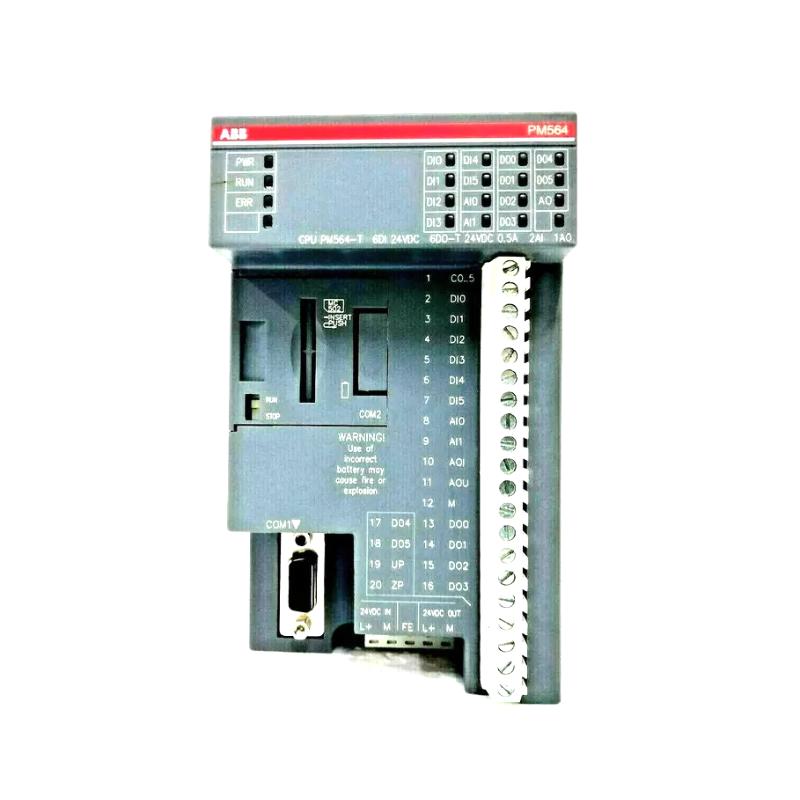

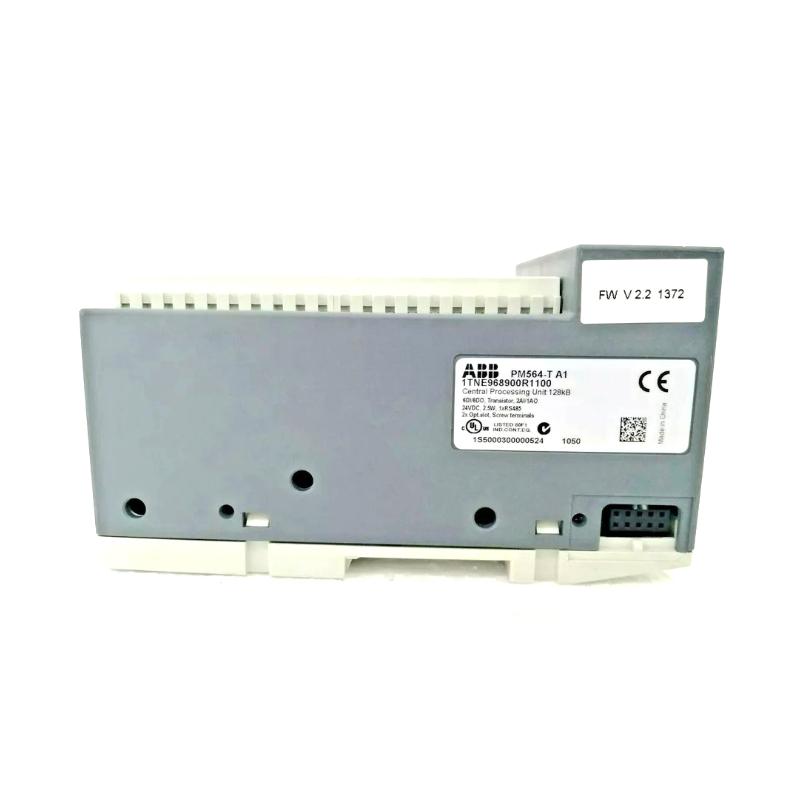

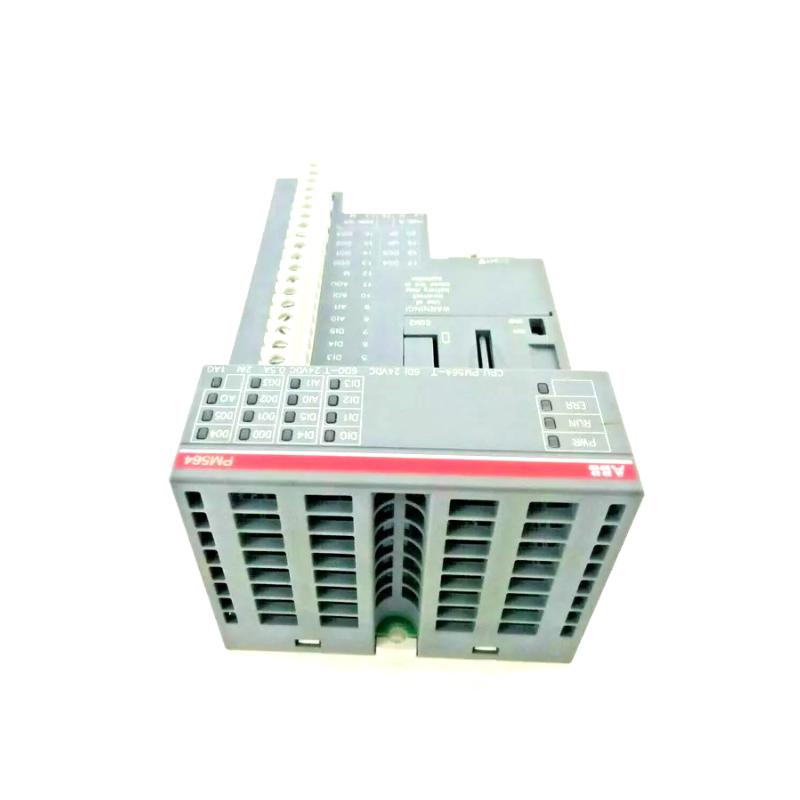

The ABB PM564-T 1TNE968900R1100 Programmable Logic Controller is a compact yet powerful automation controller from the AC500-eCo series, engineered for cost-effective control in small to medium industrial applications. Designed with integrated I/O, flexible communication, and reliable processing capabilities, this PLC delivers efficient control without compromising performance.
With built-in digital and analog channels, along with expandable communication options, the PM564-T is ideal for standalone machines and decentralized automation tasks. Its streamlined architecture reduces engineering complexity while maintaining the reliability expected from ABB control solutions.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Model | PM564-T |
| Product Code | 1TNE968900R1100 |
| Module Type | Programmable Logic Controller (PLC) |
| Platform | AC500-eCo Series |
| Processor Type | 32-bit RISC Processor |
| Program Memory | 128 kB |
| Data Memory | 64 kB |
| Digital Inputs | 6–12 × 24 V DC |
| Digital Outputs | 6–8 × 24 V DC / Relay |
| Analog Inputs | 2 channels |
| Analog Outputs | 1 channel |
| Communication Ports | 1 × RS-485, optional expansion |
| Expansion Capability | Yes (I/O and communication modules) |
| Operating Voltage | 24 V DC |
| Operating Temperature | -25 °C to +60 °C |
| Protection Rating | IP20 (panel installation required) |
| Mounting | DIN Rail |
| Dimensions (HxWxD) | 100 × 71.5 × 60 mm |
| Weight | Approx. 0.3 kg |
