ABB PFVL141C-60MN 3BSX670292D0064 Roll Force load cell

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

ABB PFVL141C-60MN 3BSX670292D0064 Roll Force load cell

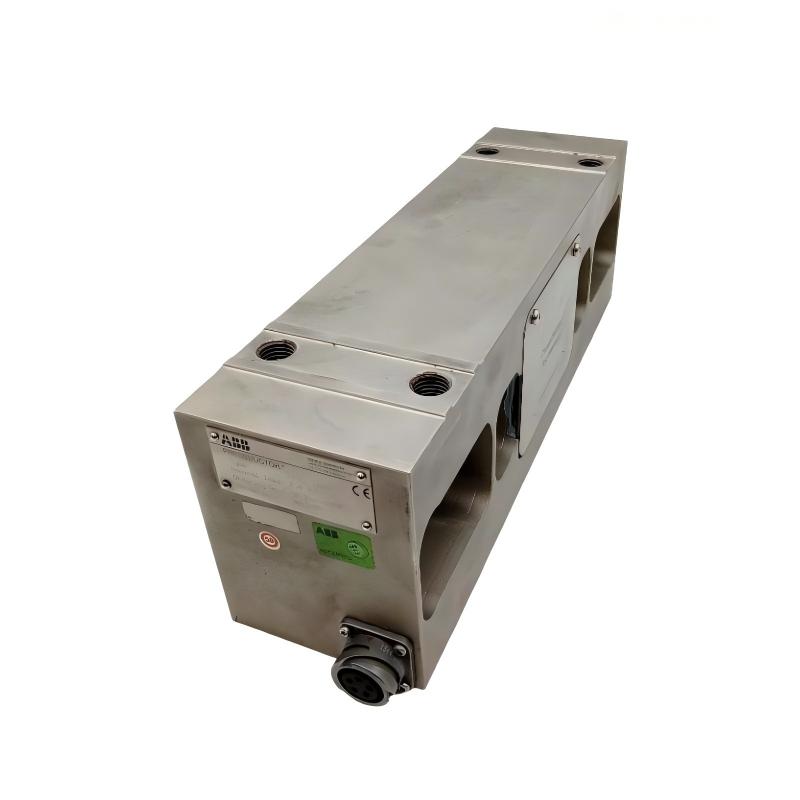

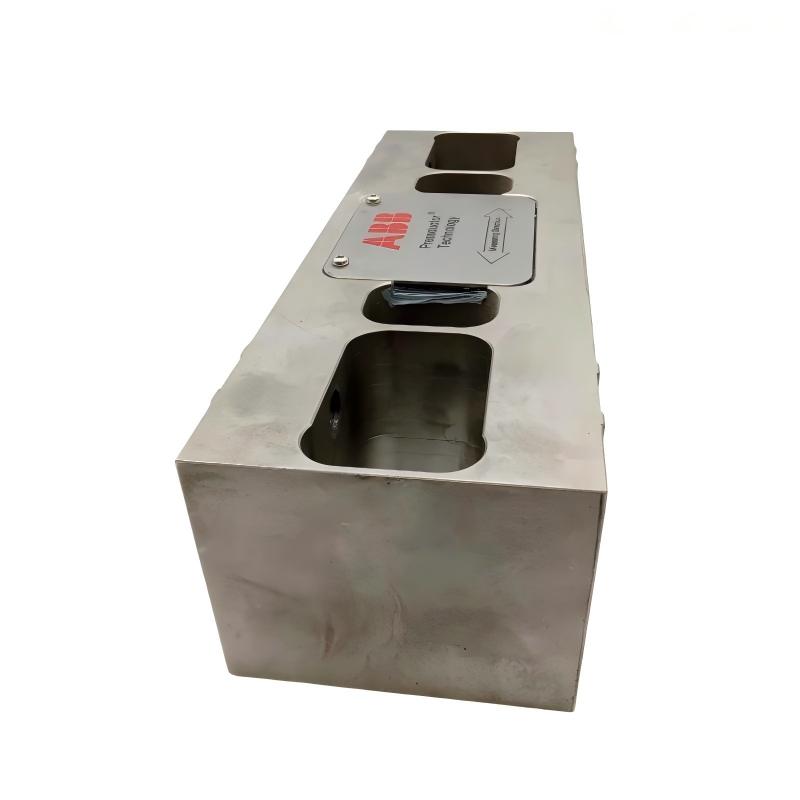

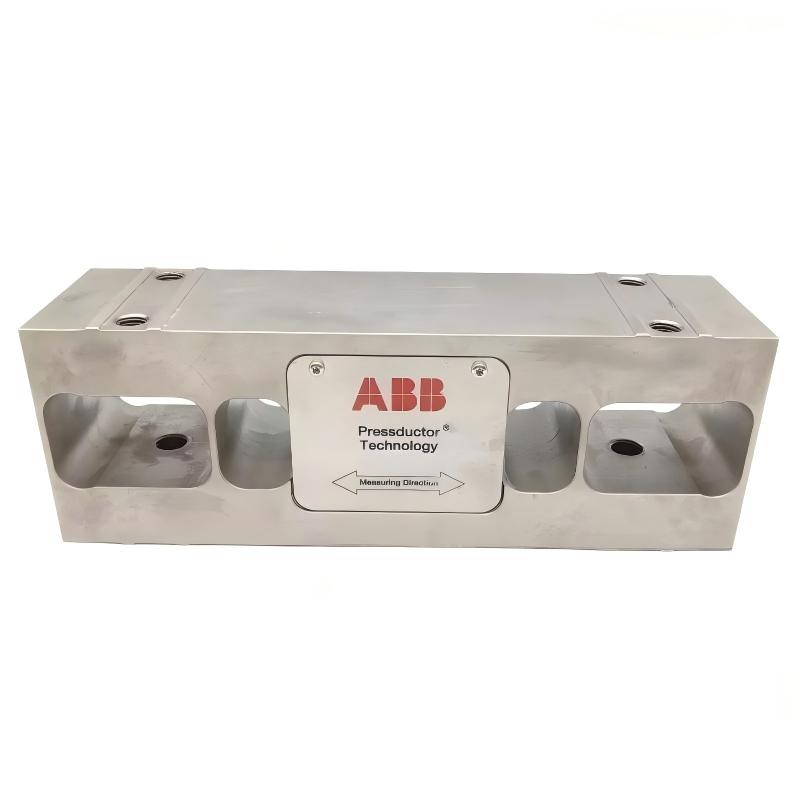

Name: ABB PFVL141C-60MN 3BSX670292D0064 Roll Force load cell
Brand: ABB PLC
SKU: 6821
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:PFVL141C-60MN 3BSX670292D0064
Product Origin:Sweden
Product Dimensions:400 × 200 mm
Product Weight:50kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The ABB PFVL141C‑60MN Roll Force Load Cell is an industrial‑grade force sensor designed for extremely high‑capacity force measurement applications. Built to endure heavy loads and continuous operation in demanding environments, this load cell delivers accurate and repeatable force data critical for rolling mills, material forming machines, and structural testing systems.

Purpose‑engineered for high‑force measurement up to 60 MN (meganewtons), the PFVL141C series combines rugged construction with precise sensing technology to support process control, product quality assurance, and automation feedback loops.

Technical Specifications

Specification	Details
Manufacturer	ABB
Model	PFVL141C‑60MN
Product Code	3BSX670292D0064
Module Type	Roll Force Load Cell / High‑Capacity Sensor
Measurement Capacity	60 MN (meganewton force)
Output Type	mV/V (strain gauge output)
Excitation Voltage	10–15 V DC
Accuracy Class	±0.5 % FS
Non‑linearity	≤ ±0.3 % FS
Hysteresis	≤ ±0.2 % FS
Repeatability	≤ ±0.1 % FS
Material	High‑strength alloy steel
Protection Rating	IP66
Operating Temperature	‑20 °C to +60 °C
Storage Temperature	‑40 °C to +80 °C
Mounting	Flange / Structural Integration
Dimensions (HxW)	~400 × 200 mm
Weight	Approx. 50 kg

Typical Industrial Applications

The PFVL141C‑60MN Roll Force Load Cell is ideally suited for applications involving ultra‑high force measurement:

Hot and cold rolling mill force monitoring
Press force feedback in forming and forging lines
Structural testing and calibration rigs
Heavy‑duty industrial material testing
Large‑scale automated forming systems
Paper and steel plant roll tension control

Key Advantages

Ultra‑High Force Capability
Engineered for force measurement up to 60 MN, making it suitable for heavy‑industrial loads.
Robust Construction
High‑strength alloy steel and IP66 protection deliver reliable operation in harsh environments.
Stable and Repeatable Output
Excellent repeatability and linear output characteristics enhance control and analytics accuracy.
Wide Temperature Tolerance
Performs reliably across a broad industrial temperature spectrum.
Integration‑Ready Design
Compatible with standard signal conditioning, data acquisition systems, and PLC interfaces.

Technical FAQs

What force range does the PFVL141C‑60MN handle?
It is designed for up to 60 meganewtons of compressive force.
What type of output signal does it provide?
The load cell uses an mV/V strain gauge output.
What excitation voltage is required?
Standard operation is with 10–15 V DC excitation.
How accurate is this load cell?
Accuracy of ±0.5 % FS is typical for ultra‑high force applications.
Can it operate in harsh industrial conditions?
Yes, IP66 protection provides resistance to dust and water.
What is the operating temperature range?
‑20 °C to +60 °C, covering broad industrial environments.
Is the output repeatable?
Yes, repeatability is ≤ ±0.1 % FS.
What mounting options are supported?
Flange or structural integration mounting for heavy‑duty installations.
Which industries benefit most from this load cell?
Steel, metal forming, rolling mills, and heavy manufacturing sectors.
What are its approximate dimensions and weight?
About 400 × 200 mm, weighing approximately 50 kg.
