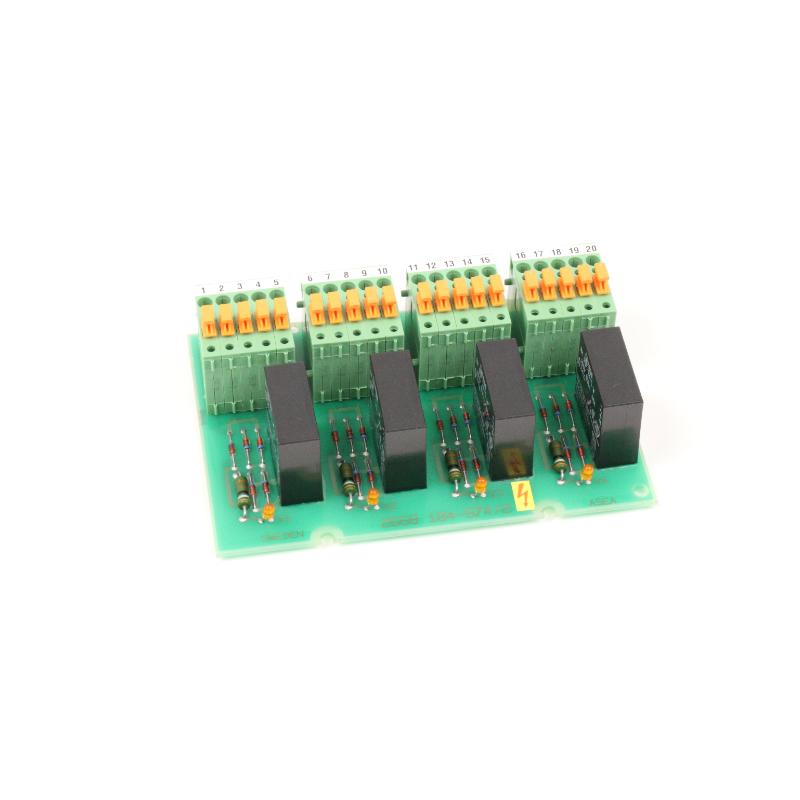

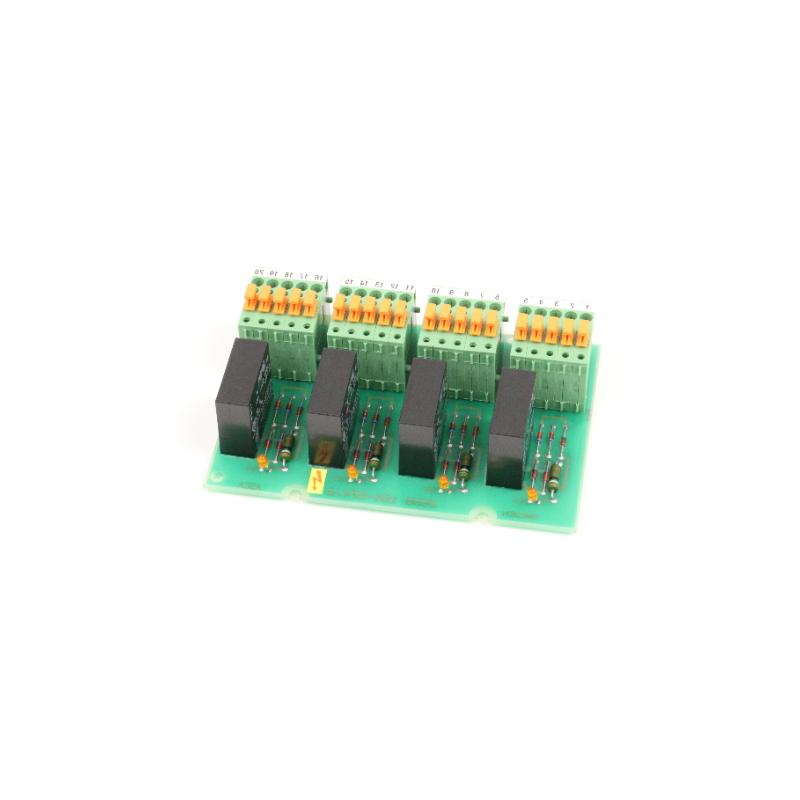

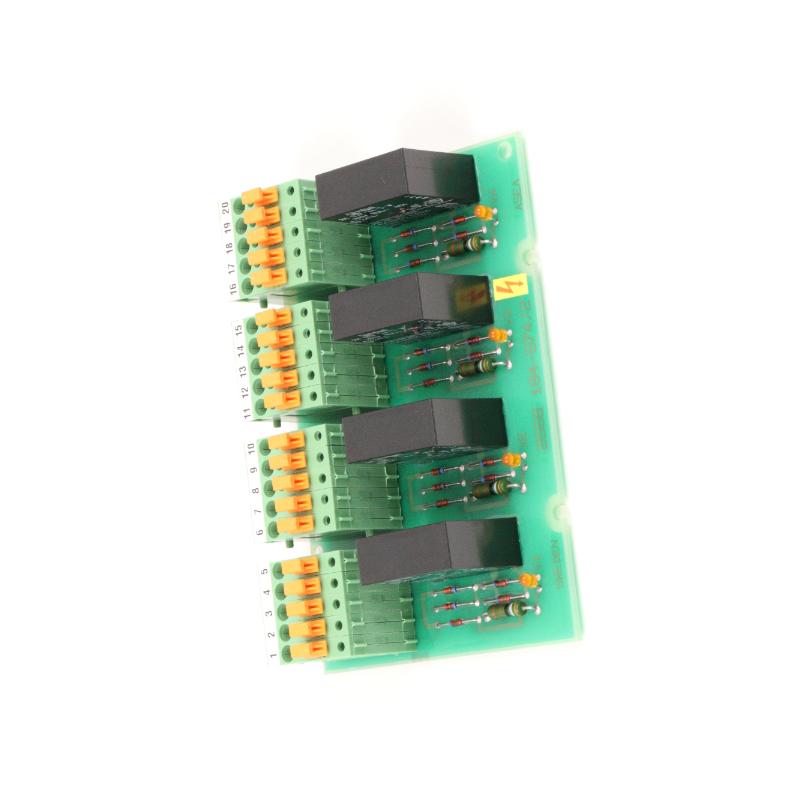

ABB PFUK108 YM110001-SH Relay Board

Name: ABB PFUK108 YM110001-SH Relay Board
Brand: ABB PLC
SKU: 6815
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:PFUK108 YM110001-SH
Product Origin:Sweden
Product Dimensions:140 × 100 × 35 mm
Product Weight:0.32kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The ABB PFUK108 YM110001‑SH Relay Board is an industrial‑grade interface module designed to provide reliable switching and signal amplification within ABB control systems. Serving as a compact relay staging point, this board enables seamless connection between low‑level control logic and higher‑power field devices such as contactors, alarms, and external actuators.

Built to ABB’s rigorous quality standards, the PFUK108 Relay Board ensures secure electrical isolation, robust performance under continuous operation, and straightforward integration into distributed control or PLC environments.

Technical Specifications

Specification	Details
Manufacturer	ABB
Model	PFUK108 YM110001‑SH
Module Type	Relay Board / Interface Module
Relay Type	Electromechanical / Solid‑state (application‑dependent)
Contact Configuration	Multiple Form A / B (relay board standard)
Rated Coil Voltage	24 V DC
Switching Capacity	Up to 5 A per contact (typical)
Protection Rating	IP20 (install inside enclosed panel)
Operating Temperature	0 °C to +60 °C
Storage Temperature	‑40 °C to +85 °C
Mounting	DIN Rail / Module Chassis
Dimensions (HxWxD)	140 × 100 × 35 mm
Weight	Approx. 0.32 kg

Primary Industrial Applications

The PFUK108 Relay Board is suited for a wide array of industrial control applications:

Actuator and motor control signal routing
Alarm output and system notification drivers
Interfacing low‑power controllers to higher‑power field devices
Control panel logic switching and staging functions
Safety output expansion within PLC/DCS architectures
Signal isolation and load segregation in automation systems

Key Advantages

Reliable Electrical Isolation
Safely separates control logic from high‑power loads, protecting sensitive electronics.
Flexible Output Switching
Multiple relay outputs support a variety of control and signal staging configurations.
Compact Industrial Design
Space‑efficient board fits easily into control enclosures or DIN‑rail racks.
Standard Industrial Voltage Compatibility
Operates at 24 V DC coil voltage, matching common control power supplies.
Durable Performance
Designed to perform reliably in industrial temperature ranges and continuous duty cycles.

Technical FAQs

What is the primary function of the PFUK108 Relay Board?
It provides interface and switching capability between control logic and field actuators or devices.
What relay voltage does this board use?
Standard 24 V DC coil configuration.
What switching capacity does it support?
Typical relay contacts support up to 5 A per circuit.
Can it be installed on DIN rail?
Yes, it supports standard DIN rail or chassis mounting.
Is it suitable for alarm or indicator outputs?
Yes, it is commonly used for driving alarms, lights, and notification circuits.
What protection level does it have?
Installed inside an enclosure, it meets IP20 industrial panel standards.
Can it interface with PLC or DCS outputs?
Yes, it integrates seamlessly with control logic outputs for switching higher loads.
What industries benefit from this board?
Manufacturing automation, power distribution, process control, utilities, and OEM systems.
What are the approximate dimensions?
About 140 × 100 × 35 mm.
What is the approximate weight?
Around 0.32 kg.
