Product Overview

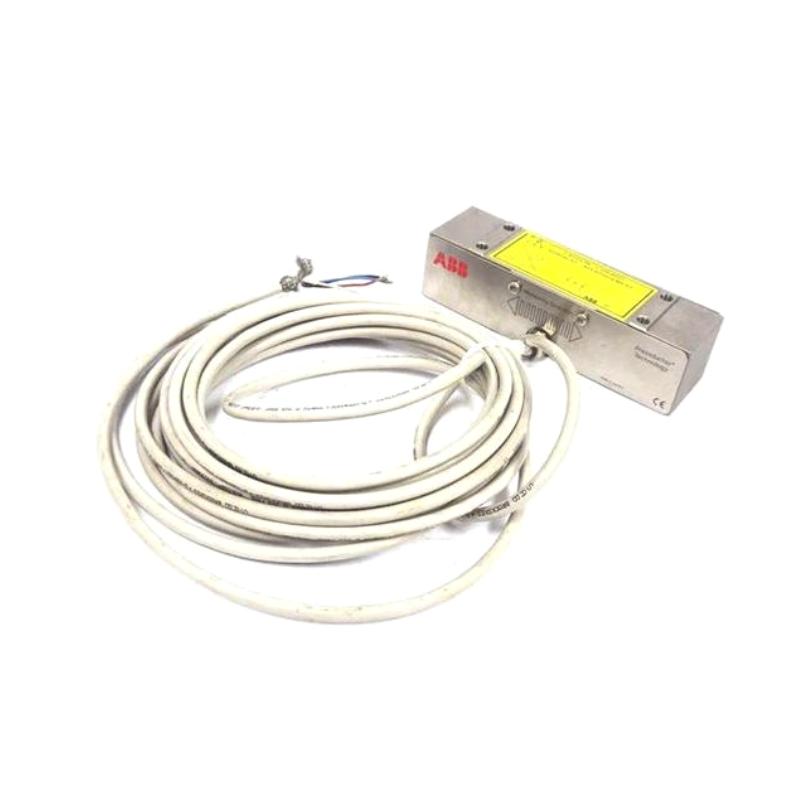

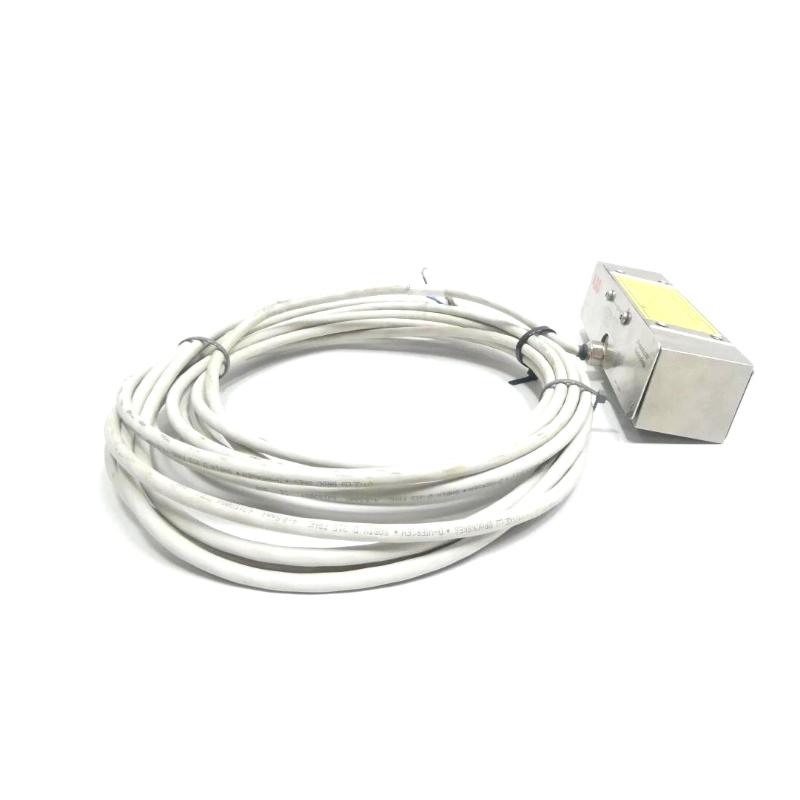

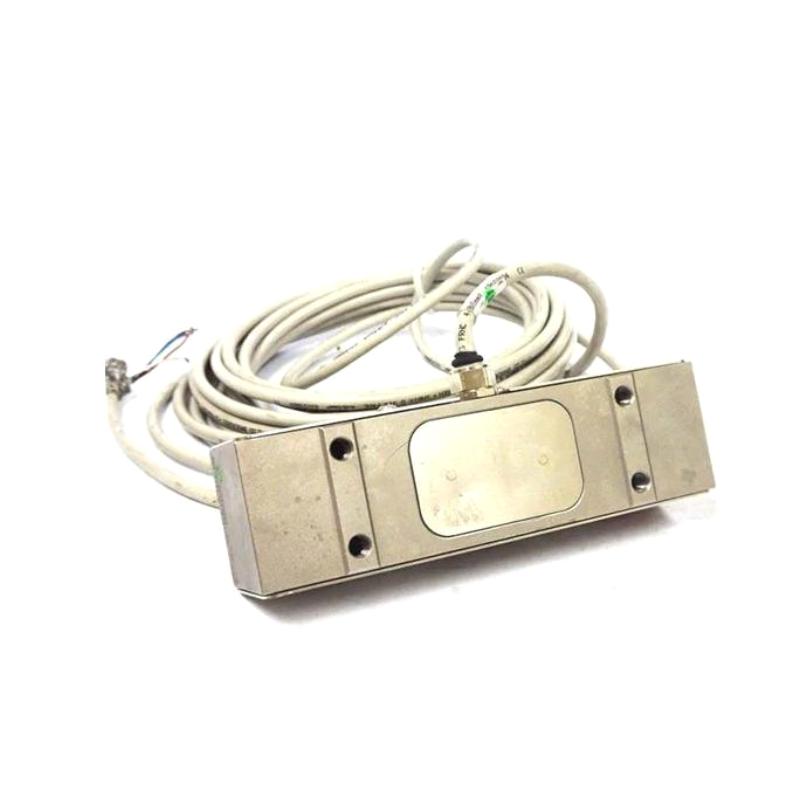

The ABB PFTL301E‑0.2 kN Load Cell is a high‑accuracy force measurement sensor designed for precise compressive force detection in compact industrial systems. Offering dependable performance in weighing, tension monitoring, and quality‑control applications, this load cell combines robust construction with stable output characteristics.
Engineered to perform reliably under varying operational conditions, the PFTL301E‑0.2 kN delivers consistent measurement feedback that is essential for automated processes, laboratory equipment, and material testing. Its streamlined design enables easy integration into systems where space is limited but accuracy is essential.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Model | PFTL301E‑0.2 kN |
| Product Code | 3BSE019050R200 |
| Module Type | Load Cell / Force Sensor |
| Measurement Capacity | 0.2 kN (compressive force) |
| Output Type | mV/V (strain gauge) |
| Excitation Voltage | 5–15 V DC |
| Accuracy Class | ±0.05 % FS |
| Non‑linearity | ≤ ±0.03 % FS |
| Hysteresis | ≤ ±0.02 % FS |
| Repeatability | ≤ ±0.02 % FS |
| Material | Stainless Steel / Protective Coating |
| Protection Rating | IP65 |
| Operating Temperature | ‑10 °C to +50 °C |
| Storage Temperature | ‑40 °C to +80 °C |
| Cable Length | 1.5 meters (standard) |
| Mounting | Threaded / Compact Mount |
| Dimensions (HxD) | 60 × 20 mm |
| Weight | Approx. 0.15 kg |
