Product Overview

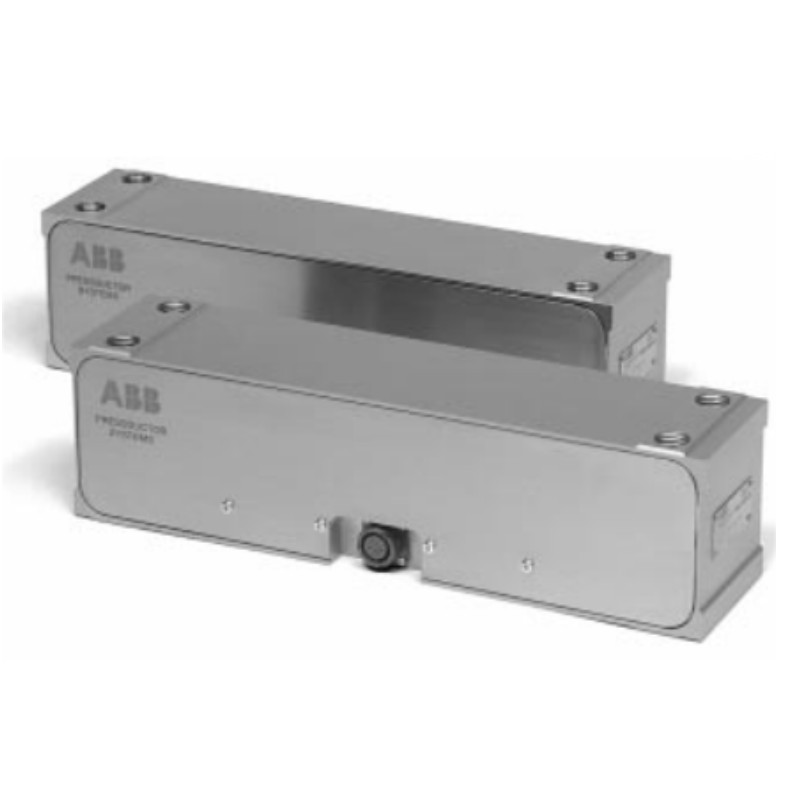

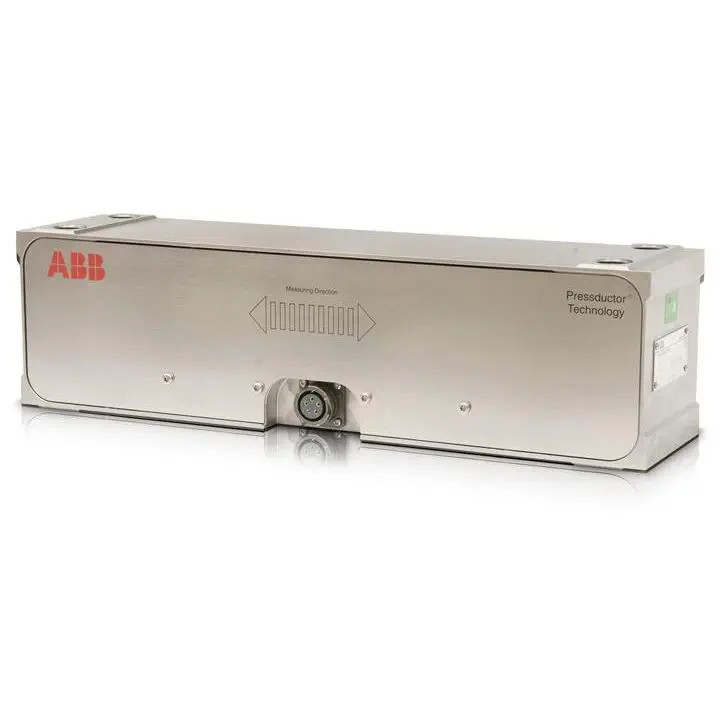

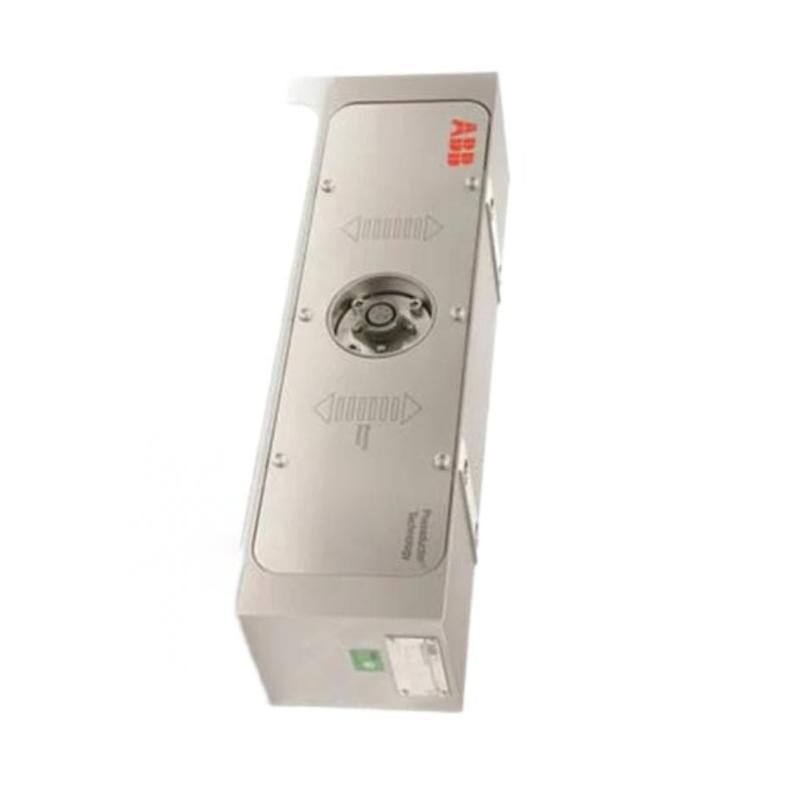

The ABB PFTL201C‑10KN Load Cells are precision‑engineered force sensors designed to deliver reliable and accurate measurement of compressive forces up to 10 kN. Built for demanding industrial environments, these load cells provide repeatable output and stable performance, making them ideal for automation systems, material testing rigs, and force feedback applications.
With a robust construction and optimized sensing technology, the PFTL201C series balances high‑accuracy measurement with excellent durability. Their proven performance makes them a trusted choice for engineers and system integrators looking to enhance quality control, process monitoring, and control loop feedback in a variety of industrial applications.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Model | PFTL201C‑10KN |
| Product Code | 3BSE007913R0010 |
| Module Type | Load Cells / Force Sensors |
| Measurement Capacity | 10 kN (compressive force) |
| Output Type | mV/V (strain gauge) |
| Excitation Voltage | 5–15 V DC |
| Accuracy Class | ±0.02 % FS |
| Non‑linearity | ≤ ±0.02 % FS |
| Hysteresis | ≤ ±0.01 % FS |
| Repeatability | ≤ ±0.01 % FS |
| Material | Alloy Steel / Protective Coating |
| Protection Rating | IP66 |
| Operating Temperature | ‑10 °C to +60 °C |
| Storage Temperature | ‑40 °C to +80 °C |
| Cable Length | 3 meters (standard) |
| Mounting | Flange / Threaded |
| Dimensions (HxD) | 110 × 45 mm |
| Weight | Approx. 0.85 kg |
