Product Overview

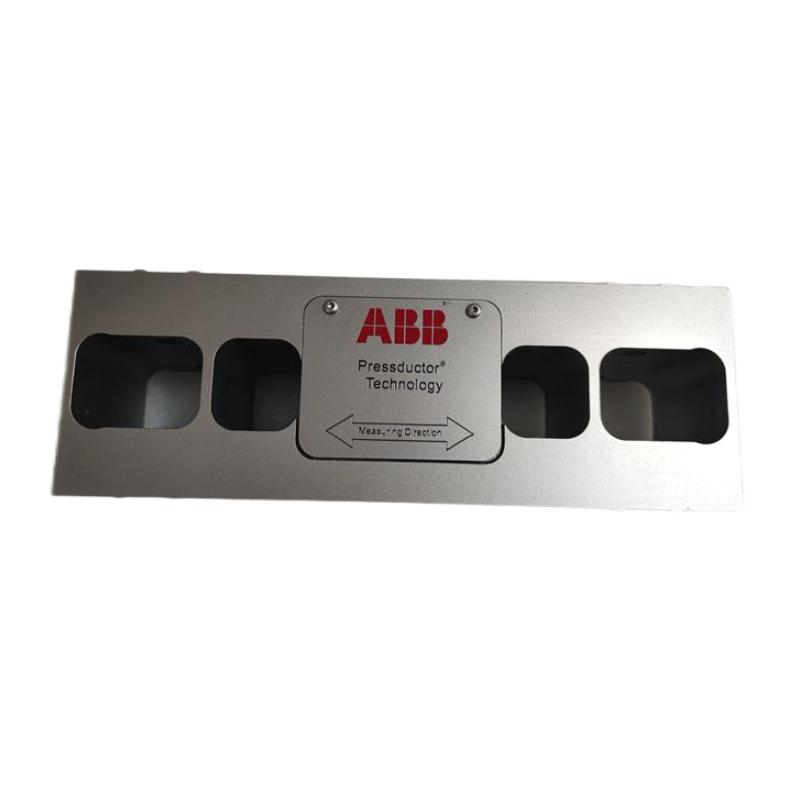

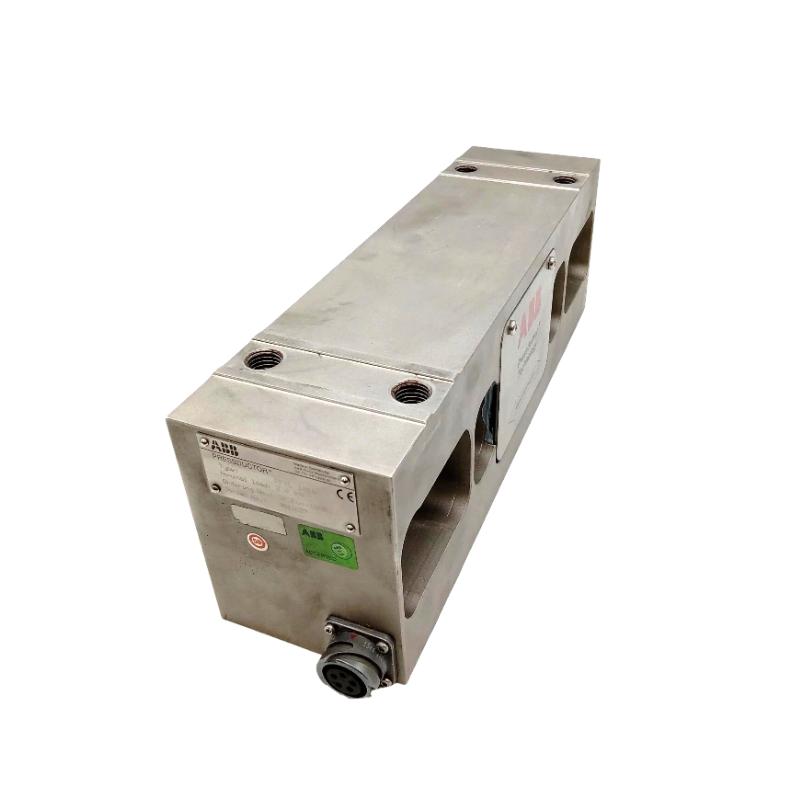

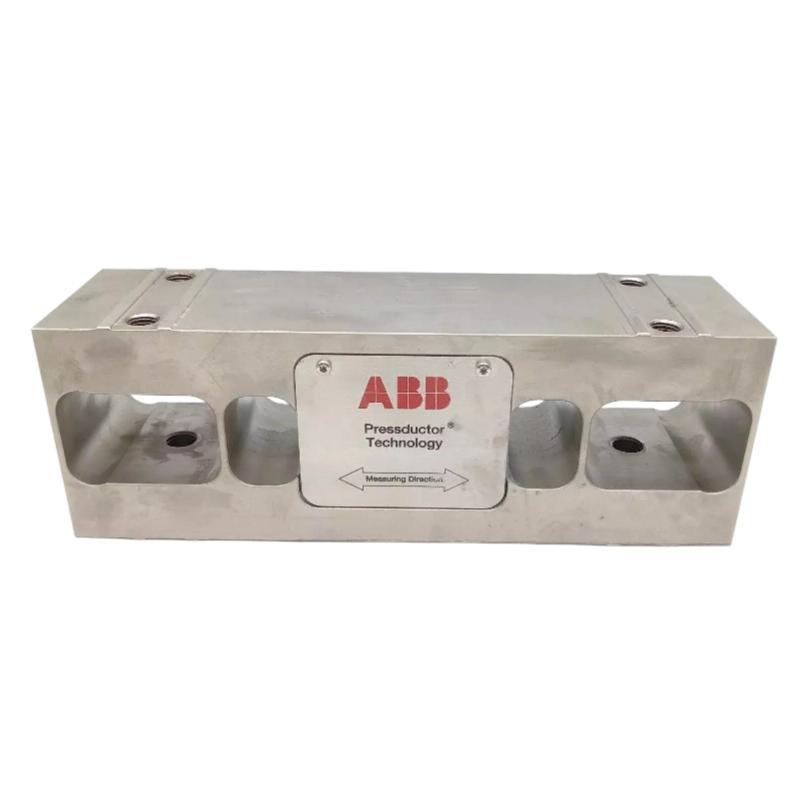

The ABB PFTL101B‑5.0KN Load Cells are precision force measurement sensors engineered for high‑accuracy applications across industrial automation, material testing, and process monitoring systems. Designed to deliver stable and repeatable measurements under rigorous conditions, these load cells form a reliable cornerstone of weighing, force feedback, and quality control systems.
Built with robust materials and calibrated for consistent performance, the PFTL101B‑5.0KN units provide dependable force measurement up to 5.0 kN, making them suitable for heavier loads and more demanding measurement tasks than lower‑range versions.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Model | PFTL101B‑5.0KN |
| Product Code | 3BSE004191R1 |
| Module Type | Load Cells / Force Sensors |
| Measurement Range | 5.0 kN (compressive force) |
| Output Type | mV/V (strain gauge output) |
| Excitation Voltage | 5–15 V DC |
| Accuracy Class | ±0.03 % FS |
| Non‑linearity | ≤ ±0.02 % FS |
| Hysteresis | ≤ ±0.02 % FS |
| Repeatability | ≤ ±0.01 % FS |
| Material | High‑strength alloy steel |
| Protection Rating | IP65 |
| Operating Temperature | ‑10 °C to +60 °C |
| Storage Temperature | ‑40 °C to +80 °C |
| Cable Length | 2 meters (standard) |
| Mounting | Threaded / Flange options |
| Dimensions (HxD) | 95 × 35 mm |
| Weight | Approx. 0.45 kg |
