Product Overview

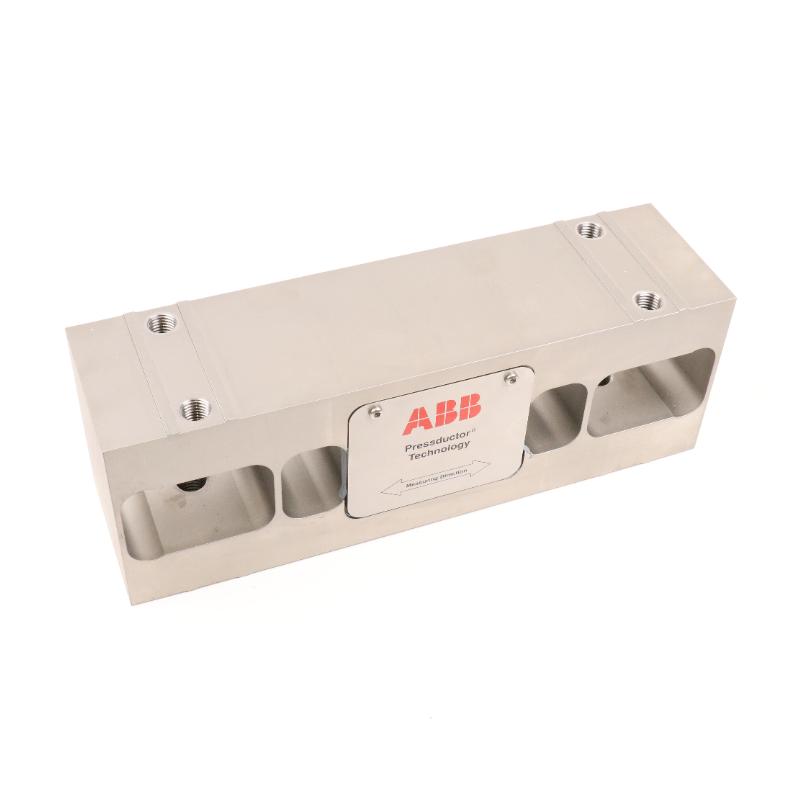

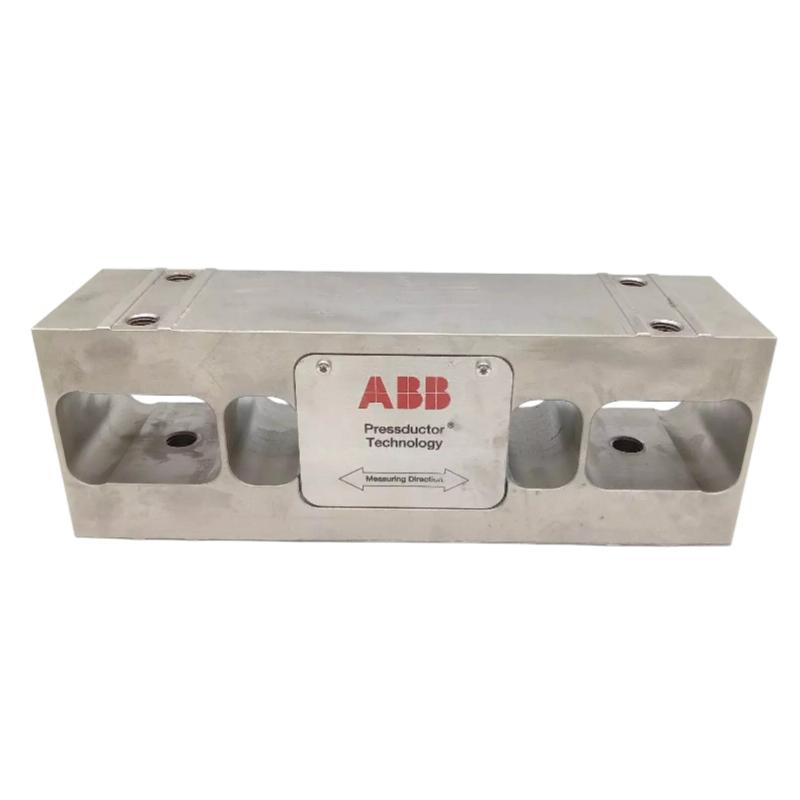

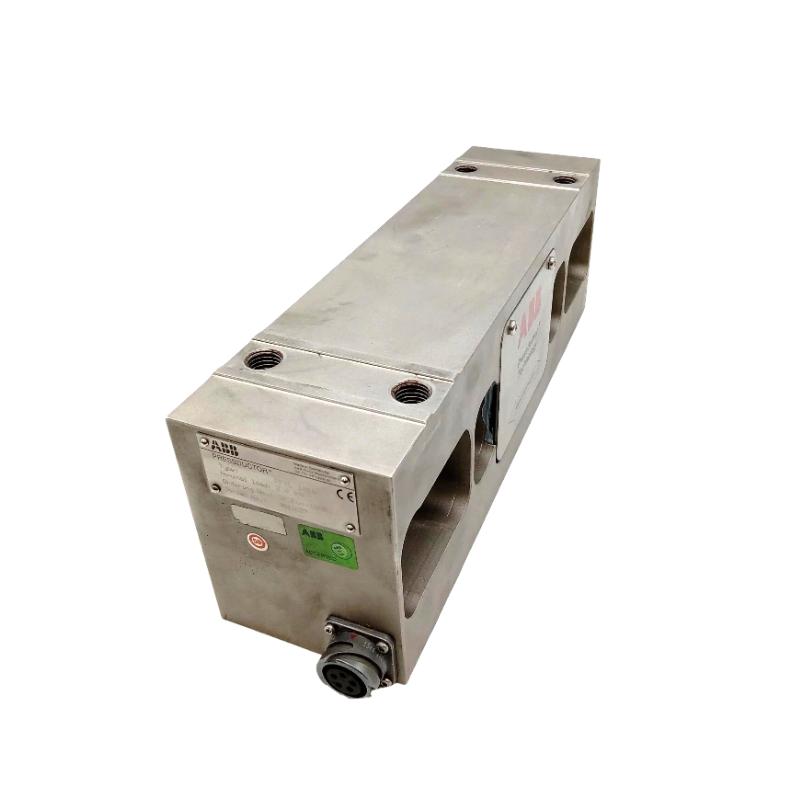

The ABB PFTL101B‑2.0KN Load Cell is a precision sensor engineered to measure compressive force with high accuracy and repeatability in demanding industrial environments. Designed for integration with automation systems, weighing platforms, and process monitoring equipment, this load cell provides dependable performance for force measurement applications across manufacturing, material testing, and industrial automation.
Built with robust materials and calibrated for high stability, the PFTL101B series offers exceptional sensitivity while maintaining durability under cyclic loading conditions. Its compact footprint and straightforward installation make it ideal for both new system designs and retrofits.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Model | PFTL101B‑2.0KN |
| Product Code | 3BSE004185R1 |
| Module Type | Load Cell / Force Sensor |
| Measurement Range | 2.0 kN (compressive force) |
| Output Type | mV/V (strain gauge output) |
| Excitation Voltage | 5–15 V DC |
| Accuracy Class | ±0.03% FS |
| Non‑linearity | ≤ ±0.02% FS |
| Hysteresis | ≤ ±0.02% FS |
| Repeatability | ≤ ±0.01% FS |
| Material | High‑strength alloy steel |
| Protection Rating | IP65 |
| Operating Temperature | ‑10°C to +60°C |
| Storage Temperature | ‑40°C to +80°C |
| Cable Length | 2 meters (standard) |
| Mounting | Threaded / Flange options |
| Dimensions (HxD) | 75 × 25 mm |
| Weight | Approx. 0.3 kg |
