Product Overview

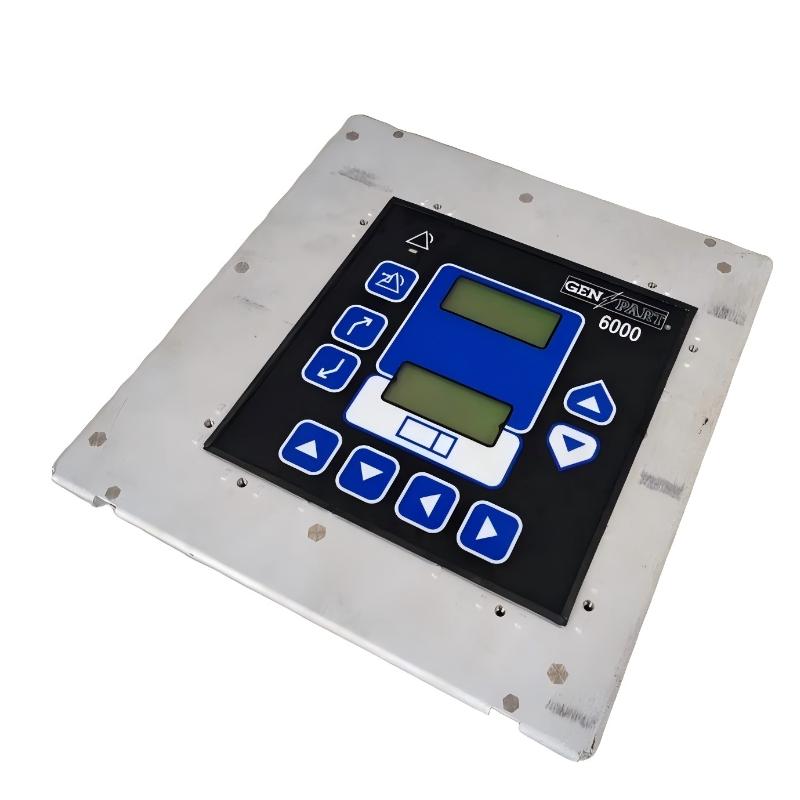

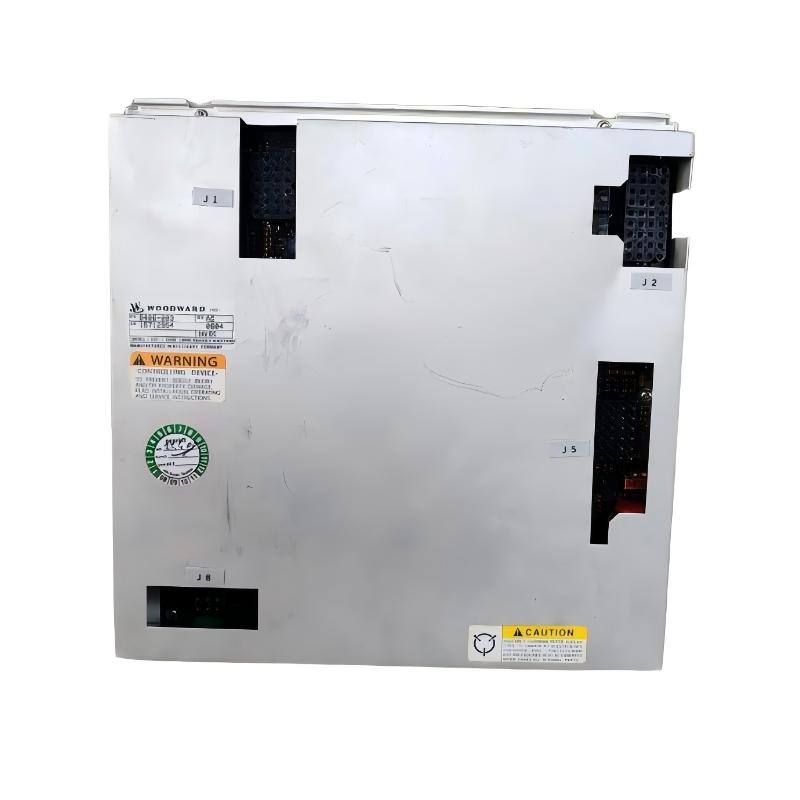

The Woodward 8406-003 Operator Interface is a versatile and efficient human-machine interface (HMI) designed to provide operators with real-time visibility and control over critical system parameters. Its compact design, intuitive touchscreen interface, and advanced diagnostic features make it an essential tool for improving operational efficiency and system reliability in a wide range of industries.
Whether used in power generation, chemical processing, or industrial automation, the 8406-003 allows for seamless communication between operators and control systems. With its durability, customizable display, and security features, this interface ensures that operators can monitor and adjust critical processes with ease and confidence.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Woodward |
| Model Number | 8406-003 |
| Module Type | Operator Interface (HMI) |
| Function | Real-Time Monitoring and Control |
| System Compatibility | Compatible with Woodward and Third-Party Systems |
| Display Type | Touchscreen, Customizable |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 120 mm × 100 mm × 60 mm |
| Weight | 1.13 kg |
Applications in Distributed Control Systems
The Woodward 8406-003 Operator Interface is a high-quality human-machine interface (HMI) designed for seamless communication between operators and control systems in industrial applications. This device allows operators to interact with control systems, monitor real-time data, and adjust parameters to optimize system performance. The 8406-003 is specifically designed for use in power generation, industrial automation, and energy systems where reliable operator interaction is critical for efficient and safe operations.
Typical deployment scenarios include:
-
Power Generation: In power plants, this operator interface allows plant operators to monitor turbine performance, adjust setpoints, and control generators to ensure stable energy production.
-
Oil & Gas: Used in upstream and downstream facilities, the HMI enables real-time monitoring of equipment, flow rates, and system parameters, helping to optimize operations and ensure safety.
-
Marine Applications: In marine systems, the operator interface allows control over engine performance, fuel systems, and safety parameters, helping to ensure smooth operation and safety aboard vessels.
-
Renewable Energy: In wind and solar power plants, the 8406-003 facilitates the monitoring of energy production, system health, and performance, enabling efficient operation.
-
Industrial Automation: The interface is used in manufacturing environments to monitor and control automated processes, improving overall productivity and minimizing downtime.
-
Chemical Processing: In chemical plants, operators can control and monitor various processes such as mixing, temperature, and pressure, ensuring the stability of the production line.
The 8406-003 Operator Interface is critical in ensuring smooth and efficient operations by providing operators with real-time insights into system performance and allowing them to take corrective actions as needed.
