Product Overview (Introduction)

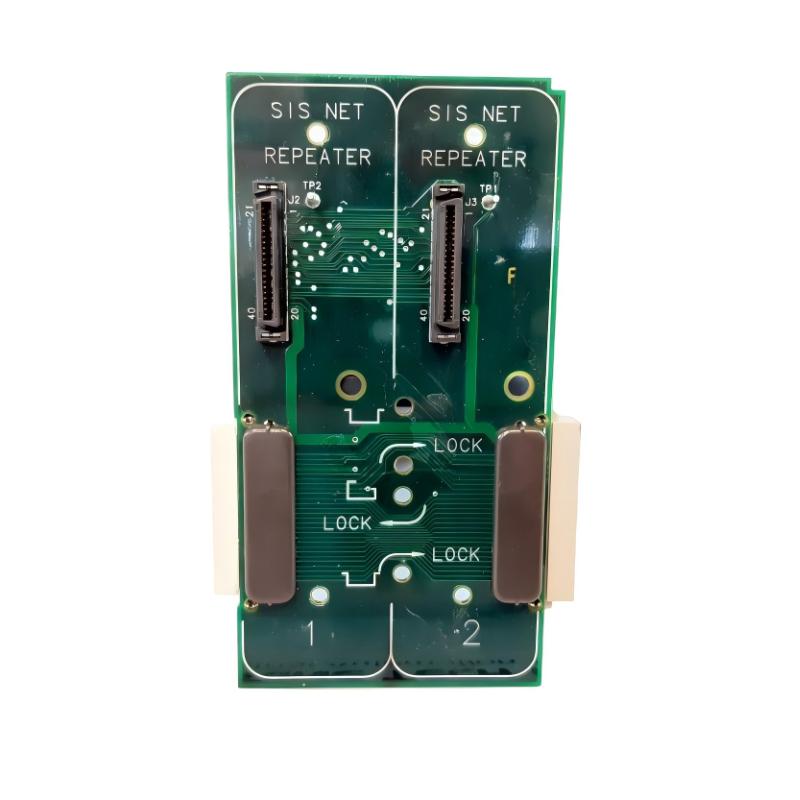

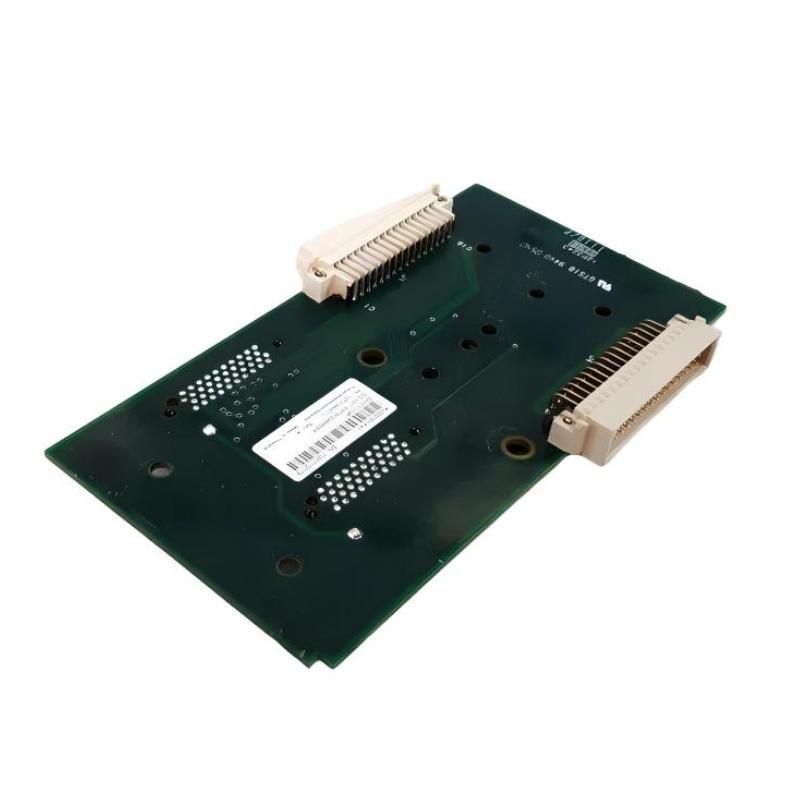

The Emerson KJ2221X1-EA1 12P3241X012 Repeater Module is a vital component for maintaining signal integrity in DeltaV distributed control systems. By regenerating and retransmitting digital signals, it ensures reliable communication between controllers, I/O modules, and field devices, even over long distances or in electrically challenging environments.
Its compact design allows installation in tight control racks, while its robust construction guarantees dependable operation in industrial settings. The module is essential for ensuring consistent, high-quality communication in complex distributed automation systems.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Emerson |
| Model Number | KJ2221X1-EA1 / 12P3241X012 |
| Module Type | Repeater Module |
| System Role | Digital Signal Regeneration / Communication Reliability |
| System Compatibility | Emerson DeltaV Distributed Control Systems |
| Installation | Control Rack Mount |
| Signal Type | Digital Communication Signals |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 150 mm × 100 mm × 35 mm |
| Weight | 0.25 kg |
Applications in Distributed Control Systems (Applications)
The Emerson KJ2221X1-EA1 Repeater Module is designed to extend and maintain signal integrity across Emerson DeltaV distributed control systems (DCS). It regenerates digital signals between controllers, I/O modules, and field devices, ensuring reliable communication over long distances or through electrically challenging environments.
Typical deployment scenarios include:
-
Large oil and gas facilities requiring long-distance signal transmission
-
Chemical plants with distributed process control networks
-
Power generation systems where controllers are separated by significant distances
-
Water and wastewater treatment facilities with extended sensor and actuator networks
-
Manufacturing operations requiring robust signal reliability across modular I/O architectures
-
Industrial automation setups where signal integrity is critical for process stability
By amplifying and retransmitting signals, the module maintains system reliability and ensures coordinated operation of all connected devices.
Operational Advantages (Advantages)
Reliable Signal Amplification
Boosts digital signals to maintain integrity across long cable runs or noisy environments.
Seamless DeltaV Integration
Designed for use within Emerson DeltaV distributed control systems without configuration conflicts.
Compact and Space-Efficient
Small footprint allows installation in dense control racks and cabinets.
Supports Modular System Expansion
Enables additional I/O modules and controllers to be added without compromising signal quality.
Industrial-Grade Performance
Maintains stable operation in conditions with electrical interference, vibration, and temperature variation.
Technical FAQs (Technical FAQs)
-
What is the main function of the KJ2221X1-EA1 module?
It regenerates and retransmits digital signals to ensure reliable communication within DeltaV systems.
-
Which devices can it interface with?
Controllers, I/O modules, field devices, and other digital components in DeltaV networks.
-
Can it improve signal quality over long cable runs?
Yes, it amplifies and repeats signals to prevent degradation over extended distances.
-
Is it compatible with Emerson DeltaV systems?
Yes, it is fully integrated with DeltaV distributed control architectures.
-
How is the module installed?
It mounts in a control rack and connects inline with digital signal lines between devices.
-
Does it provide diagnostic or monitoring features?
Yes, it supports monitoring of signal status and connectivity integrity.
-
Which industries commonly deploy this module?
Oil and gas, chemical processing, power generation, water treatment, and manufacturing.
-
Can it operate in electrically noisy environments?
Yes, it maintains signal integrity even in the presence of electrical interference.
-
Does it support modular system expansion?
Yes, additional I/O and controller modules can be integrated without affecting signal reliability.
-
What is the benefit of using a repeater module in a DCS?
It ensures consistent, high-quality communication across extended networks, supporting stable and coordinated process control.
