Product Overview

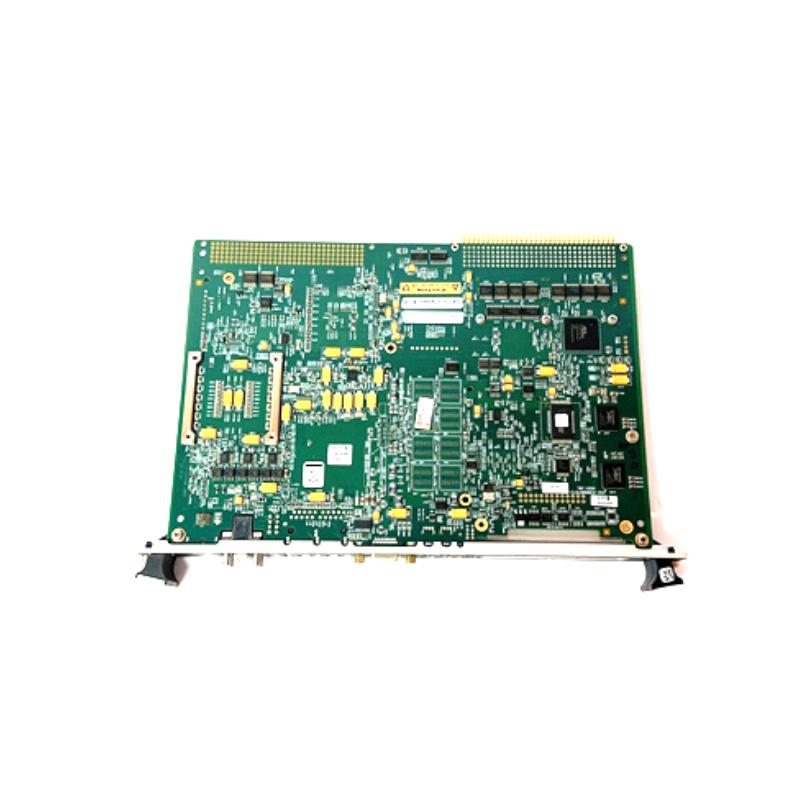

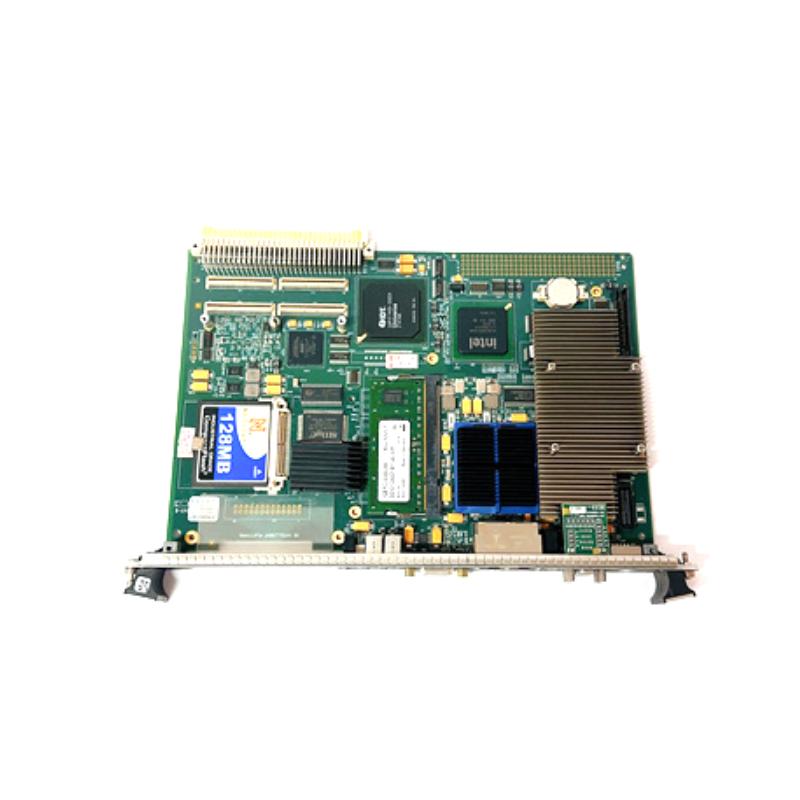

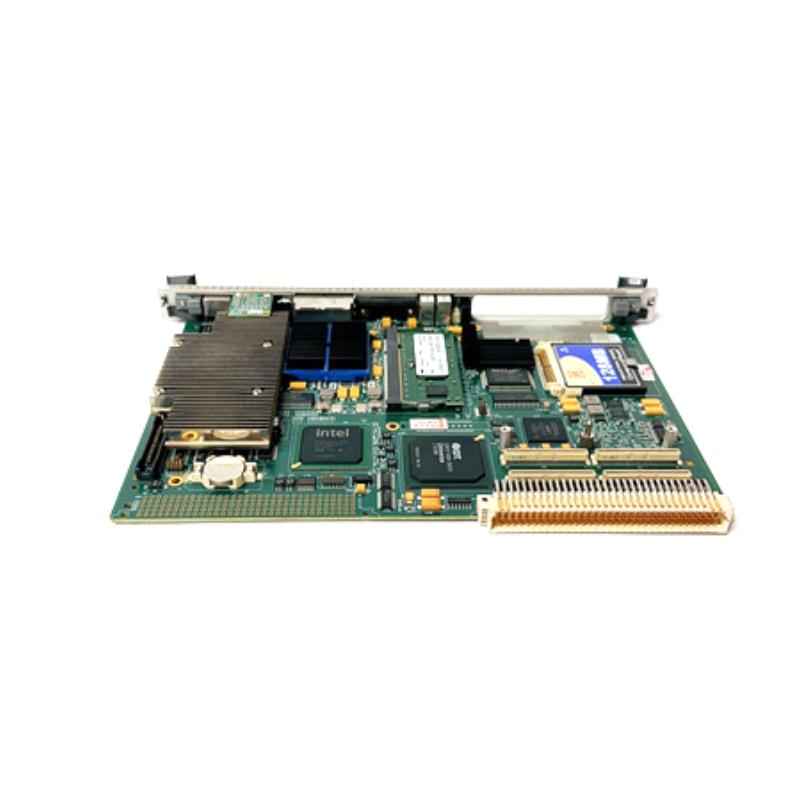

The GE IS415UCVHH1AB VME Innovation Series Controller is a robust, industrial‑grade controller board designed as the central processing unit for GE Mark VIe turbine and process control systems. As a member of the VME Innovation Series family, it delivers real‑time deterministic control, high‑speed system integration, and extensive I/O management for critical applications such as power generation, turbomachinery automation, and distributed control architectures.
Featuring an industrial‑level computing architecture and support for complex regulatory logic, this controller board is optimized to deliver reliable lifespan operation in demanding environments. Its modular design supports scalable deployment in simplex, dual, or triple redundant configurations where availability and uptime are paramount.
Technical Specifications
| Parameter | Details |
|---|
| Model | IS415UCVHH1AB |
| Brand | GE |
| Product Type | VME Controller Board |
| Series | Innovation Series (Mark VIe) |
| CPU | Intel Ultra‑Low‑Voltage Processor |
| Memory | Onboard SDRAM (sufficient for real‑time control applications) |
| Storage | Flash memory support (CompactFlash or similar) |
| Operating System | Real‑time OS (typically QNX) |
| Communication | Multiple Ethernet ports, serial (RS‑232/RS‑485) |
| Redundancy Support | Simplex, dual, or triple controller arrangements |
| Mounting | 6U VME rack mount |
| Operating Temperature | Industrial temperature range |
| Storage Temperature | Extended industrial range |
| Weight | Approx. 0.9–1.1 kg |
| Origin | Designed for industrial use |
Applications
The IS415UCVHH1AB controller board is used in automation environments where deterministic control, system responsiveness, and high availability are required:
-
Gas and Steam Turbine Control Systems – executing real‑time regulation and protection logic
-
Power Plant Distributed Control Systems – central processing for turbine governor, excitation, and system coordination
-
Offshore Platforms & Marine Engines – rugged, continuous operation under vibration and temperature extremes
-
Industrial Process Automation – supervisory and regulatory control for I/O‑intensive applications
-
Redundant Control Architectures – high‑availability systems requiring fault tolerance
The board’s design and system integration capability make it suitable for sustaining long duty cycles in critical control applications.
Key Advantages
The GE IS415UCVHH1AB VME Innovation Series Controller offers significant performance and reliability benefits:
-
Deterministic Real‑Time Control – processes control algorithms with high precision timing appropriate for turbine and process control systems.
-
Redundancy Support – compatible with simplex, dual, or triple controller configurations for high system availability.
-
Comprehensive Connectivity – multiple Ethernet, serial, USB, and display interfaces support diverse system integration needs.
-
Industrial‑Grade Computing Platform – purpose‑built to tolerate vibration, electrical noise, and continuous operation.
-
Scalable Architecture – supports expansion with digital, analog, and communication I/O modules across the control network.
These advantages ensure dependable performance in automation systems where uptime and responsiveness are critical.
Technical FAQs
1. What systems is this controller designed for?
It is designed for GE Mark VIe distributed control systems used in turbine and process automation.
2. What type of processor does it use?
An Intel ultra‑low‑voltage industrial processor for real‑time control tasks.
3. Which operating system is typically used?
A real‑time operating system—commonly QNX—is deployed for deterministic performance.
4. Can this controller support redundancy?
Yes, it is compatible with simplex, dual, or triple redundant controller configurations.
5. What interfaces are available?
Ethernet for network communication, serial COM ports, USB for engineering access, and display/keyboard connectors.
6. How is the controller mounted?
It slides into a 6U VME rack within a control cabinet.
7. What environments can it withstand?
Designed for industrial conditions with temperature tolerance, shock, and vibration resilience.
8. How does it integrate with field I/O modules?
It communicates via the VME backplane with digital, analog, and communication I/O cards.
9. Is configuration software required?
Yes, system setup and tuning are performed with GE engineering tools compatible with the Mark VIe platform.
10. What sets this controller apart?
Its combination of real‑time deterministic control, redundancy support, and comprehensive connectivity tailored for turbine and process automation.
