Product Overview

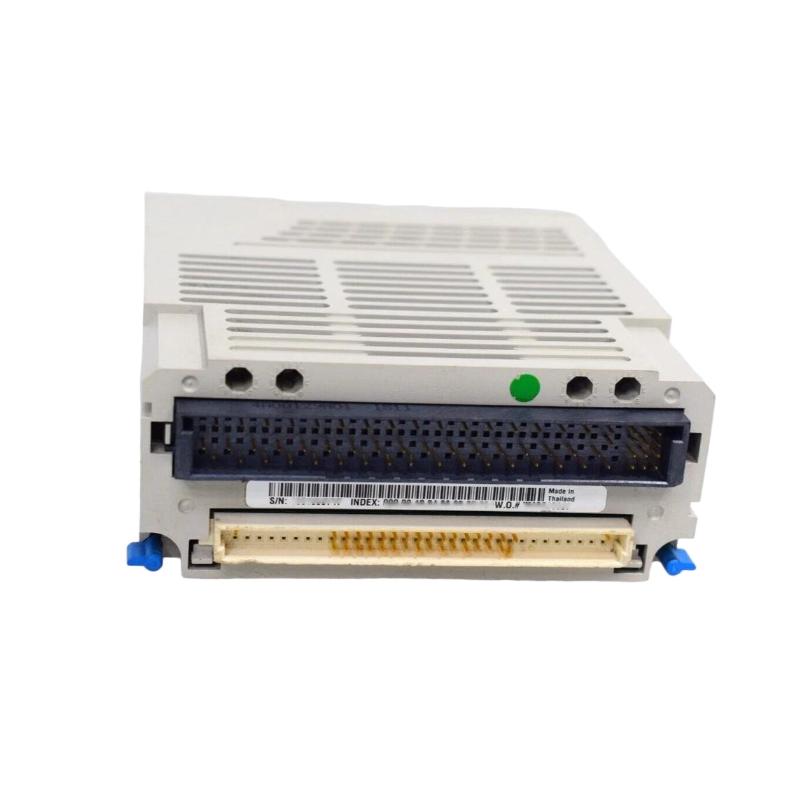

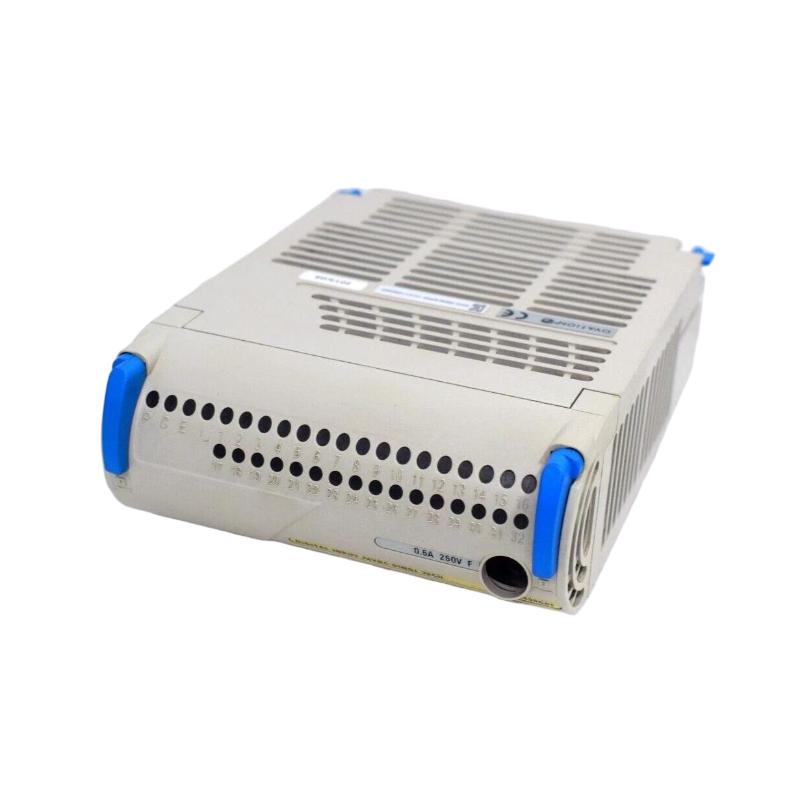

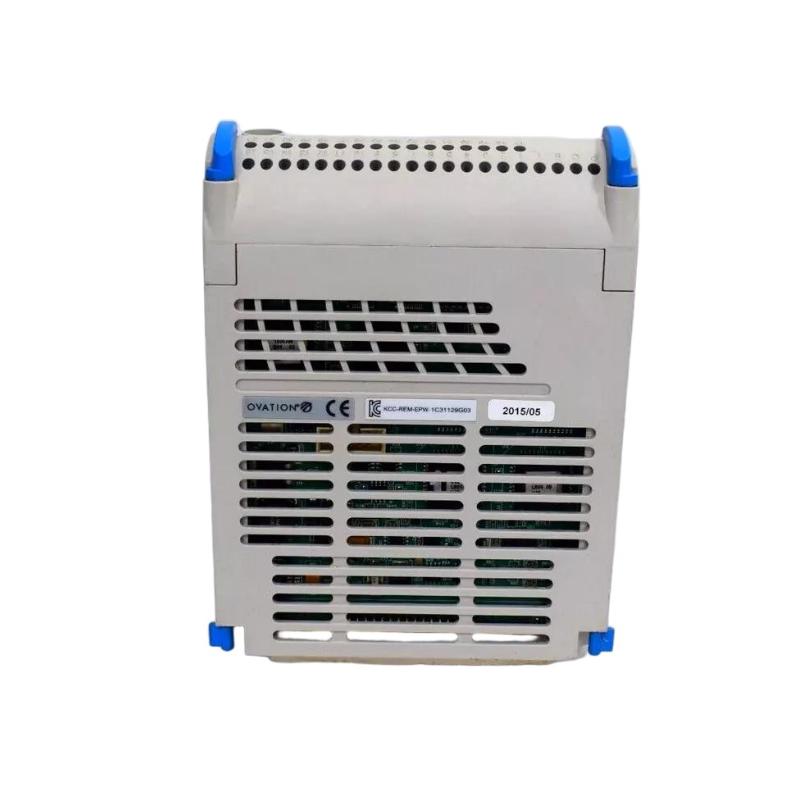

The OVATION 5X00241G04 Digital Input Module is a rugged, high‑integrity discrete input interface designed for use in OVATION Distributed Control Systems (DCS). Engineered to deliver reliable, real‑time logic state acquisition from field devices such as switches, sensors, and status contacts, this module excels in industrial automation environments where accuracy and uptime are paramount.
With robust electrical isolation, fast response performance, and compatibility across OVATION installations, the 5X00241G04 simplifies discrete signal integration while supporting high‑density system architectures. Its modular design makes it a dependable building block for scalable control solutions in utilities, process plants, and mission‑critical industrial facilities.
Technical Specifications
| Parameter | Details |
|---|
| Model | 5X00241G04 |
| Brand | OVATION |
| Module Type | Digital Input Module |
| Input Channels | 32 Digital Inputs |
| Input Voltage Range | 0–30 V DC |
| Input Type | Single‑ended discrete input |
| Isolation | Channel and system isolation |
| Response Time | ≤ 5 ms typical |
| Input Current | Approx. 2–4 mA per channel |
| Power Consumption | Approx. 3–4 W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Dimensions | Approx. 163 × 38 × 58 mm |
| Weight | Approx. 0.47 kg |
Application Scenarios
The 5X00241G04 Digital Input Module is suitable for a wide range of control and monitoring applications:
-
Power generation plants for monitoring equipment status and safety interlocks
-
Water and wastewater facilities tracking level, flow, and pump switches
-
Petrochemical and refining systems for discrete process feedback
-
Manufacturing automation systems requiring high count digital inputs
-
Utility control centers with distributed discrete I/O requirements
Its high channel count and dependable performance make it ideal for installations with extensive field signal integration.
Core Advantages
Designed for industrial performance and reliability, this module offers:
-
High Channel Density supporting up to 32 inputs per module
-
Reliable Logic Detection with consistent signal interpretation
-
Industrial‑Grade Isolation improves noise immunity and signal integrity
-
Fast Response Time enables timely control logic updates
-
Modular Form Factor simplifies system configuration and expansion
These features make the 5X00241G04 suitable for demanding control systems where discrete signal accuracy and uptime are critical.
Technical FAQs
1. How many inputs does the 5X00241G04 support?
It provides 32 individual digital input channels.
2. What voltage levels are supported?
It accepts standard industrial logic signals from 0–30 V DC.
3. What is the typical response time?
Input state changes are typically processed within 5 milliseconds or less.
4. Is this module suitable for electrically noisy environments?
Yes, built‑in channel and system isolation helps reject noise and maintain signal integrity.
5. What is the recommended operating temperature range?
The module is rated for 0°C to 60°C, suitable for most industrial control cabinets.
6. How is it installed?
It installs into the OVATION I/O rack alongside other system modules.
7. Is maintenance frequently required?
Minimal maintenance is needed due to solid‑state design and self‑diagnostic reliability.
8. Can this module interface with standard field devices?
Yes, it interfaces with standard DC discrete sensors, switches, and status contacts.
9. What makes this module stand out?
Its combination of high channel count and dependable industrial performance.
10. How does it handle signal isolation?
Isolation is provided on a per‑channel and system level to minimize interference.
