Product Overview

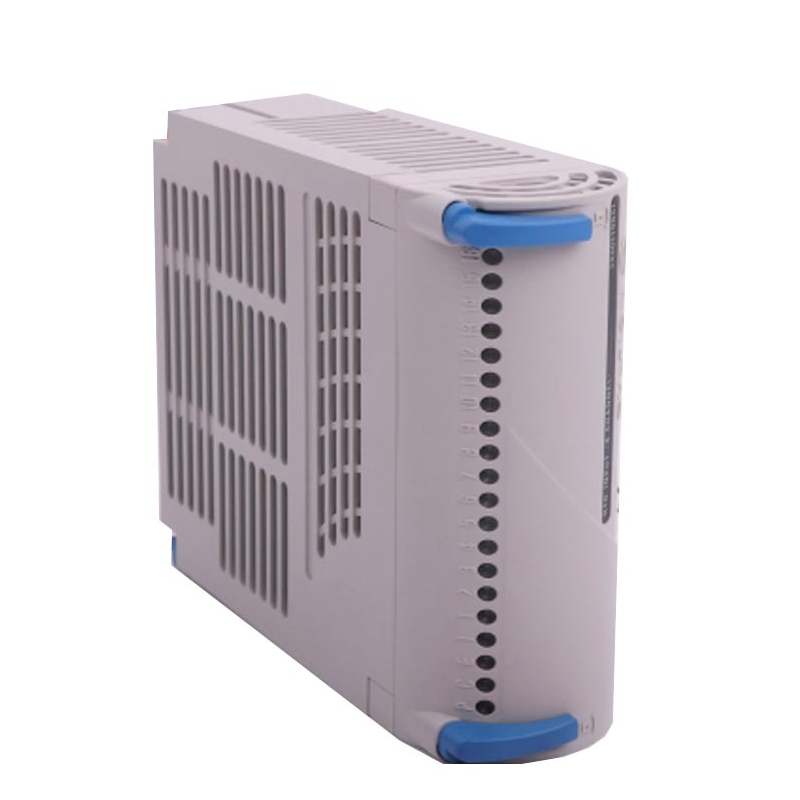

The OVATION 5X00109G02 High Performance Analog Input Module is a premium sensing interface engineered for advanced OVATION distributed control systems. Designed for demanding process environments, this module captures high‑resolution analog signals from field sensors, delivering exceptionally accurate data to the control logic. Its enhanced performance makes it well suited for critical measurement points where precision directly impacts system stability, safety, and efficiency.
Built with robust circuitry and superior signal conditioning, the 5X00109G02 is ideal for applications requiring high fidelity measurement, extended linearity, and low noise susceptibility. Whether deployed in continuous process plants or large‑scale automation systems, its reliable design enhances control accuracy and operational insight.
Technical Specifications
| Parameter | Details |
|---|
| Model | 5X00109G02 |
| Brand | OVATION |
| Module Type | High Performance Analog Input Module |
| Input Channels | 8 Differential or Single‑Ended Inputs |
| Input Range | ±10 V, 0–10 V, 4–20 mA (configurable) |
| Resolution | 16‑bit |
| Accuracy | ±0.05% Full Scale |
| Input Impedance | High impedance (voltage), precision shunt (current) |
| Noise Rejection | Enhanced common‑mode and differential rejection |
| Isolation | Channel‑to‑channel and system isolation |
| Power Consumption | Approx. 6 W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Dimensions | Approx. 163 × 38 × 58 mm |
| Weight | Approx. 0.46 kg |
Application Scenarios
The 5X00109G02 module excels where precise analog measurements are essential:
-
Fossil and nuclear power plants for boiler, turbine, and generator feedback
-
Petrochemical and refining units monitoring flows, pressures, and temperatures
-
Water/wastewater treatment facilities managing chemical dosing and process variables
-
Industrial batch systems requiring high‑accuracy process tracking
-
Energy and utilities demanding stable long‑term performance
Because of its high accuracy and configurable inputs, this module performs exceptionally in centralized and distributed architectures where exact measurement supports optimized control decisions.
Key Advantages
The 5X00109G02 sets itself apart with performance‑focused design elements:
-
High‑Resolution Data Capture delivers refined measurement detail for advanced control algorithms
-
Configurable Input Flexibility supports current and voltage field signals without external converters
-
Superior Noise Immunity enhances measurement integrity in electrically challenging environments
-
Robust Isolation Strategy protects against signal cross talk and system disturbance
-
Industrial‑Grade Reliability maintains performance under temperature swings and continuous operation
These advantages make this module suitable for process points with the most stringent accuracy and stability requirements.
Technical FAQs
1. What signal types can this module measure?
It supports both voltage and current ranges—e.g., ±10 V, 0–10 V, and 4–20 mA—configurable per channel.
2. How many input channels does it offer?
The module offers 8 analog input channels capable of differential or single‑ended operation.
3. What is the measurement resolution?
It provides 16‑bit resolution, enabling fine granularity in analog signal capture.
4. How accurate are the measurements?
Typical accuracy is ±0.05% of full scale, delivering high fidelity measurement for critical points.
5. Is the module immune to electrical noise?
Yes, it incorporates advanced rejection and isolation techniques to minimize noise effects.
6. Does it support field device compatibility?
Yes, it interfaces directly with standard industrial transmitters and sensors without external conditioning.
7. What is the operating temperature range?
The module is rated for industrial environments from 0 °C to 60 °C.
8. Is channel isolation provided?
Yes, isolation is provided both channel‑to‑channel and to the system bus, improving safety and signal quality.
9. Can it be used for both slow and fast analog signals?
Yes, its design accommodates a range of analog frequencies typical in industrial process control.
10. What distinguishes this module from standard analog inputs?
Its higher resolution, better accuracy, and enhanced noise immunity make it ideal for precision measurement points where performance matters most.
