Product Overview

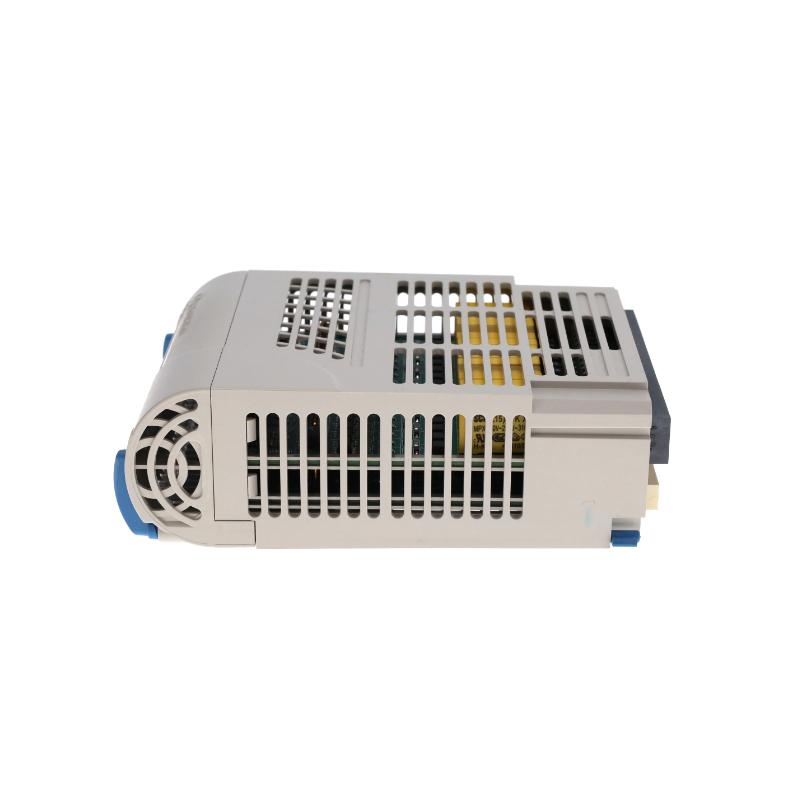

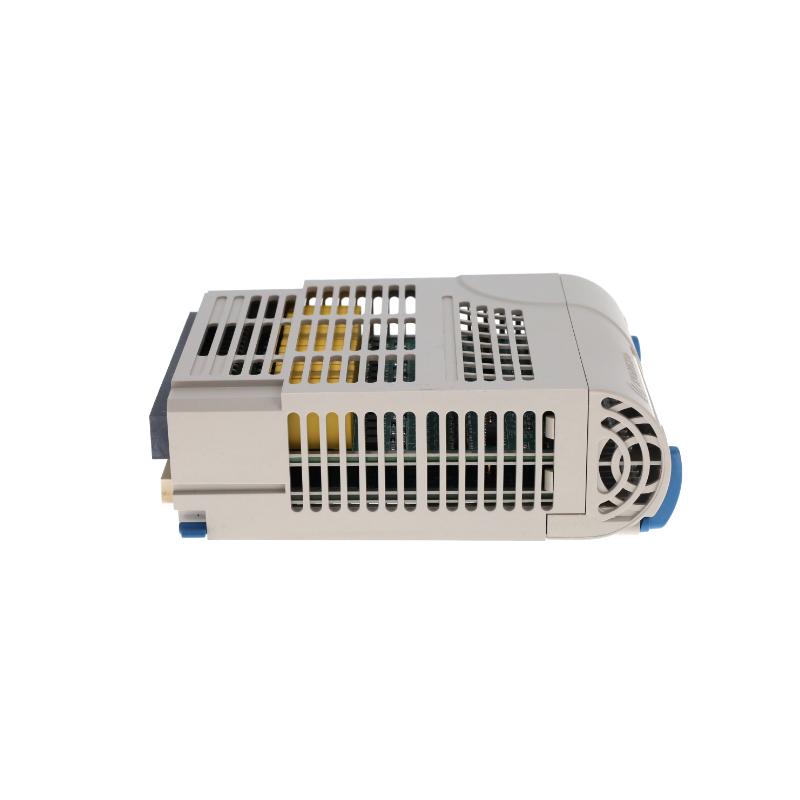

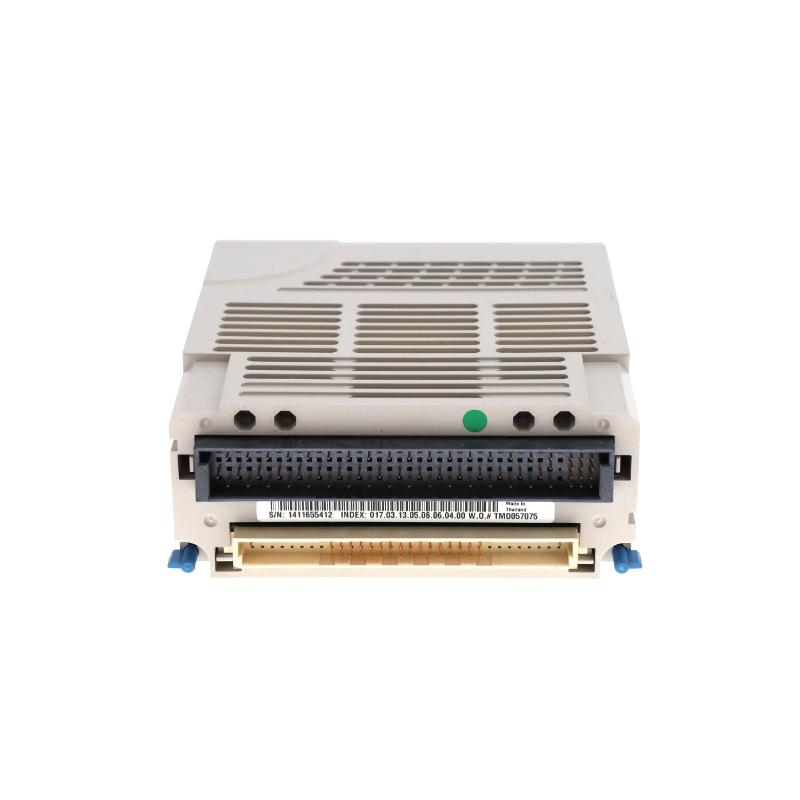

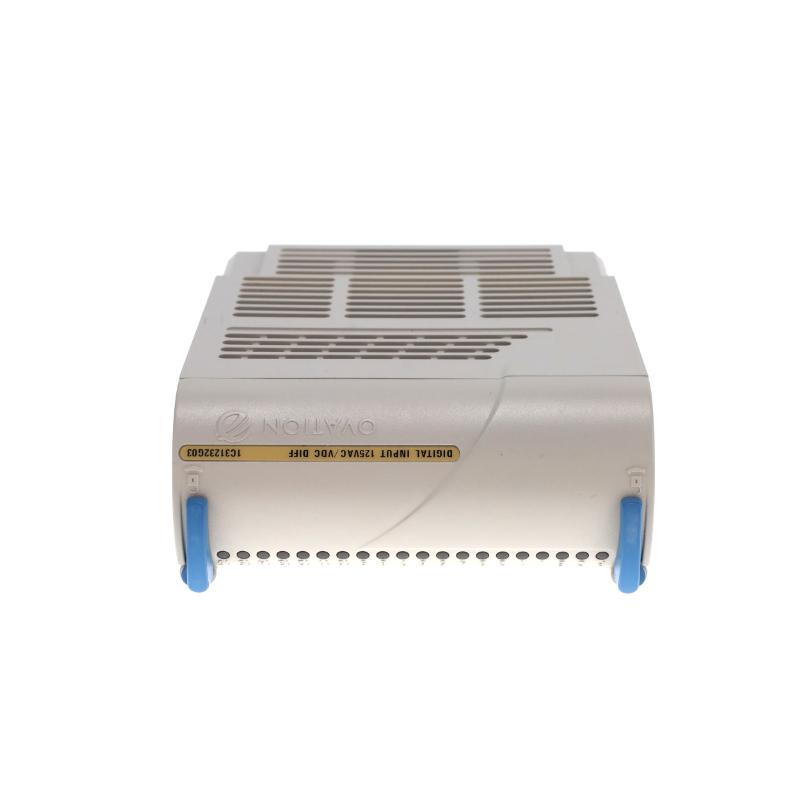

The OVATION 1C31232G03 Digital Input Module is a reliable and cost‑effective I/O component engineered for OVATION distributed control systems. It captures discrete on/off field signals from sensors, switches, and other binary devices, and delivers clean, noise‑resistant digital data directly into the control system.
Designed with industrial performance in mind, this module delivers dependable high‑speed input processing, making it ideal for systems where accurate state detection and real‑time control decisions are critical to safe and efficient operation.
Technical Specifications
| Parameter | Details |
|---|
| Model | 1C31232G03 |
| Brand | OVATION |
| Module Type | Digital Input Module |
| Input Channels | 16 Digital Inputs |
| Input Voltage Range | 0–30 V DC |
| Input Configuration | Single‑ended digital input |
| Isolation | Channel and system isolation |
| Response Time | ≤ 5 ms typical |
| Input Current | 2–4 mA per channel |
| Power Consumption | Approx. 2 W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | Approx. 163 × 38 × 58 mm |
| Weight | Approx. 0.40 kg |
Application Scenarios
The OVATION 1C31232G03 is suited for a wide range of industrial control environments where discrete status information is needed:
-
Power generation plants for equipment status monitoring
-
Oil & gas facilities for valve and limit switch detection
-
Water treatment systems for pump and level switch input
-
Manufacturing automation systems with PLC signal acquisition
-
Distributed control systems requiring stable digital inputs
Its dependable performance ensures consistent state recognition across varied industrial applications.
Key Advantages
This module is designed to support robust and maintainable control architectures with the following benefits:
-
Reliable State Detection ensures accurate on/off signal interpretation
-
Industrial‑Grade Isolation protects system integrity and reduces noise interference
-
Fast Response Time supports timely logic updates in control loops
-
Compact & Modular Design simplifies rack installation and maintenance
-
Broad Voltage Compatibility supports a wide range of field device outputs
These qualities make the 1C31232G03 a versatile choice for digital I/O expansion in OVATION control platforms.
Technical FAQs
1. How many discrete inputs does the module provide?
The module supports 16 individual digital input channels.
2. What signal voltage range does it support?
It accepts 0–30 V DC digital signals typical of industrial switches and sensors.
3. Is the module protected against electrical noise?
Yes, channel and system isolation help mitigate electrical interference.
4. What is the typical response time?
The module processes input state changes in 5 milliseconds or less.
5. Can it be hot‑swapped?
OVATION I/O modules are generally serviced with system power off; follow site procedures for safe handling.
6. Does this module support both sinking and sourcing inputs?
It is primarily designed for DC voltage level inputs; proper field wiring matching the OVATION input configuration is required.
7. How is the module installed in the system?
It is installed within an OVATION I/O rack alongside other modular I/O components.
8. What maintenance does it require?
Minimal maintenance is needed due to its solid‑state design.
9. Can it detect high‑speed pulse inputs?
While it handles typical digital state changes, high‑frequency pulse tracking should be evaluated against system timing requirements.
10. What sets it apart from differential input modules?
This module uses single‑ended inputs for standard logic signals and is ideal where differential input immunity is not required.
