Product Overview

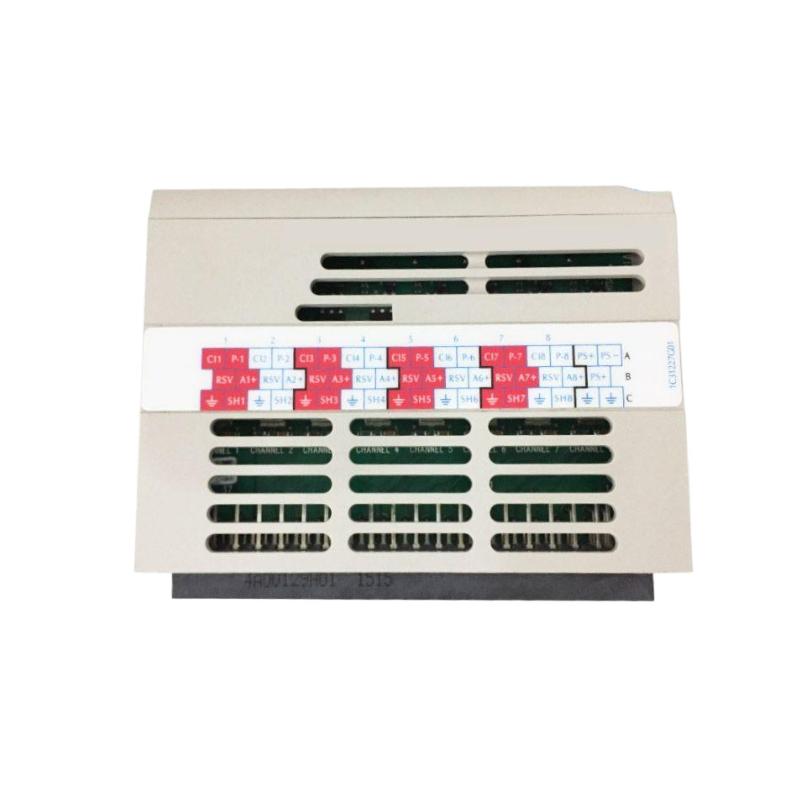

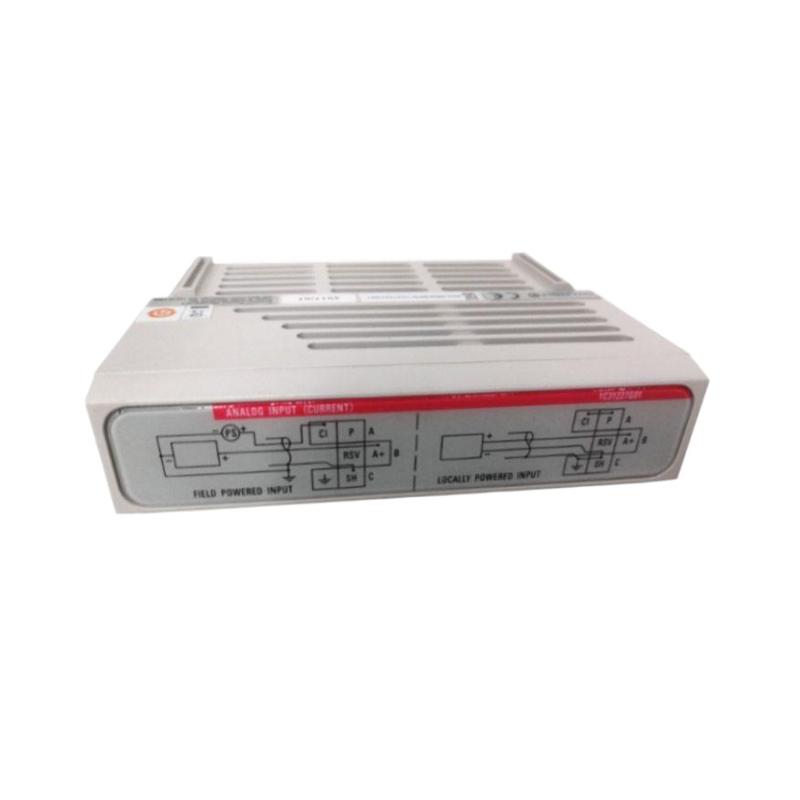

The OVATION 1C31227G01 Analog Input Module is a high-precision signal acquisition unit designed for seamless integration within the Ovation distributed control system. Built for mission-critical environments, it converts real-time analog signals into accurate digital data, enabling stable and intelligent process control.
Engineered with reliability at its core, this module is widely deployed in industries where continuous monitoring and precise data handling are essential. Its rugged construction and advanced signal processing capabilities ensure consistent performance even under demanding operating conditions.
Technical Specifications
| Parameter | Details |
|---|
| Model | 1C31227G01 |
| Brand | OVATION |
| Module Type | Analog Input Module |
| Input Channels | 8 Channels |
| Input Range | 4–20 mA (configurable) |
| Resolution | 14-bit |
| Accuracy | ±0.1% Full Scale |
| Power Supply | 24 VDC |
| Power Consumption | ≤ 5 W |
| Isolation | Channel-to-channel isolation |
| Operating Temperature | 0°C to 60°C |
| Dimensions | 120 × 30 × 95 mm |
| Weight | Approx. 0.24 kg |
Industrial Applications
The 1C31227G01 module is purpose-built for high-reliability data acquisition in process automation environments.
-
Power generation plants monitoring turbine, boiler, and generator parameters
-
Oil & gas facilities tracking pressure, flow, and tank levels
-
Water and wastewater treatment systems managing chemical dosing and flow control
-
Chemical processing plants requiring precise analog signal conversion
-
General industrial automation systems with distributed sensing networks
Its ability to accurately capture analog signals ensures that control systems respond with precision and stability.
Performance Highlights
Designed with both engineers and plant operators in mind, this module offers a strong combination of accuracy, durability, and flexibility.
-
High-Resolution Data Acquisition enables precise monitoring of critical variables
-
Flexible Signal Handling supports multiple analog input configurations
-
Robust Electrical Isolation minimizes interference and improves system reliability
-
Seamless System Integration ensures compatibility with Ovation architecture
-
Field-Proven Stability reduces downtime in mission-critical environments
This makes it a dependable choice for facilities where performance consistency is non-negotiable.
Technical FAQs
1. What types of signals can be connected?
Primarily 4–20 mA signals, commonly used in industrial transmitters.
2. How many channels does the module support?
It provides 8 independent analog input channels.
3. Is the module suitable for high-noise environments?
Yes, built-in isolation helps reduce electrical interference.
4. Can it be used in critical process control systems?
Absolutely, it is designed for high-reliability applications.
5. What is the resolution of signal conversion?
The module offers 14-bit resolution for precise measurement.
6. Does it require special configuration?
Configuration is straightforward within the Ovation system environment.
7. What is the typical installation environment?
It should be installed in industrial control cabinets with proper ventilation.
8. Is maintenance required frequently?
Minimal maintenance is required due to its robust design.
9. Can different signal types be mixed?
Depending on configuration, multiple analog signal types may be supported.
10. What makes this module stand out?
Its combination of accuracy, stability, and seamless system compatibility.
