Product Overview (Introduction)
The Yokogawa AIP504-13 S1 V-Net Coupler Module is a high-performance network interface designed to ensure reliable connectivity within distributed control systems. By bridging V-Net segments, it enables controllers, I/O modules, and field devices to communicate efficiently, supporting coordinated operation and scalable network expansion.
Its compact design allows integration in control cabinets with limited space, while its industrial-grade construction ensures consistent performance in demanding environments. The AIP504-13 S1 is ideal for industrial plants that require reliable real-time communication, flexible expansion, and seamless integration within Yokogawa DCS networks.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Yokogawa |

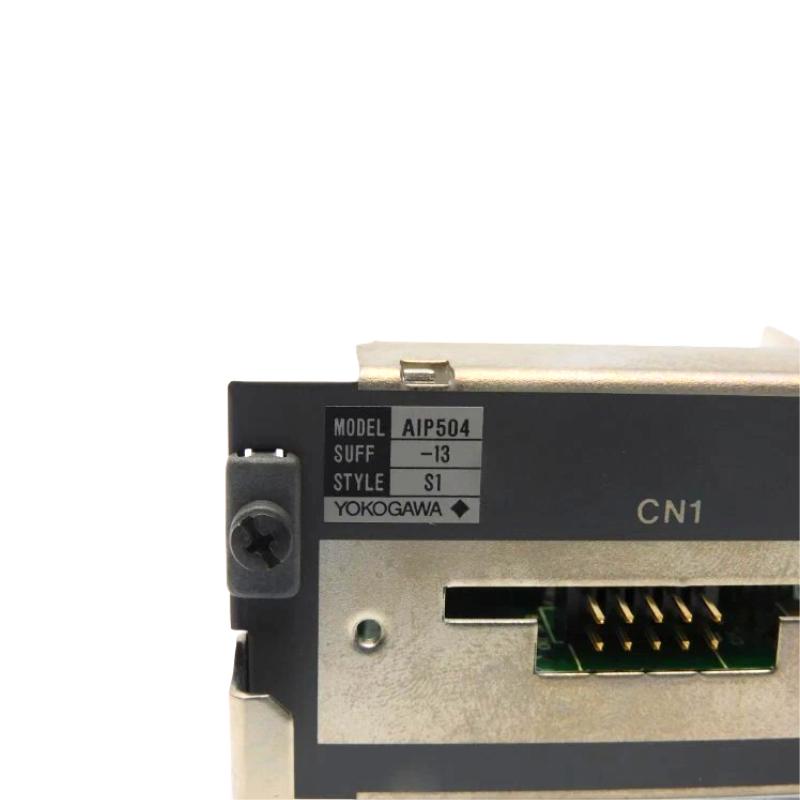

| Model Number | AIP504-13 S1 |
| Module Type | V-Net Coupler Module |
| System Role | Network Interface and Expansion |
| System Compatibility | Yokogawa Distributed Control Systems (V-Net) |
| Installation | Control System Cabinet / Rack |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions | 200 mm × 130 mm × 40 mm |
| Weight | 0.5 kg |
Applications in Distributed Control Network Connectivity (Applications)
The Yokogawa AIP504-13 S1 V-Net Coupler Module is designed to provide high-integrity communication within Yokogawa distributed control systems (DCS). Acting as a V-Net interface, it links controllers, I/O modules, and field devices across multiple network segments, ensuring coordinated operation and scalable network expansion for complex automation systems.
Typical deployment scenarios include:
-
Power generation plants integrating multiple control subsystems
-
Oil and gas facilities with dispersed instrumentation networks
-
Chemical and petrochemical plants requiring modular automation integration
-
Water and wastewater treatment facilities coordinating process control
-
Industrial manufacturing plants expanding V-Net networks
-
Large-scale process plants where reliable, real-time communication is critical
By bridging V-Net segments, the AIP504-13 S1 supports system scalability while maintaining communication reliability.
Operational Advantages (Advantages)
-
Reliable V-Net Connectivity
Provides stable and secure communication between controllers, I/O modules, and field devices.
-
Supports System Expansion
Allows integration of additional modules and V-Net segments without disrupting existing operations.
-
Compact and Flexible Design
Small footprint enables installation in space-constrained control cabinets or racks.
-
Industrial-Grade Performance
Maintains communication integrity under vibration, temperature fluctuations, and electrical noise.
-
Optimized for Yokogawa DCS
Seamlessly integrates with Yokogawa V-Net systems for coordinated plant automation.
Technical FAQs (Technical FAQs)
-
What is the main purpose of the AIP504-13 S1 module?
It connects multiple V-Net segments, enabling reliable communication between controllers, I/O modules, and field devices.
-
Which systems is this module compatible with?
It is designed for Yokogawa distributed control systems using V-Net architecture.
-
Can it support real-time process communication?
Yes. It ensures timely and accurate data exchange across V-Net segments.
-
Is the module suitable for harsh industrial conditions?
Yes. It is engineered to operate reliably under vibration, electrical noise, and temperature variations.
-
How is the module installed?
It is mounted in control cabinets or racks, interfacing with V-Net devices and controllers.
-
Does the module provide diagnostic monitoring?
Yes. It allows monitoring of network status, communication health, and data integrity.
-
Can multiple controllers communicate through a single unit?
Yes. It enables coordinated communication across multiple controllers and I/O modules.
-
Which industries typically deploy this module?
Power generation, oil & gas, chemical manufacturing, water treatment, and large-scale industrial automation.
-
Does it support system scalability?
Yes. Additional modules and network segments can be integrated without disrupting existing operations.
-
What role does the module play in distributed control systems?
It functions as a V-Net interface, ensuring synchronized, reliable, and real-time communication across the automation network.
