Product Overview (Introduction)

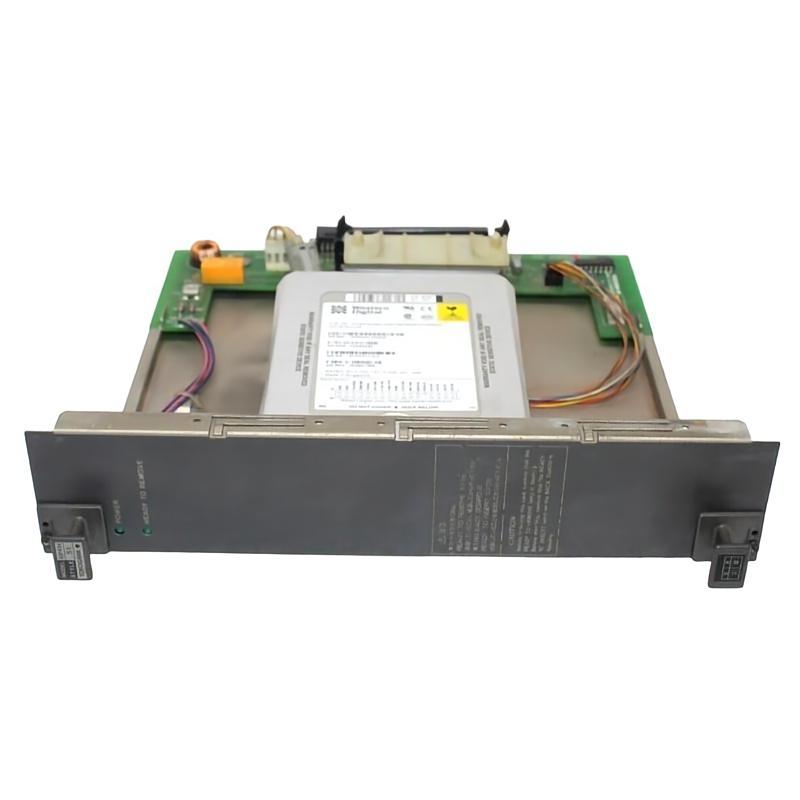

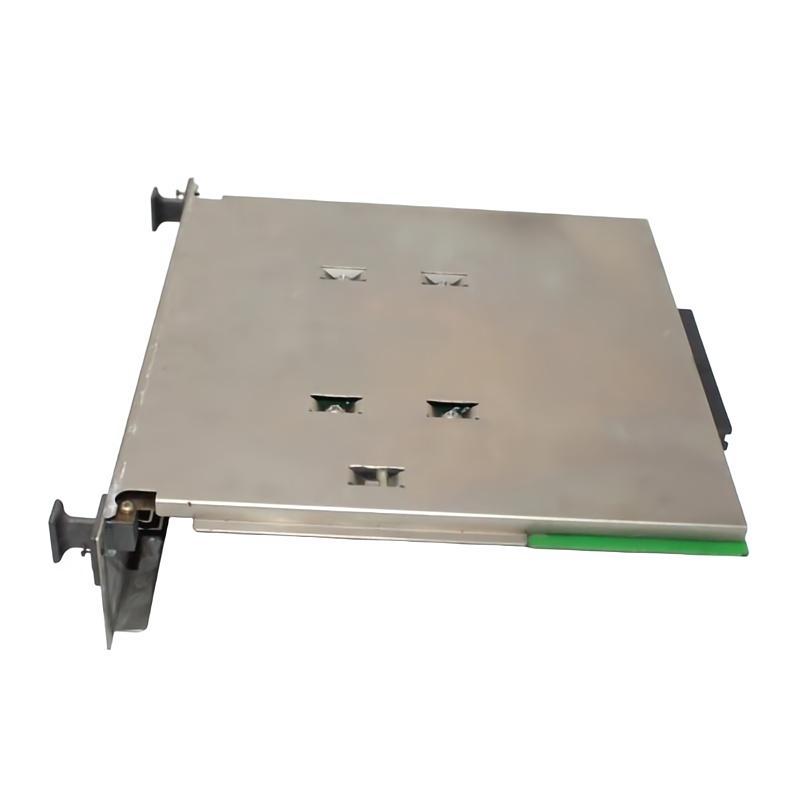

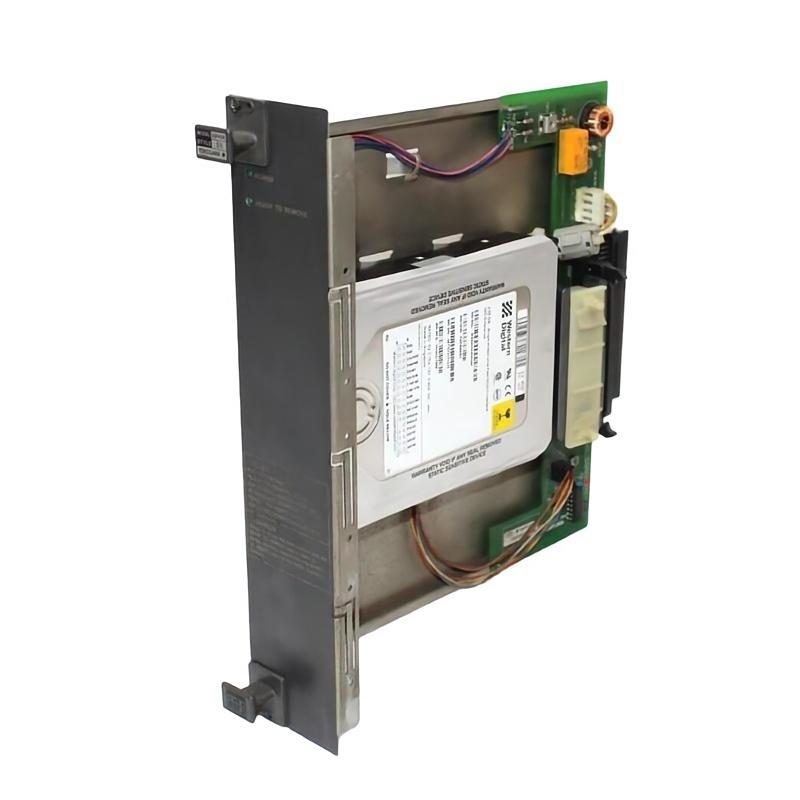

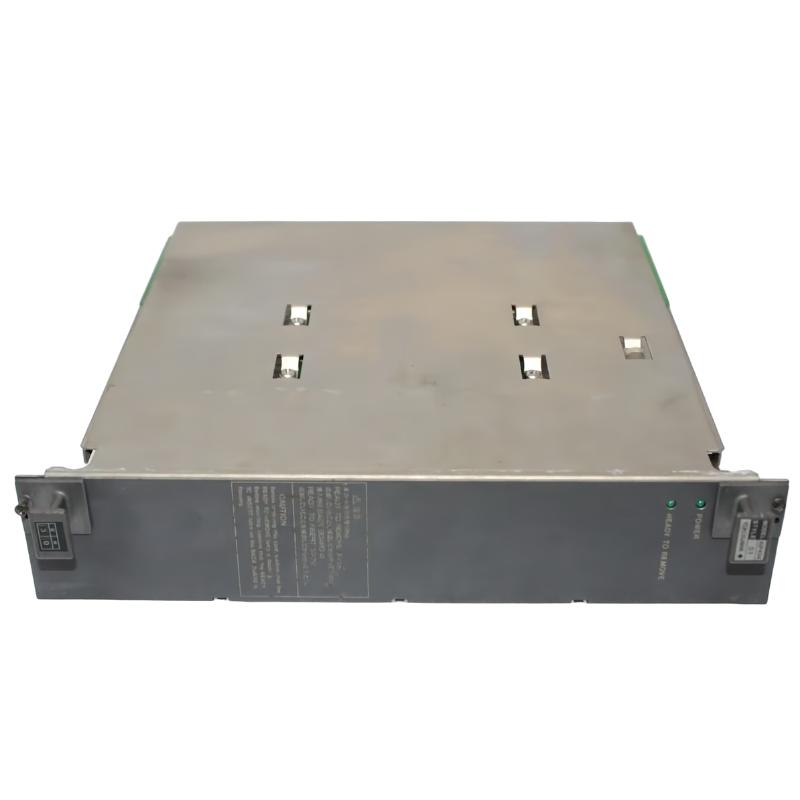

The Yokogawa AIP434 Hard Disk Module is a reliable storage component within Yokogawa distributed control systems. Designed to store historical process data, system logs, and configuration files, it provides essential support for process monitoring, reporting, and analysis.
In industrial automation environments, maintaining accurate and retrievable process data is critical for operational efficiency and compliance. The AIP434 offers secure local storage, ensuring that important system information is available when needed.
Its compact form factor allows easy installation within control cabinets, making it suitable for applications where space is limited but reliable storage is essential. With industrial-grade durability, the module can operate continuously in demanding plant environments, supporting both routine operation and emergency data recovery.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Yokogawa |
| Model Number | AIP434 |
| Module Type | Hard Disk Module |
| System Role | Data Storage and Historical Logging |
| System Compatibility | Yokogawa Distributed Control Systems |
| Installation | Control System Cabinet / Rack |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions | 150 mm × 100 mm × 25 mm |
| Weight | 1.34 kg |
Applications in Data Storage and Historical Logging (Applications)
The Yokogawa AIP434 Hard Disk Module is designed to provide robust storage solutions within Yokogawa distributed control systems (DCS). It functions as a dedicated storage device for system data, historical process logs, and critical configuration files, enabling reliable archiving and retrieval of operational information.
Typical deployment scenarios include:
Power generation plants requiring detailed operational logging
Oil and gas facilities monitoring continuous production processes
Chemical and petrochemical plants capturing process histories
Water and wastewater treatment systems recording operational data
Industrial manufacturing plants needing high-capacity local data storage
Control rooms requiring secure storage for system configuration and backups
By providing dependable local storage, the AIP434 ensures data integrity and supports process analysis, reporting, and regulatory compliance.
Operational Advantages (Advantages)
High-Capacity Local Data Storage
Offers reliable storage for historical process data, configuration files, and system logs.
Seamless Integration with Yokogawa DCS
Optimized for use within Yokogawa distributed control environments for stable and efficient operation.
Secure and Reliable Operation
Designed to maintain data integrity even under harsh industrial conditions, including vibration and temperature variation.
Compact Module Design
Small form factor allows installation in control cabinets and system enclosures without occupying excessive space.
Supports System Backup and Recovery
Enables storage of critical system files for backup, archiving, and disaster recovery purposes.
Technical FAQs (Technical FAQs)
-
What is the primary function of the AIP434 Hard Disk Module?
It provides local storage for historical process data, system logs, and configuration files within a DCS.
-
Which systems typically use this module?
It is compatible with Yokogawa distributed control systems requiring reliable storage.
-
Can the module handle continuous data logging?
Yes. It is designed for 24/7 operation, recording process data in real time.
-
How does the AIP434 ensure data integrity?
The module incorporates industrial-grade design to withstand vibration, electrical noise, and temperature fluctuations.
-
Can the module be used for backup and recovery purposes?
Yes. It stores critical system files and historical data to support backup strategies.
-
What types of data can the module store?
Process history, system configuration files, event logs, and diagnostic data.
-
Is the module hot-swappable?
Installation and removal typically require system guidelines to prevent data corruption, so hot-swapping depends on the system setup.
-
What industries commonly deploy this module?
Power generation, oil and gas, chemical processing, water treatment, and large-scale manufacturing facilities.
-
How does the module integrate with other DCS components?
It connects within the DCS architecture to provide centralized or local data storage for controllers and operator stations.
-
What is the role of this module in process analysis?
It enables historical data retrieval for process optimization, reporting, and regulatory compliance.
