Product Overview (Introduction)

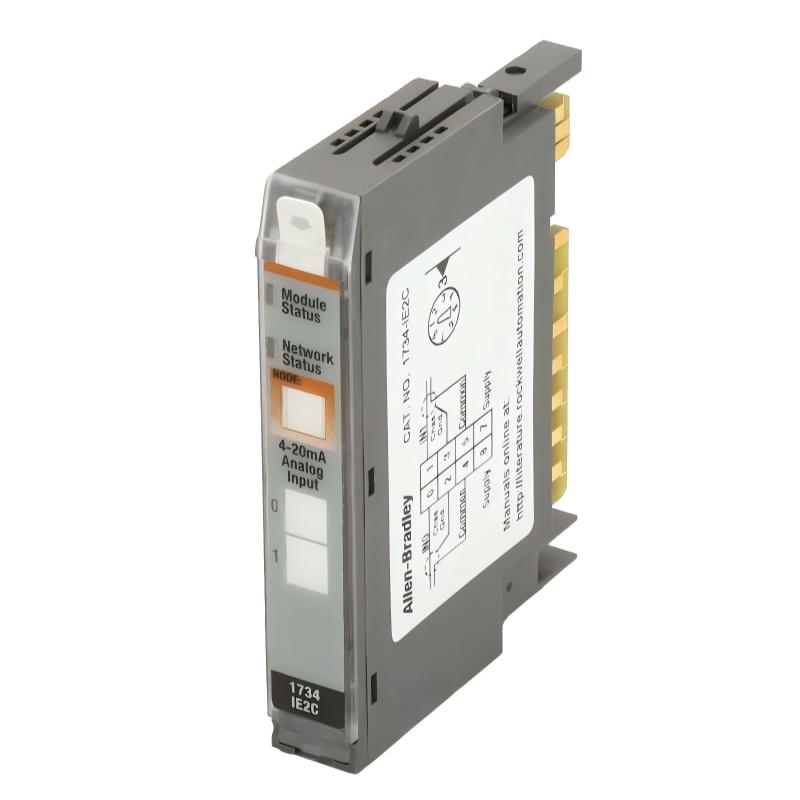

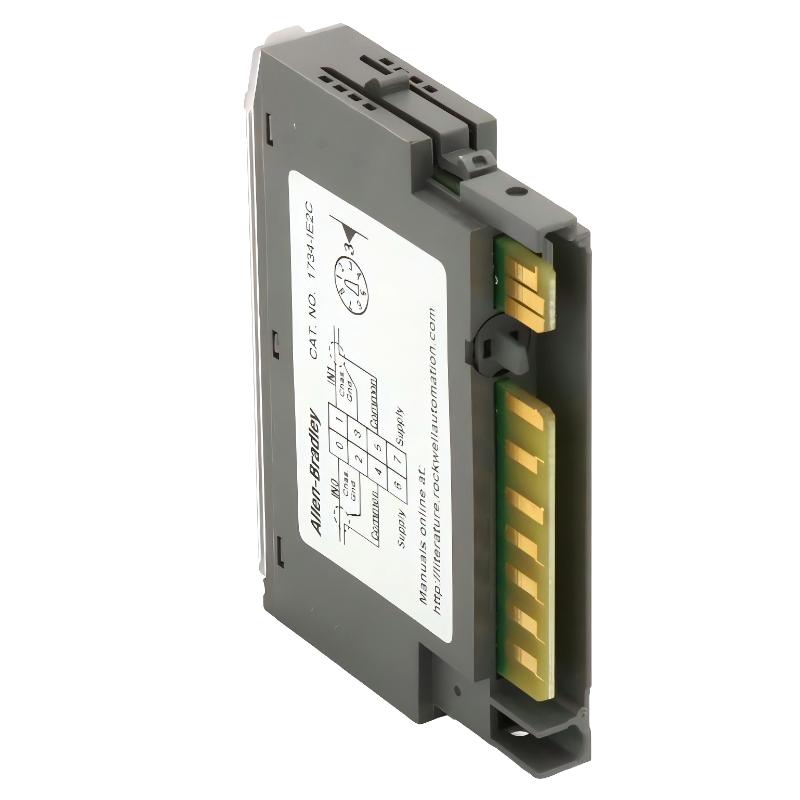

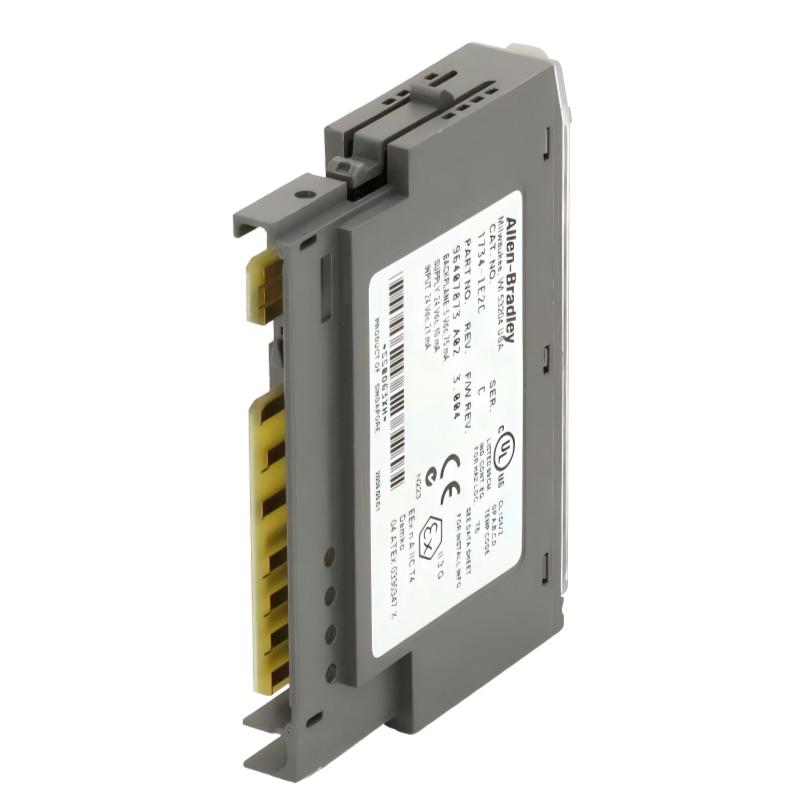

The Allen Bradley 1734-IE2C Analog Current Input Module delivers two high-precision analog input channels for Compact I/O systems. Its compact design allows installation in space-limited control racks while maintaining reliable analog measurement in industrial environments.
This module enables real-time current signal acquisition from field devices, supporting accurate process monitoring and control. By integrating seamlessly into Compact I/O systems, the 1734-IE2C facilitates modular expansion and ensures dependable operation across industrial automation networks.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Allen Bradley |
| Model Number | 1734-IE2C |
| Module Type | Analog Current Input Module |
| Function | Analog Current Input (4–20 mA) |
| System Compatibility | Allen Bradley Compact I/O Systems |
| Installation | Control Rack Mount |
| Input Type | Analog Current |
| Operating Temperature | 0°C to 60°C |
| Dimensions (HxWxD) | 56 × 12 × 75.5 mm |
| Weight | 0.036 kg (0.079 lbs) |
Applications in Distributed Control Systems (Applications)
The Allen Bradley 1734-IE2C Analog Current Input Module is designed for Compact I/O systems to acquire precise analog current signals from field devices. It is commonly used in industrial automation processes requiring accurate measurement and monitoring of current-based signals, such as sensors, transmitters, and process instrumentation.
Typical deployment scenarios include:
-
Process control in chemical and pharmaceutical plants
-
Temperature, pressure, and flow monitoring in manufacturing operations
-
Oil & gas facilities for analog sensor integration
-
Water and wastewater treatment systems requiring analog input monitoring
-
Industrial operations with modular I/O architectures requiring precise analog data
-
Systems that require real-time analog signal acquisition for process optimization
By providing accurate current measurement, the 1734-IE2C enables reliable process monitoring and control.
Operational Advantages (Advantages)
-
High-Precision Analog Input
Supports two channels of 4–20 mA current input for accurate process monitoring.
-
Compact Design for Space Efficiency
Small footprint allows installation in space-constrained control racks.
-
Seamless Integration with Compact I/O Systems
Works natively with Allen Bradley Compact I/O systems for easy expansion.
-
Reliable Performance in Industrial Conditions
Maintains measurement accuracy under electrical noise, vibration, and standard temperature ranges.
-
Supports Modular Expansion
Additional I/O modules can be integrated without disrupting system operation.
Technical FAQs (Technical FAQs)
-
How many analog current inputs does the 1734-IE2C support?
Two channels of 4–20 mA current input.
-
What voltage or current range does the module accept?
Accepts standard 4–20 mA analog current signals.
-
Is this module hot-swappable?
Yes, it can be replaced or installed without shutting down the system.
-
Which systems is it compatible with?
Allen Bradley Compact I/O systems.
-
Can it operate in harsh industrial environments?
Yes, it is designed to maintain accurate readings under electrical noise, vibration, and standard industrial temperatures.
-
Does the module provide diagnostic feedback?
Yes, LED indicators show input status and fault conditions.
-
What types of devices can connect to this module?
Compatible with current-output sensors, transmitters, and other analog devices.
-
Can the module support system expansion?
Yes, additional Compact I/O modules can be added seamlessly.
-
What is the operating temperature range?
0°C to 60°C.
-
What is the main benefit of using this module?
Provides accurate and reliable analog current measurement for precise process control and monitoring.
