High‑Precision Control in Advanced Distributed Systems

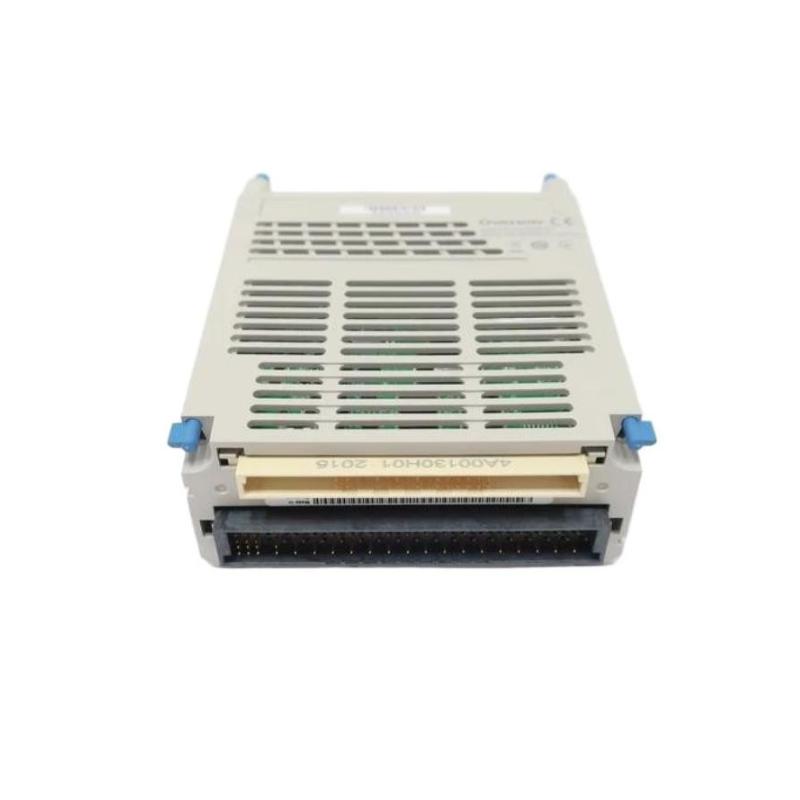

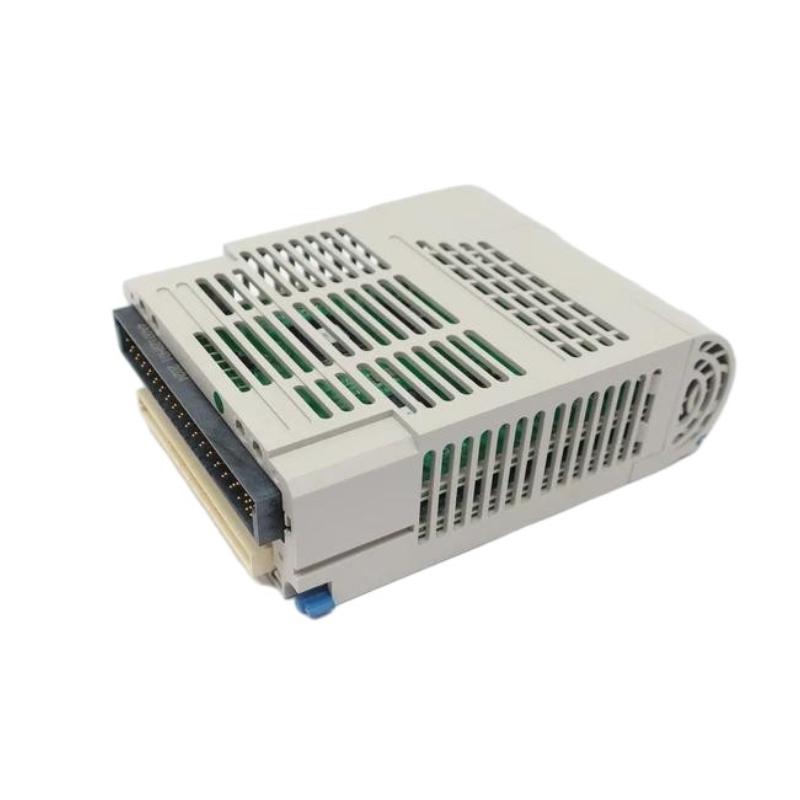

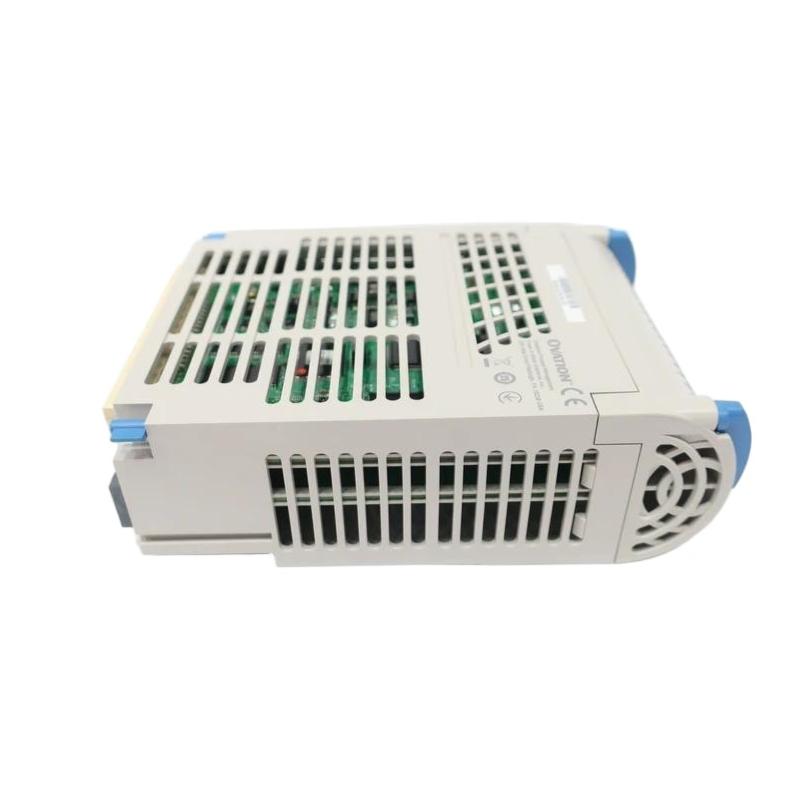

The Ovation 5X00376G01 Analog Output Module is a robust field interface designed for delivering accurate analog control signals within the Emerson Ovation Distributed Control System (DCS). This module provides multiple independent current outputs, enabling precise manipulation of field devices such as control valves, actuators, and continuous control assets in demanding industrial environments.
Engineered with high stability and noise‑resilient circuitry, the 5X00376G01 integrates seamlessly into standard Ovation racks, supporting industrial automation tasks that require finely tuned output control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson Ovation |
| Model | 5X00376G01 |
| Module Type | Analog Output Module |
| Output Channels | 8 independent analog outputs |
| Output Signal | 4 – 20 mA current loop |
| Load Driving Capability | Up to 750 Ω per channel |
| Resolution | 14‑bit (typical) |
| Output Accuracy | ±0.1 % of span |
| Update Rate | 10 ms per channel |
| Isolation | Channel‑to‑backplane isolation |
| Backplane Interface | Standard Ovation rack connector |
| Power Source | Rack backplane power |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | –40 °C to 70 °C |
| Humidity | 5 % to 95 % non‑condensing |
| Dimensions (HxWxD) | Approx. 125 × 35 × 160 mm |
| Weight | Approx. 0.32 kg |
| Mounting | Rack slot installation |
