High-Performance Control for Large-Scale Automation

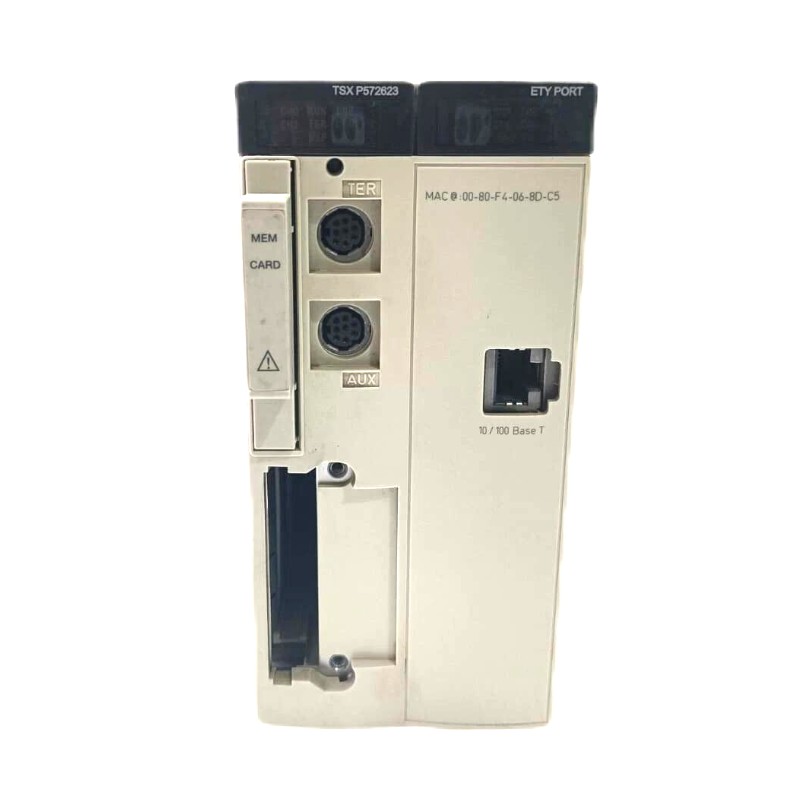

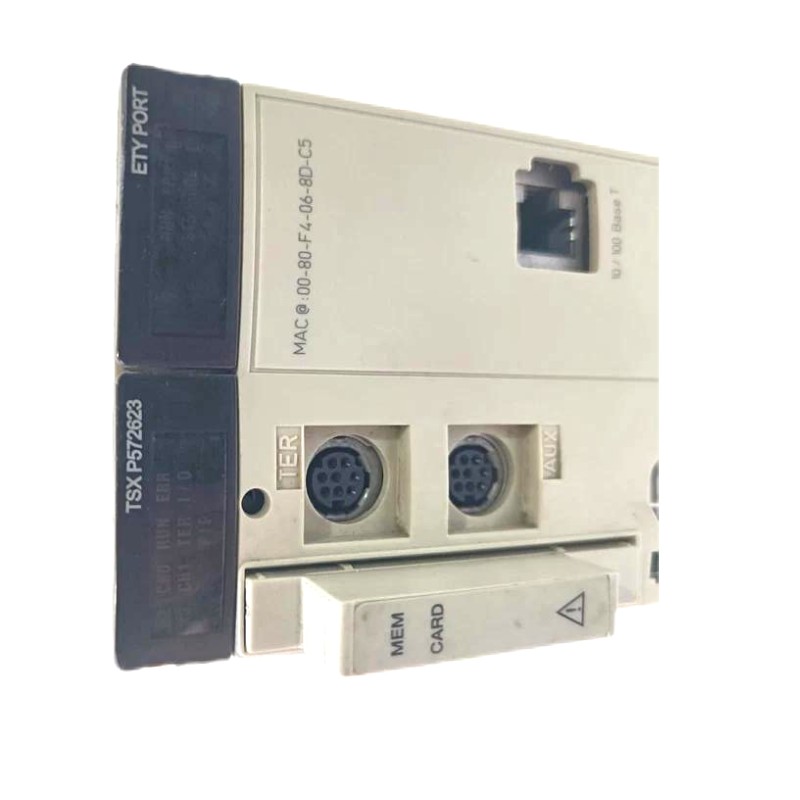

The Schneider TSXP572623M Double Format PL7 Processor is a top-tier CPU module from the Modicon Premium line, designed for industrial environments requiring extensive I/O capacity and advanced multitasking capabilities. Its double-format architecture delivers enhanced memory, faster processing, and robust deterministic control.
This processor is ideal for facilities with large, complex automation systems or those upgrading legacy Modicon Premium installations. Its design allows seamless integration across multiple rack configurations, providing both flexibility and reliability in demanding industrial applications.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Schneider Electric |
| Model | TSXP572623M |
| Module Type | CPU Module |
| Platform | Modicon Premium |
| Programming Software | PL7 Junior / PL7 Pro |
| Internal Memory | 256 Kwords (program + data) |
| Extended Memory | PCMCIA supported (up to 512 Kwords program / 8192 Kwords data) |
| Max Discrete I/O | 4096 I/O |
| Max Analog I/O | 320 I/O |
| Rack Support | Up to 16 racks or 8 large racks |
| Max Slots | Up to 128 |
| Application Channels | Up to 64 |
| Process Control Channels | Up to 120 loops |
| Communication Ports | 2 × RS485 (Mini-DIN) |
| Execution Speed | 0.15 µs per Boolean instruction |
| Power Supply | 5 V DC, approx. 1.5 A |
| Operating Temperature | 0 to 60°C |
| Dimensions (HxWxD) | Approx. 95 × 180 × 260 mm |
| Weight | Approx. 0.58 kg |
Applications
The TSXP572623M is engineered for large and complex industrial automation systems, including:
-
Extensive manufacturing and assembly lines
-
Chemical, energy, and process industries
-
Water treatment and municipal infrastructure automation
-
Material handling and logistics systems
-
Complex machine control with multi-process and loop management
Advantages
This processor offers unmatched capacity and reliability for high-demand industrial applications:
-
Exceptional I/O scalability supports thousands of discrete and analog points
-
High-speed execution ensures rapid response and deterministic control
-
Multitasking architecture handles multiple processes efficiently
-
Dual-format design enables flexible rack installation and integration
-
PCMCIA memory expansion allows for large programs and extensive data storage
-
Backward compatibility with existing Modicon Premium systems reduces upgrade costs
Technical FAQs
1. What software is required to program the processor?
PL7 Junior or PL7 Pro.
2. How much I/O can it handle?
Up to 4096 discrete I/O and 320 analog I/O.
3. How many racks can be supported?
Up to 16 racks or 8 large racks.
4. Does it support multitasking?
Yes, including fast, master, and event-driven tasks.
5. Can memory be expanded?
Yes, via PCMCIA memory cards.
6. What communication ports are included?
Two RS485 serial ports (Mini-DIN).
7. What is the instruction execution speed?
Boolean instructions execute at 0.15 µs.
8. Is this module suitable for new installations?
It is mainly used for expanding or upgrading existing Modicon Premium systems.
9. How is data retained during power loss?
Programs and data are maintained in internal or expanded memory.
10. Is the product still supported for service?
Yes, it remains supported for maintenance and lifecycle management.
