Advanced Processing for High-Capacity Automation

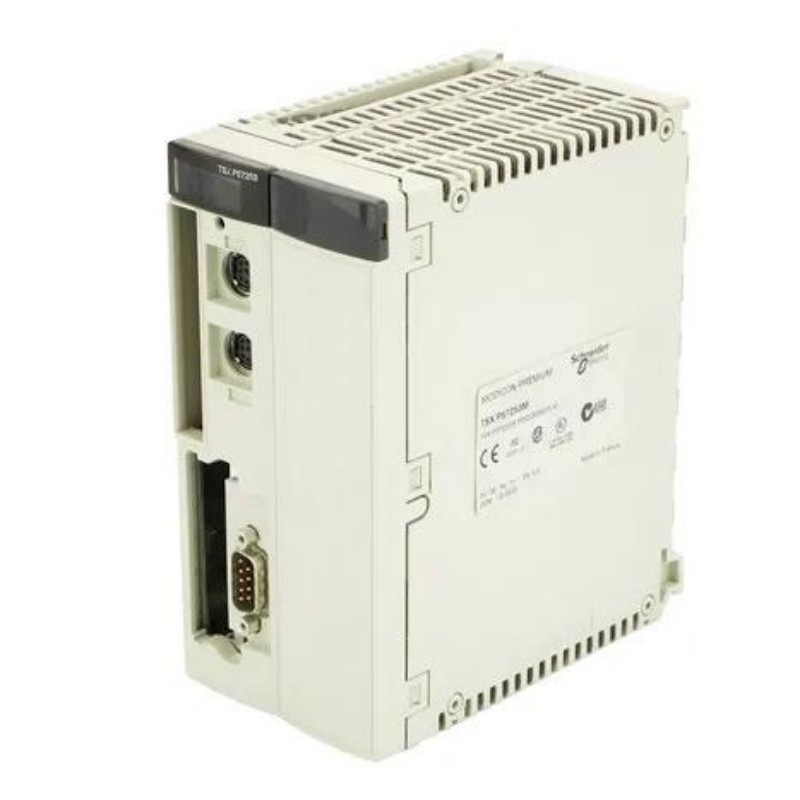

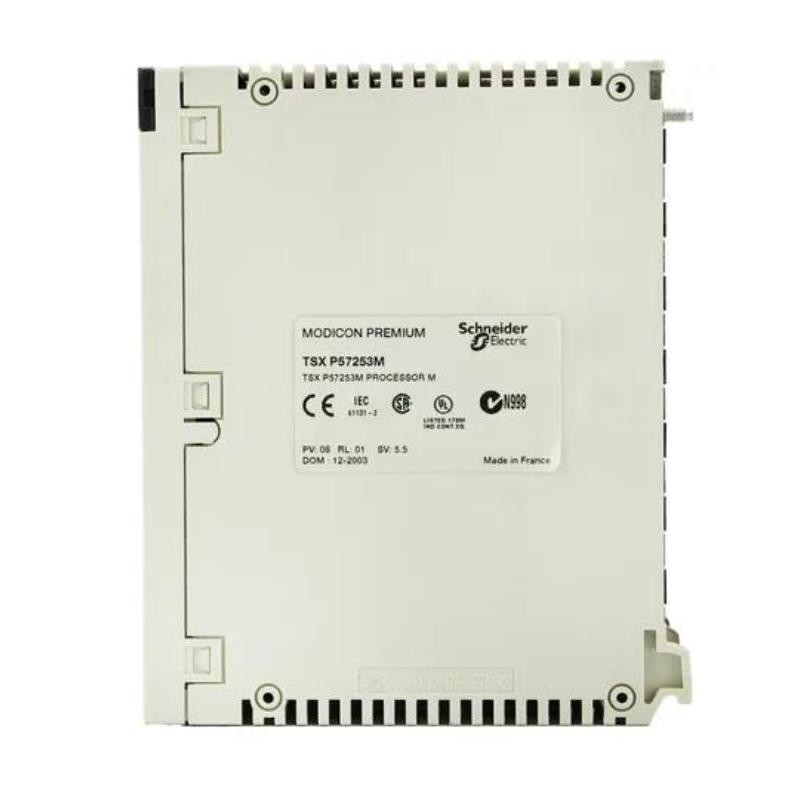

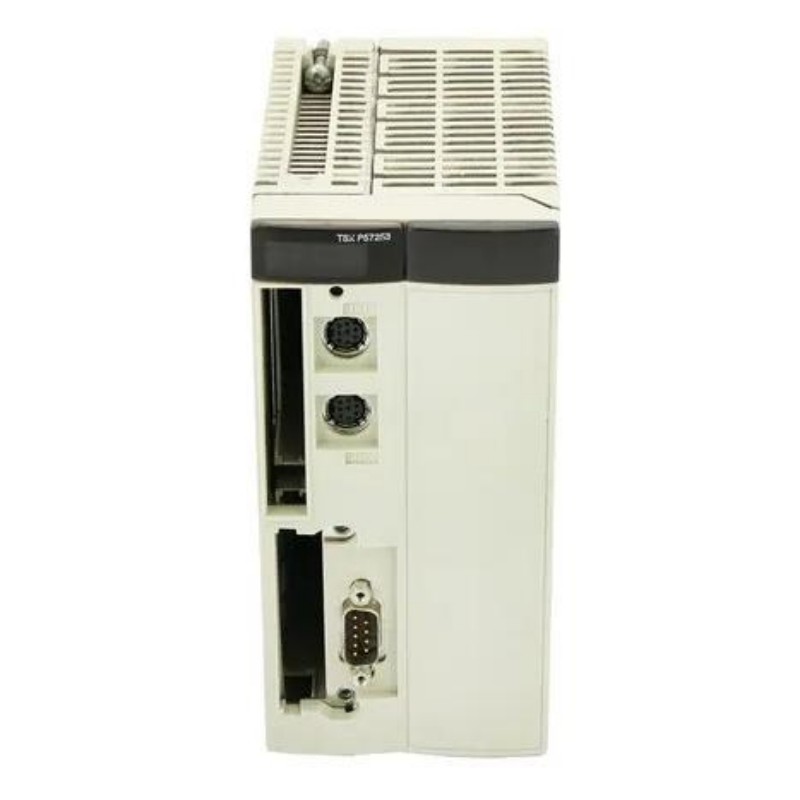

The Schneider TSXP57253M Double Format PL7 Processor is a high-performance CPU module in the Modicon Premium line, designed for large-scale industrial automation systems. Its double-format architecture provides enhanced memory and I/O capabilities, making it ideal for complex and demanding applications.
Engineered to handle multiple racks and extensive I/O, the TSXP57253M ensures deterministic control and reliable operation. It is particularly suitable for facilities upgrading existing Modicon Premium systems or expanding high-capacity installations.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Schneider Electric |
| Model | TSXP57253M |
| Module Type | CPU Module |
| Platform | Modicon Premium |
| Programming Software | PL7 Junior / PL7 Pro |
| Internal Memory | 128 Kwords (program + data) |
| Extended Memory | PCMCIA supported (up to 256 Kwords program / 4096 Kwords data) |
| Max Discrete I/O | 2048 I/O |
| Max Analog I/O | 160 I/O |
| Rack Support | Up to 16 racks or 8 large racks |
| Max Slots | Up to 128 |
| Application Channels | Up to 32 |
| Process Control Channels | Up to 60 loops |
| Communication Ports | 2 × RS485 (Mini-DIN) |
| Execution Speed | 0.17 µs per Boolean instruction |
| Power Supply | 5 V DC, approx. 1.2 A |
| Operating Temperature | 0 to 60°C |
| Dimensions (HxWxD) | Approx. 95 × 180 × 260 mm |
| Weight | Approx. 0.55 kg |
Applications
The TSXP57253M is built for demanding industrial environments requiring high-capacity control:
-
Large-scale manufacturing and assembly lines
-
Energy, chemical, and process industries
-
Water treatment and municipal infrastructure
-
Material handling and automated logistics systems
-
Complex machinery with multi-process operations
Advantages
The TSXP57253M stands out for its high memory capacity and I/O scalability, allowing for extensive system expansion without compromising performance.
-
Deterministic multitasking ensures precise control of multiple processes
-
Dual-format design provides flexible installation options across different rack configurations
-
PCMCIA memory expansion supports larger programs and data-intensive applications
-
Maintains compatibility with existing Modicon Premium systems, simplifying upgrades
-
Robust execution speed ensures fast, reliable processing for critical operations
Technical FAQs
1. Which programming software is required?
PL7 Junior or PL7 Pro.
2. How much I/O can it handle?
Up to 2048 discrete I/O and 160 analog I/O.
3. How many racks can it support?
Up to 16 racks or 8 large racks.
4. Does it support multitasking?
Yes, including fast, master, and event-driven tasks.
5. Can memory be expanded?
Yes, via PCMCIA memory cards.
6. What communication interfaces are included?
Two RS485 serial ports (Mini-DIN).
7. What is the instruction execution speed?
Boolean instructions execute at 0.17 µs.
8. Is it recommended for new installations?
Primarily for expanding or upgrading existing Modicon Premium systems.
9. How is data retained during power loss?
Programs and data are retained in internal or expanded memory.
10. Is the product still service-supported?
Yes, it remains supported for maintenance and lifecycle purposes.
