Introduction

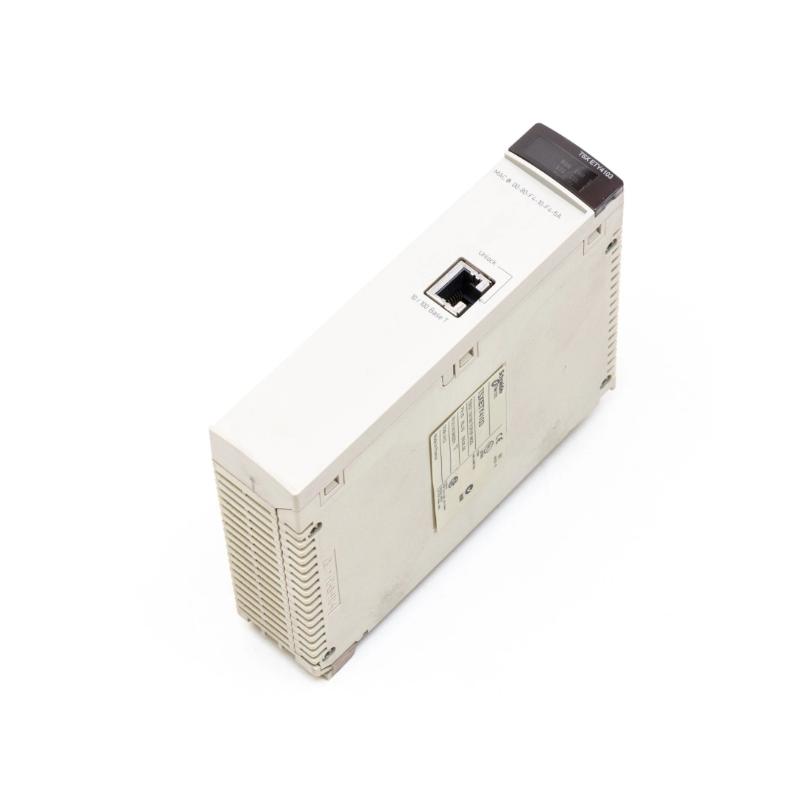

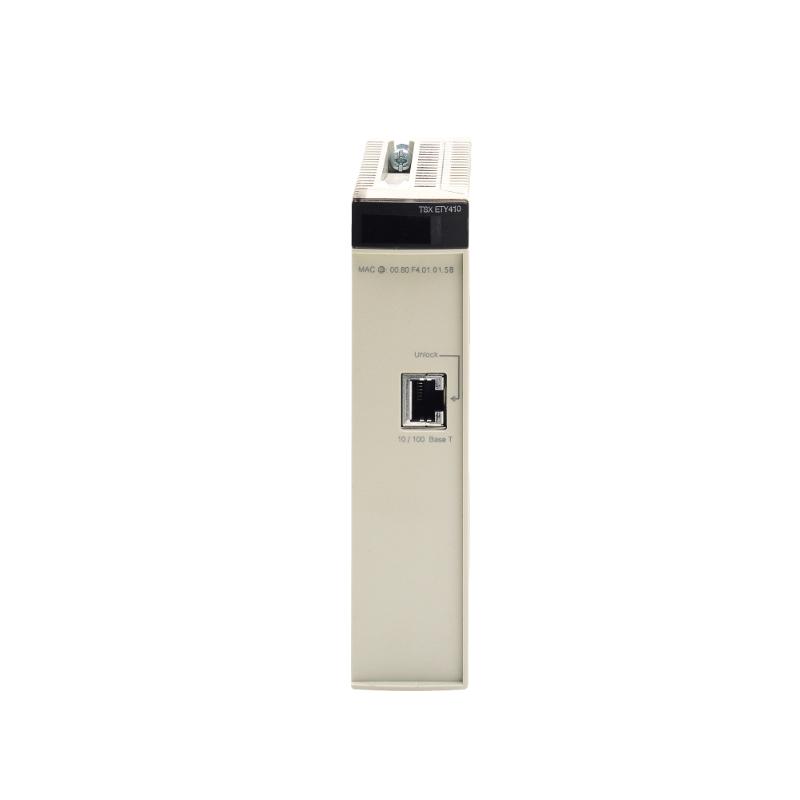

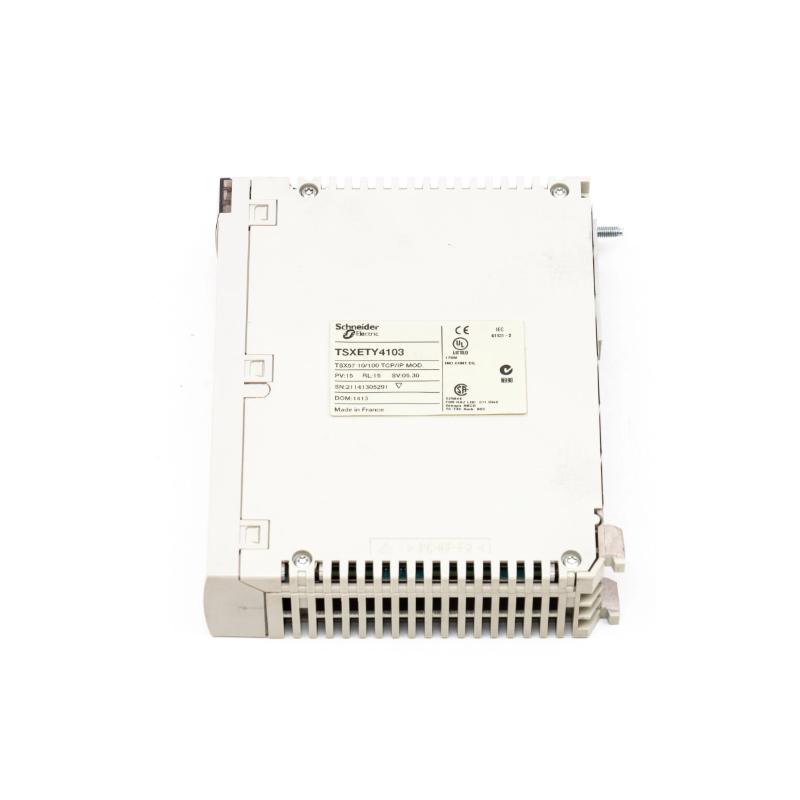

The Schneider TSXETY4103 Ethernet TCP/IP Module is a high‑performance communication interface designed to integrate Modicon TSX and TSX Premium PLC systems with modern Ethernet‑based networks. It equips PLCs with robust TCP/IP connectivity, enabling seamless communication with supervisory systems, HMIs, SCADA platforms, remote diagnostics solutions, and enterprise‑level applications. Built to meet industrial standards for reliability and data integrity, this module is ideal for automation environments where high‑speed, networked control and monitoring are essential.
Technical Specifications
| Parameter | Specification |
|---|
| Model | TSXETY4103 |
| Module Type | Ethernet TCP/IP Communication Module |
| Series | Schneider Modicon TSX / TSX Premium |
| Communication Standard | Ethernet (IEEE 802.3) |
| Physical Interface | 10/100 Mbps RJ‑45 |
| Protocols Supported | TCP/IP, Modbus TCP/IP, HTTP, SNMP (configuration dependent) |
| Network Stack | Standard Ethernet TCP/IP stack |
| Backplane Interface | Plug‑in connection to PLC backplane |
| Isolation | Galvanic isolation on Ethernet port |
| Status Indicators | Link, Activity & Status LEDs |
| Power | Supplied via PLC backplane |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Mounting | PLC backplane rack slot |
| Weight | Approx. 0.25 kg |
| Dimensions | Standard communication module form |
Applications
The TSXETY4103 module enables wide‑ranging Ethernet communication for industrial automation systems:
-
Real‑Time Process Monitoring – Connect PLCs to SCADA and control room applications.
-
Remote Access & Diagnostics – Facilitate remote troubleshooting and performance assessment.
-
Industrial Network Integration – Bridge PLC data to plant Ethernet infrastructures.
-
Enterprise Connectivity – Link automation data to MES or ERP systems.
-
Distributed Control Architectures – Enable communication between multiple PLCs and devices on an Ethernet backbone.
This Ethernet interface expands the connectivity of legacy and mid‑tier PLC deployments, facilitating integration with modern networked systems.
Advantages
-
Standard Ethernet Support: Provides reliable 10/100 Mbps TCP/IP connectivity for industrial networks.
-
Flexible Protocol Support: Modbus TCP/IP and other Ethernet‑based protocols enable interoperability with varied automation equipment.
-
Robust Industrial Design: Galvanic isolation and industrial‑grade hardware ensure reliable performance in electrically noisy environments.
-
Visual Diagnostics: Integrated LEDs provide clear indication of link status and communication activity, simplifying maintenance.
-
Easy Integration: Plug‑in backplane installation reduces wiring complexity and streamlines setup.
With these advantages, the TSXETY4103 enables modern Ethernet communications without requiring complete hardware overhauls in existing PLC systems.
Technical FAQs
1. What is the primary purpose of the TSXETY4103?
It provides Ethernet TCP/IP communication capability to Modicon PLC systems for networked control and monitoring.
2. What physical interface does it use?
A standard 10/100 Mbps RJ‑45 Ethernet port with galvanic isolation.
3. Which protocols are supported?
TCP/IP, Modbus TCP/IP, and other Ethernet‑based protocols depending on configuration.
4. Can it connect to SCADA systems?
Yes, it enables direct Ethernet communication with SCADA and HMI platforms.
5. How is the module powered?
It is powered through the PLC backplane.
6. What do the status LEDs indicate?
They indicate network link status, activity, and module operational health.
7. What is the operating temperature range?
Designed for industrial ambient conditions of approximately -10°C to +55°C.
8. Is it compatible with remote diagnostics?
Yes, Ethernet connectivity supports remote system access and diagnostics.
9. How is it installed?
It installs in a standard backplane rack slot with plug‑in connectivity.
10. What environments is it suitable for?
Industrial automation, manufacturing, water treatment, energy systems, and distributed control networks
