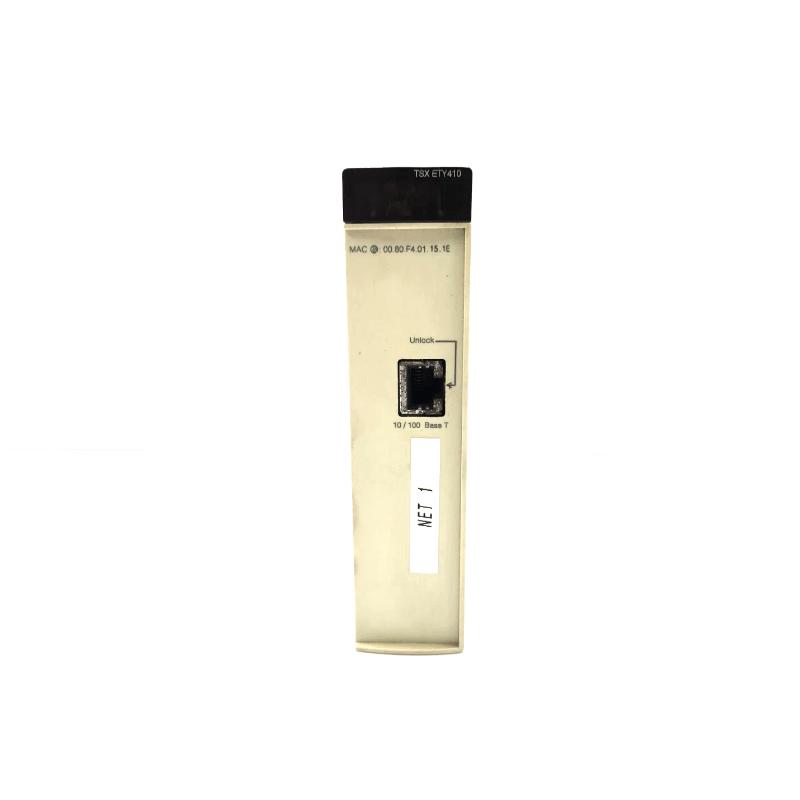

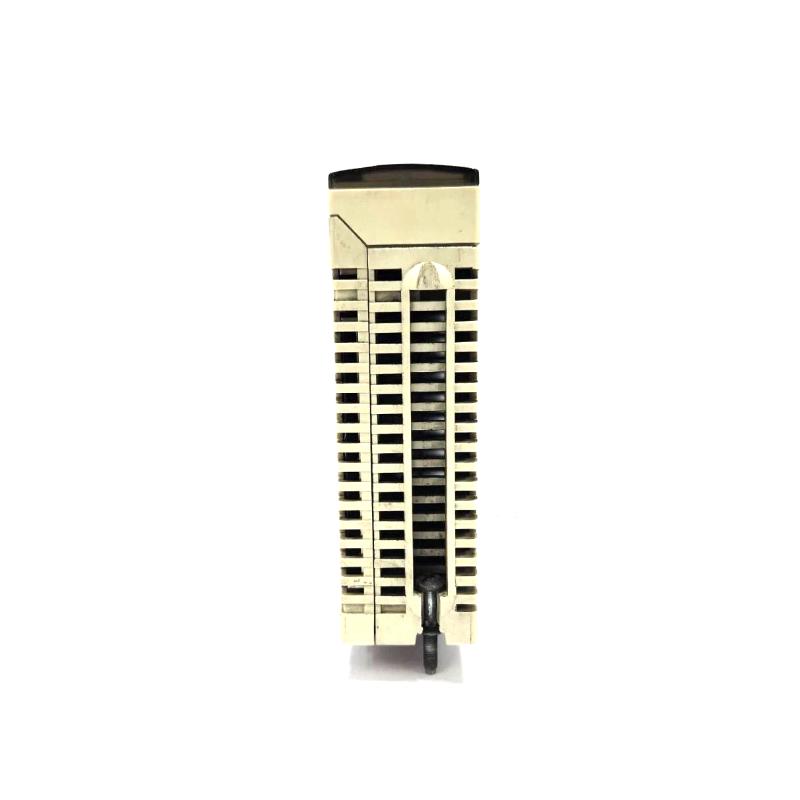

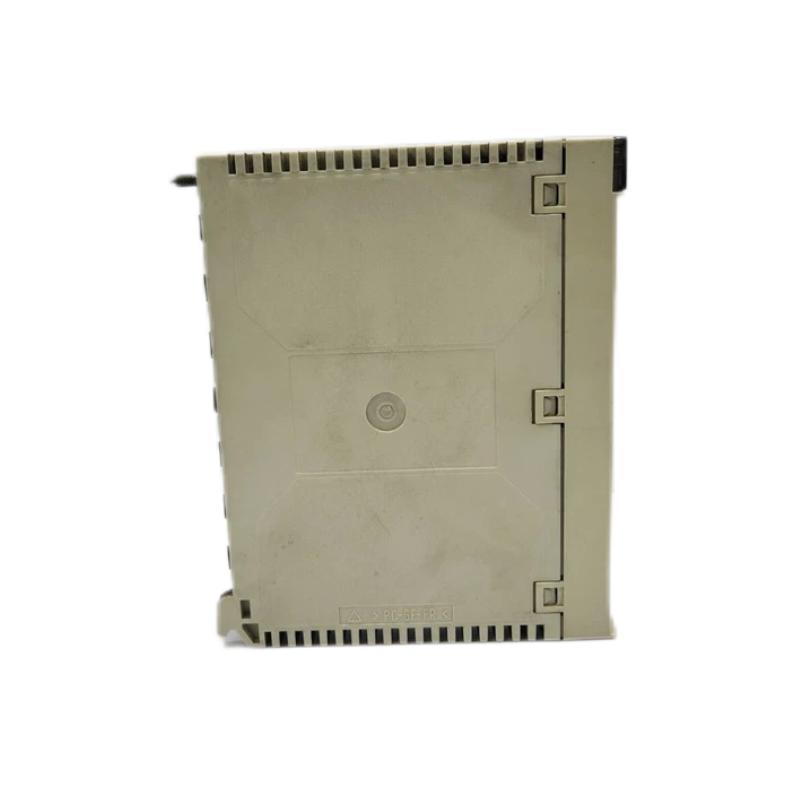

Schneider TSXETY4102 Ethernet TCP/IP 10/100 Module

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Schneider TSXETY4102 Ethernet TCP/IP 10/100 Module

Name: Schneider TSXETY4102 Ethernet TCP/IP 10/100 Module
Brand: Schneider PLC
SKU: 6378
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Schneider PLC
Item No.:TSXETY4102
Product Origin:France
Product Dimensions:55 × 180 × 260 mm
Product Weight:0.5kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Schneider TSXETY4102 Ethernet TCP/IP 10/100 Module is a high‑performance communication interface engineered for Schneider Electric Modicon TSX and TSX Premium PLC systems. This module enables reliable Ethernet connectivity over standard TCP/IP networks at 10/100 Mbps, empowering PLCs with real‑time communication to HMIs, SCADA systems, enterprise networks, and other industrial devices. Its robust design and protocol support make it ideal for modern automation systems requiring seamless network integration and high data throughput.

Technical Specifications

Parameter	Specification
Model	TSXETY4102
Module Type	Ethernet TCP/IP Communication Module
Series	Schneider Modicon TSX / TSX Premium
Physical Interface	10/100 Mbps Ethernet RJ‑45
Supported Protocols	TCP/IP, Modbus TCP/IP, SNMP, HTTP (depending on configuration)
Backplane Interface	Plug‑in connection to PLC backplane
Network Stack	Full TCP/IP stack support
Isolation	Galvanic isolation on Ethernet port
Indicators	Link/Activity and Status LEDs
Operating Temperature	-10°C to +55°C
Storage Temperature	-25°C to +70°C
Mounting	Backplane rack slot installation
Weight	Approx. 0.25 kg
Dimensions	Standard communication module form factor

Applications

The TSXETY4102 module is suited for a wide range of industrial Ethernet communication scenarios:

SCADA & HMI Networking: Provides high‑speed Ethernet connectivity for real‑time monitoring and control.
Enterprise Integration: Connects PLC data points to MES, ERP, and remote systems via TCP/IP.
Remote Diagnostics & Maintenance: Enables secure access for system troubleshooting and performance tracking.
Distributed Automation: Facilitates communication between multiple PLCs over Ethernet.
Industrial IoT & Data Logging: Supports integration with data acquisition and analytics platforms.

By bridging PLCs into Ethernet infrastructure, this module enhances system scalability and supports future‑ready automation architectures.

Advantages

Standard Ethernet Connectivity: Supports 10/100 Mbps Ethernet for high‑speed, industrial communication.
Flexible Protocol Support: TCP/IP and Modbus TCP/IP enable wide interoperability with devices from PLCs to enterprise systems.
Robust Industrial Design: Galvanic isolation and industrial‑rated components provide resilience in electrically noisy environments.
Easy Integration: Direct backplane installation simplifies wiring and reduces cabinet clutter.
Visual Diagnostics: Integrated LEDs provide instant feedback on link status and communication activity.

These features help reduce commissioning time while delivering reliable network performance across complex automation systems.

Technical FAQs

1. What is the main purpose of the TSXETY4102?
It adds Ethernet TCP/IP connectivity to Modicon PLC systems for real‑time networked communication.

2. What physical interface does it use?
A standard 10/100 Mbps Ethernet RJ‑45 port with galvanic isolation.

3. Which communication protocols are supported?
TCP/IP and Modbus TCP/IP; additional protocol support may depend on configuration and system firmware.

4. Can it connect to SCADA systems?
Yes, it enables direct Ethernet communication with SCADA, HMI, and MES platforms.

5. Are there diagnostic indicators?
Yes, LEDs indicate network link status, activity, and module health.

6. What environments can it operate in?
It is designed for industrial ambient temperatures (‑10°C to +55°C).

7. How is it powered?
It is powered via the PLC backplane.

8. What mounting is required?
Installation is in a backplane slot with plug‑in connectivity.

9. Does it support remote diagnostics?
Yes, Ethernet connectivity enables remote access for troubleshooting and monitoring.

10. Is this module backward compatible?
It integrates with Modicon TSX and TSX Premium communication architectures.
