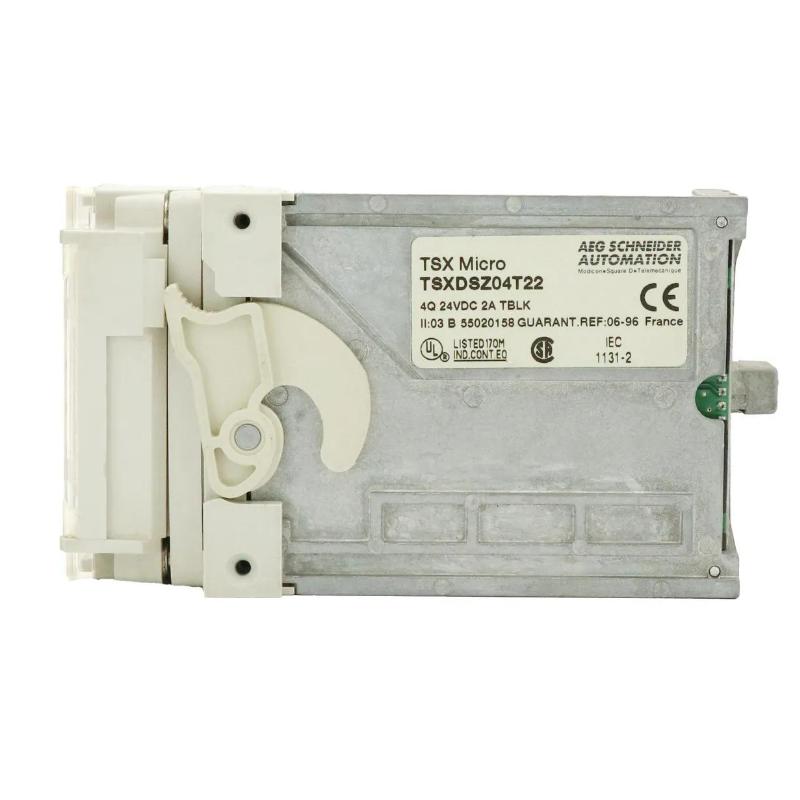

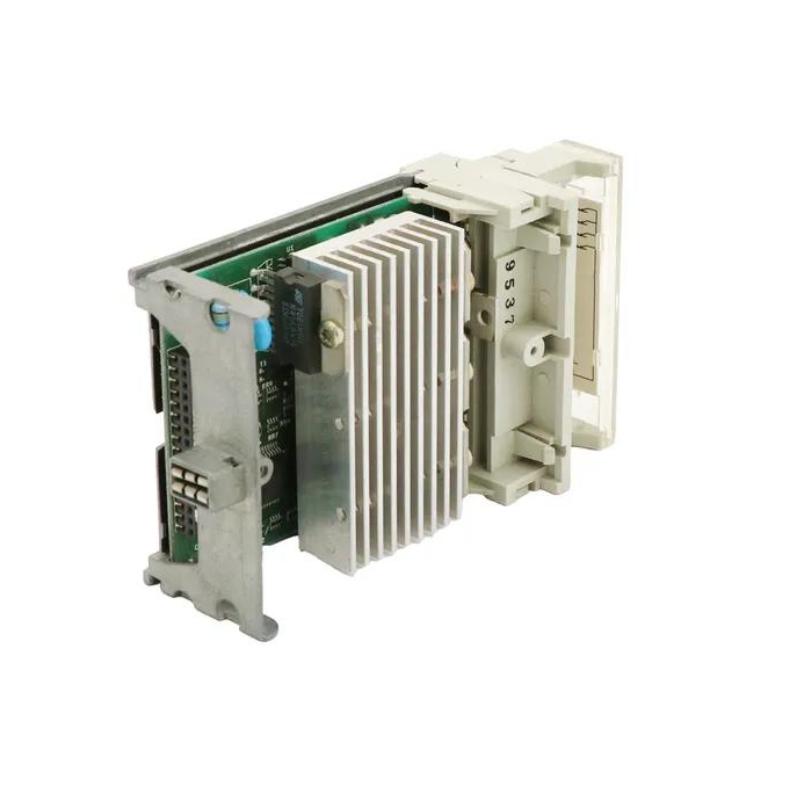

Schneider TSXDSZ04T22 4-channel discrete output DC module

Brand:Schneider PLC
Item No.:TSXDSZ04T22
Product Origin:France
Product Dimensions:22.5 x 100 x 75 mm
Product Weight:0.31kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Schneider TSXDSZ04T22-1Schneider TSXDSZ04T22-3Schneider TSXDSZ04T22-2Schneider TSXDSZ04T22-4

Introduction

The Schneider TSXDSZ04T22 4‑Channel Discrete Output DC Module is a reliable and compact output interface designed for Schneider Electric Modicon TSX / TSX Micro / TSX Premium PLC systems. It provides four independently controlled DC output channels capable of driving small loads such as relays, indicators, and low‑power actuators. Built for industrial reliability, this module offers fast switching, rugged construction, and seamless integration with PLC backplanes, making it ideal for machine control, sequencing, and discrete automation tasks.

Technical Specifications

ParameterSpecification
ModelTSXDSZ04T22
Module TypeDiscrete Output DC Module
SeriesSchneider Modicon TSX / Premium
Number of Channels4 DC outputs
Output TypeSinking (NPN) / Source (PNP) depending on wiring
Output Voltage24 V DC nom.
Output Current0.5 A per channel (max)
Load TypeResistive / Inductive (with appropriate suppression)
Response Time~1 ms typical
IsolationChannel‑to‑backplane isolation
InterfaceBackplane bus connection
Status IndicatorsLED per channel
Operating Temperature-10°C to +55°C
Storage Temperature-25°C to +70°C
MountingPlug‑in on PLC backplane
DimensionsStandard discrete output module form factor
WeightApprox. 0.08 kg


Applications

This 4‑channel output module suits a variety of industrial automation scenarios where controlled DC outputs are required:

  • Relay, solenoid, or indicator control in machine panels
  • Sequential control of conveyors, gates, and valves
  • Discrete automation in packaging, material handling, and assembly lines
  • DC logic actuation as part of PLC process control
  • Interfacing PLC outputs to low‑power external devices

Its small footprint and straightforward wiring make it ideal for systems that require efficient use of I/O space without sacrificing performance.


Advantages

  • Compact and Scalable: Four output channels in a single module simplify expansion without additional hardware.
  • Clear Diagnostics: Channel‑specific LEDs provide visual feedback for output status, aiding troubleshooting.
  • Fast Switching: Rapid response supports real‑time control requirements.
  • Robust Industrial Build: Designed for stable performance in electrical noise and thermal variation conditions typical of industrial environments.
  • Seamless Integration: Plug‑in module interfaces directly with the PLC backplane for clean wiring and quick installation.

These features make the TSXDSZ04T22 a practical and dependable choice for discrete output control in diverse automation applications.


Technical FAQs

1. How many output channels does this module provide?
It offers 4 independently controlled DC outputs.

2. What is the nominal output voltage?
24 V DC nominal.

3. What is the maximum current per channel?
Up to 0.5 A per channel.

4. Does the module support inductive loads?
Yes, with appropriate suppression components (diodes/snubbers).

5. What type of outputs are they?
They are DC discrete outputs suitable for sinking or sourcing depending on wiring.

6. Are there status indicators?
Yes, each channel has an LED status indicator.

7. Can it switch quickly?
Yes, typical response time is approximately 1 ms.

8. How is it mounted?
It plugs into the PLC backplane.

9. What temperature range does it support?
Operating range is -10°C to +55°C.

10. Is isolation provided?
Yes, from channel‑to‑backplane for reliable signal integrity.
